Description

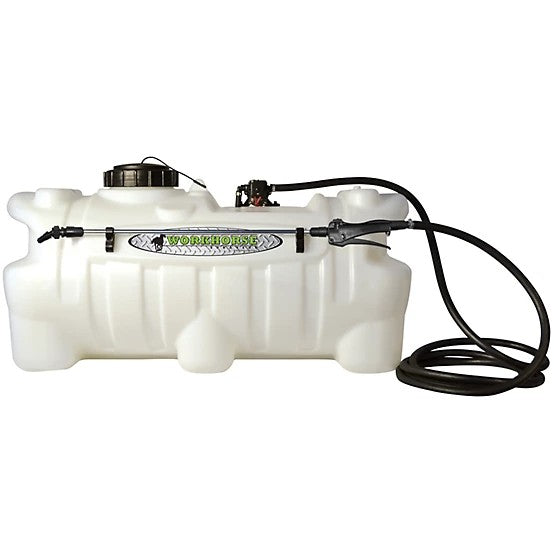

Built for reliable performance and precision, the WorkHorse 25-Gallon 12V Spot Sprayer is ideal for a wide range of property management and agricultural spraying needs. Whether you’re targeting weeds along driveways, applying pesticides in orchards, or fertilizing pastures, this compact boomless sprayer offers efficient and controlled coverage for both small and mid-sized jobs.
The sprayer features a durable polyethylene tank with a generous 25-gallon capacity—reducing the need for frequent refills—and is Roundup® Ready with chemical-resistant construction for long-term reliability. Equipped with a 12V 1.0 GPM demand pump, the unit delivers dependable pressure and flow for spot spraying applications. The included 18-inch spray wand offers an adjustable pattern, and combined with the 15 ft. hose, allows you to reach difficult areas with ease.
Designed with molded wand clips, a 5-inch tethered fill lid, and an 8 ft. wiring harness with battery clips, this unit is easy to use and simple to connect. It’s also compatible with optional boom attachments (sold separately) for added versatility, enabling both spot and broadcast spraying from the same unit.
✅ Key Features
-
25-Gallon Polyethylene Tank
Heavy-duty, chemical-resistant tank with molded drain and tethered 5" lid for fast filling and full drainage.
-
12V Demand Pump (1.0 GPM)
Efficient, reliable diaphragm pump provides consistent flow for spot spraying tasks.
-
18-Inch Spray Wand with Adjustable Nozzle
Provides controlled spray coverage and is ideal for precision targeting or small-area applications.
-
15-Foot x 3/8-Inch Hose
Flexible and chemical-resistant hose offers extended reach without repositioning the unit.
-
Spray Range
Up to 25 feet horizontal and 12 feet vertical with the included handgun wand.
-
Heavy-Duty Manifold & Frame
Rugged design built to withstand tough jobs and regular use.
-
Boom Attachment Ready
Compatible with a variety of boom kits (sold separately) for expanded functionality.
-
Made in the USA
Constructed with durable components and field-tested reliability.
📐 Technical Specifications
| Specification |
Details |
| Brand |
WorkHorse Sprayers |
| Model Number |
G23-LG25ESS |
| Tank Capacity |
25 gallons |
| Tank Material |
Polyethylene (chemical-resistant, Roundup® Ready) |
| Pump Type |
12V demand diaphragm pump |
| Maximum Flow Rate |
1.0 GPM |
| Maximum Pressure |
40 PSI |
| Spray Wand Type |
18 in. lever handgun with adjustable nozzle |
| Spray Distance - Horizontal |
Up to 25 ft. |
| Spray Distance - Vertical |
Up to 12 ft. |
| Hose Length |
15 ft. |
| Hose Diameter |
3/8 in. |
| Hose Reel |
No |
| Boom Compatibility |
Yes (boom sold separately) |
| Boom Width |
N/A |
| Number of Nozzles |
1 |
| Voltage Requirement |
12V DC |
| Fill Lid Diameter |
5 in. (tethered) |
| Wiring Harness |
8 ft. with battery clips |
| Product Dimensions (L x W x H) |
36 in. x 19 in. x 19 in. |
| Product Weight |
21 lb. |
| Swath |
20 in. |
| Recommended Chemicals |
Fertilizers, Herbicides, Pesticides, Fungicides, Insecticides, Other |
| Features |
Handgun included, boom-ready design, chemical-resistant components |
| Country of Origin |
Made in USA |
| Warranty |
1-Year Limited Warranty |
