Description
The WorkHorse 15-Gallon Boomless Trailer Sprayer is built to deliver powerful and efficient liquid application across large areas with ease. Ideal for pastures, row crops, and rugged off-road terrain, this trailer-mounted sprayer is a highly dependable tool for both commercial and residential spraying jobs.
This sprayer eliminates the need for traditional boom arms by utilizing boomless nozzles, offering a 100 in. spray swath with fewer moving parts—perfect for uneven or obstacle-filled terrain. The durable polyethylene tank, 12V diaphragm pump, and reinforced construction make this a long-lasting and low-maintenance solution for anyone needing spot or broadcast spraying power behind an ATV, UTV, or lawn tractor.
Key Features:
-
Compact Boomless Design:

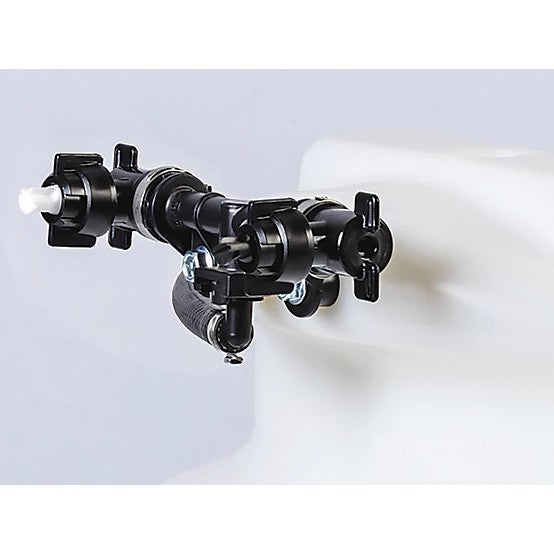

Boomless sprayer setup delivers a wide 100-inch spray pattern without the hassle or fragility of boom arms—ideal for navigating pastures, wooded trails, or uneven ground.
-
15-Gallon Polyethylene Tank:
Durable and chemical-resistant tank is UV-stabilized and designed for long-term use with fewer refills.
-
12V Diaphragm Pump:
Features a 1.0 GPM pump delivering 0–60 PSI, providing reliable pressure for broadcast and spot spraying.
-
Long-Reach Spray Gun:
Includes a 15 ft. EPDM hose with handgun, offering up to 25 ft. horizontal and 12 ft. vertical spray range for hard-to-reach areas.
-
Heavy-Duty Construction:
Rugged frame and PVC-reinforced 3/8 in. hose withstand frequent use in tough conditions.
-
Convenient Hookup:
Comes with a standard 8 ft. universal wiring harness for simple 12V battery connection.
-
Chemical Compatibility:
Safe for use with a wide range of lawn and agricultural chemicals, including RoundUp® and other herbicides and fertilizers.
-
Towable Versatility:
Designed to be towed behind most ATVs, UTVs, and lawn tractors using a pin-style hitch.
Specifications:
| Category |
Details |
| Brand |
WorkHorse Sprayers |
| Model Number |
G23-LG15ETS |
| Country of Origin |
Made in USA |
| Sprayer Type |
Tow-Behind Trailer Sprayer |
| Design |
Boomless (2 Nozzles) |
| Tank Capacity |
15 Gallons |
| Tank Material |
Polyethylene (Chemical-Resistant) |
| Pump Type |
Diaphragm |
| Power Type |
12 Volt DC |
| Maximum Flow Rate |
1.0 GPM |
| Maximum Operating Pressure |
60 PSI |
| Spray Swath (Coverage Width) |
100 in. |
| Nozzle Count |
2 (Boomless Spray Nozzles) |
| Hose Length |
15 ft. |
| Hose Diameter |
3/8 in. (PVC Reinforced) |
| Spray Gun Reach |
25 ft. (Horizontal), 12 ft. (Vertical) |
| Mounting Type |
Pin Hitch |
| Pump Connection |
8 ft. Universal Wiring Harness |
| Recommended Chemicals |
Fertilizers, Herbicides (RoundUp Ready) |
| Product Dimensions (L x W x H) |
45.5 in. x 18.5 in. x 16.5 in. |
| Product Weight |
42 lbs |
| Color |
Black |
| Brand Compatibility |
Universal |
| Warranty |
1-Year Limited |
