Description
Professional-Grade Home Backup Power with Smart Safety Features

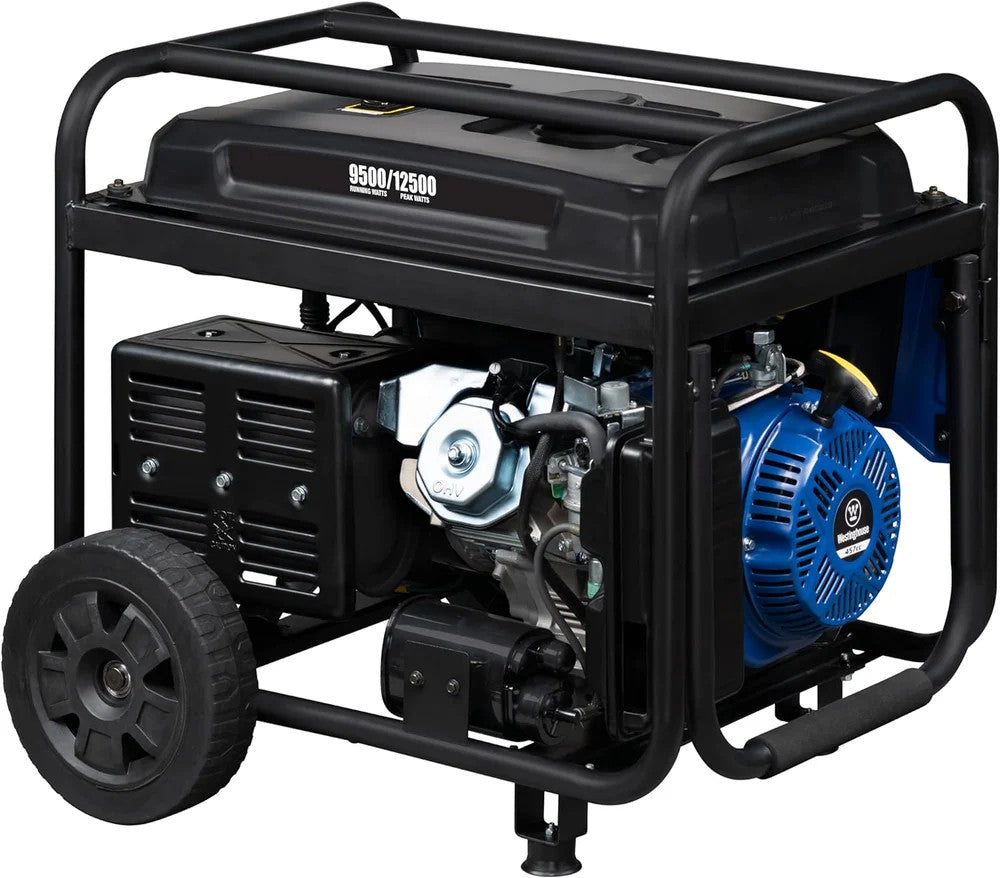

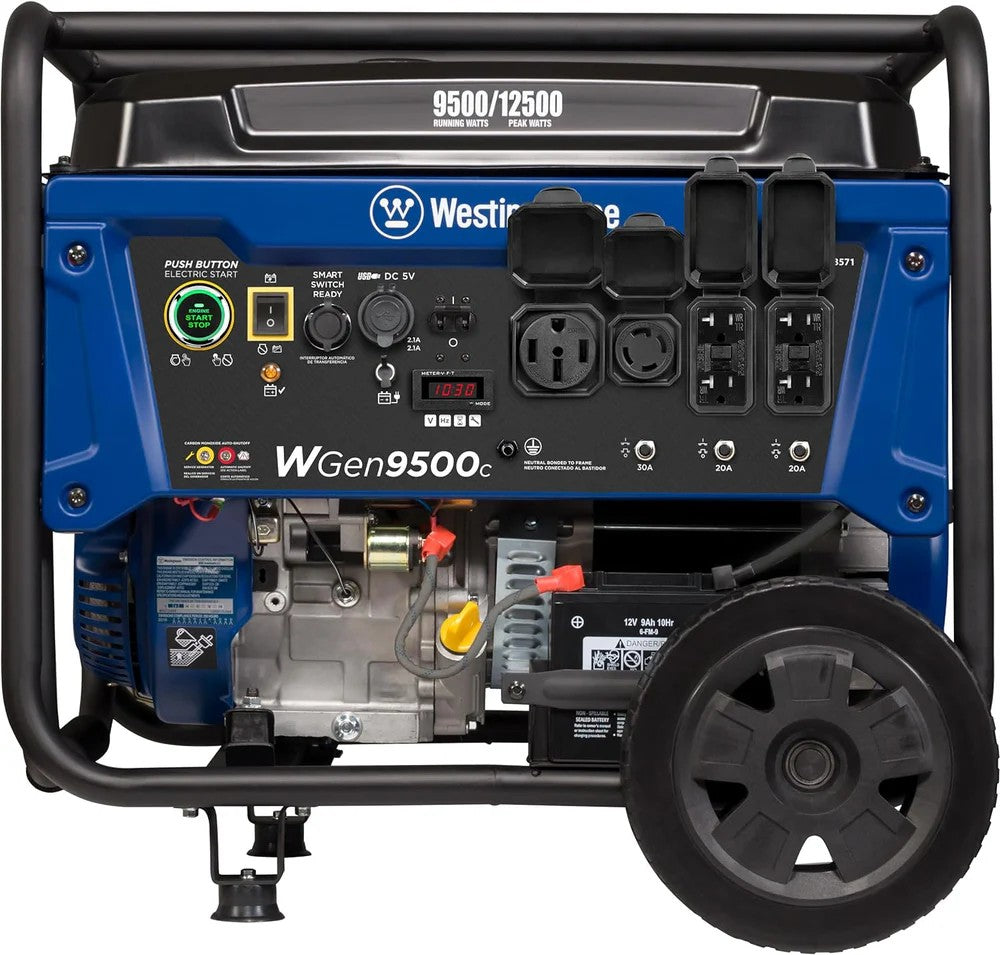

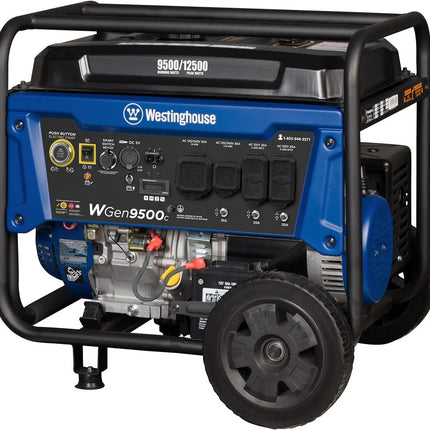

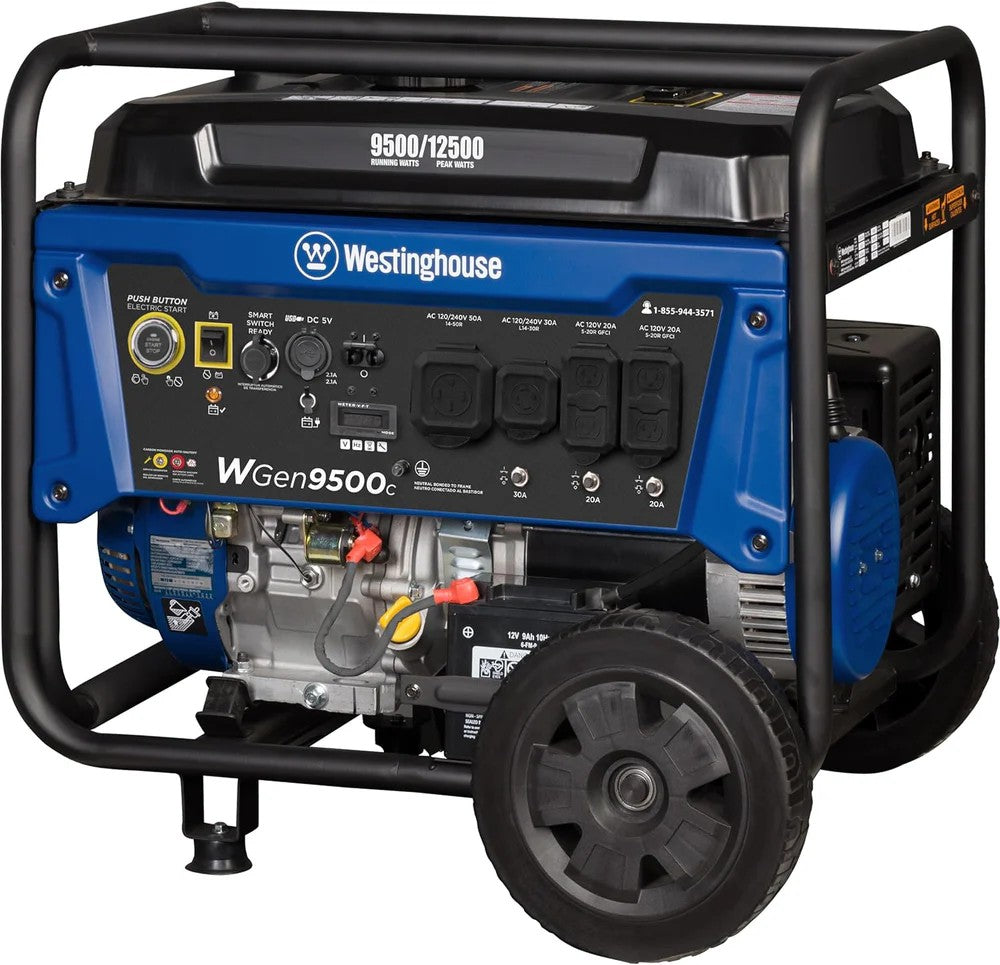

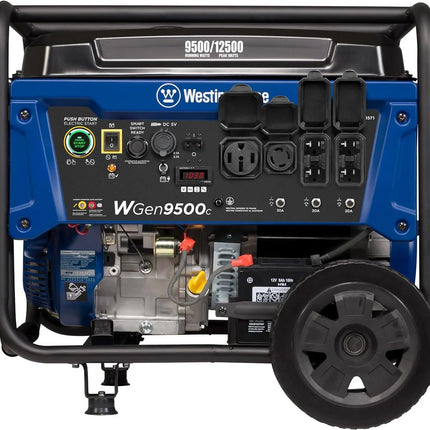

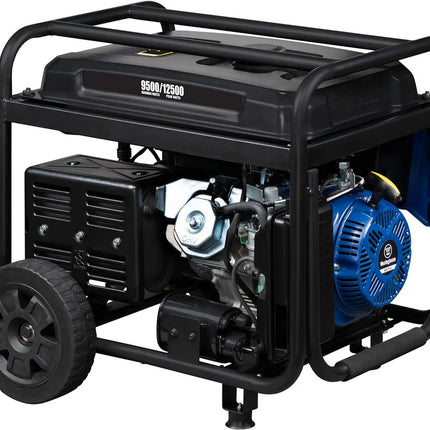

The Westinghouse WGen9500c delivers 12,500 peak watts and 9,500 running watts of clean, stable power, making it ideal for whole-home backup, job sites, and RV use. Featuring a heavy-duty 457cc OHV engine with cast iron sleeve, remote start capability, and CO sensor with automatic shutdown, this generator combines industrial-strength performance with advanced safety technology. The 74 dBA quiet operation and 12-hour runtime ensure reliable power when you need it most.
Key Features & Benefits
Power & Performance
✔ 12,500 Peak Watts / 9,500 Running Watts – Powers entire homes and heavy equipment
✔ 457cc 4-Stroke OHV Engine – Cast iron sleeve construction for maximum durability
✔ Extended Runtime – Up to 12 hours @ 25% load (6.6-gallon tank)
✔ Clean Power Output – ≤23% THD for safe operation with sensitive electronics
Smart Operation & Safety
✔ CO Sensor with Automatic Shutdown – Protects against carbon monoxide poisoning
✔ VFT Digital Display – Real-time monitoring of voltage, frequency, and runtime
✔ Automatic Low Oil Shutdown – Prevents engine damage
✔ Overload Protection – Safeguards connected devices
Convenient Starting & Portability
✔ Push-Button Electric Start – Quick and effortless ignition
✔ Remote Start Key Fob – Start/stop from up to 260 ft away
✔ Recoil Backup Start – Manual pull-start if needed
✔ Never-Flat Wheels & Foam Grip Handle – Easy transport (209 lbs)
Professional Connectivity

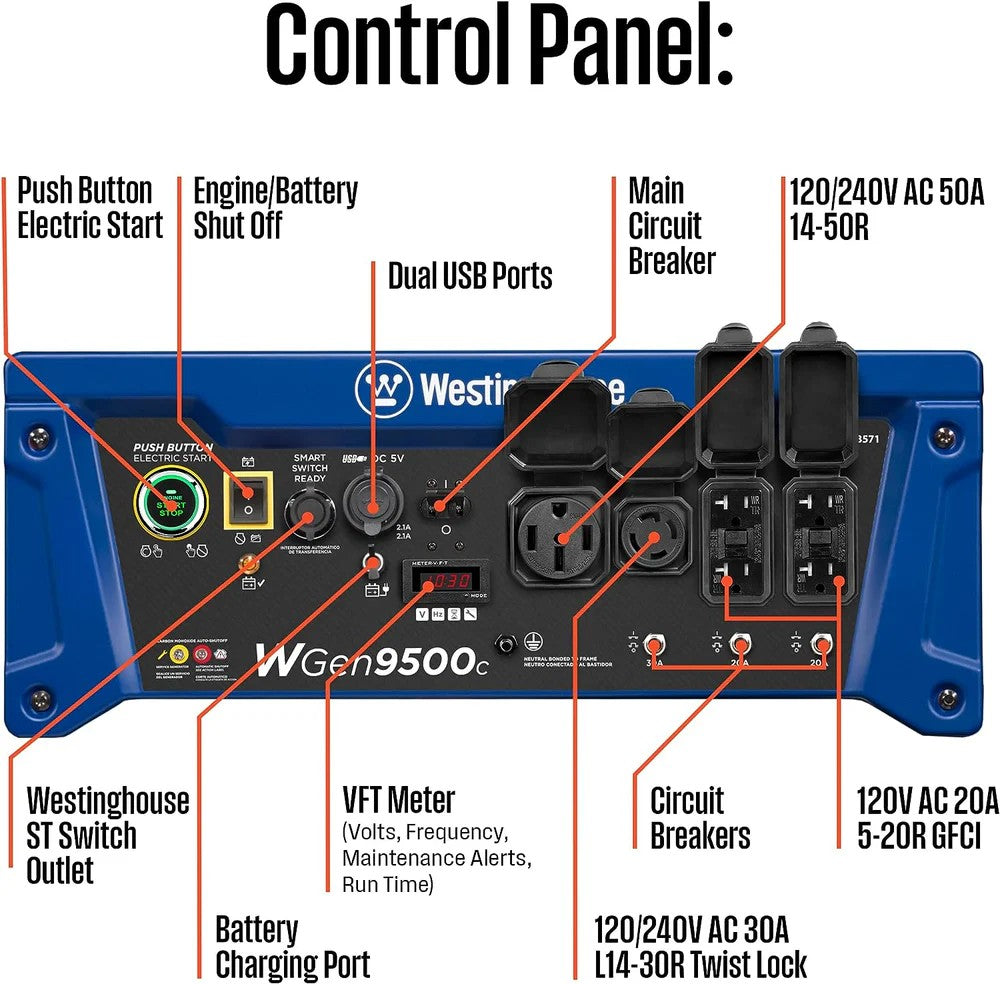

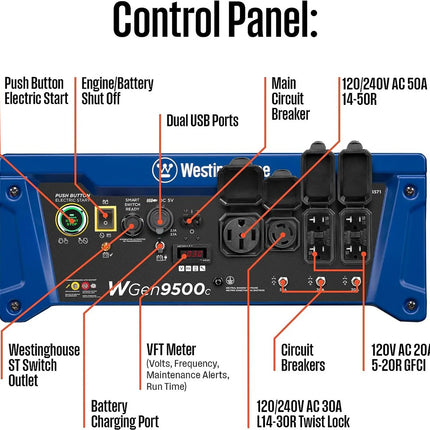

✔ Multiple Outlet Options:
-
(1) 120/240V 50A (14-50R) – Powers RVs and large appliances
-
(1) 120/240V 30A (L14-30R) – Transfer switch compatible
-
(2) 120V 20A GFCI Outlets – Safe for household electronics
-
(2) USB Ports – Charge phones and small devices
✔ RV & Transfer Switch Ready – Seamless integration with home backup systems
Technical Specifications
Power Output
| Category |
Specification |
| Peak Watts |
12,500W |
| Running Watts |
9,500W |
| Max AC Current |
104A @ 120V / 52A @ 240V |
| Rated AC Current |
79A @ 120V / 39.5A @ 240V |
| Runtime @ 25% Load |
12 hours |
Electrical Specifications
| Feature |
Details |
| Voltage |
120/240V |
| Frequency |
60 Hz |
| THD |
≤23% |
| Noise Level |
74 dBA |
| Outlets |
2x 120V 20A GFCI, 1x L14-30R, 1x 14-50R, 2x USB |
Engine & Fuel System
| Feature |
Details |
| Engine Type |
457cc 4-Stroke OHV (Cast Iron Sleeve) |
| Starting System |
Electric + Remote Start + Recoil Backup |
| Fuel Tank Capacity |
6.6 gallons |
| Oil Capacity |
37.2 oz (10W-30 Recommended) |
Dimensions & Weight
| Feature |
Details |
| Dimensions (LxWxH) |
27.2" x 26.1" x 26.5" |
| Weight (Dry) |
209.1 lbs |
| Wheels |
Never-Flat 10" |
Warranty & Compliance
| Feature |
Details |
| Residential Warranty |
3-Year Limited |
| Commercial Warranty |
1-Year Limited |
| CARB Compliant |
No |
| EPA Certified |
Yes |
Why Choose the Westinghouse WGen9500c?
✅ CO Safety Feature – Automatic shutdown prevents CO poisoning
✅ Remote Start Capability – Convenient operation from a distance
✅ Heavy-Duty Construction – Built to last with cast iron engine components
✅ Quiet Operation – Only 74 dBA noise level
✅ Transfer Switch & RV Ready – Seamless integration for home backup
Perfect For:
-
Whole-Home Backup (Sump pumps, refrigerators, AC units)
-
Job Sites & Contractors (Power tools, air compressors)
-
RV & Camping (50A outlet for large RVs)
-
Emergency Preparedness (Reliable power during outages)
Includes:
