Description
Compact, Reliable Power for Home & RV Use
Product Overview

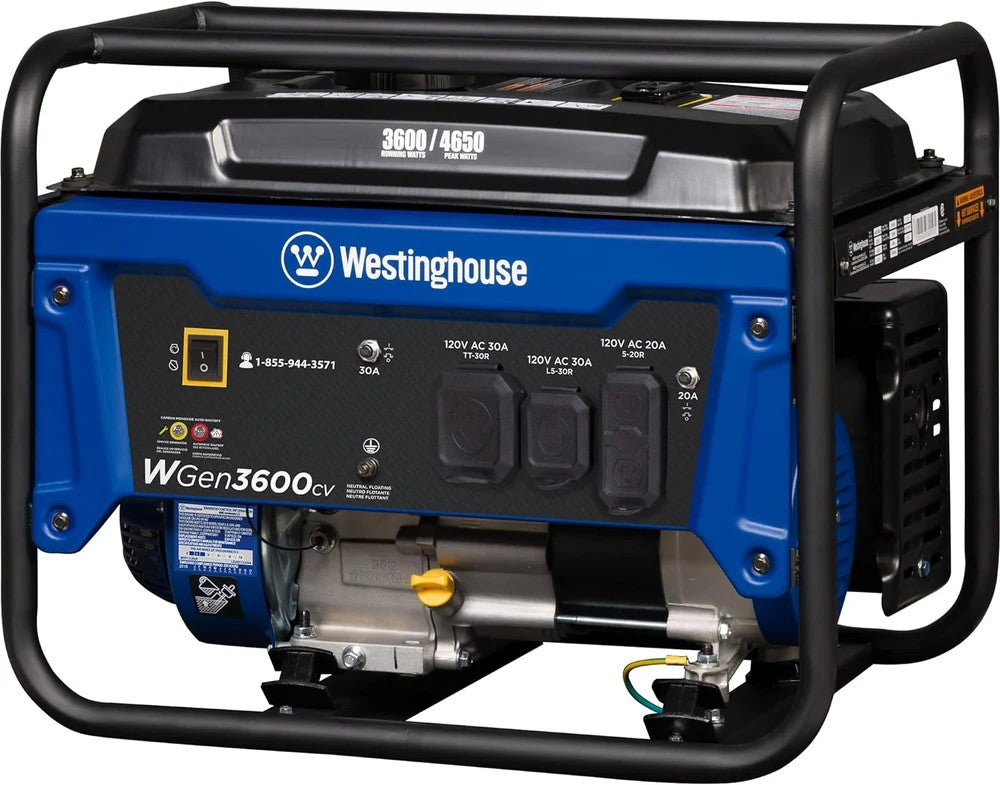

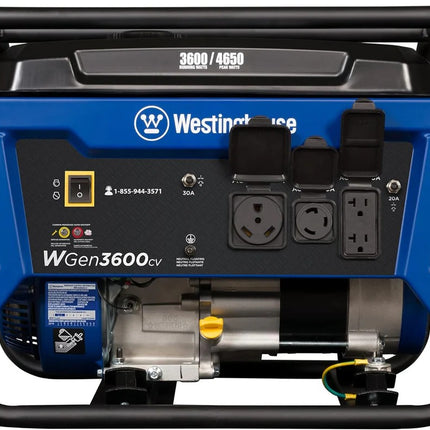

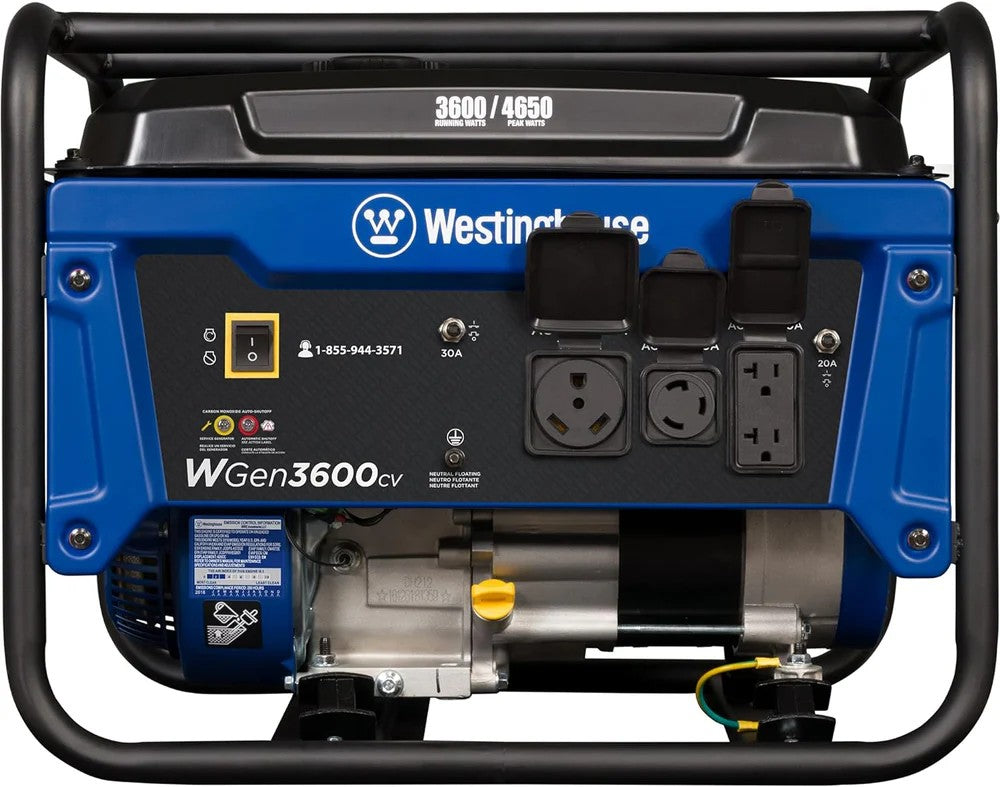

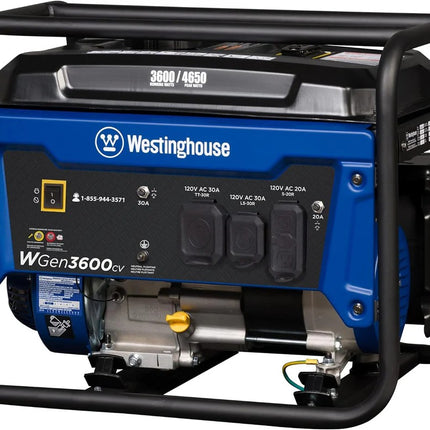

The Westinghouse WGen3600cv is a lightweight yet powerful portable generator, delivering 3,600 running watts and 4,650 peak watts—perfect for home backup, camping, and RV use. With a 4-gallon fuel tank, it runs for up to 14 hours (at 25% load) and features a durable 212cc OHV engine with cast iron sleeve for long-lasting performance. The built-in CO sensor ensures safety by shutting down if dangerous carbon monoxide levels are detected.
Key Features & Benefits
✔ Powerful & Efficient – 3,600W continuous / 4,650W surge for essential appliances
✔ Extended Runtime – 4-gallon tank provides 14 hours at 25% load
✔ RV Ready – Includes TT-30R (30A RV outlet) & L5-30R (twist-lock)
✔ Ultra-Quiet Operation – Only 68 dBA (quieter than most competitors)
✔ Durable OHV Engine – 212cc 4-stroke with cast iron sleeve
✔ Safety First – CO sensor, low-oil shutdown, and overload protection
✔ Compact & Portable – Just 100.6 lbs with easy-grip handles
Technical Specifications
Power Output & Performance
| Specification |
Details |
| Peak Watts |
4,650W |
| Running Watts |
3,600W |
| Voltage |
120V |
| Frequency |
60Hz |
| Peak Amps |
38A |
| Running Amps |
30A |
| THD (Total Harmonic Distortion) |
≤23% |

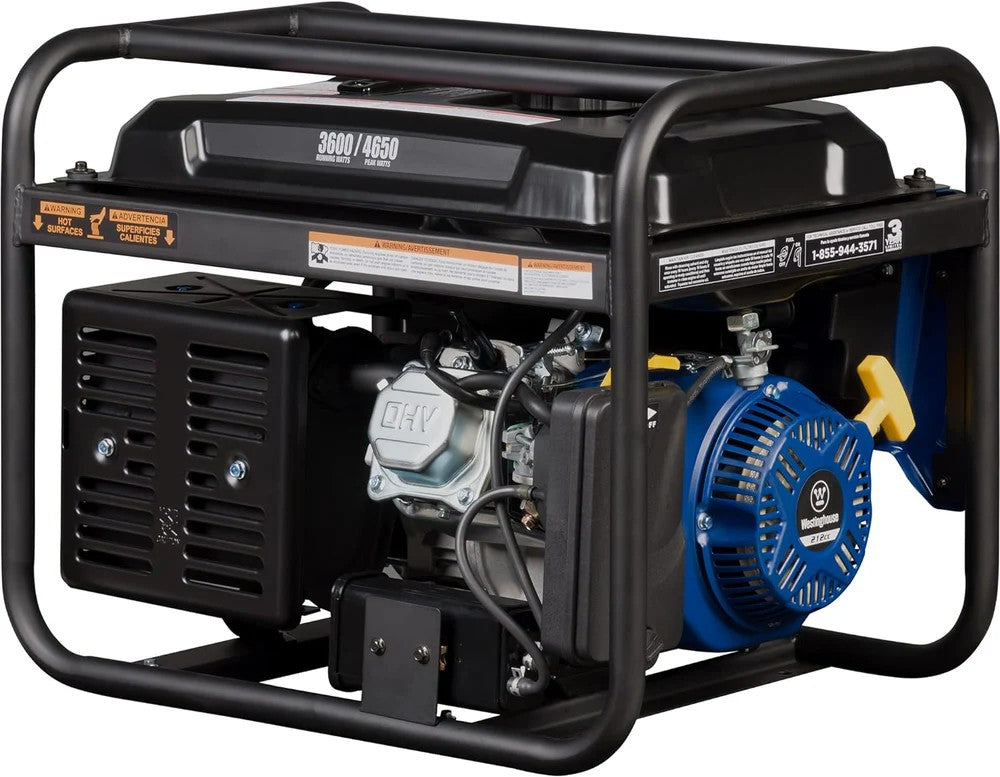

Engine & Fuel
| Engine Type | 212cc 4-Stroke OHV |
| Engine Construction | Cast Iron Sleeve |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 4 Gallons (15L) |
| Run Time (25% Load) | 14 Hours |
| Run Time (50% Load) | 10.5 Hours |
| Oil Type | 10W-30 |
| Oil Capacity | 20.3 oz (0.6 qt) |

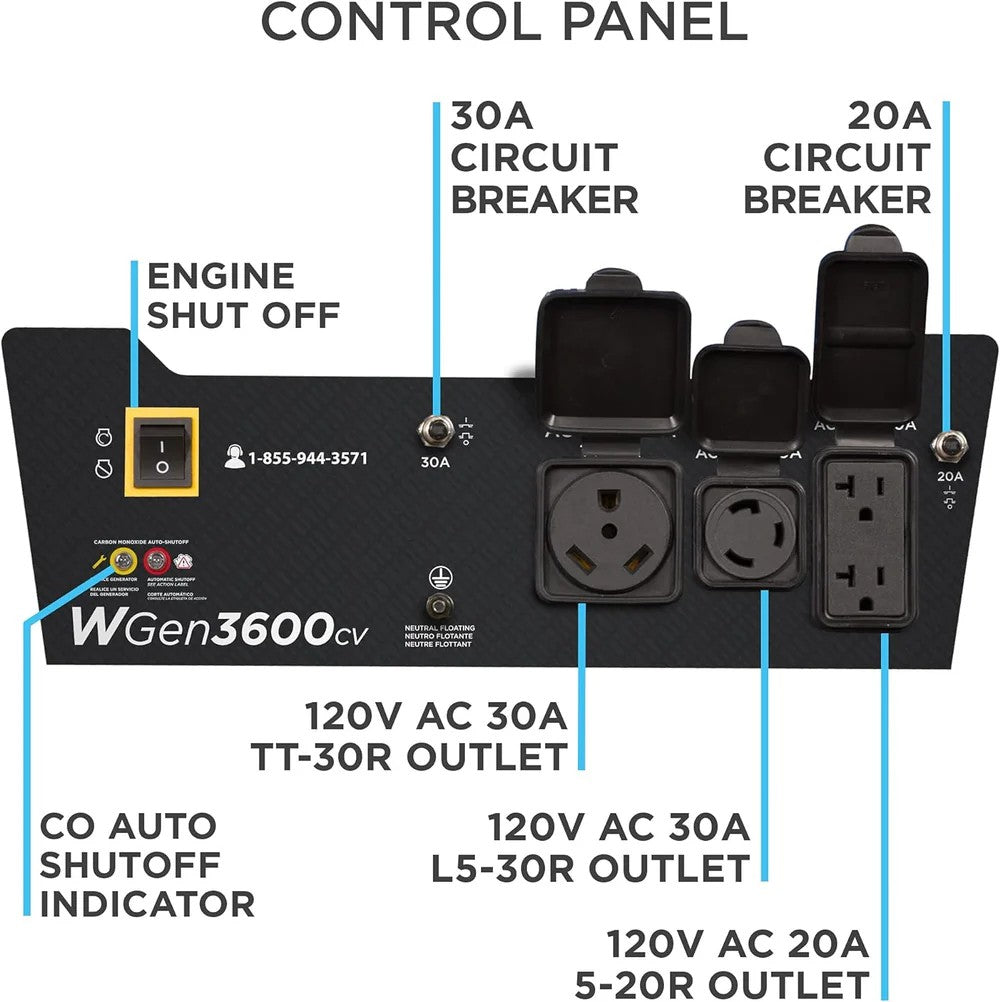

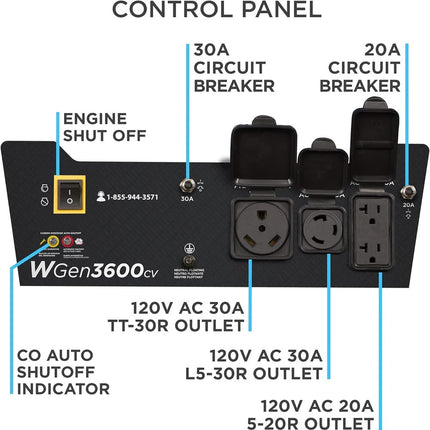

Outlets & Connectivity
🔌 1 x 120V Duplex (5-20R) – Standard household outlets
🔌 1 x 120V L5-30R (Twist-Lock) – Heavy-duty power
🔌 1 x 120V TT-30R (RV Outlet) – Powers travel trailers & RVs
Safety & Protection
✅ CO Sensor with Auto Shutdown – Prevents carbon monoxide hazards
✅ Low-Oil Shutdown – Protects engine from damage
✅ Overload Protection – Safeguards connected devices
✅ Rubber Outlet Covers – Weather-resistant protection
Dimensions & Portability
| Weight (Dry) | 100.6 lbs (45.6 kg) |
| Dimensions (LxWxH) | 23.3" x 17.5" x 18.7" |
| Shipping Weight | 107.1 lbs (48.6 kg) |
Warranty & Compliance
📜 3-Year Residential Warranty / 1-Year Commercial Warranty
⚠️ Not CARB Compliant (Not for sale in California)

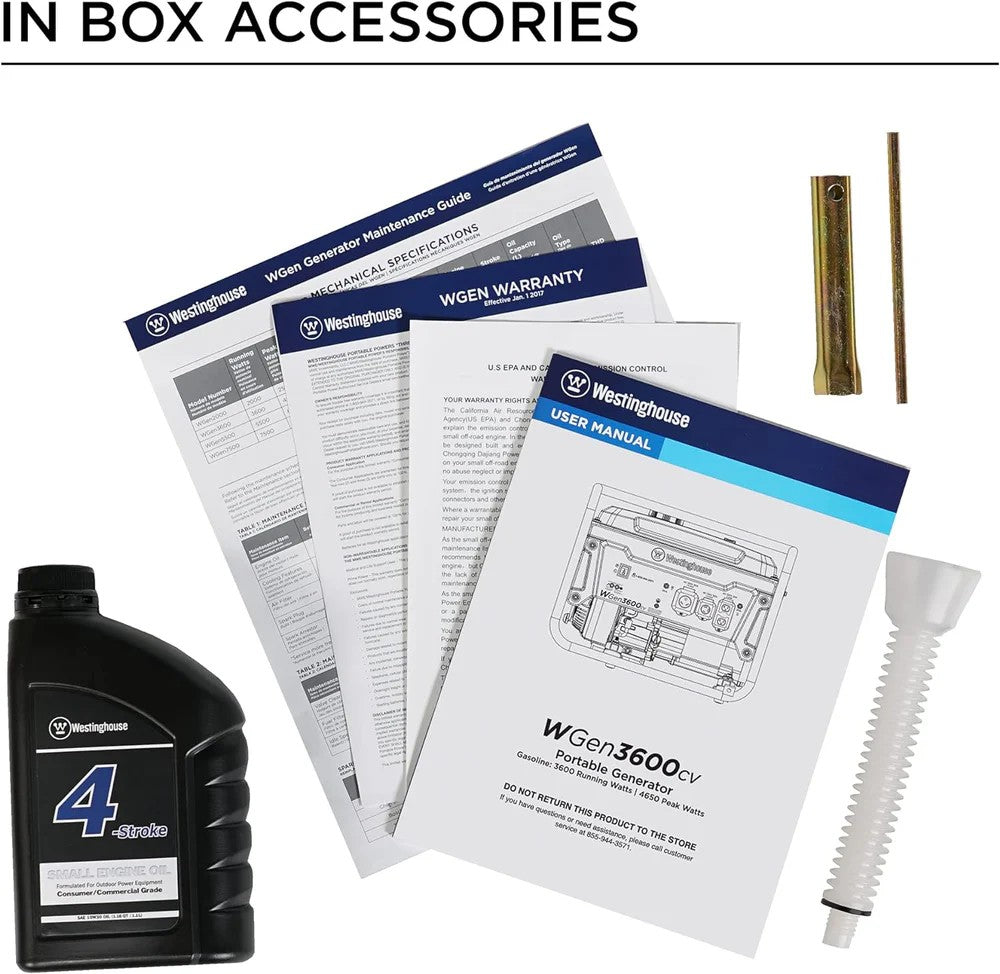

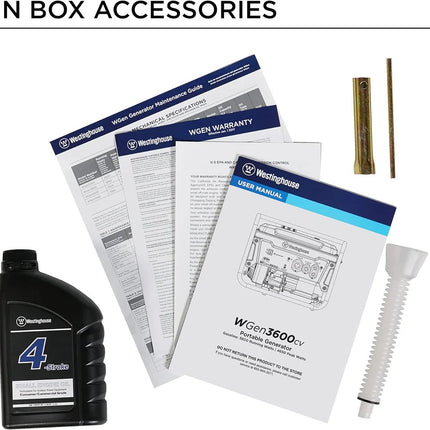

What’s Included?
Ideal Applications
🏠 Home Backup – Keeps lights, fridges, and essentials running
🏕️ RV & Camping – Powers travel trailers and outdoor trips
🛠️ Job Sites – Reliable power for tools and small equipment
🎪 Outdoor Events – Quiet enough for tailgating and parties
Why Choose the Westinghouse WGen3600cv?
-
Lightweight & Compact – Easy to transport at just 100.6 lbs
-
RV-Ready Power – Includes TT-30R & L5-30R outlets
-
Built to Last – Cast iron engine sleeve for durability
-
Safety Features – CO sensor & low-oil shutdown for peace of mind
Get dependable, portable power with the Westinghouse WGen3600cv!
