Professional-Grade Magnetic Drilling Solution for Steel Fabrication
Product Overview

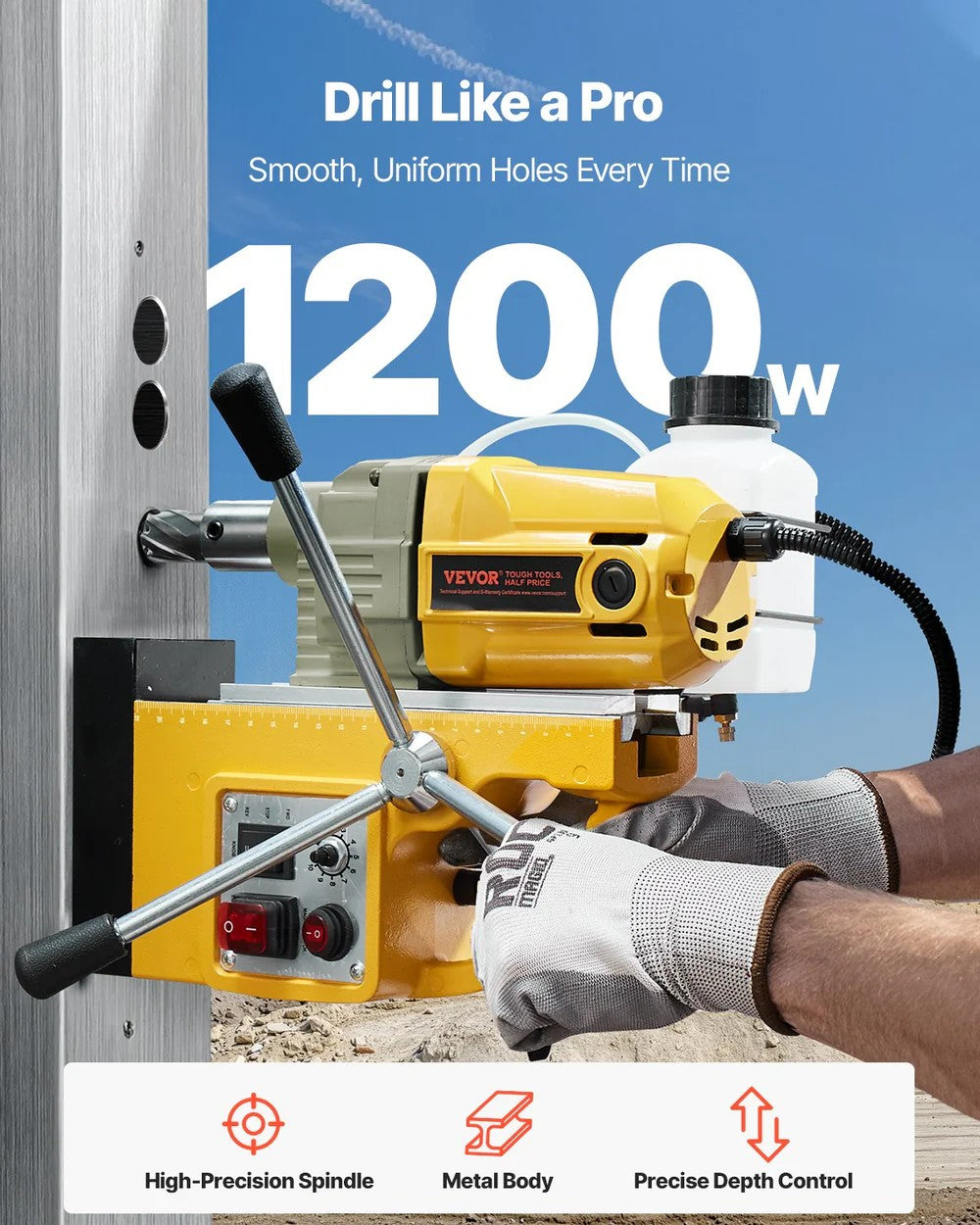

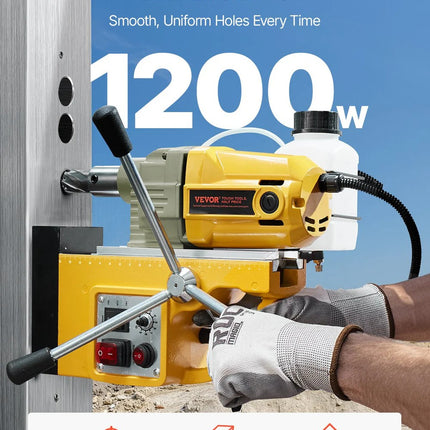

The Vevor 1200W Magnetic Drill delivers industrial-strength performance with 12,500N (2,810 lbf) magnetic adhesion and variable speed control (0-850 RPM). Engineered for precision drilling in steel and iron, this rugged tool features a copper motor, titanium-magnesium alloy rail, and includes two HSS annular cutter bits (1/2" and 5/8") for immediate productivity.
Key Features
⚡ Powerful Drilling Performance
-
1200W copper motor delivers consistent power for demanding applications
-
0-850 RPM variable speed for optimized drilling in different materials
-
1.6" (40mm) max coring diameter handles substantial drilling tasks
-
2" (50mm) max coring depth for through-holes in thick materials
🧲 Exceptional Stability
-
12,500N (2,810 lbf) electromagnetic force creates a secure connection
-
Works at any angle - horizontal, vertical, or overhead
-
Titanium-magnesium alloy rail for enhanced durability and wear resistance
🛡️ Advanced Safety Features
-
Built-in cooling system prevents overheating during extended use
-
Overload protection safeguards motor from damage
-
Minimum 0.39" (10mm) steel thickness requirement for optimal performance
🛠️ User-Friendly Design
-
Integrated millimeter scale for precise depth measurement
-
Three extended crank handles with ergonomic grips
-
Weldon 3/4" shank for secure bit retention
-
Compact 25.6 lb design for easy transport
Technical Specifications
| Category |
Specification |
| Model Number |
ZT-40HAR |
| Power |
1200W |
| Voltage |
110V |
| Speed Range |
0-850 RPM |
| Magnetic Force |
12,500N (2,810 lbf) |
| Max Coring Diameter |
1.6" (40mm) |
| Max Coring Depth |
2" (50mm) |
| Max Twist Drill Diameter |
0.6" (16mm) |
| Max Twist Drill Depth |
3.9" (100mm) |
| Tap Size Range |
M3-M16 |
| Spindle Travel |
6.3" (160mm) |
| Shank Type |
Weldon 3/4" |
| Dimensions |
11.4" × 8.3" × 15" (290 × 210 × 380 mm) |
| Weight |
25.6 lbs (11.6 kg) |

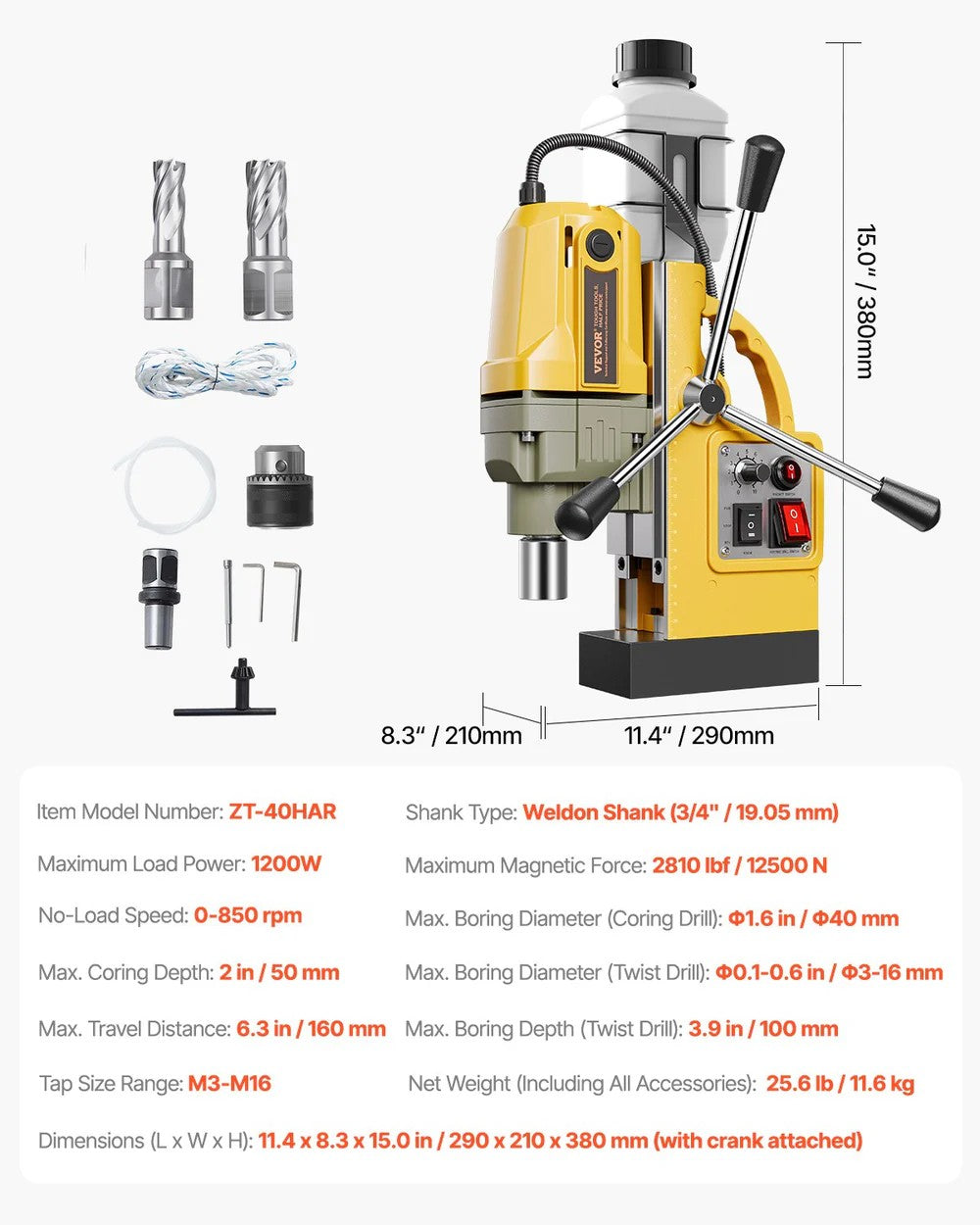

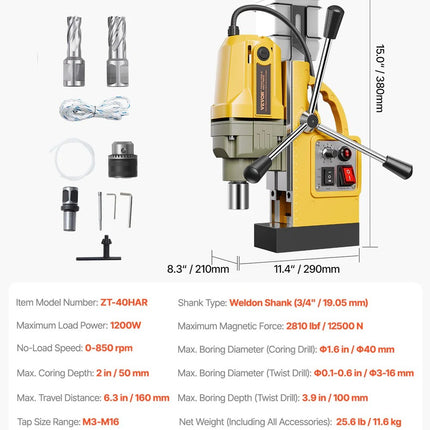

What's Included
-
1 × Vevor Magnetic Drill Press
-
2 × HSS Annular Cutter Bits (1/2" and 5/8")
-
3 × Extended Crank Handles
-
All Required Mounting Hardware
Why Choose This Magnetic Drill?
✅ Variable speed control for different materials
✅ Industrial 12,500N holding force for stability
✅ Durable titanium-magnesium construction
✅ Includes two quality cutter bits
✅ Compact and portable design
