Description
Industrial-Grade Magnetic Drilling Solution for Steel Fabrication
Professional Performance with Complete Bit Set
The Vevor 1100W Magnetic Drill Press delivers powerful, precise drilling with 12,000N (2,697 lbf) magnetic adhesion and 580 RPM optimized speed. This complete kit includes 6 coring bits (12mm-26mm) and 1 twist drill (10mm) for immediate productivity in steel construction and metal fabrication.
Premium Features:
✔ 1100W copper motor for heavy-duty drilling
✔ 580 RPM constant speed for clean cuts
✔ 1.57" (40mm) max boring diameter
✔ 2.17" (55mm) max drilling depth
✔ Complete 7-piece bit set included
Key Features & Benefits
🔧 High-Performance Drilling
-
1100W copper motor – Powers through structural steel
-
580 RPM constant speed – Optimal for clean, precise holes
-
1.57" (40mm) max coring diameter – Handles large bore applications
-
2.17" (55mm) max depth – Through thick materials
🧲 Industrial-Strength Magnetic Base
-
12,000N (2,697 lbf) holding force – Stays locked during operation
-
Pure iron electromagnetic base – Maximum adhesion to steel
-
Multi-directional capability – Works in any position

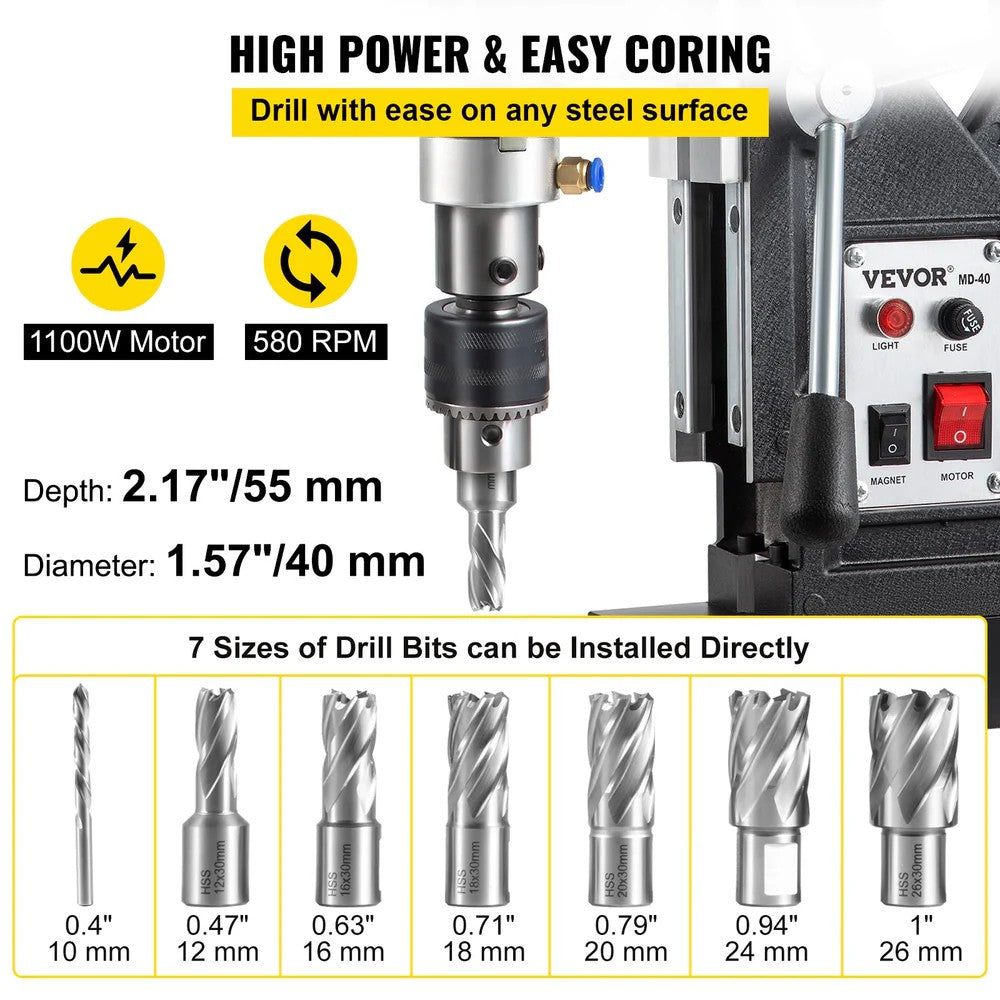

🛠️ Complete Professional Bit Set
-
6 HSS coring bits:
12mm, 16mm, 18mm, 20mm, 24mm, 26mm
-
1 HSS twist drill: 10mm
-
Ready for immediate use – No additional bits required
❄️ Advanced Cooling System
-
Built-in coolant tank – Prevents overheating
-
Fast heat dissipation – Extends tool life
-
Clear control panel – Easy operation monitoring
🔄 Ergonomic Design
-
3 extended crank handles – Comfortable operation
-
Compact 24.25 lb design – Portable for job sites
-
Easy-to-read indicators – For precise drilling
Technical Specifications
| Feature |
Specification |
| Model |
VV-MD-US7 |
| Power |
1100W, 110V, 50/60Hz |
| Speed |
580 RPM |
| Magnetic Force |
12,000N (2,697 lbf) |
| Max Coring Diameter |
1.57" (40mm) |
| Max Twist Drill Diameter |
0.63" (16mm) |
| Max Drilling Depth |
2.17" (55mm) |
| Spindle Travel |
4.92" (125mm) |
| Base Size |
6.54" x 3.15" x 1.97" |
| Dimensions |
14.2" x 11" x 4.7" |
| Weight |
24.25 lbs (11 kg) |

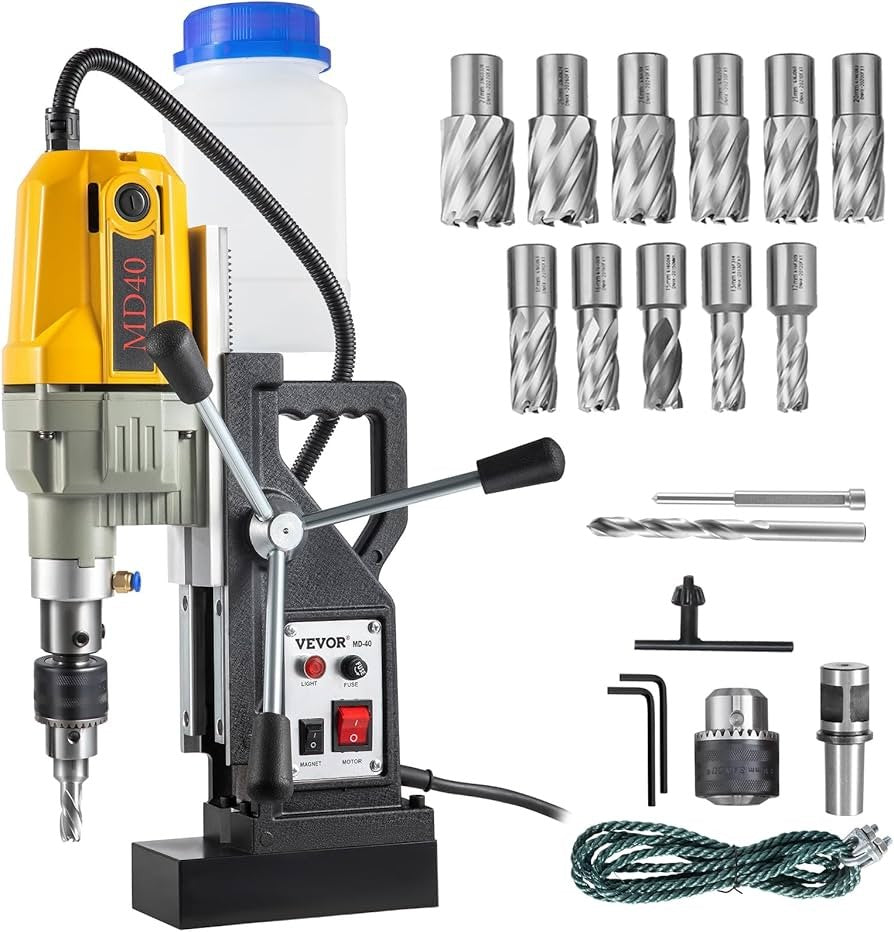

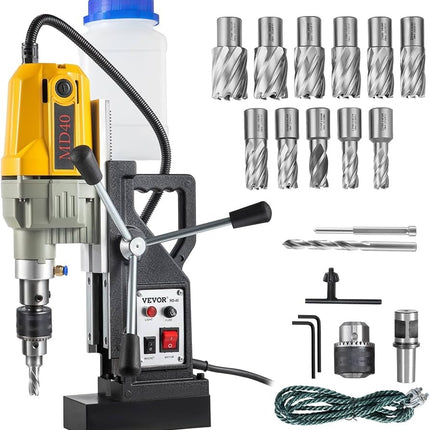

What's Included
-
1 × Vevor Magnetic Drill Press
-
6 × HSS Coring Bits (12mm-26mm)
-
1 × HSS Twist Drill (10mm)
-
3 × Extended Crank Handles
-
Coolant Tank System
-
All Required Hardware
Why Choose This Kit?
✅ 7-piece bit set included – Ready for immediate use
✅ Industrial 12,000N magnetic force – No slipping
✅ Optimized 580 RPM speed – Clean steel cuts
✅ Built-in coolant system – Extends tool life
✅ Compact and portable – Only 24.25 lbs
