Description
Professional Laser Cutting & Engraving for Makers and Small Businesses

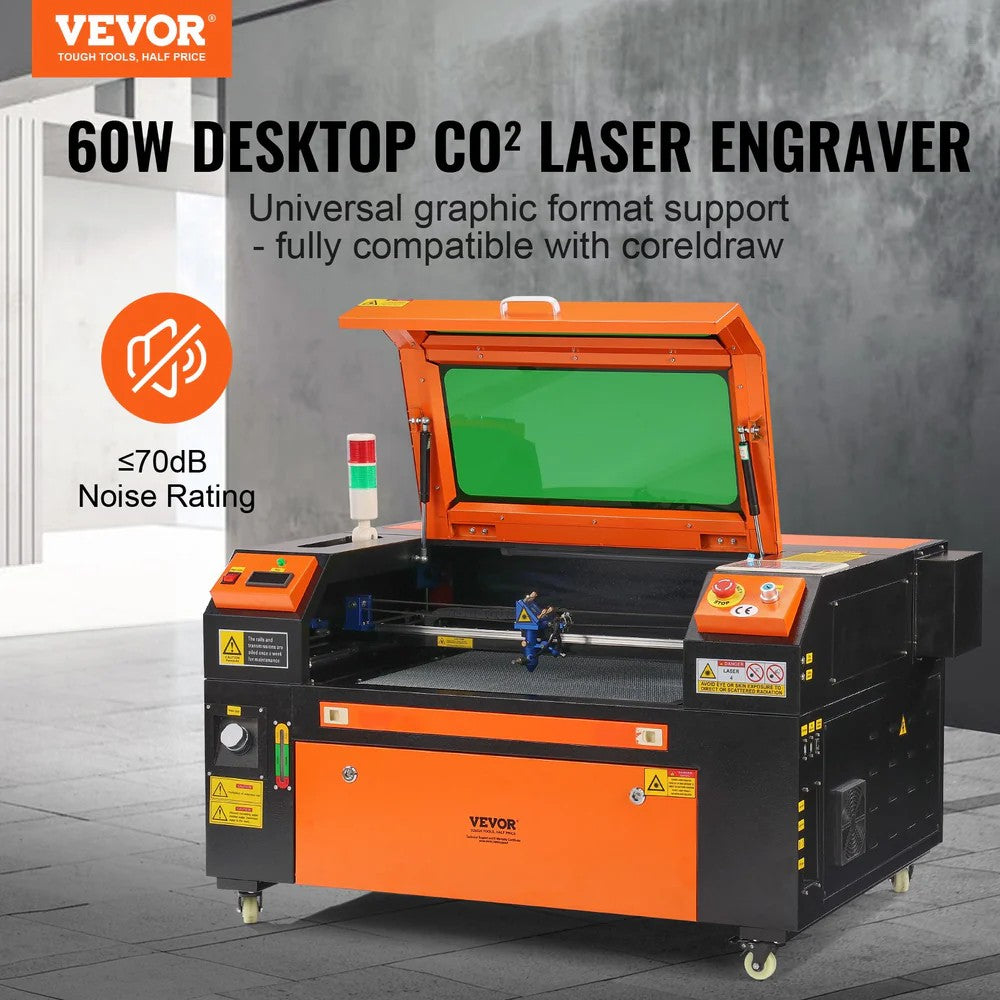

The VEVOR KH6040 60W CO2 Laser Engraver delivers industrial-grade performance in a compact, user-friendly package. With a spacious 16" x 24" work area, 19.7 IPS (500 mm/s) engraving speed, and 0.31" (8mm) cutting capacity, this machine handles wood, acrylic, leather, glass, and more with exceptional precision. Equipped with an upgraded Ruida digital controller, 2-way air assist, and honeycomb workbed, it's perfect for prototyping, custom fabrication, and small-scale production.
Key Features & Benefits
✔ 60W CO2 Laser Tube – Cuts up to 0.31" (8mm) thick materials and engraves at high speed
✔ Large 16" x 24" Work Area – Fits medium to large projects (384 in² workspace)
✔ High-Speed Engraving (19.7 IPS / 500 mm/s) – Efficient for detailed designs & rapid production
✔ Ruida Digital Control Panel – Precise power & speed adjustments with LightBurn, CorelDRAW, AutoCAD compatibility
✔ 2-Way Air Assist System – Reduces scorching and improves cut quality
✔ Honeycomb Workbed – Stable, ventilated surface for cleaner cuts
✔ Intelligent Laser Head – Red-dot pointer & linear guide rails for precision alignment
✔ Pass-Through Doors – Allows engraving of oversized materials
✔ Safety Features – Tinted viewing window, emergency stop, auto-shutoff when opened
✔ Movable Wheels – Easy repositioning in your workshop

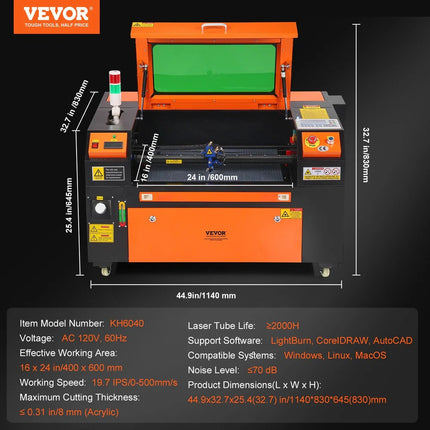

Technical Specifications
| Category |
Specification |
| Model Number |
KH6040 |
| Laser Type |
60W CO2 Glass Tube |
| Laser Tube Life |
≥2,000 Hours |
| Work Area |
16" x 24" (384 in²) |
| Max Cutting Thickness |
0.31" (8mm) |
| Engraving Speed |
Up to 19.7 IPS (500 mm/s) |
| Positioning Accuracy |
±0.01" (0.1mm) |
| Voltage |
AC 120V, 60Hz |
| Compatible Software |
LightBurn, CorelDRAW, AutoCAD |
| Operating Systems |
Windows, Linux, macOS |
| Connectivity |
USB, Ethernet, Wi-Fi (via software) |
| Air Assist |
2-Way Nozzle (Compressor Required) |
| Noise Level |
≤70 dB |
| Machine Dimensions |
44.9" x 32.7" x 25.4" |
| Machine Weight |
242.5 lbs (110 kg) |
| Warranty |
Manufacturer Warranty (Check with Seller) |
Materials Compatible
✅ Wood (Plywood, MDF, Balsa)
✅ Acrylic & Plastic (Up to 8mm Thick)
✅ Leather & Fabric
✅ Glass & Stone (Engraving Only)
✅ Rubber, Cork, Cardboard
✅ Anodized & Coated Metals (Marking Only)
What’s Included?
-
60W CO2 Laser Engraver & Cutter (Pre-Assembled Frame)
-
Ruida Digital Control Panel
-
Honeycomb Workbed
-
Red Dot Pointer & Linear Guide Rails
-
Air Assist Nozzle (Compressor Not Included)
-
Emergency Stop Button & Safety Key
-
User Manual & Software Guide
