Description
Professional-Grade Edge Jointing & Surface Planing in Compact Form
The VEVOR MB5015II Spiral Benchtop Jointer revolutionizes small-shop woodworking with its 14-blade spiral cutterhead and 1.5HP motor capable of 10,000 RPM. Designed for cabinet makers, furniture builders, and serious DIYers, this 6" jointer combines industrial performance with space-saving portability. The ±45° adjustable fence and 0-1/8" depth control enable precise edge jointing, beveling, and surface smoothing on hardwoods and softwoods alike.
Key Features & Professional Advantages
Premium Spiral Cutterhead System
-
14 High-Speed Steel (HSS) Blades - 60+ HRC hardness for long-lasting sharpness
-
Spiral Configuration - 30% smoother finishes vs. straight knives
-
Replaceable Individual Inserts - Cost-effective maintenance (no full-head replacement)
Industrial-Grade Power
-

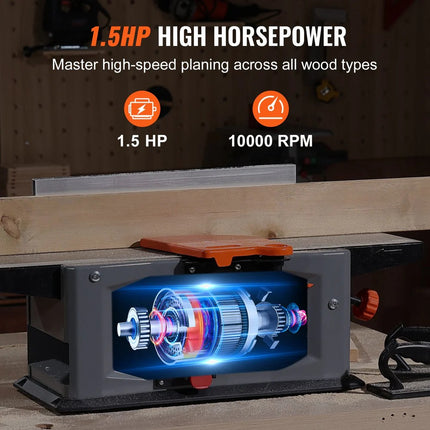

1.5HP Copper Motor - 10,000 RPM for tear-out-free cuts in exotic hardwoods
-
Instant Start/Stop Switch - Magnetic safety switch prevents accidental restarts
-
Thermal Protection - Auto-shutoff prevents motor burnout
Precision Adjustments
-
Micro-Depth Control - 0-1/8" (0-3mm) adjustment in 1/64" increments
-
±45° Fence Angling - Positive stops at 90° and 45° for common joints
-
Parallelogram Fence Design - Maintains perfect alignment through full range
Workshop-Friendly Design
-
27.6" Cast Aluminum Tables - Pre-machined surfaces stay flat permanently
-
Integrated Dust Port - 4" connection fits most shop vacuums
-
Rubber-Footed Base - Vibration damping for cleaner cuts
-
One-Person Portability - 34.4 lb weight with side carry handles
Technical Specifications
| Category |
Specification |
| Model Number |
MB5015II |
| Motor Type |
1.5HP Induction |
| No-Load Speed |
10,000 RPM |
| Cutterhead Type |
Spiral (14 inserts) |
| Knife Material |
HSS (60+ HRC) |
| Max Cutting Width |
6" (152mm) |
| Max Cutting Depth |
1/8" (3mm) |
| Infeed/Outfeed Tables |
27.6" x 6.1" (700x155mm) |
| Fence Adjustment |
±45° with positive stops |
| Dust Collection |
4" Port (95% efficiency) |
| Power Requirements |
120V, 15A Circuit |
| Safety Features |
Magnetic Switch, Blade Guard |

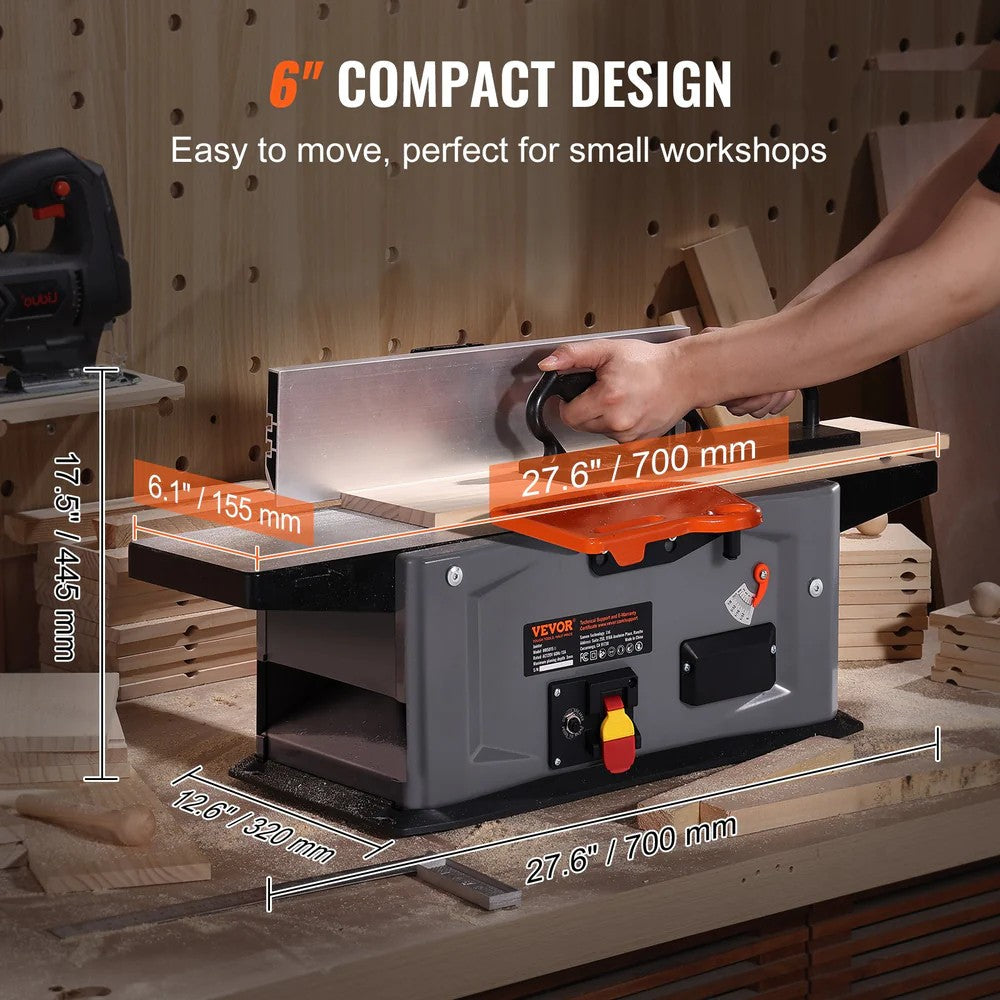

| Machine Dimensions |
27.6" x 17.5" x 12.6" |
| Shipping Weight |
38 lbs (17.2 kg) |
| Warranty |
2-Year Limited |
Professional Applications
Furniture Making
-
Perfect Edge Joints for tabletops
-
Beveled Edges for decorative pieces
-
Face Jointing for glue-ready surfaces
Cabinetry
Specialty Woodworking

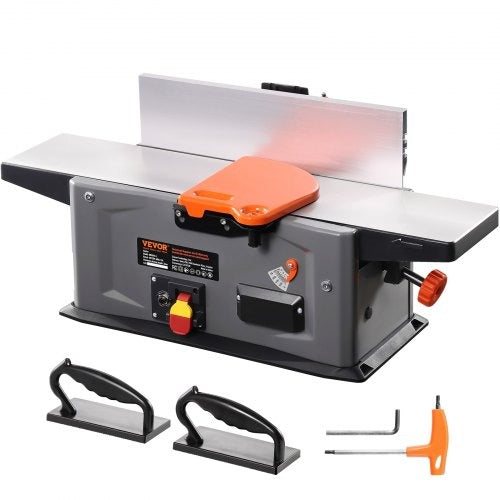

What's Included?
-
Main Jointer Unit with Spiral Cutterhead
-
Adjustable Fence Assembly
-
4" Dust Collection Hood
-
Blade Changing Wrench Set
-
Push Blocks (2x Safety Models)
-
Owner's Manual with Setup Guide
(Note: Requires 15A dedicated circuit for optimal performance)
Why Professionals Choose This Jointer?
Versus Straight-Knife Jointers
✅ Silent Operation - Spiral cuts reduce harmonic vibration
✅ No Grain Tear-Out - Even in figured maple or birdseye
✅ 3x Blade Life - Rotate inserts instead of sharpening
Versus Larger Stationary Models
✅ Space Efficiency - 30% smaller footprint
✅ True Benchtop Portability - Move between job sites
✅ Lower Power Needs - Runs on standard 120V
Unique Value Propositions
🔥 Pro-Quality Results - Comparable to $1,500+ machines
🔥 Beginner-Friendly - Simplified depth adjustments
🔥 Future-Proof - Accepts carbide inserts (upgrade)
Setup & Operation Guide
Initial Calibration (20 Minutes)
-
Verify Table Parallelism with machinist's straightedge
-
Set Fence Squareness using engineer's square
-
Adjust Outfeed Table to cutterhead height
-
Test Cut on scrap wood to confirm settings
Recommended Maintenance
-
Monthly: Check insert tightness (15 in-lb torque)
-
Quarterly: Lubricate adjustment mechanisms
-
Annual: Replace all inserts (flip first)
Safety Protocols
-
Always use push blocks/sticks
-
Never joint pieces shorter than 10"
-
Disconnect power before blade changes
Warranty & Support
-
2-Year Limited Warranty (Covers motor & mechanicals)
-
Free Lifetime Technical Support
-
Replacement Parts Program
