Description
Industrial-Grade CNC Machining for Advanced Makers & Small Businesses
The VEVOR S4040 CNC Router delivers professional fabrication capabilities with its 300W high-torque spindle and expansive 15.7" x 15.7" work area. Designed for woodworkers, sign makers, and prototyping professionals, this 3-axis machine combines industrial aluminum construction with user-friendly GRBL control, supporting both computer-connected and offline operation via SD card. Capable of cutting 3/4" hardwood and engraving intricate designs, it's the perfect bridge between hobbyist and commercial CNC equipment.
Premium Features & Professional Advantages
Enhanced Cutting Performance
-
300W Brushless Spindle (12,000 RPM) - 4x more powerful than standard 60W models
-
Upgrade-Ready Design - Compatible with 65mm laser modules (sold separately)
-
Deep Cutting Capacity - 2.95" Z-axis travel handles thick stock materials
Industrial Construction
-
Aircraft-Grade Aluminum Frame - Oxidized surface resists wear and corrosion
-
Reinforced Gantry System - Minimizes vibration during high-speed operation
-
Precision Ground Rails - Linear guides ensure 0.01mm repeatability
Smart Operation Features
-
2.4" Color Touchscreen - Offline controller stores 100+ G-code files
-
Dual Operation Modes - USB computer control or standalone SD card use
-
Emergency Stop Button - Instant shutdown for safety
Material Versatility
-
Hardwoods (Oak, Maple up to 3/4" thick)
-
Plastics & Acrylics (Up to 1" cutting depth)
-
Soft Metals (Aluminum, brass - engraving only)
-
Composite Materials (PCB, carbon fiber sheets)
Technical Specifications
| Category |
Specification |
| Model Number |
S4040 |
| Control System |
GRBL 1.1 (32-bit) |
| Spindle Type |
300W Brushless DC |
| Max Spindle Speed |
12,000 RPM |
| Working Area |
15.7" x 15.7" x 2.95" (400x400x75mm) |
| Positioning Accuracy |
±0.01mm |
| Repeatability |
±0.02mm |
| Input Power |
110V 60Hz (450W max) |
| Control Interface |
2.4" LCD Touchscreen |
| Data Transfer |
USB 2.0 / Full-size SD Card |
| Frame Construction |
6061-T6 Aluminum Alloy |
| Linear Motion |
Chrome-Plated Rods + Bearings |
| Clamping Area |
65mm Standard T-Slots |
| Software Compatibility |
GRBL, Mach3, Carbide Create |
| Machine Footprint |
24.4" x 23.6" x 12.5" |
| Net Weight |
30.4 lbs (13.8 kg) |

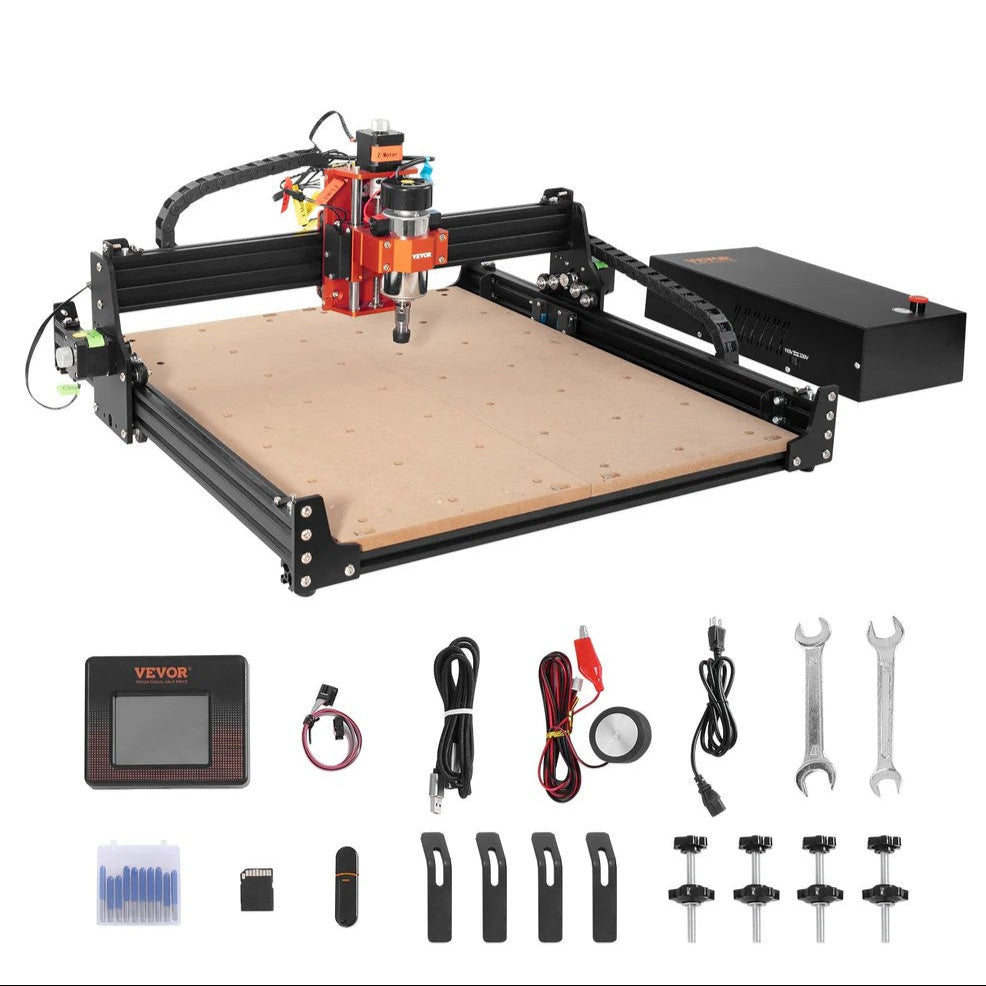

| Included Accessories |
ER11 Collet Set, Clamps, Hex Keys |
Professional Applications
For Woodworking Shops
-
Custom Signage (3D carved letters)
-
Furniture Inlays (Precision joinery)
-
Decorative Panels (Intricate reliefs)
For Prototyping Labs
-
Product Design Models
-
Architectural Mockups
-
Engineering Components
For Creative Businesses
-
Personalized Gifts (Engraved keepsakes)
-
Jewelry Masters (Wax molds for casting)
-
Awards & Trophies (Custom plaques)
