Description
Industrial-Strength Magnetic Drilling Performance
Precision Drilling Power for Steel Fabrication

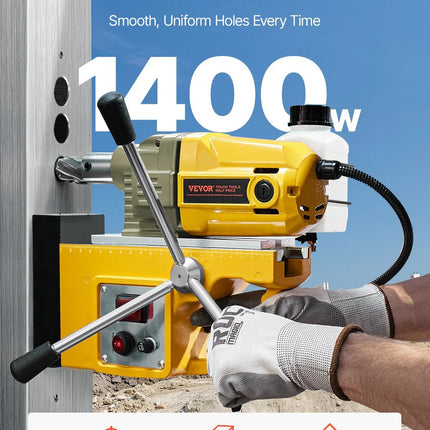

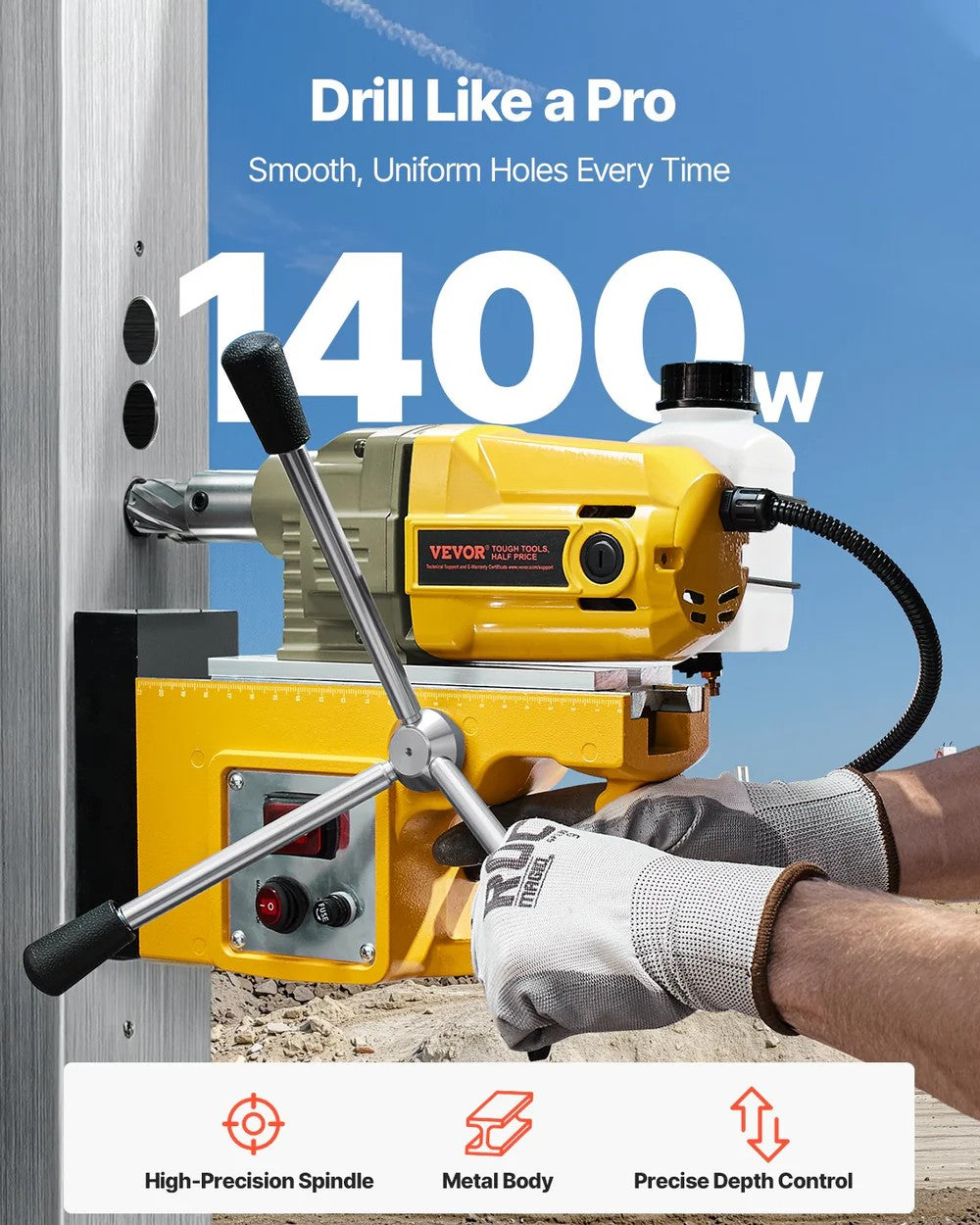

The Vevor 1400W Magnetic Drill Press delivers unmatched drilling performance with 12,500N (2,810 lbf) magnetic adhesion and 800 RPM optimized speed. Engineered for professional metalworking applications, this rugged tool features a high-torque copper motor, premium alloy construction, and includes a professional twist drill chuck for versatile drilling capabilities.
Premium Features Include:
✔ 1400W copper motor for heavy-duty drilling
✔ 800 RPM constant speed for clean cuts
✔ 1.6" (40mm) max boring diameter
✔ 2" (50mm) max drilling depth
✔ Professional twist drill chuck included
Key Features & Benefits
⚡ High-Performance Drilling System
-
1400W copper motor – Powers through thick structural steel
-
800 RPM constant speed – Optimal for clean, precise holes
-
1.6" (40mm) max coring diameter – Handles large bore applications
-
2" (50mm) max coring depth – Through thick materials
🧲 Industrial-Grade Magnetic Base
-

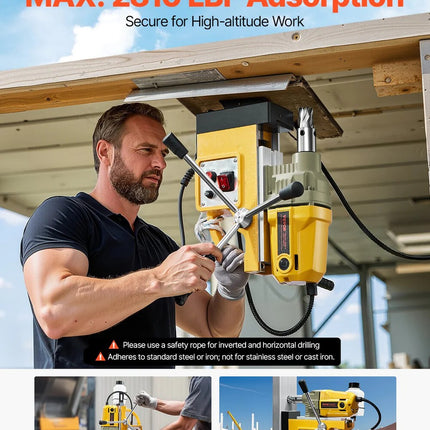

12,500N (2,810 lbf) holding force – Exceptional stability during operation
-
Pure iron electromagnetic base – Maximum adhesion to steel surfaces
-
Multi-directional capability – Works in horizontal, vertical, or overhead positions
🛡️ Advanced Safety & Durability
-
Premium alloy guide rail – Corrosion and wear resistant
-
Built-in cooling system – Prevents overheating during extended use
-
Overload protection – Safeguards motor from damage
🛠️ Professional Twist Drill Chuck
-
Weldon 3/4" shank – Secure bit retention
-
Handles twist drills from 0.1"-0.6" (3-16mm)
-
3.9" (100mm) max drilling depth with twist bits
🎯 Precision Engineering
-
Integrated millimeter scale – For accurate depth measurement
-
3 extended crank handles – Comfortable, labor-saving operation
-
Compact 24.9 lb design – Portable for job site use
Technical Specifications
| Feature |
Specification |
| Model Number |
ZT-40HA |
| Power |
1400W |
| Voltage |
110V |
| Speed |
800 RPM |
| Magnetic Force |
12,500N (2,810 lbf) |
| Max Coring Diameter |
1.6" (40mm) |
| Max Coring Depth |
2" (50mm) |
| Max Twist Drill Diameter |
0.6" (16mm) |
| Max Twist Drill Depth |
3.9" (100mm) |
| Spindle Travel |
6.3" (160mm) |
| Shank Type |
Weldon 3/4" |
| Dimensions |
11.4" × 8.3" × 15" (290 × 210 × 380 mm) |
| Weight |
24.9 lbs (11.3 kg) |
What's Included
-
1 × Vevor Magnetic Drill Press
-
1 × Professional Twist Drill Chuck
-
3 × Extended Crank Handles
-
All Required Mounting Hardware
Why Professionals Choose This Drill
✅ 1400W high-torque motor – For demanding applications
✅ Industrial 12,500N magnetic force – Exceptional stability
✅ 800 RPM optimized speed – Clean, precise cuts
✅ Professional twist drill chuck included – Ready for immediate use
✅ Compact and portable – Only 24.9 lbs
