Description
Compact & Powerful Portable Solution for Tight Spaces
Professional Magnetic Drill for Confined Work Areas
The Vevor Low Profile Magnetic Drill Press delivers industrial-grade drilling performance in an ultra-compact, portable package. With 1300W power, 10000N magnetic holding force, and a slim 3.9" profile, this mag drill excels in tight spaces where traditional drills can't reach.
Perfect for steel fabrication, shipbuilding, and construction, it combines powerful core drilling (1.4" diameter) with exceptional portability (only 22.9 lbs) for job site versatility.
Key Features & Benefits
🔧 Compact Yet Powerful Design
-
Slim 3.9" profile – Fits in confined spaces
-
Lightweight (22.9 lbs) – Easy to transport and maneuver
-
1300W motor – Handles thick steel (1.8" max depth)
⚡ High-Performance Drilling
-
Max core diameter: 1.4" (35mm)
-
Max drilling depth: 1.8" (45mm)
-
650 RPM fixed speed – Optimized for clean, efficient cuts
🛡️ Safety & Durability Features
-
10000N magnetic force – Rock-solid stability on steel surfaces
-
Overload protection – Prevents motor damage
-
Built-in cooling – Reduces heat during extended use
🔄 User-Friendly Operation
-
Ergonomic lever handle – Requires minimal effort
-
Detachable design – Easy storage and transport
-
Right angle shank chuck – Quick bit changes
🏗️ Industrial Applications
✔ Steel fabrication & welding
✔ Shipbuilding & bridge construction
✔ Wind turbine assembly
✔ Railway maintenance
✔ Power plant equipment installation
Technical Specifications
| Feature |
Specification |
| Model Number |
8840E |
| Motor Power |
1300W |
| Speed |
650 RPM (Fixed) |
| Max Core Diameter |
1.4" (35mm) |
| Max Drilling Depth |
1.8" (45mm) |
| Magnetic Force |
10000N |
| Chuck Type |
Right Angle Shank |
| Product Dimensions |
11" x 3.9" x 8.3" |
| Net Weight |
22.9 lbs (10.4 kg) |
Why Choose This Magnetic Drill?
✔ Ultra-Compact – Fits where other drills can't
✔ Powerful 1300W Motor – Handles tough materials
✔ 10000N Magnetic Base – No slipping or movement
✔ Cooling System – Prevents overheating
✔ Portable Design – Easy to move between job sites
Ideal For:
-
Metalworkers in tight spaces
-
Construction professionals
-
Industrial maintenance crews
-
Fabrication shops with space constraints

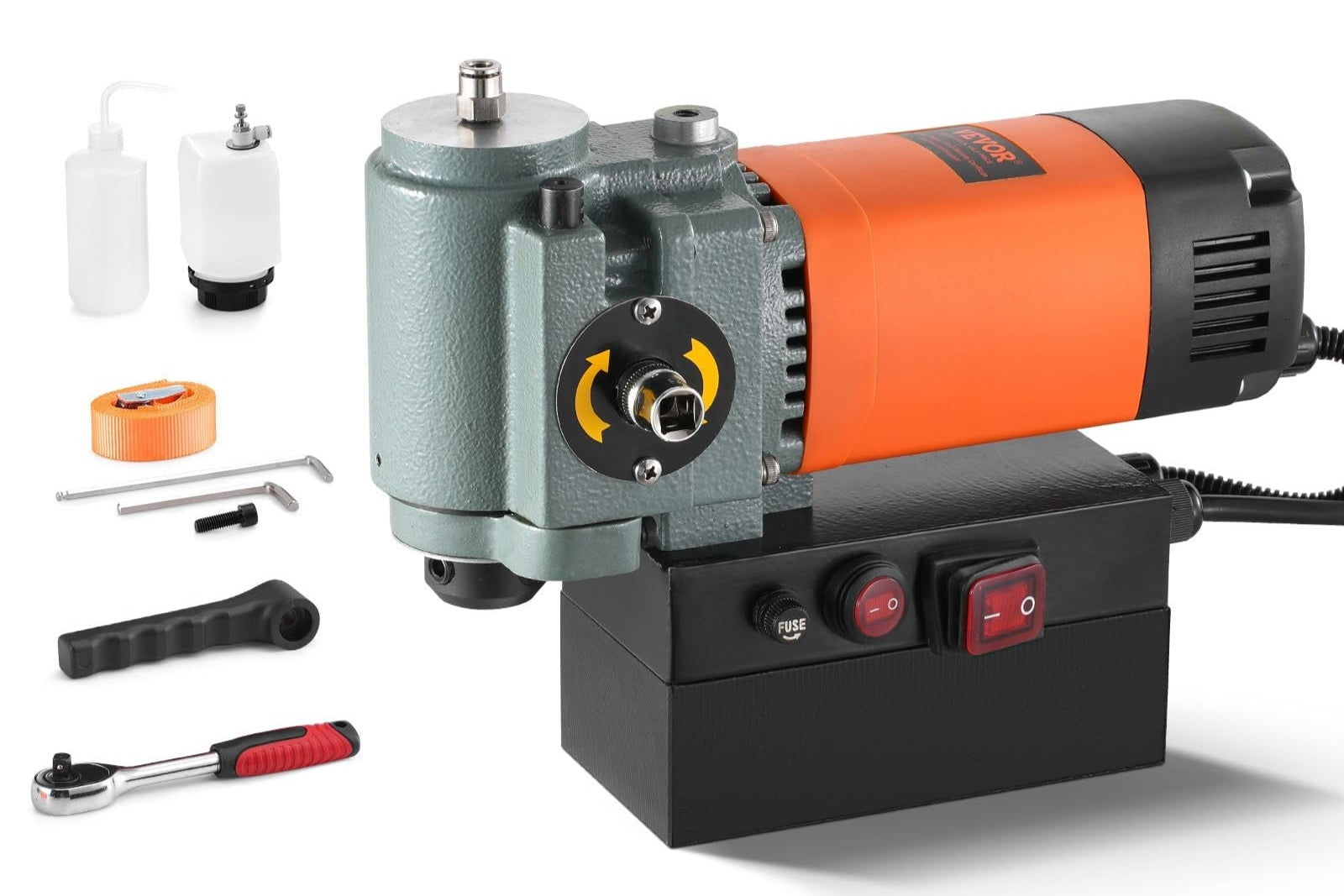

Included Accessories:
