Description
Precision Drilling for Wood & Metal with Professional-Grade Control
Professional Benchtop Drill Press for Workshop & DIY Projects
The Vevor 12" Benchtop Drill Press delivers high-precision drilling with variable speed control (580–3200 RPM) and a 0–45° tilting worktable for angled operations. Powered by a 5A induction motor (120V), this drill press handles wood, metal, and composite materials with ease, making it ideal for workshops, fabrication, and DIY projects.
Featuring a laser guide for accuracy, an efficient cooling system, and a sturdy cast-iron construction, this machine ensures durability and precision in every operation.
Key Features & Benefits
⚡ Powerful & Adjustable Performance
-
5A induction motor (120V, 60Hz) – Consistent power for wood & metal drilling
-
Variable speed control (580–3200 RPM) – LED digital display for precise adjustments
-
12" swing capacity – Handles larger workpieces with ease
🎯 Precision Drilling & Alignment
-
Laser guide (Class III, 650nm) – Ensures accurate hole placement
-
Max chuck capacity: 5/8" (16mm) – Supports a wide range of drill bits
-
3-1/8" (80mm) spindle stroke – Deep drilling capability
🔄 Adjustable Worktable (0–45° Tilting)
-
Bevel drilling for angled holes – Perfect for custom woodworking & metal fabrication
-
Easy tilt mechanism – Quick adjustments without tools
-
Large work surface – Stable support for various materials
❄️ Enhanced Durability & Cooling
-
Efficient heat dissipation – Extends motor life & prevents overheating
-
Heavy-duty cast-iron construction – Reduces vibration for smoother operation
-
Rugged column & base – Ensures stability during heavy use
🔧 Complete Accessory Kit Included
✔ 3 feed handles – For precise depth control
✔ Speed handle, table crank handle, wedge – Easy adjustments
✔ Chuck arbor, fork wrench, hexagonal wrenches (3mm & 4mm) – Convenient maintenance
✔ M10 bolts, chuck key, column assembly, table & base – Ready for setup

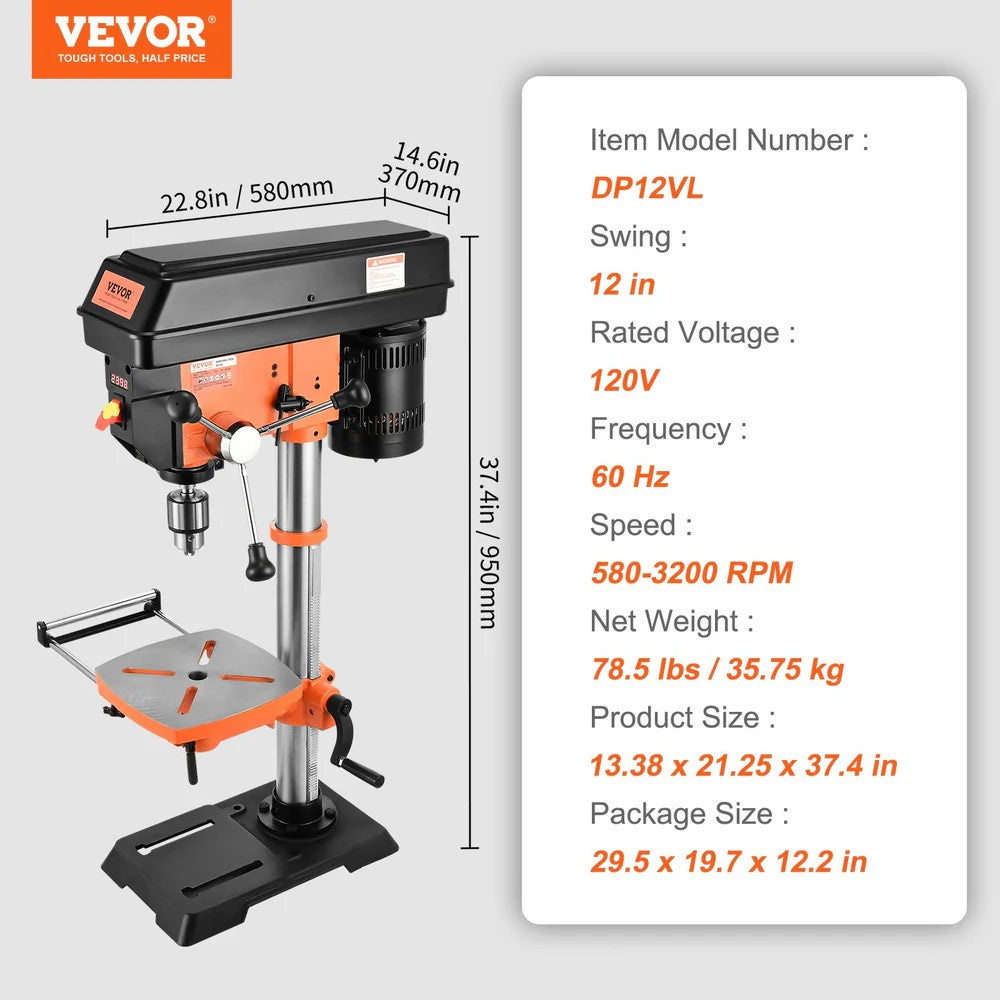

Technical Specifications
| Feature |
Specification |
| Model Number |
DP12VL |
| Motor Power |
5A, 120V, 60Hz |
| Speed Range |
580–3200 RPM (Variable) |
| Swing Capacity |
12" |
| Max Chuck Capacity |
5/8" (16mm) |
| Spindle Stroke |
3-1/8" (80mm) |
| Chuck to Base Height |
23" (595mm) |
| Chuck Taper |
JT3 |
| Spindle Taper |
MT2 |
| Table Tilt Range |
0–45° (Left & Right) |
| Laser Guide |
Class III, 650nm, <2.5mW |
| Product Dimensions |
21.25" x 13.5" x 37.5" (LxWxH) |
| Net Weight |
78.5 lbs (35.75 kg) |
Why Choose the Vevor 12" Benchtop Drill Press?
✔ Variable Speed Control – LED display for precise RPM adjustments
✔ Tilting Worktable – 0–45° bevel drilling for versatile projects
✔ Laser Guide Accuracy – Perfectly aligned holes every time
✔ Heavy-Duty Construction – Stable, durable, and long-lasting
✔ Complete Accessory Kit – Everything needed for setup & operation
Ideal For:
Included Accessories:
-
3 Feed Handles
-
Speed Handle & Table Crank Handle
-
Wedge & 2 Table Lock Handles
-
Chuck Arbor & Fork Wrench
-
Hex Wrenches (3mm & 4mm)
-
M10 Bolts, Chuck Key, Column Assembly, Table & Base
