Description
Industrial-Grade Magnetic Drilling Solution with Complete Bit Set
Professional Performance for Steel Fabrication

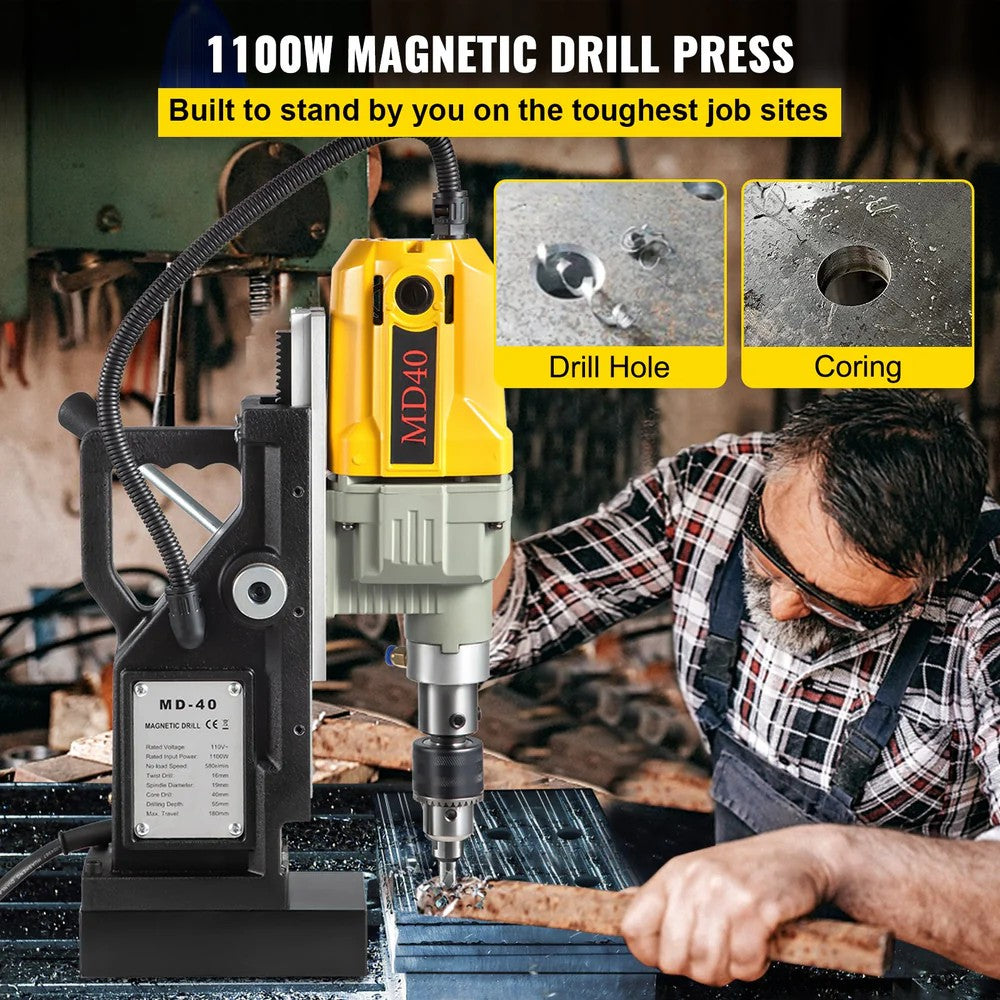

The Vevor 1100W Magnetic Drill Press delivers precision drilling power with 12,000N (2,697 lbf) magnetic adhesion and 580 RPM optimized speed. This complete kit includes 11 coring bits (12mm-27mm) and 1 twist drill (10mm) for immediate productivity in steel construction and metal fabrication.
Ideal for:
✔ Structural steel work
✔ Bridge & shipbuilding
✔ Wind turbine construction
✔ Railway manufacturing
✔ Industrial equipment installation
Key Features & Benefits

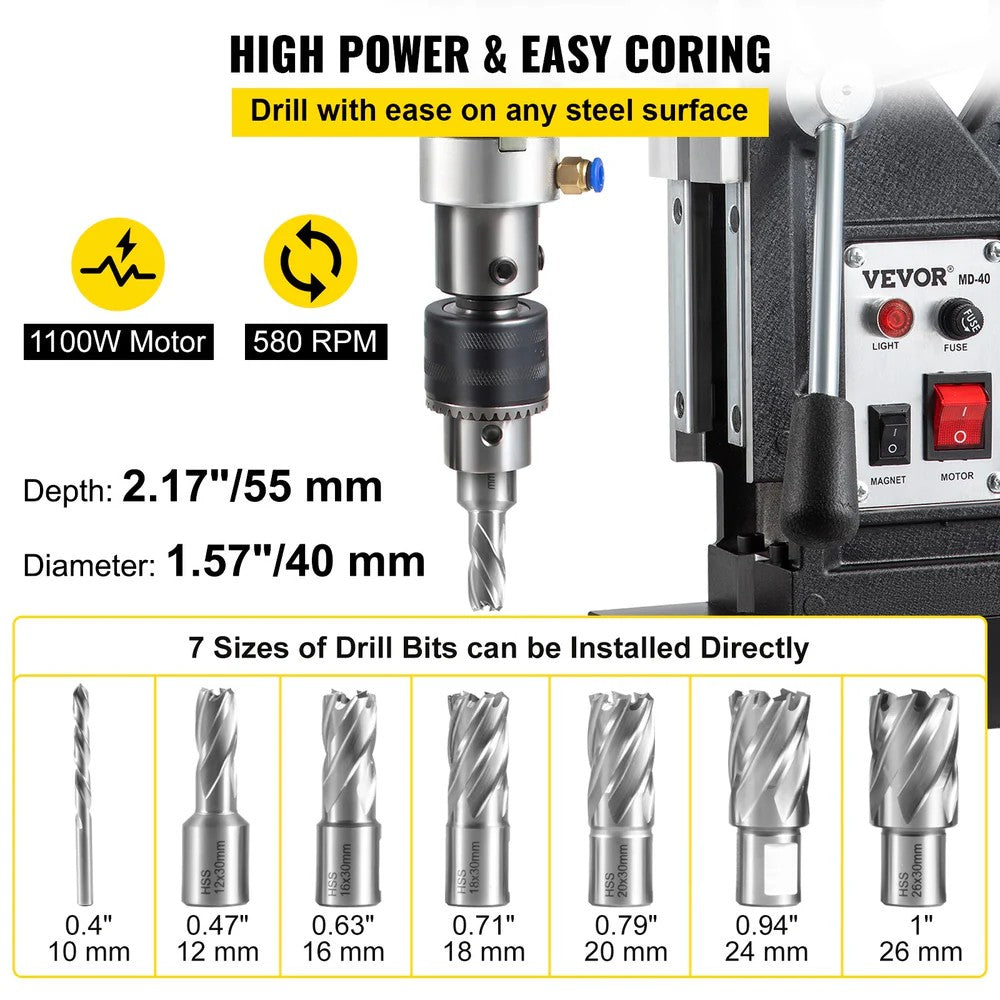

🔧 Powerful Drilling Performance
-
1100W copper motor (10A) – Handles thick steel with ease
-
580 RPM constant speed – Optimal for clean, precise holes
-
1.57" (40mm) max coring diameter – For large bore applications
-
2.17" (55mm) max drilling depth – Through thick materials
🧲 Industrial-Strength Magnetic Base
-
12,000N (2,697 lbf) holding force – Stays locked during operation
-
Pure iron electromagnetic base – Maximum adhesion to steel surfaces
-
Multi-directional operation – Works in any position (horizontal/vertical)
🛠️ Complete Professional Bit Set
-
11 HSS coring bits:
12mm, 13mm, 15mm, 16mm, 18mm, 20mm, 21mm, 23mm, 24mm, 26mm, 27mm
-
1 HSS twist drill: 10mm
-
Ready for immediate use – No additional bits required
❄️ Advanced Cooling & Ergonomics
-
Spacious coolant tank – Prevents overheating, extends tool life
-
3 extended crank handles – For comfortable, labor-saving operation
-
Clear control panel – Easy speed and depth monitoring
-
Compact 24.25 lb design – Portable for job site use
Technical Specifications
| Category |
Specification |
| Model Number |
VV-MD-US12 |
| Power |
1100W, 110V, 50/60Hz |
| Current |
10A |
| Speed |
580 RPM |
| Magnetic Force |
12,000N (2,697 lbf) |
| Max Coring Diameter |
1.57" (40mm) |
| Max Twist Drill Diameter |
0.63" (16mm) |
| Max Drilling Depth |
2.17" (55mm) |
| Spindle Travel |
5.9" (150mm) |
| Magnetic Base Size |
6.54" x 3.15" x 1.97" |
| Unit Dimensions |
14.2" x 11" x 4.7" |
| Net Weight |
24.25 lbs (11 kg) |

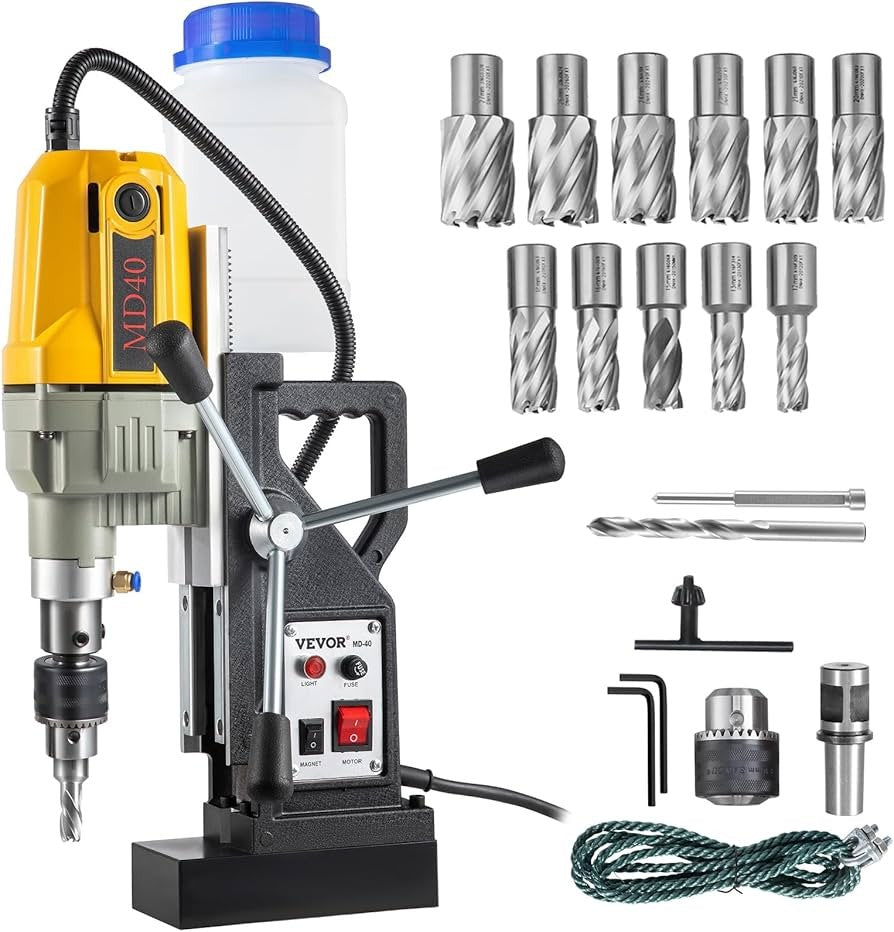

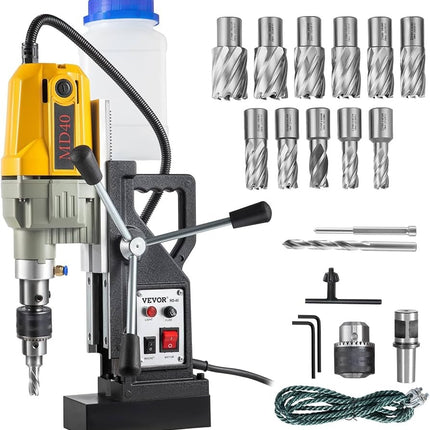

What's Included
-
1 × Vevor Magnetic Drill Press
-
11 × HSS Coring Bits (12mm-27mm)
-
1 × HSS Twist Drill (10mm)
-
3 × Extended Crank Handles
-
Coolant Tank System
-
All Required Hardware
Why Professionals Choose This Kit
✅ Complete 12-bit set included – Ready for immediate use
✅ Industrial 12,000N magnetic force – No slipping during operation
✅ Optimized 580 RPM speed – Clean cuts in structural steel
✅ Built-in coolant system – Extends tool life
✅ Compact and portable – Only 24.25 lbs
