Description
Industrial-Grade Magnetic Drilling Solution with Complete Cutter Set
Professional Performance for Steel Fabrication
The Vevor 1100W Magnetic Drill Press delivers precision drilling power with 12,000N (2,700 lbs) magnetic adhesion and 550 RPM optimized speed. This complete professional kit includes 11 high-quality annular cutters (12mm-27mm), a 350mL stainless steel coolant system, and features a double dovetail rail for enhanced durability and precision.
Premium Features Include:
✔ 1100W copper motor for heavy-duty drilling
✔ 550 RPM constant speed for clean cuts
✔ 1.57" (40mm) max boring diameter
✔ 5" (125mm) max drilling depth
✔ Complete 11-piece annular cutter set
Key Features & Benefits
🔧 High-Performance Drilling System
-
1100W copper motor – Powers through structural steel
-
550 RPM constant speed – Optimal torque for clean holes
-
1.57" (40mm) max boring diameter – Handles industrial applications
-
5" (125mm) max drilling depth – Through thick materials
🧲 Industrial-Strength Magnetic Base
-
12,000N (2,700 lbs) holding force – Exceptional stability during operation
-
Two-stage electromagnetic base – Maximum adhesion to steel surfaces
-
Works at any angle – Horizontal, vertical, or overhead

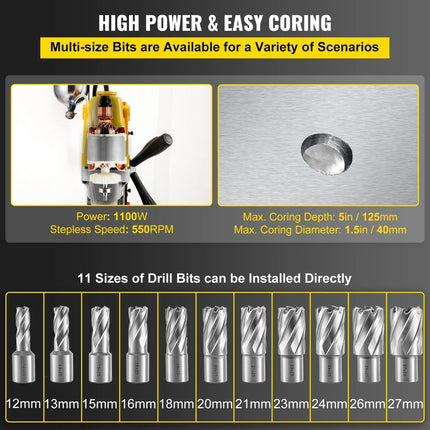

🛠️ Complete Professional Cutter Kit
-
11 premium annular cutters included:
12mm, 13mm, 15mm, 16mm, 18mm, 20mm, 21mm, 23mm, 24mm, 26mm, 27mm
-
3/4" Weldon shank – Secure bit retention
-
Pilot pin included – For precise hole starting
🏗️ Heavy-Duty Construction
-
Double dovetail rail – Enhanced rigidity and wear resistance
-
350mL stainless steel coolant pot – Prevents overheating
-
Dustproof design – Protects internal components
🔄 Ergonomic Operation
-
3 extended crank handles – Non-slip rubber coating
-
Compact 30 lb design – Portable for job sites
-
Optimized balance – Reduces operator fatigue
Technical Specifications
| Feature |
Specification |
| Model Number |
MD-40A |
| Power |
1100W, 110V, 60Hz |
| Speed |
550 RPM |
| Magnetic Force |
12,000N (2,700 lbs) |
| Max Boring Diameter |
1.57" (40mm) |
| Max Drilling Depth |
5" (125mm) |
| Shank Type |
3/4" Weldon |
| Coolant Capacity |
350mL (21.6 cu.in) |
| Rail System |
Double dovetail |
| Dimensions |
6.5" × 3.1" × 16.9" |
| Weight |
30 lbs (13.6 kg) |
What's Included
-
1 × Vevor Magnetic Drill Press
-
11 × Annular Cutters (12mm-27mm)
-
1 × Pilot Pin
-
1 × 350mL Stainless Steel Coolant Pot
-
3 × Extended Crank Handles
-
All Required Mounting Hardware
Why Professionals Choose This Kit
✅ Complete 11-cutter set – Ready for immediate use
✅ Industrial 12,000N magnetic force – No slipping
✅ 550 RPM optimized speed – Clean steel cuts
✅ Double dovetail rail – Enhanced precision
✅ Compact and portable – Only 30 lbs
