Description
Industrial-Grade Laser Cutting & Engraving with 100W CO2 Power
The VEVOR KH9060 100W CO2 Laser Engraver and Cutter delivers professional-grade performance for makers, fabricators, and small businesses. With a spacious 24" x 35" work area, 19.7 IPS (500 mm/s) engraving speed, and 0.59" (15mm) cutting capacity, this machine handles wood, acrylic, leather, glass, stone, and more with extreme precision. Equipped with an upgraded Ruida digital controller, 2-way air assist, and honeycomb workbed, it's built for high-speed, high-quality laser cutting and engraving.
Key Features & Benefits
✔ 100W CO2 Laser Tube – Cuts up to 0.59" (15mm) thick materials in a single pass
✔ Large 24" x 35" Work Area – Accommodates big projects with 840 in² workspace
✔ High-Speed Engraving (19.7 IPS / 500 mm/s) – Efficiently processes detailed designs
✔ Ruida Digital Control Panel – Precise power & speed adjustments with LightBurn, CorelDRAW, AutoCAD compatibility
✔ 2-Way Air Assist System – Reduces scorching and improves cut quality
✔ Honeycomb Workbed – Stable, ventilated surface for cleaner cuts
✔ Intelligent Laser Head – Red-dot pointer & linear guide rails for precision alignment
✔ Pass-Through Doors – Allows engraving of oversized materials
✔ Safety Features – Tinted viewing window, emergency stop, auto-shutoff when opened
✔ Movable Wheels – Easy repositioning in your workspace

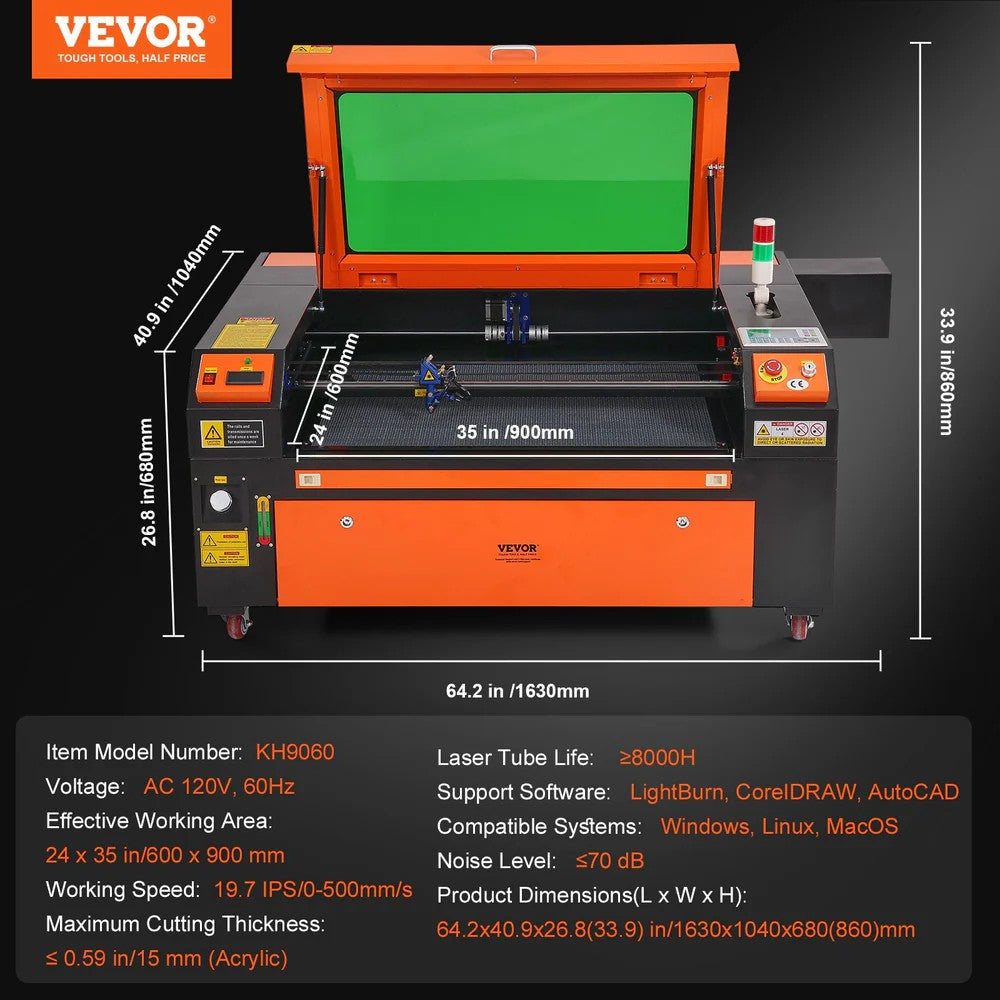

Technical Specifications
| Category |
Specification |
| Model Number |
KH9060 |
| Laser Type |
100W CO2 Glass Tube |
| Laser Tube Life |
≥8,000 Hours |
| Work Area |
24" x 35" (840 in²) |
| Max Cutting Thickness |
0.59" (15mm) |
| Engraving Speed |
Up to 19.7 IPS (500 mm/s) |
| Positioning Accuracy |
±0.01" (0.1mm) |
| Voltage |
AC 120V, 60Hz |
| Compatible Software |
LightBurn, CorelDRAW, AutoCAD |
| Operating Systems |
Windows, Linux, macOS |
| Connectivity |
USB, Ethernet, Wi-Fi (via software) |
| Air Assist |
2-Way Nozzle (Compressor Required) |
| Noise Level |
≤70 dB |
| Machine Dimensions |
64.2" x 40.9" x 26.8"-33.9" (H) |
| Machine Weight |
573.2 lbs (260 kg) |
| Warranty |
Manufacturer Warranty (Check with Seller) |
Materials Compatible
✅ Wood (Plywood, MDF, Balsa)
✅ Acrylic & Plastic (Up to 15mm Thick)
✅ Leather & Fabric
✅ Glass & Stone (Engraving Only)
✅ Rubber, Cork, Cardboard
✅ Anodized & Coated Metals (Marking Only)
What’s Included?
-
100W CO2 Laser Engraver & Cutter (Pre-Assembled Frame)
-
Ruida Digital Control Panel
-
Honeycomb Workbed
-
Red Dot Pointer & Linear Guide Rails
-
Air Assist Nozzle (Compressor Not Included)
-
Emergency Stop Button & Safety Key
-
User Manual & Software Guide
