Description
Industrial-Grade Precision Marking for Metals, Plastics, and More
The VEVOR FLM-R100-FT 100W Fiber Laser Marking Machine delivers ultra-precise, permanent engravings on a wide range of materials. With a 100W fiber laser source (100,000-hour lifespan), 4000 mm/s marking speed, and 0.01 mm precision, this system is ideal for industrial part marking, serial numbers, barcodes, logos, and decorative engravings. The included rotary axis expands capabilities to cylindrical objects, making it perfect for tools, jewelry, automotive parts, and electronics.
Key Features & Benefits

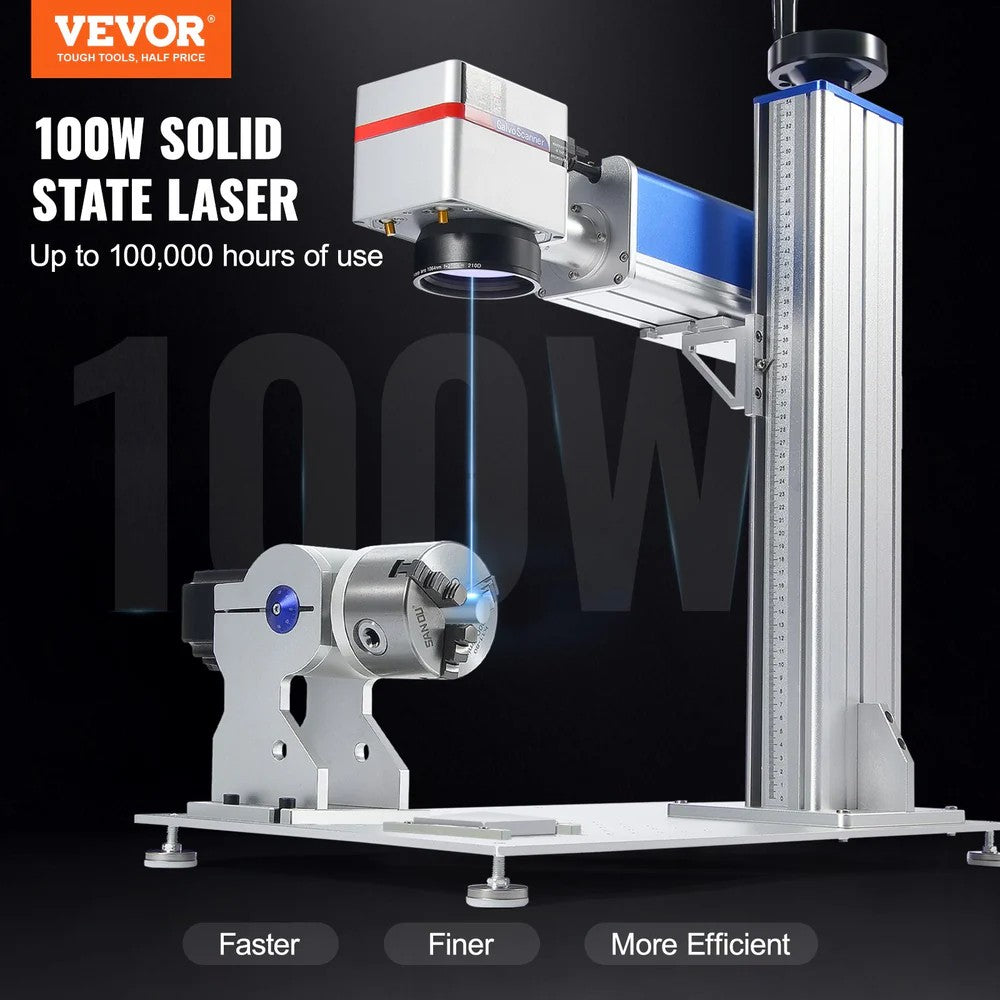

✔ 100W Fiber Laser Source – Long-lasting (100,000+ hours) with deep, permanent marks
✔ High-Speed Marking (Up to 4000 mm/s) – Fast production without sacrificing precision
✔ Ultra-Fine 0.01 mm Accuracy – Crisp engravings for detailed logos, text, and barcodes
✔ Rotary Axis Included – Engraves cylindrical objects (bottles, tubes, rings, tools)
✔ Red Light Focusing System – Quick, accurate alignment before marking
✔ 6.9" x 6.9" Work Area – Fits small to medium parts with adjustable height
✔ Built-in Grid & Laser Locator – Precise material positioning for repeatable results
✔ Wide Material Compatibility – Works on metals (steel, aluminum, titanium), plastics, ceramics
✔ Color Marking Capability – Creates high-contrast, colored engravings on certain metals
✔ Air-Cooled System – No external water chiller needed

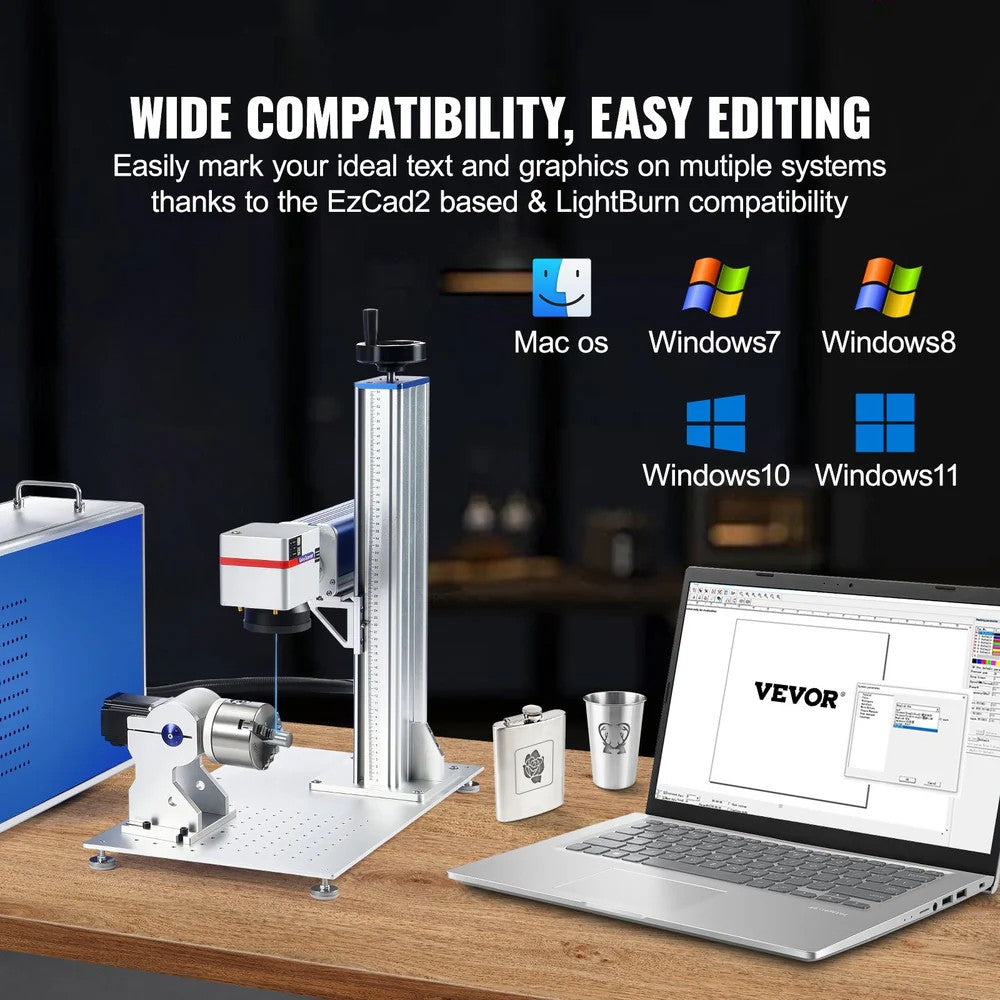

✔ Easy Software Integration – Supports Windows & common image formats (BMP, JPG, GIF, etc.)
Technical Specifications
| Category |
Specification |
| Model Number |
FLM-R100-FT |
| Laser Type |
100W Fiber (MOPA) |
| Laser Lifespan |
100,000+ Hours |
| Marking Area |
6.9" x 6.9" (175 x 175 mm) |
| Max Marking Speed |
4000 mm/s |
| Marking Depth |
0.01–1.7 mm (Adjustable) |
| Positioning Accuracy |
±0.01 mm |
| Power Supply |
AC 120V, 60Hz (400W Max) |
| Cooling System |
Built-in Air Cooling |
| Compatible Materials |
Metals: Steel, Aluminum, Copper, Titanium
Plastics: ABS, PVC, Polycarbonate
Other: Ceramics, Anodized Metals |
| Software Compatibility |
OS: Windows 7/8/10/11
File Formats: BMP, JPG, JPEG, GIF, DXF, AI |
| Rotary Axis |
Included (For Cylindrical Objects) |
| Focusing System |
Red Light Positioning & Adjustable Galvo |
| Machine Dimensions |
Main Unit: 8.3" x 21.3" x 16.1"
Worktable: 27.6" x 13.8" x 27.1" |
| Weight |
90.8 lbs (41.2 kg) |
| Warranty |
Manufacturer Warranty (Check Seller) |

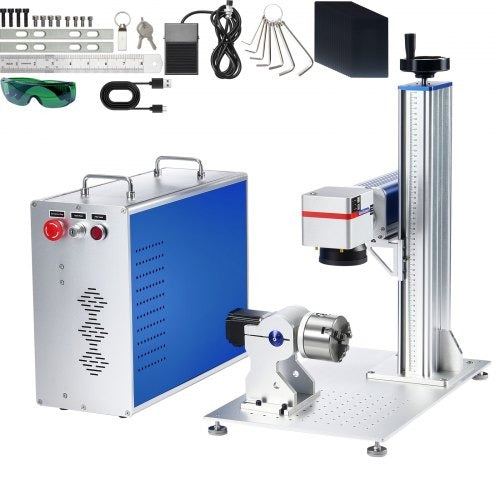

What’s Included?
-
100W Fiber Laser Marking Machine (Main Unit)
-
Rotary Axis Attachment
-
6.9" x 6.9" Worktable with Grid & Laser Locator
-
Red Light Focusing System
-
Software & USB Connection Cable
-
User Manual & Installation Guide
