Description

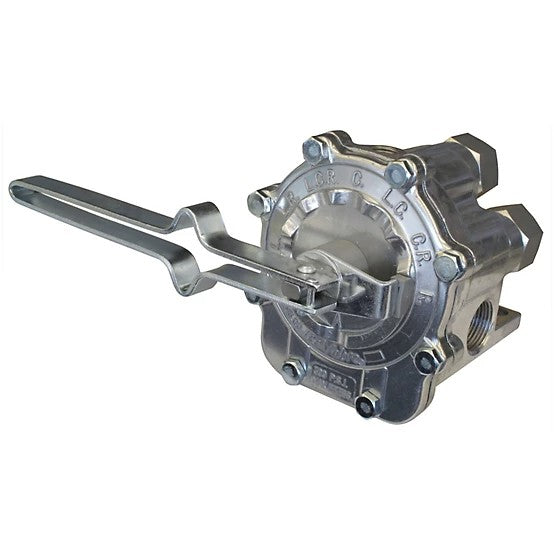

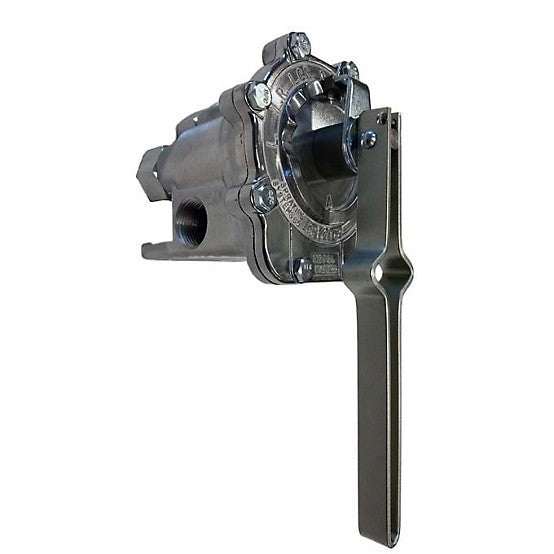

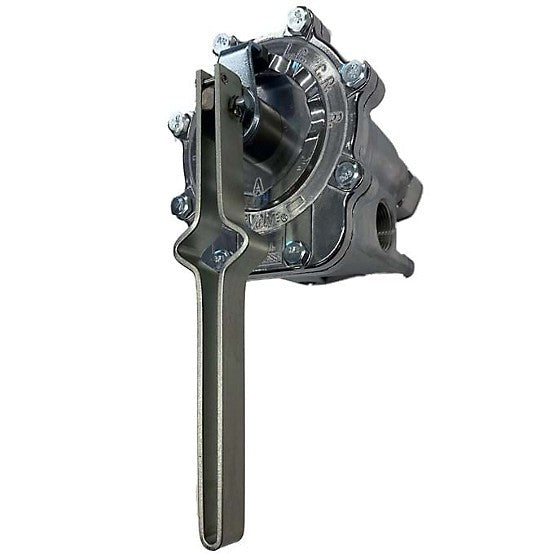

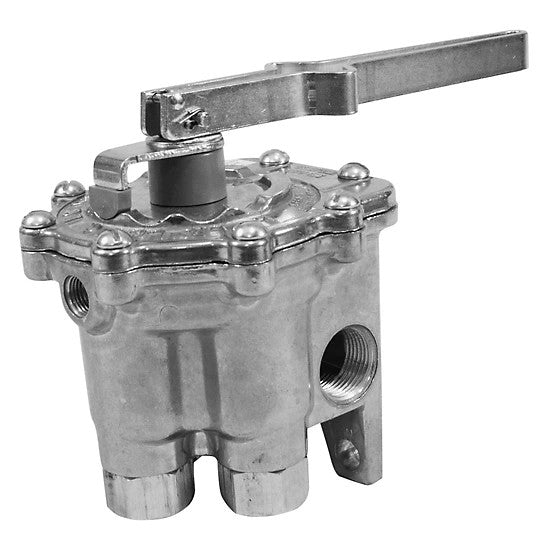

The TeeJet AA17L Manual Boom Controller is a rugged and reliable valve solution designed to give operators manual control of 3 individual spray boom sections—left, center, and right. Built from durable aluminum with stainless steel and plastic internals, this controller offers superior corrosion resistance, making it ideal for demanding agricultural spraying applications.
With seven indexed positions, the AA17L provides flexible control over any combination of boom sections. Simply raise or lower the lever to turn each section on or off without altering the selector’s indexed position. This controller is a direct replacement for the TeeValve manual selector found on many FIMCO 3-point sprayers (110–300 gallon tanks).
✅ Key Features
-
🎛️ 3-Section Boom Control
Manually control Left, Center, and Right spray sections with full flexibility.
-
🔁 Seven Indexed Combinations
Choose from L, R, C, LC, LR, LCR, or OFF settings for targeted spraying operations.
-
🔧 Lever Operation
Simple lever motion – raise to activate and lower to shut off spray section lines.
-
🧪 Corrosion-Resistant Construction
Built with aluminum housing, plus stainless steel and polymer internal parts to resist corrosion from agricultural chemicals.
-

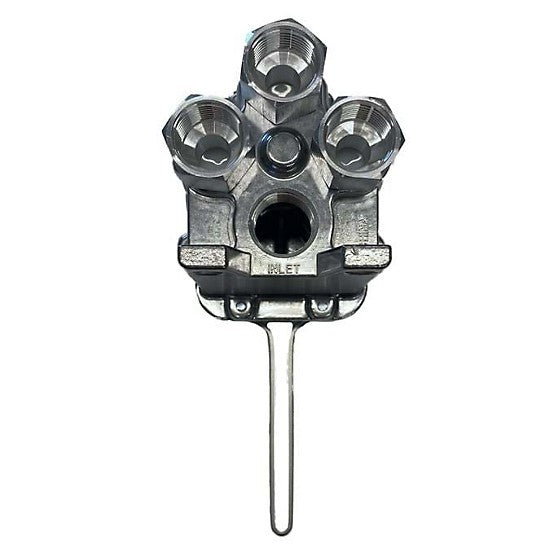

🔩 Multiple Connection Ports
-
Inlet: 3/4 in. NPT (AA17L model)
-
Outlet Ports: 3 spray section outlets
-
Two 3/4 in. NPT side ports for accessories such as pressure relief valves or bypass lines
-
1/4 in. NPT top port for optional pressure gauge (gauge not included)
-
💧 High Pressure Handling
Operates smoothly between 0 to 300 PSI, making it ideal for high-pressure spray systems.
-
🔄 FIMCO Compatible
A drop-in replacement for many FIMCO 3-point sprayer models ranging from 110 to 300 gallons.
📊 Technical Specifications
| Specification |
Details |
| Brand |
TeeJet |
| Model Number |
AA17L |
| Manufacturer Part No. |
5143295 |
| Country of Origin |
Imported |
| Boom Control Sections |
3 (Left, Center, Right) |
| Control Positions |
7 indexed: L, C, R, LC, LR, LCR, OFF |
| Inlet Fitting |
3/4 in. NPT |
| Additional Ports |
(2) 3/4 in. NPT side ports, (1) 1/4 in. NPT gauge port |
| Operating Pressure Range |
0 to 300 PSI |
| Construction Materials |
Aluminum body; stainless steel/plastic internals |
| Compatibility |
FIMCO 110–300 gal. 3-Point Sprayers |
| Sprayer Accessory Type |
Boom Controller |
| Product Dimensions |
9.5 in. L × 5.75 in. W × 4.75 in. H |
| Product Weight |
2 lb. 10.6 oz. |
| Warranty |
1-Year Consumer / 90-Day Commercial |
| Package Quantity |
1 |
