Description

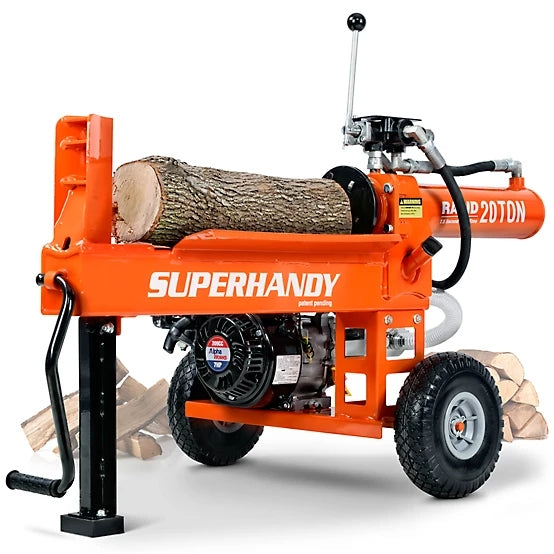

The SuperHandy TRI-GUO077 Gas-Powered Hydraulic Log Splitter is engineered for high performance, portability, and efficiency, making it ideal for firewood splitting, forestry, and outdoor harvesting applications. Equipped with a powerful 7 HP Alpha gas engine, this machine delivers 20 tons of splitting force, allowing it to split logs up to 20.5 inches long and 16 inches in diameter with ease. The Bucher 2-Stage Hydraulic Gear Pump and Rapid Auto Return system ensure fast, reliable operation and shorter reset times—only 7.5 seconds per cycle.
Built for portability and jobsite convenience, the log splitter features a full horizontal beam, steel wedge, and 10-inch transport wheels for easy towing and maneuvering. Whether you're splitting wood in the forest or on the jobsite, this log splitter is designed to deliver dependable performance without needing an electrical power source.
Key Features
-
Powerful Performance:

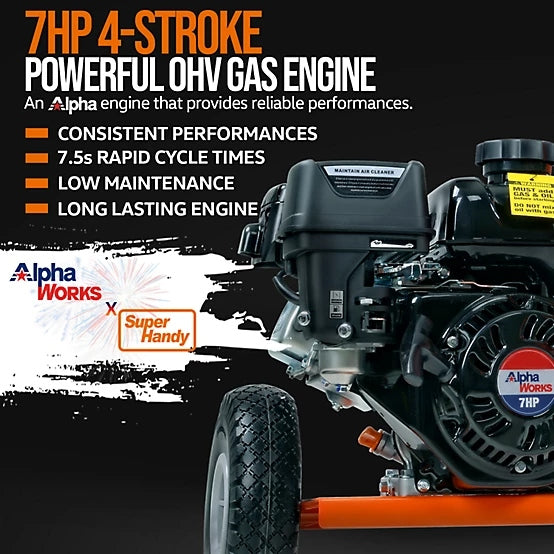

Equipped with a 7 HP Alpha 4-stroke gas engine and 2-stage Bucher hydraulic gear pump for smooth and consistent splitting power up to 20 tons.
-
Efficient Operation:
Fast 7.5-second cycle time with Rapid Auto Return, ideal for handling large volumes of wood in minimal time.
-
Portability & Convenience:

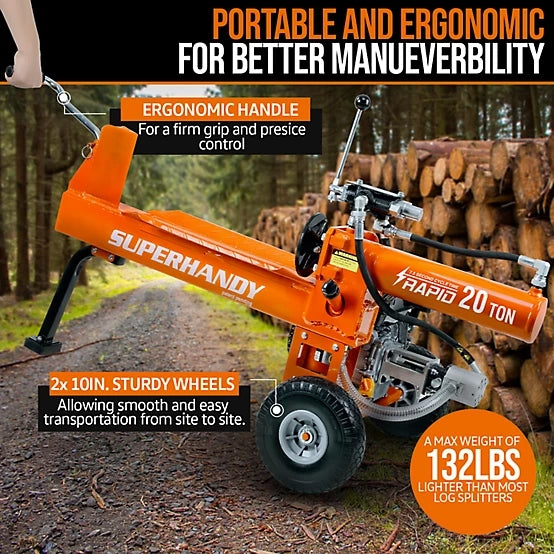

Lightweight horizontal full beam design with 10 in. rugged transport wheels for easy movement from site to site.
-
Large Capacity:
Handles logs up to 20.5 inches in length and 16 inches in diameter, weighing up to 130 lbs.
-
Durability:
Constructed with heavy-duty steel components, including a high-strength wedge and durable chassis for long-term outdoor use.
-
Safe and Simple to Use:
Manual recoil start with accessible controls. Always use appropriate eye and hand protection during operation.
-
No Electricity Required:
Operates completely off-grid—ideal for remote outdoor work areas.
⚠ Note: Hydraulic fluid is not included. AW32 hydraulic oil is recommended.
Specifications
| Specification |
Details |
| Brand |
SuperHandy |
| Model Number |
TRI-GUO077 |
| Power Type |
Gas |
| Engine Brand |
Alpha |
| Engine Type |
4-Stroke, Recoil Start |
| Horsepower |
7 HP |
| Engine Displacement |
209 cc |
| Fuel Tank Capacity |
0.74 gal |
| Hydraulic Oil Capacity |
1.6 gal |
| Splitting Force |
20 Ton |
| Max Log Length |
20.5 in. |
| Max Log Diameter |
16 in. |
| Cycle Time |
7.5 seconds |
| Hydraulic Pressure |
3,000 PSI |
| Operational Orientation |
Horizontal |
| Material |
Steel |
| Tire Size |
10 in. |
| Product Dimensions (LxWxH) |
40 in. x 20 in. x 17 in. |
| Product Weight |
143 lb |
| Recommended Oil Type |
SAE 15W-40 |
| Start Type |
Manual (Recoil) |
| Warranty |
12-Month Limited Parts Warranty |
| Certifications |
EPA/CARB Compliant |
| Country of Origin |
Imported |
