Product Overview

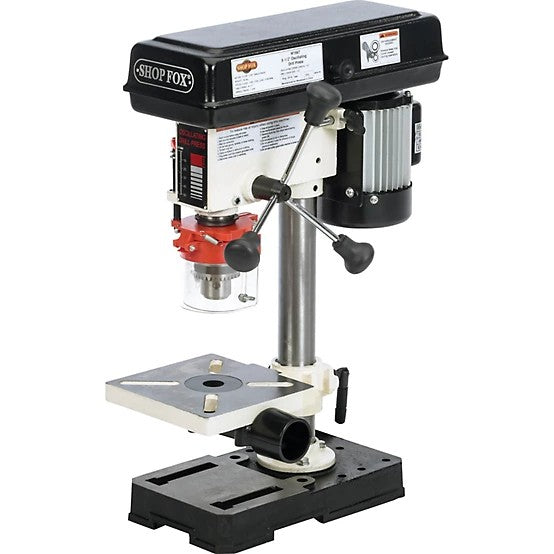

The Shop Fox W1667 8-1/2 in. Swing 5-Speed Benchtop Oscillating Drill Press is a versatile and space-saving tool designed for precision drilling in small workshops, hobbyist projects, and professional machine shops. Combining the functionality of two machines in one compact design, this oscillating drill press offers exceptional performance, durability, and ease of use.
Built with a heavy-duty cast iron table and a powerful 1/2 HP motor, this drill press delivers smooth operation and stability for a wide range of drilling applications. With five speed settings (620–3100 RPM), it accommodates various materials, including wood, metal, and plastics.
Key Features & Benefits

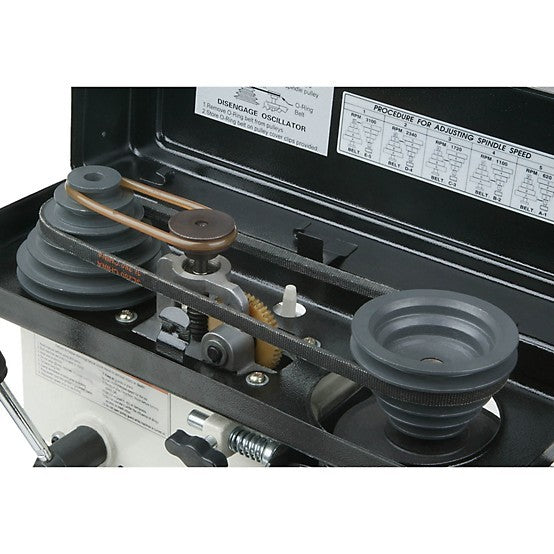

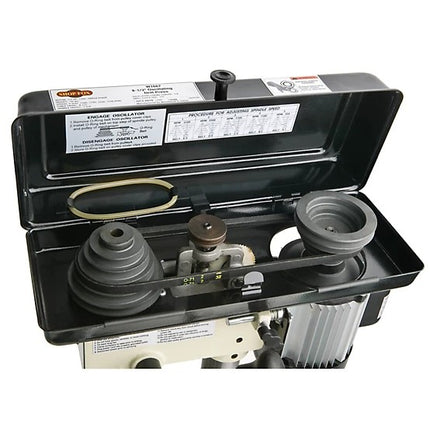

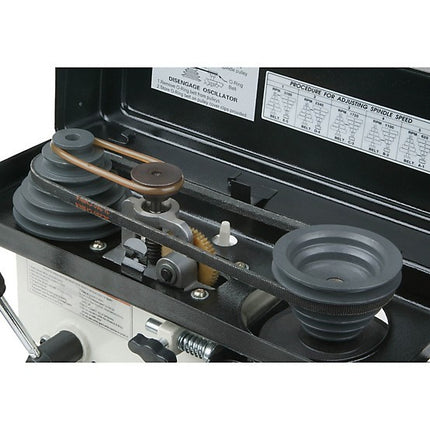

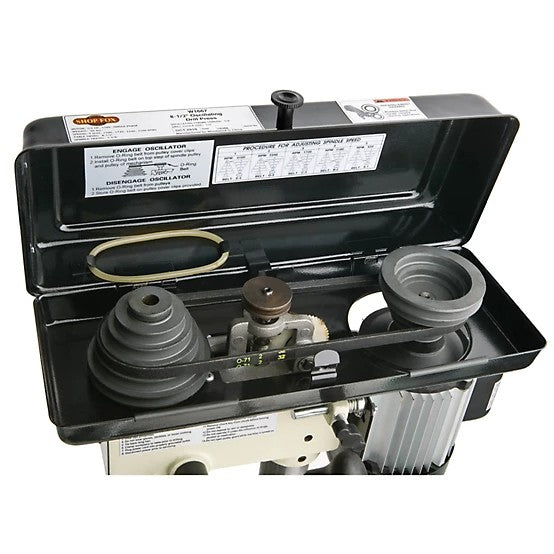

✅ 5-Speed Adjustability – Easily switch between 620, 1100, 1720, 2350, and 3100 RPM for optimal performance on different materials.

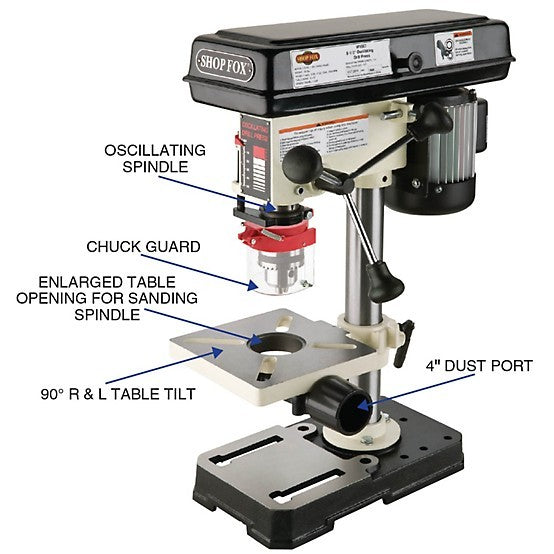

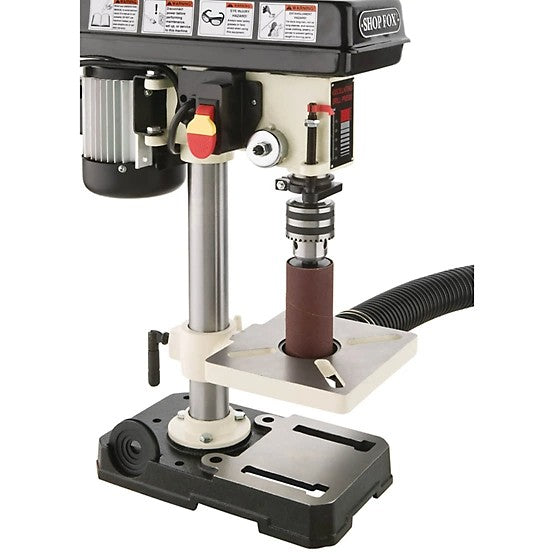

✅ Oscillating Functionality – Unique design allows for radial movement, enhancing versatility in drilling angles.
✅ Sturdy Cast Iron Table – Provides a 7" x 7" work surface with excellent vibration dampening for precise drilling.
✅ 1/2 HP Motor (110V, 5A) – Delivers consistent power for drilling up to 1/2" capacity in steel.
✅ JT-33 Arbor & Keyed Chuck (1/64" – 1/2") – Ensures secure bit retention and easy adjustments.
✅ Compact & Portable – Bench-top design (17" L x 9" W x 23" H) saves space while remaining stable.
✅ 1-5/8" Spindle Travel – Allows for deeper drilling passes with minimal adjustments.
✅ 10 ft. Power Cord – Provides ample reach for flexible workshop setups.
Technical Specifications
| Category |
Specification |
| Motor |
1/2 HP, 110V, 5A |
| Swing Capacity |
8-1/2 in. |
| Chuck Size |
1/64 in. to 1/2 in. (Keyed) |
| Arbor Type |
JT-33 |
| Spindle Travel |
1-5/8 in. |
| Speed Range |
620 – 3100 RPM (5-Speed) |
| Drilling Capacity |
1/2 in. (Steel) |
| Table Size |
7 in. x 7 in. (Cast Iron) |
| Mounting Type |
Bench Top |
| Portability |
Portable (49 lbs.) |
| Dimensions (LxWxH) |
17 in. x 9 in. x 23 in. |
| Cord Length |
10 ft. |
| Warranty |
2-Year Limited Warranty |
| Manufacturer Part # |
W1667 |
| Country of Origin |
Imported |
Ideal For:
✔ Woodworking & Metalworking
✔ DIY Projects & Hobbyists
✔ Small Workshops & Garages
✔ Precision Drilling & Boring
