Description

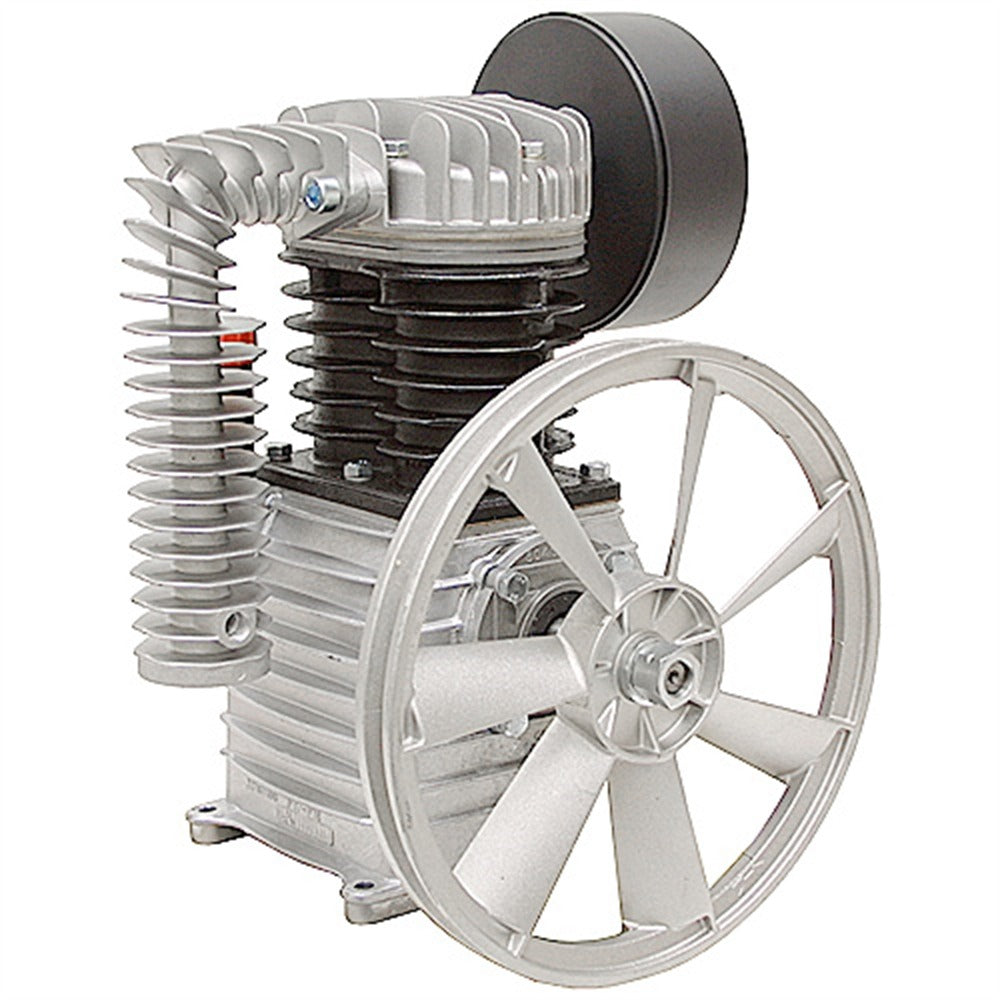

Keep your compressor running at peak performance with the Rolair K17 Single-Stage Compressor Pump, a premium replacement pump engineered for durability, efficiency, and ease of maintenance. This factory-assembled, ready-to-install unit is designed for those who want to extend the life of their existing Rolair compressor without the hassle of a full rebuild.

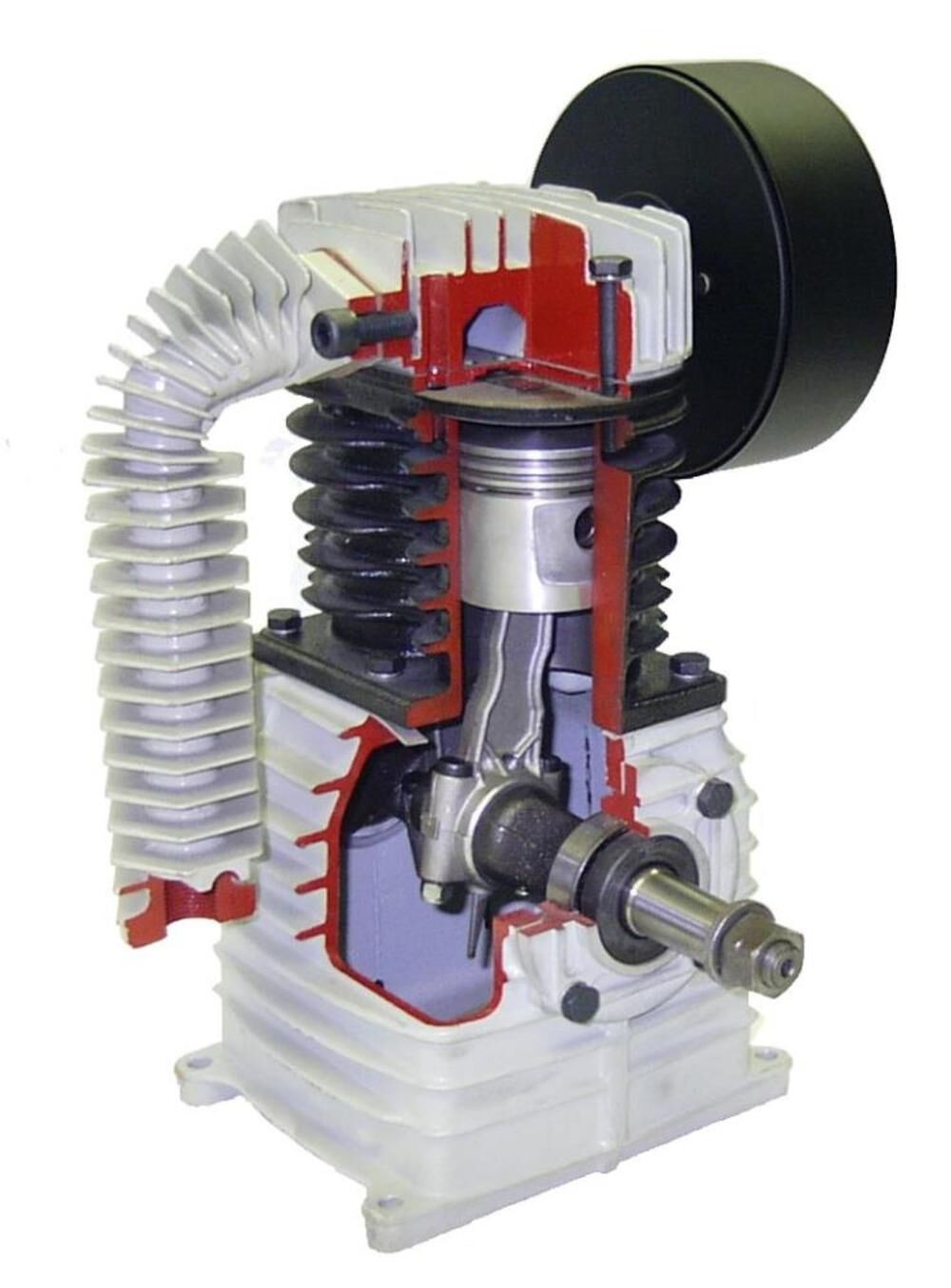

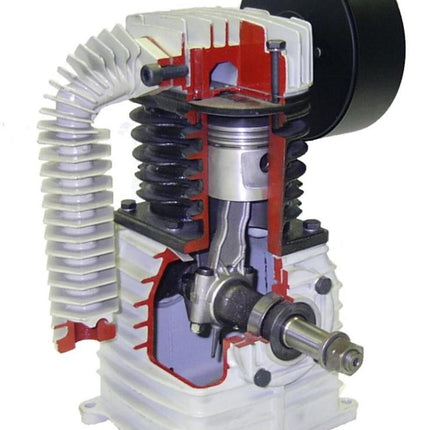

Built with cast iron cylinders, stainless steel reed valves, and a cast-aluminum crankcase, the K17 pump is optimized for cooler operation, long service life, and reliable performance in commercial or heavy-duty settings. Its dual-cylinder design and finned aftercooler improve air delivery efficiency, while a low 1,000 RPM running speed ensures quieter operation and reduced wear over time.
🛠️ Key Features:
-
Heavy-Duty Build Quality:
-
Cast iron cylinders and stainless steel valves provide strength, reliability, and resistance to heat deformation.
-
Cast aluminum crankcase keeps weight low and dissipates heat efficiently.
-
Pre-Assembled for Easy Installation:
-
Optimized Performance:
-
Delivers up to 10.1 CFM at 90–135 PSI and supports a maximum pressure of 150 PSI.
-
Low RPM (1,000) operation ensures quieter performance, cooler temperatures, and extended pump life.
-
Efficient Cooling & Maintenance:
-
Finned aftercooler increases air-cooling efficiency.
-
Oil drain extension makes routine maintenance clean and simple.
-
Oil capacity: 34 oz for extended runtime and durability.
-
Universal Compatibility:
-
Suitable for use with 1.5 to 2.0 HP electric motors or 5.5 HP gas engines (belt-driven applications).
-
Ideal for restoring or upgrading most belt-driven, single-stage compressors.
📋 Specifications:
| Attribute |
Details |
| Brand |
Rolair |
| Model Number |
PMP12K17CH |
| Compressor Type |
Single-Stage, Oil-Lubricated |
| Max Pressure |
150 PSI |
| CFM Rating |
Up to 10.10 CFM |
| Shut-Off Pressure |
135 PSI |
| Horsepower Compatibility |
1.5–2.0 HP (Electric), 5.5 HP (Gas) |
| RPM (Operating Speed) |
1,000 RPM |
| Flywheel Diameter |
11.5 inches |
| Stroke Length |
1.97 inches |
| Oil Capacity |
34 oz |
| Compressor Pump Design |
Dual-Cylinder with Finned Aftercooler |
| Material Construction |
Cast Iron (Cylinders), Cast Aluminum (Crankcase) |
| Switch Type |
Switchless |
| Weight (Assembled) |
33.1 lbs |
| Shipping Weight |
38 lbs |
| Dimensions (H x W x D) |
Height: 13.77 in (Other dimensions not specified) |
| Phase |
Single Phase (Motor not included) |
| Country of Origin |
Italy |
| UPC |
662865009514 |
| Warranty |
30-Day Manufacturer Warranty |
| Compliance |
CA Prop 65 |
| Condition |
New |
