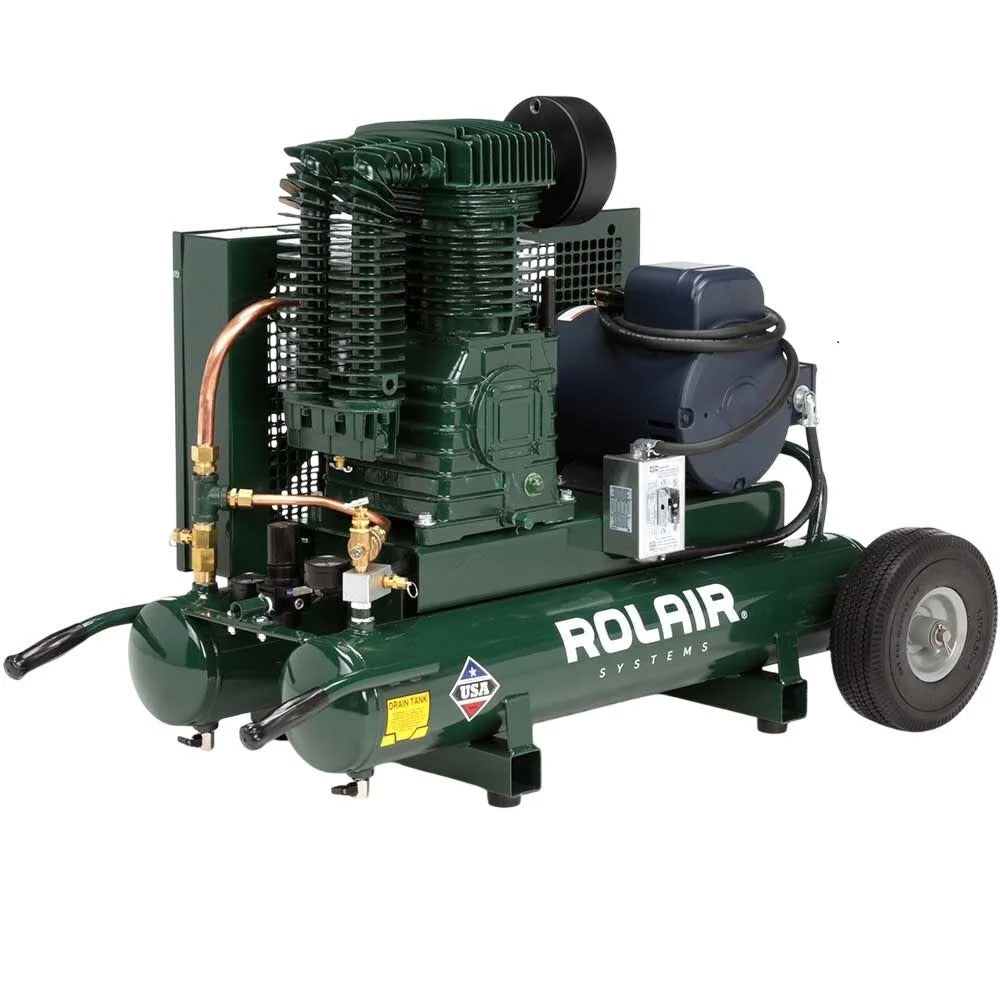

The Rolair 5230K30CS Constant-Run Compressor is a heavy-duty, professional-grade air solution designed for high-demand applications. Powered by a robust 5.0 HP motor running at 1740 RPM, this compressor delivers an impressive 18.8 CFM at 90 PSI, making it ideal for powering multiple pneumatic tools simultaneously on commercial job sites.
This model is designed with a constant-run feature, allowing the motor to run continuously under heavy loads while regulating pressure through a pilot valve. This design protects the motor from damage and extends its service life. It includes a two-stage cast-iron pump, multi-finned intercoolers, and an air-cooled aftercooler for enhanced efficiency and thermal control.
With a 9-gallon twin tank configuration, rugged steel construction, and a wheelbarrow-style design with 3.5-inch wheels, the Rolair 5230K30CS is built for job site durability and ease of mobility.
🔧 Key Features
-
High-Performance Output
Delivers 18.8 CFM at 90 PSI — ideal for sanders, grinders, paint sprayers, and framing or roofing tools.
-
5 HP Industrial-Grade Motor
Operates at 1740 RPM with built-in overload protection for longevity and reliable performance.
-
Constant-Run Operation
Designed to run continuously under pressure, eliminating start/stop cycling for longer motor life.
-

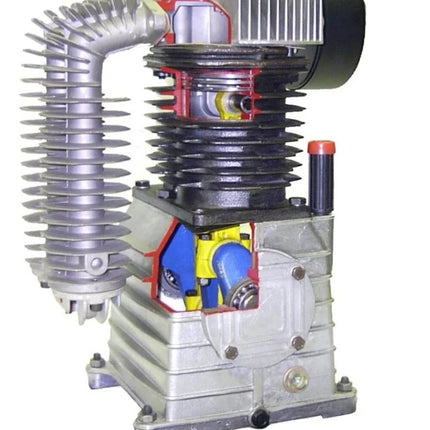

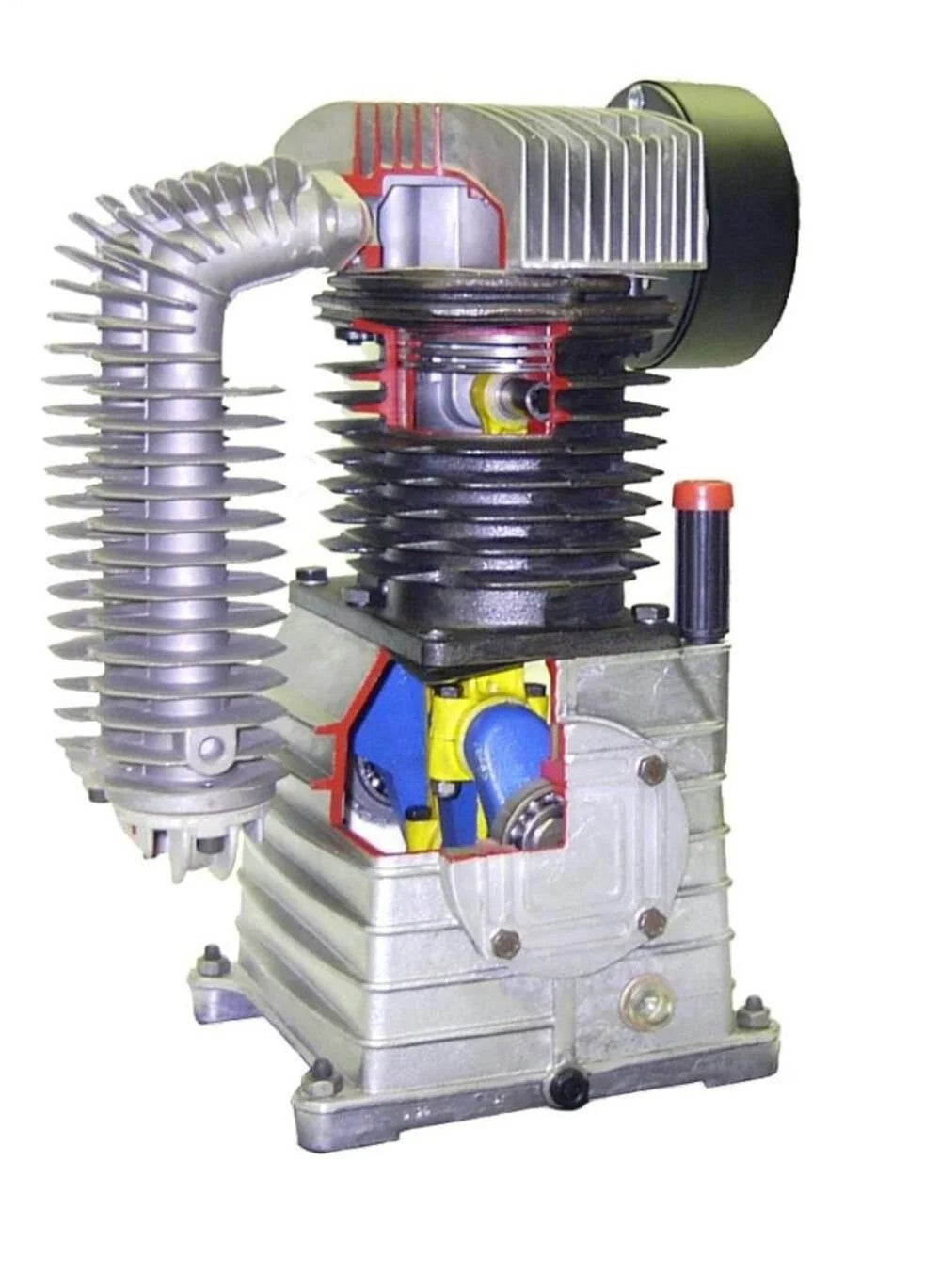

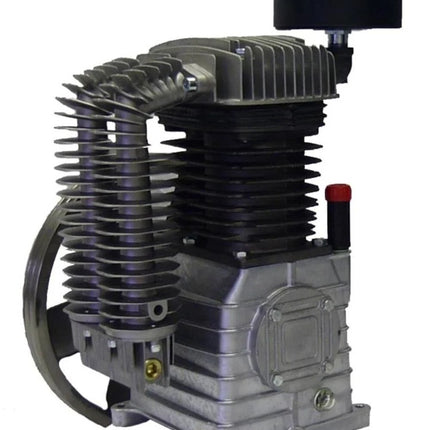

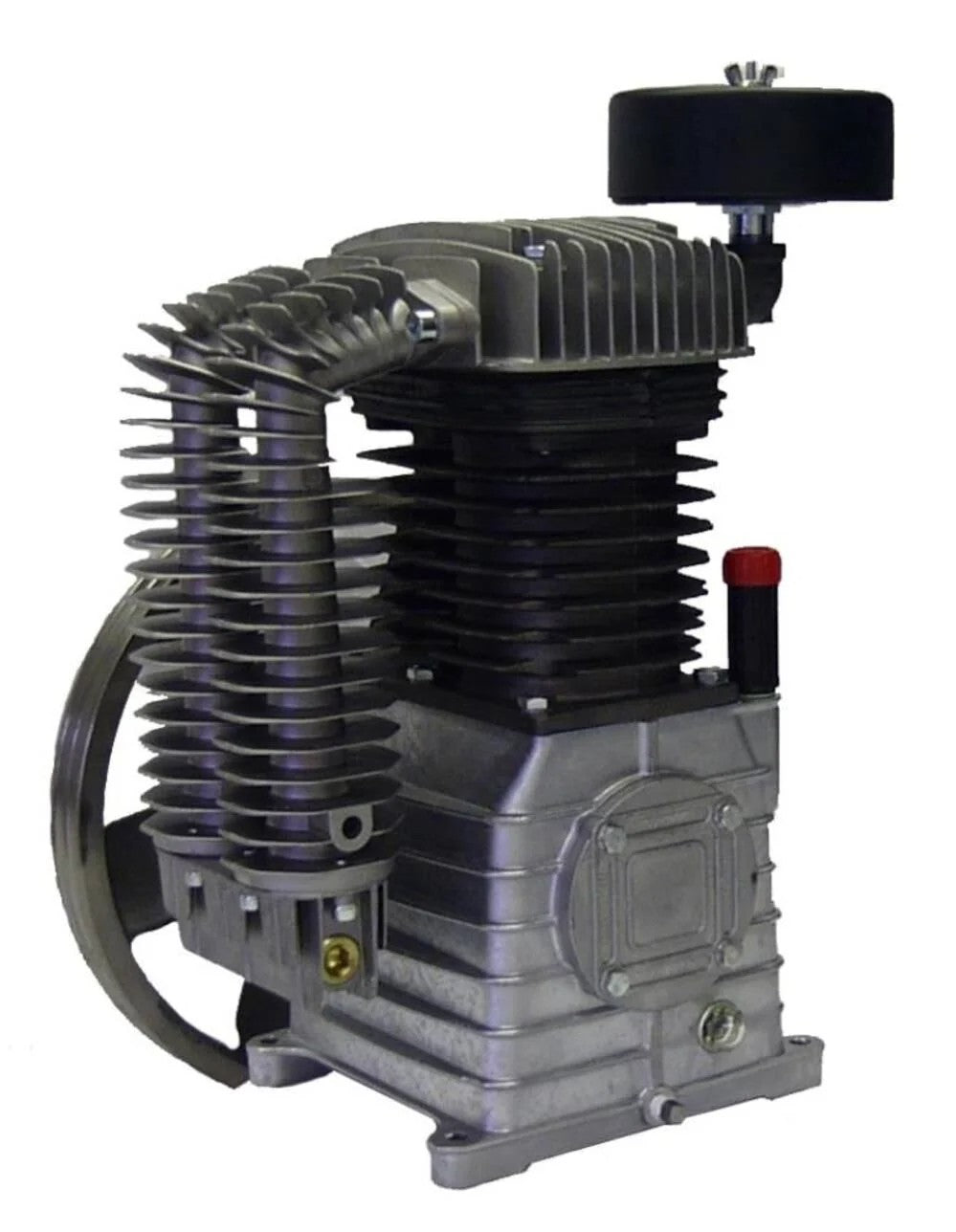

Two-Stage Cast Iron Pump
Built for efficiency and long-term use, featuring aluminum connecting rods and stainless steel reed valves.
-
Air-Cooled Aftercooler & Multi-Finned Intercoolers
Effectively dissipate heat to improve compression efficiency and reduce moisture buildup.
-
Oil Sight Glass
Easily monitor pump oil level for optimal maintenance.
-
Durable Steel Twin Tank (9 Gallon)
Twin side-by-side tank design provides stability and extended air storage capacity.
-
Wheelbarrow Frame Design
Includes pneumatic 3.5-inch wheels and integrated handles for job site portability.
-
Made in the USA
Engineered with quality materials and craftsmanship for rugged reliability.
📦 What’s Included
-
Rolair 5230K30CS 5 HP Constant-Run Air Compressor
-
Air-Cooled Aftercooler
-
Pressure Gauge and Regulator Set
-
Heavy-Duty Pneumatic Wheels
-
User Manual
📊 Technical Specifications
| Specification |
Details |
| Brand |
Rolair |
| Model |
5230K30CS-0001 |
| Horsepower |
5.0 HP |
| Voltage |
230V (Single Phase) |
| Amperage |
28.0 A |
| Air Delivery |
18.8 CFM @ 90 PSI |
| Maximum Pressure |
150 PSI |
| Pump Type |
Oil-Lubricated, Two-Stage |
| Compressor Design |
Wheelbarrow / Wheeled |
| Tank Capacity |
9 Gallons |
| Tank Configuration |
Twin Side-by-Side |
| Tank Material |
Steel |
| Operating Position |
Horizontal |
| Aftercooler |
Yes (Air-Cooled) |
| Intercooler |
Yes (Multi-Finned) |
| Oil Sight Glass |
Yes |
| Switch Type |
Pressure (Constant-Run Pilot Valve) |
| Overload Protection |
Yes |
| Wheel Size |
3.5 in |
| Handle Included |
Yes |
| UL Listed |
Yes |
| ETL Listed |
No |
| Height |
34 in |
| Weight |
296 lbs |
| Country of Origin |
United States |
| Warranty |
1-Year Limited Warranty |
| UPC |
662865251012 |
| California Prop 65 |
Yes |
