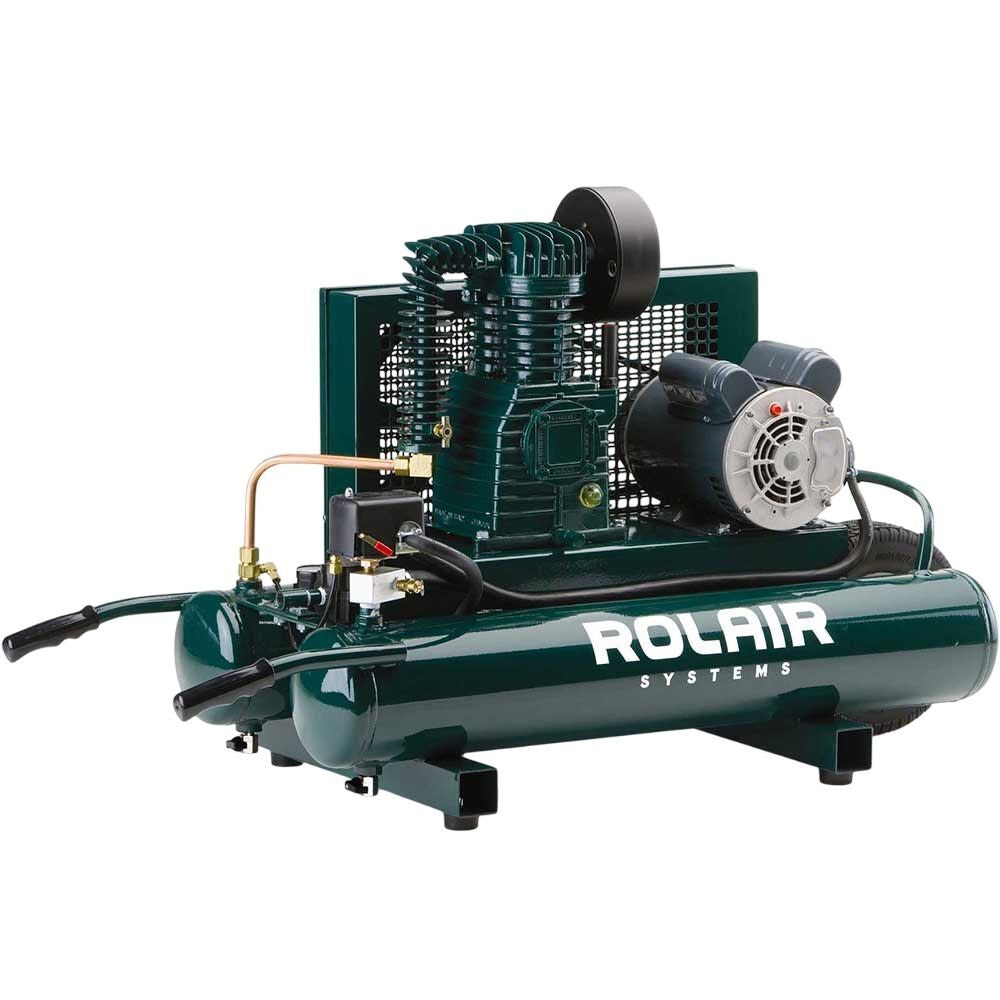

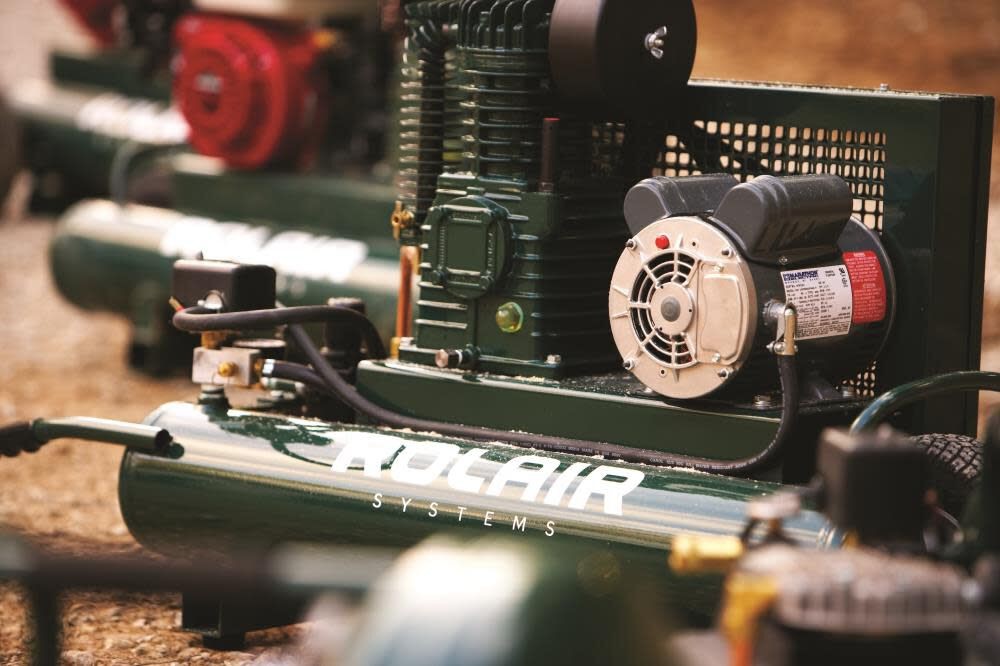

The Rolair 6820K17D Twin Tank Compressor is engineered for serious air demand and jobsite durability. Designed with dual voltage capability (115V/230V) and dual controls, this unit is ideal for professionals needing high air output and pressure regulation flexibility. With a powerful 2 HP motor and a 9-gallon twin tank, this wheelbarrow-style air compressor delivers 8.8 CFM at 90 PSI, making it suitable for running multiple framing, roofing, or trim tools simultaneously.
This model features a durable cast-iron twin-cylinder single-stage pump, a built-in air-cooled aftercooler, and overload protection to safeguard against overheating. A glass oil sight gauge ensures proper lubrication monitoring, while a rugged steel construction and portable wheelbarrow design enhance mobility on rough terrain.
🔧 Key Features
-
Powerful Output
Delivers 8.8 CFM at 90 PSI for high-demand pneumatic tools.
-
Dual Voltage Capability
Runs on 115V or 230V power for flexible site compatibility.
-
Rugged 2 HP Motor with Overload Protection
Prevents motor damage due to overheating for long-term reliability.
-
Air-Cooled Aftercooler
Helps reduce operating temperature and moisture buildup in the air stream.
-

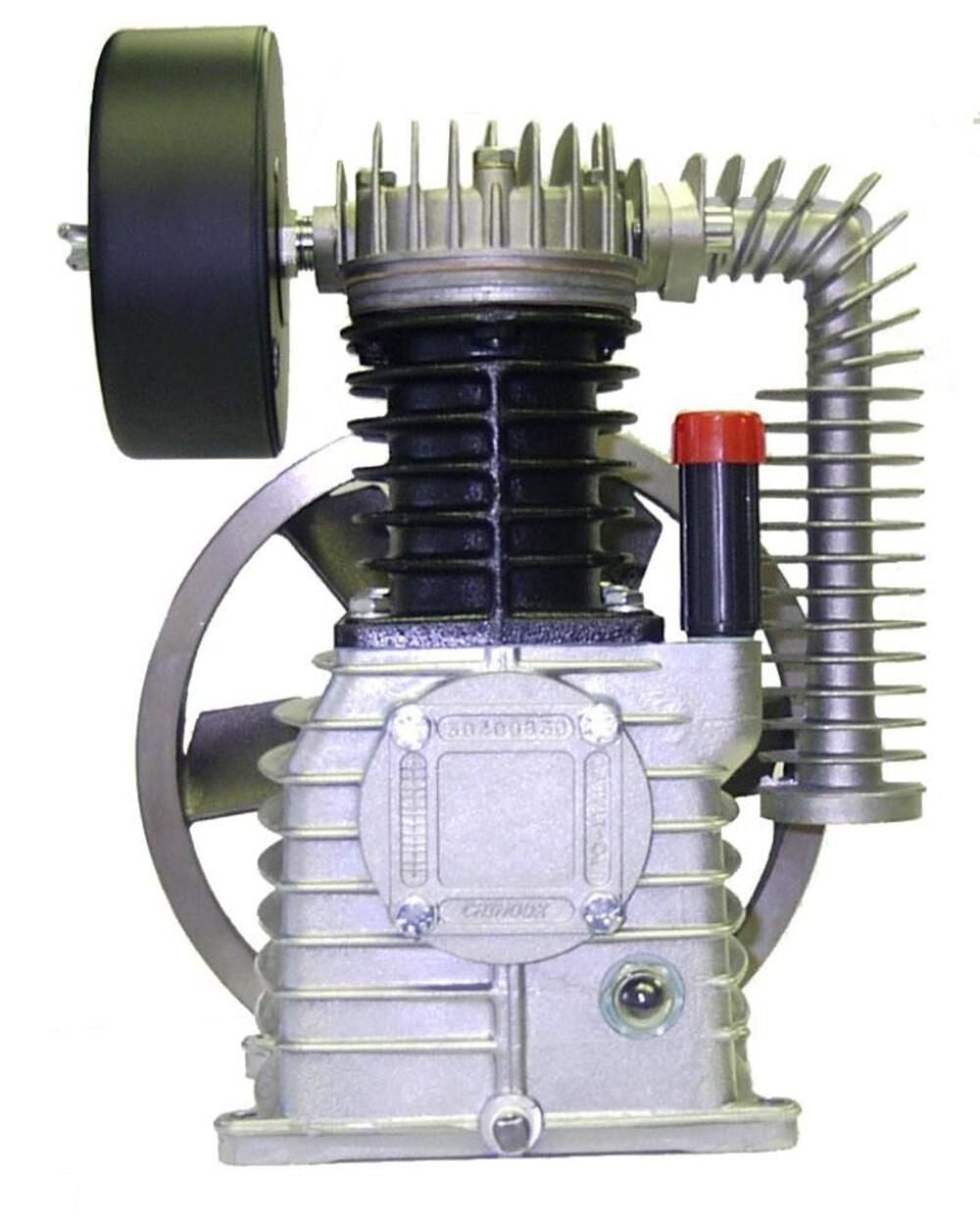

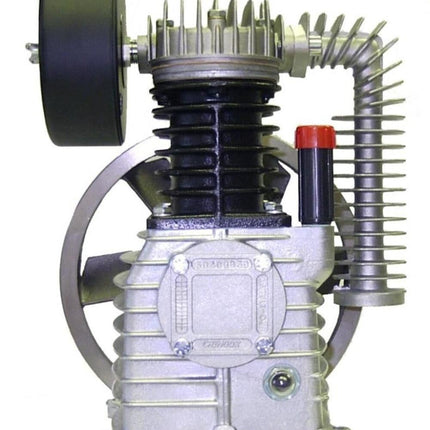

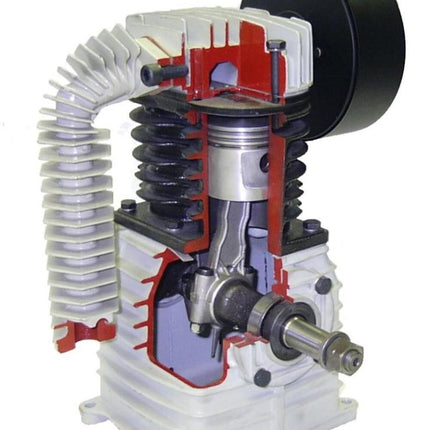

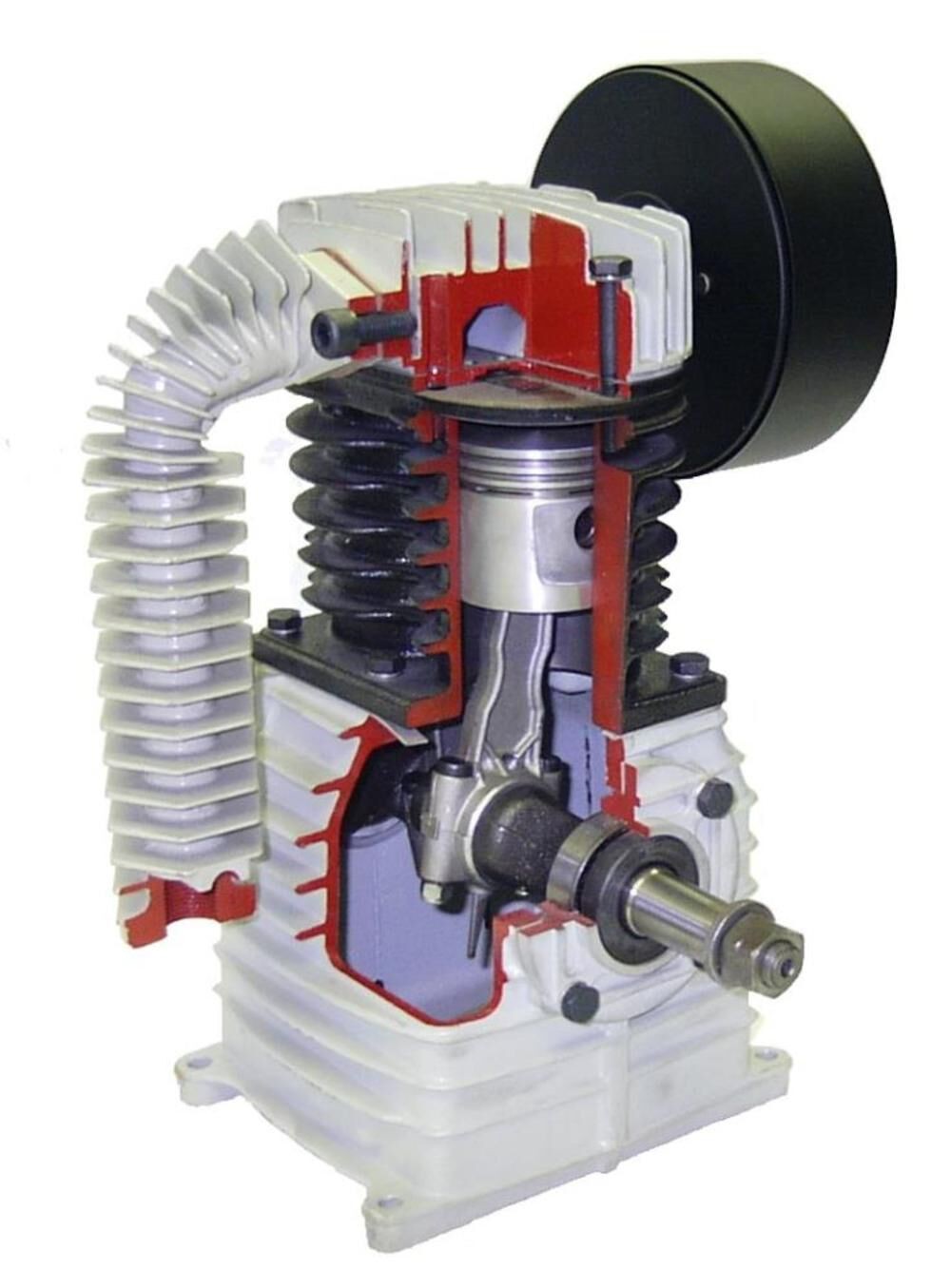

Efficient Twin-Cylinder Pump
Oil-lubricated, cast iron construction provides superior durability and performance.
-
Easy Maintenance
Features a glass oil sight gauge for quick oil level checks.
-
Wheelbarrow Design with Handles & 3.5" Wheels
Ensures easy maneuverability across job sites and garages.
-
Dual Controls with Pressure Switch and Pilot Valve
Allows versatile operation and pressure management.
-
Steel Twin Tanks (Side-by-Side)
Offers a 9-gallon total capacity with robust pressure retention.
-
Made in the USA
Built with professional-grade components for long-lasting use.
📦 What’s Included
-
Rolair 6820K17D 2 HP 9-Gallon Twin Tank Compressor
-
Dual control system (Pressure Switch + Pilot Valve)
-
Air-cooled aftercooler
-
Factory-installed quick-connect fittings
-
Owner’s Manual
📊 Technical Specifications
| Specification |
Details |
| Brand |
Rolair |
| Model |
6820K17D-0001 |
| Horsepower |
2.0 HP |
| Voltage |
115V / 230V Dual Voltage |
| Amperage |
22.0 A |
| Air Delivery (CFM @ 90 PSI) |
8.8 CFM |
| Max Pressure |
135 PSI |
| Pump Design |
Oil-Lubricated, Cast Iron, Twin Cylinder |
| Compressor Type |
Wheelbarrow / Wheeled |
| Tank Capacity |
9 Gallons (Twin Side-by-Side Tanks) |
| Tank Material |
Steel |
| Operating Position |
Horizontal |
| Tank Pressure Gauge |
Yes |
| Motor RPM |
1755 |
| Overload Protection |
Yes (Thermal) |
| Aftercooler |
Yes (Air-Cooled) |
| Switch Type |
Pressure Switch w/ Pilot Valve (Dual Control) |
| Wheel Size |
3.5 in |
| Handle Included |
Yes |
| Cord Wrap |
No |
| Full Roll Cage |
No |
| UL Listed |
Yes |
| ETL Listed |
No |
| Assembled Weight |
175 lbs |
| Dimensions (Height) |
28 in |
| Indoor / Outdoor Use |
Yes |
| Country of Origin |
United States |
| Warranty |
1-Year Limited Warranty |
| UPC |
662865011456 |
| California Proposition 65 |
Yes |
