Description
Product Overview

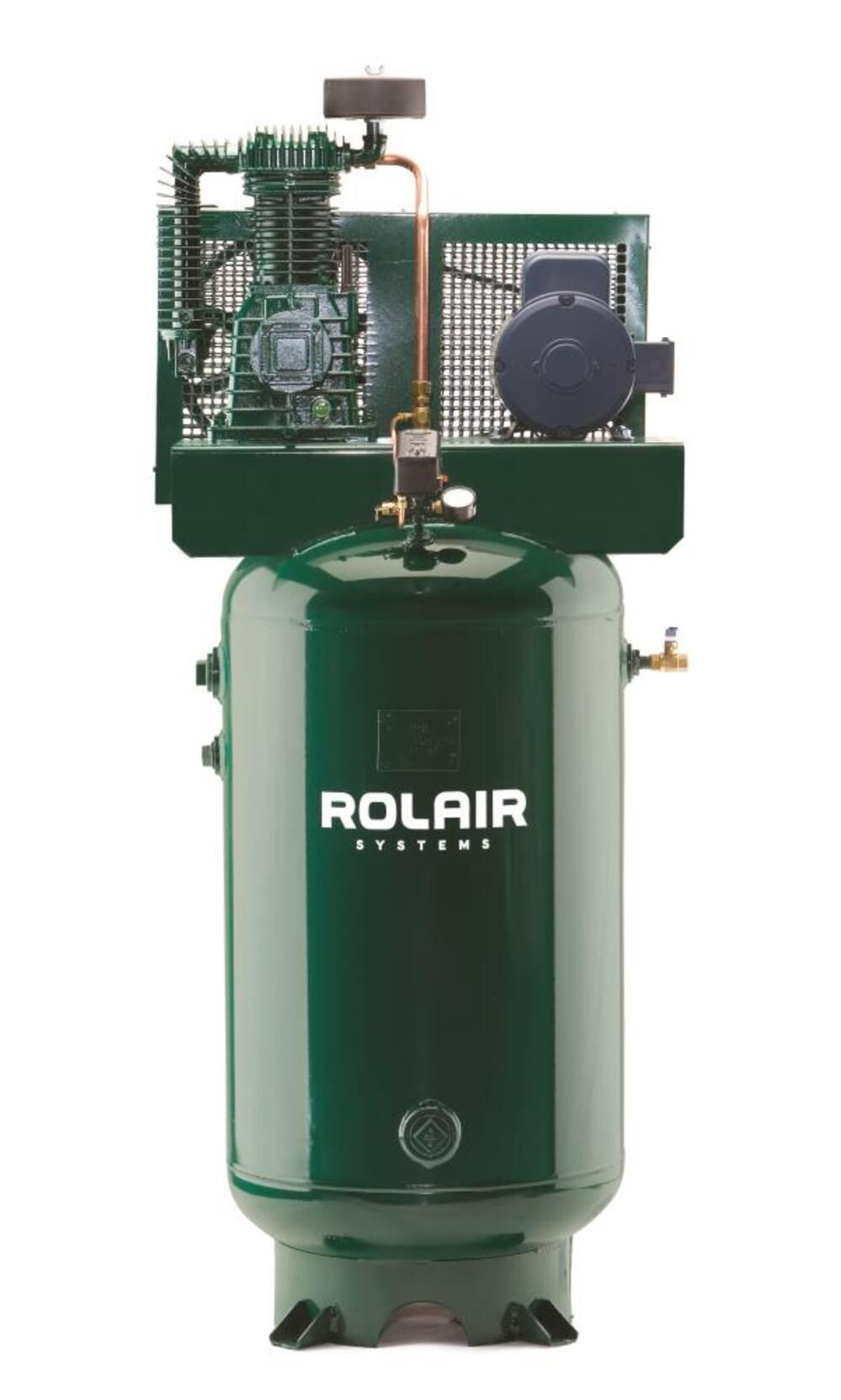

The Rolair 5 HP 80-Gallon Vertical Electric Air Compressor is engineered for heavy-duty industrial and professional workshop applications, delivering exceptional power, efficiency, and durability. Featuring a robust 5-horsepower motor operating on 230V single-phase power, it outputs 15.3 CFM at 175 PSI, enabling you to run high-demand pneumatic tools such as sanders, grinders, nail guns, and impact wrenches with ease.

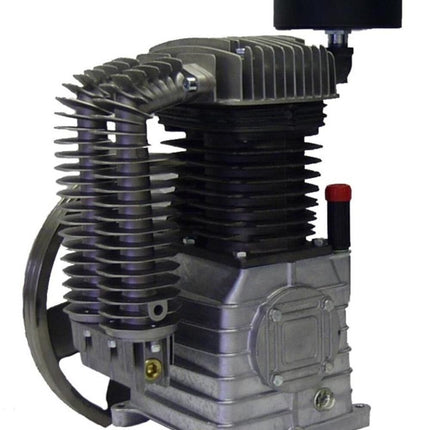

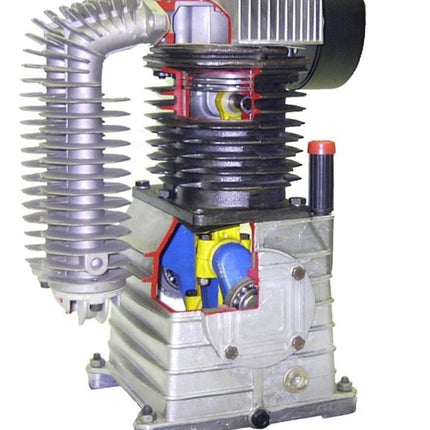

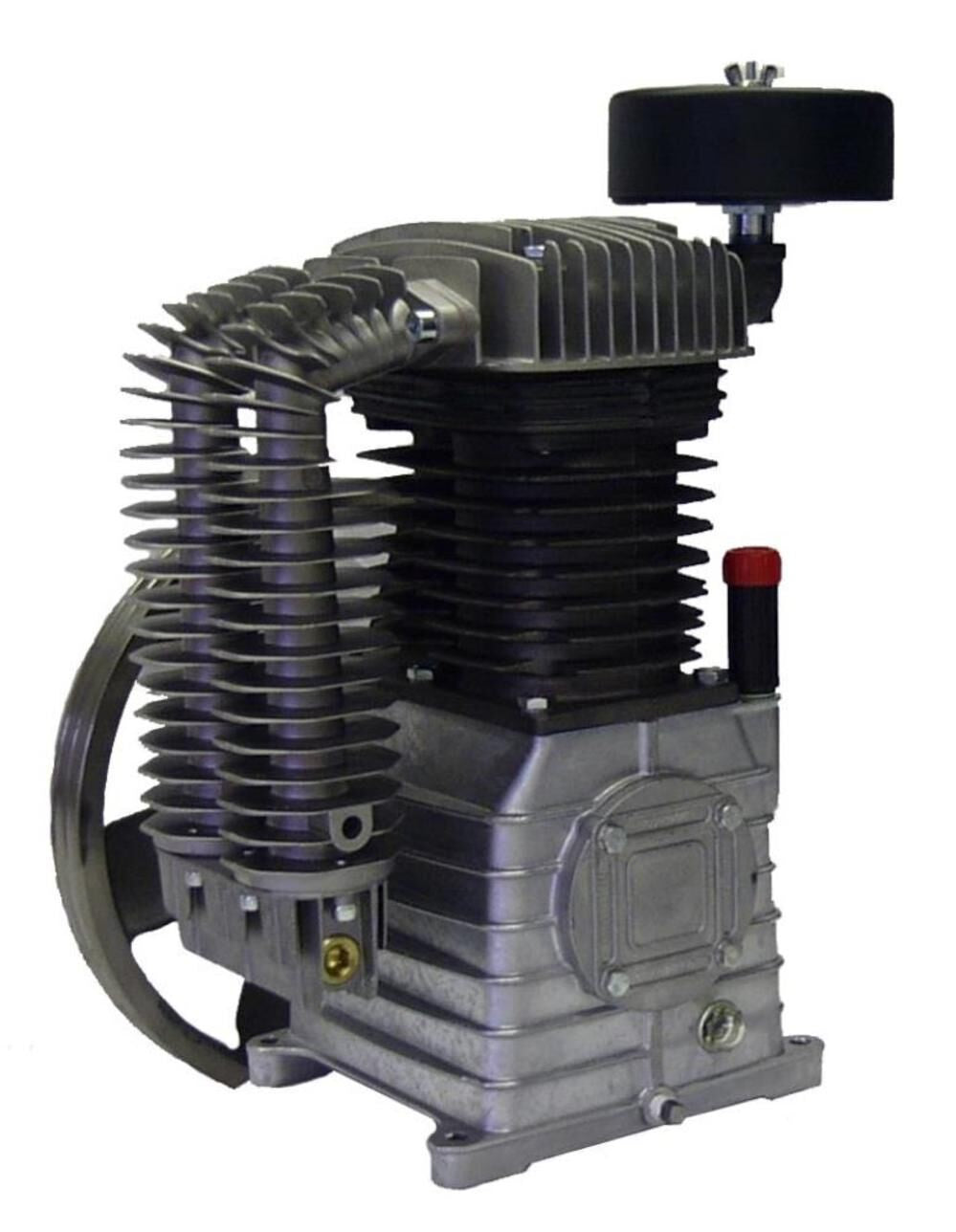

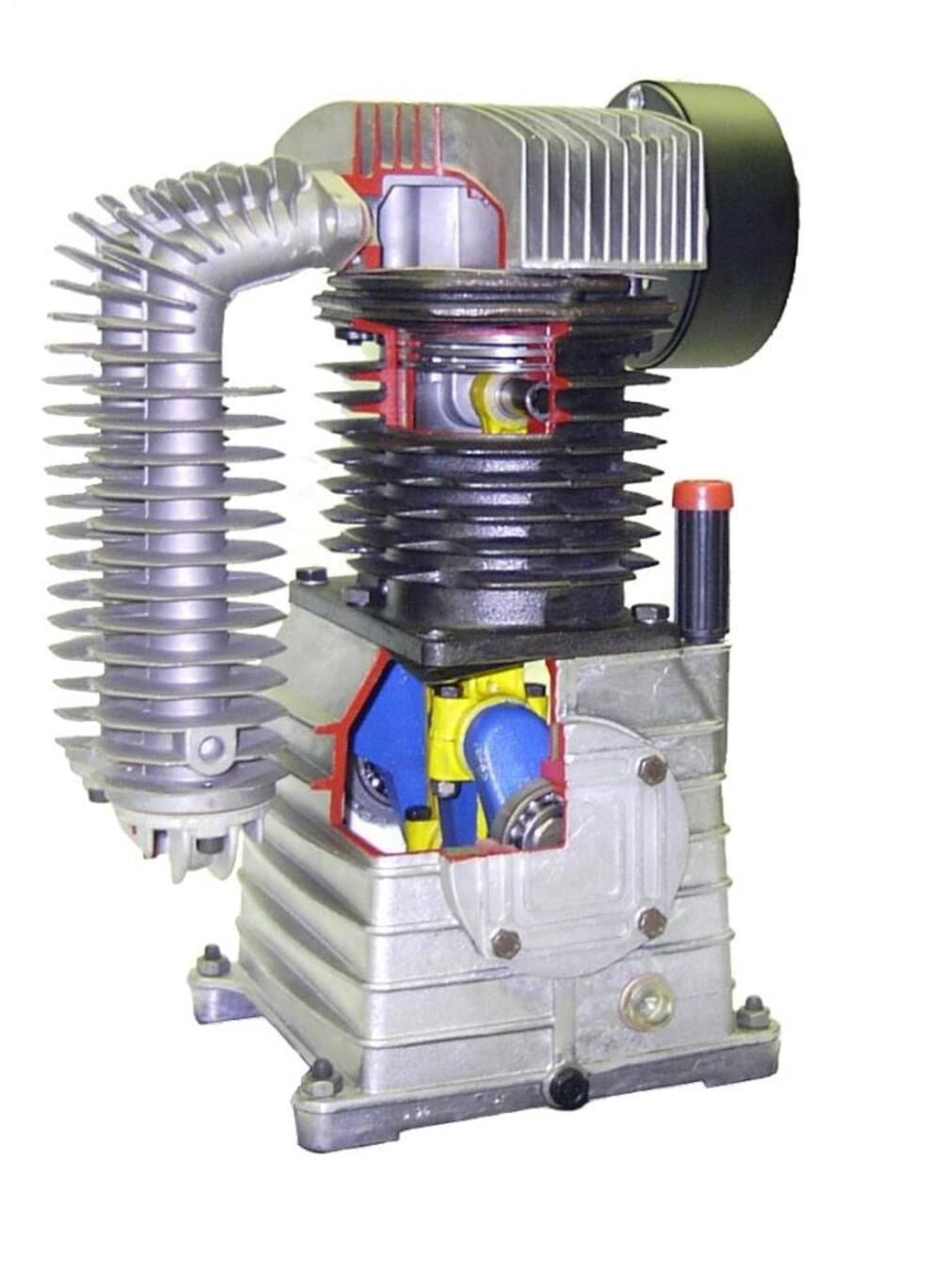

Its two-stage, double-cylinder pump design ensures maximum efficiency and optimal air delivery while maintaining fuel and operational economy. Constructed with durable steel and cast iron components, this compressor is built for long-lasting performance in rigorous environments.
The vertical tank design optimizes floor space, and with an 80-gallon capacity, it ensures extended tool run times with fewer interruptions. Integrated thermal overload protection safeguards the motor by automatically shutting it down in case of overheating, prolonging its service life.
Key Features
-
High Performance Output
-
Heavy-Duty Motor
-
Durable Construction
-
Two-Stage Double-Cylinder Pump
-
Large Air Reserve
-
Vertical Space-Saving Design
-
Thermal Overload Protection
-
Warranty
Specifications
| Attribute |
Details |
| Brand |
Rolair |
| Model Number |
V5180K28B-19 |
| Power Source |
Electric |
| Horsepower (HP) |
5.0 |
| Motor Type |
Induction motor with thermal overload protection |
| Voltage |
230V |
| Amperage |
28A |
| Phase |
Single Phase |
| Tank Capacity |
80 gallons |
| Tank Configuration |
Single vertical tank |
| Tank Material |
Steel |
| Maximum Pressure |
175 PSI |
| SCFM @ 175 PSI |
15.3 CFM |
| Compressor Design |
Vertical |
| Pump Design |
Two-stage, double-cylinder |
| Operating Position |
Vertical |
| Portable/Wheeled |
No |
| Tank Pressure Gauge |
Yes |
| Switch Type |
Pressure Switch |
| Color |
Green |
| Product Condition |
New |
| Height |
75 in. |
| Length |
30 in. |
| Assembled Weight |
469 lb. |
| Package Height |
75 in. |
| Package Depth |
0 in. |
| Package Weight |
469 lb. |
| Indoor/Outdoor Use |
Indoor |
| Full Roll Cage |
No |
| Handle Included |
No |
| Side Handle |
No |
| Lock-on Switch |
No |
| CSA Certified |
Not specified |
| UL Listed |
Yes |
| ETL Listed |
No |
| Country of Origin |
United States |
| Warranty |
1-Year Limited Warranty |
| UPC |
662865000948 |
| California Proposition 65 Warning Required |
Yes |
Included in Package
Ideal Applications
Why Choose Rolair Air Compressors?
Rolair compressors are renowned for their robust engineering, reliable performance, and durability. The 5 HP 80-Gallon Vertical Air Compressor combines powerful airflow, efficient two-stage operation, and superior build quality to meet the most demanding requirements in your shop or facility.
