Description

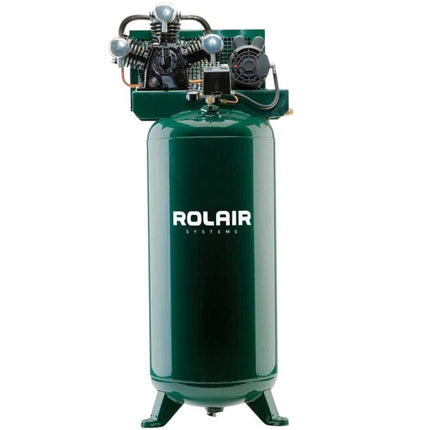

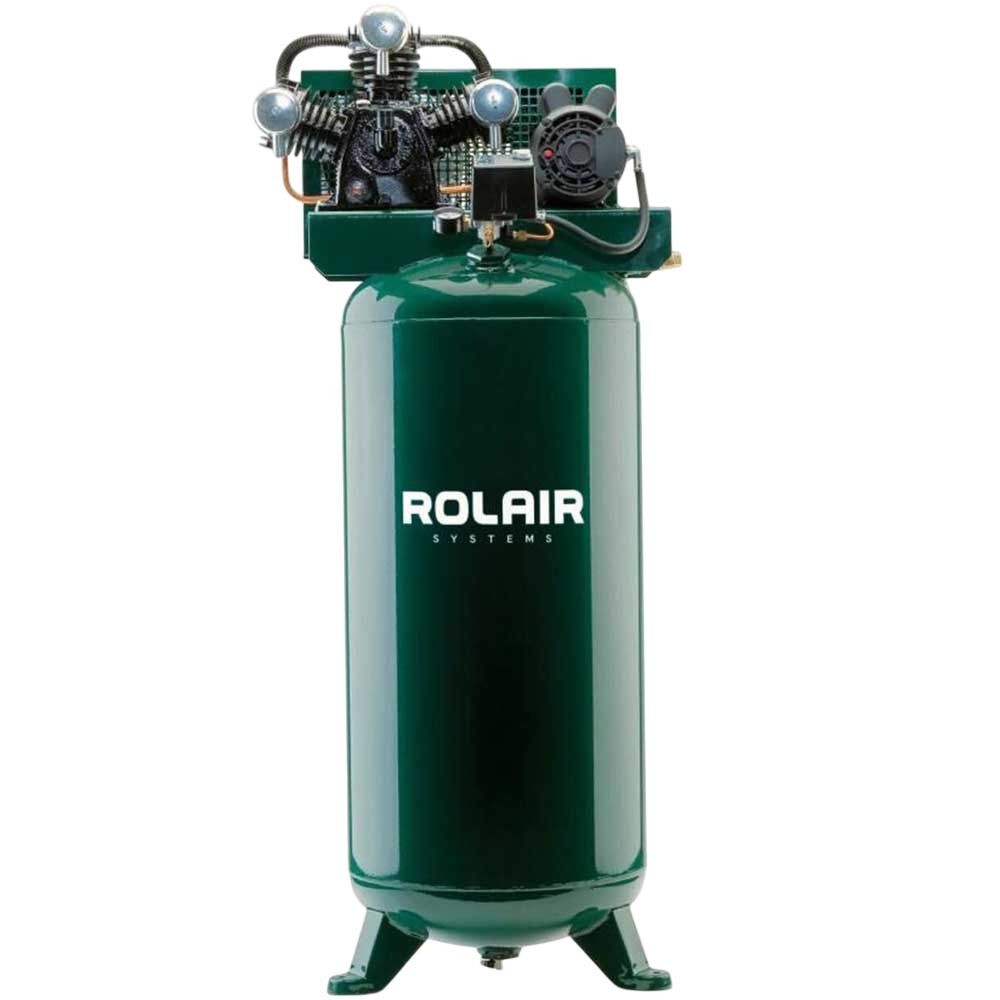

Equip your shop with industrial-grade performance using the Rolair 5 HP Vertical Air Compressor, purpose-built for high-demand pneumatic applications. This heavy-duty, single-stage compressor delivers 16 CFM at 100 PSI, making it ideal for automotive, woodworking, and manufacturing professionals requiring reliable, consistent air output.
Powered by a 5 HP single-phase motor rated for continuous-duty (S1) operation, this compressor runs smoothly on 230V power and is designed for easy hardwiring into shop setups. The durable ASME-certified 60-gallon vertical tank is constructed to reduce vibration and save valuable floor space.
With aluminum cylinder heads for improved heat dissipation, a fully enclosed steel belt guard, and precise pressure regulation (110–135 PSI), the Rolair V5160PT03XB is engineered for performance, safety, and longevity in professional environments.
⚙️ Key Features:
-
Professional-Grade Output:
Delivers up to 16 CFM at 100 PSI—suitable for operating multiple air tools simultaneously.
-
5 HP S1-Rated Motor:
Designed for 100% continuous-duty use in demanding shop conditions.
-
Heavy-Duty 60-Gallon Vertical Tank:
Space-saving ASME-certified tank with a stable platform to minimize vibration and movement.
-
Efficient Thermal Management:
Aluminum cylinder heads enhance heat dissipation for better pump longevity and efficiency.
-
User-Safe Construction:
Fully enclosed steel belt guard protects users from moving parts and enhances motor cooling.
-
Accurate Pressure Readings:
Precision pressure gauge reads from 0–200 PSI in 5 PSI increments; adjustable cut-in/cut-out between 110–135 PSI.
-
Quiet Operation:
Operates at a noise level of approximately 73 dB, quieter than many comparable models in its class.
-
UL and ETL Certified:
Ensures compliance with safety standards for electrical and mechanical components.
-
Reliable Warranty:
Covered by a 1-year limited warranty from the date of purchase, or 18 months from the date of manufacture.
📋 Technical Specifications:
| Attribute |
Details |
| Brand |
Rolair |
| Model Number |
V5160PT03XB |
| Compressor Type |
Single-Stage, Oil-Lubricated |
| Tank Capacity |
60 Gallons |
| Tank Configuration |
Vertical (ASME Certified) |
| CFM @ 100 PSI |
16.0 CFM |
| Maximum Pressure |
150 PSI |
| Adjustable Pressure Range |
110 – 135 PSI |
| Motor Horsepower |
5.0 HP |
| Motor Duty Cycle |
100% (S1 Rated) |
| Voltage |
230V AC |
| Phase |
Single Phase |
| Amperage Draw |
15 Amps |

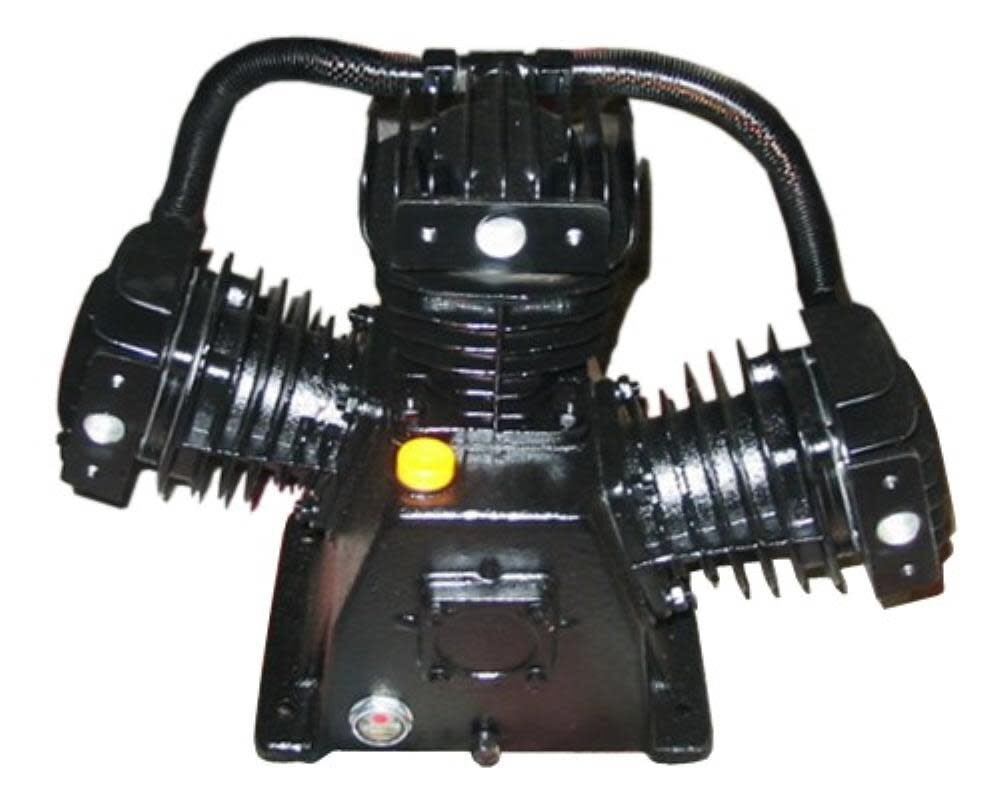

| Pump Material |
Cast Iron with Aluminum Heads |
| Belt Guard |
Fully Enclosed Steel |
| Noise Level |
73 dB |
| Color |
Green |
| UL/ETL Listed |
Yes |
| Country of Origin |
Azerbaijan |
| Dimensions (L x W x H) |
30 in x (varies) x 73 in |
| Assembled Weight |
298 lbs |
| Product Condition |
New |
| Tank Pressure Gauge |
Yes |
| Switch Type |
Pressure Switch |
| Portable (Wheels) |
No |
| Indoor / Outdoor Use |
Indoor |
| Warranty |
1-Year Limited Warranty |
| UPC |
662865002577 |
| Proposition 65 Warning |
Yes |
📦 What's Included:
-
(1) Rolair V5160PT03XB 5 HP Vertical Air Compressor
-
(1) Factory-installed pressure gauge and safety valves
-
(1) Operator’s Manual
-
(1) 1-Year Manufacturer Warranty
