Description

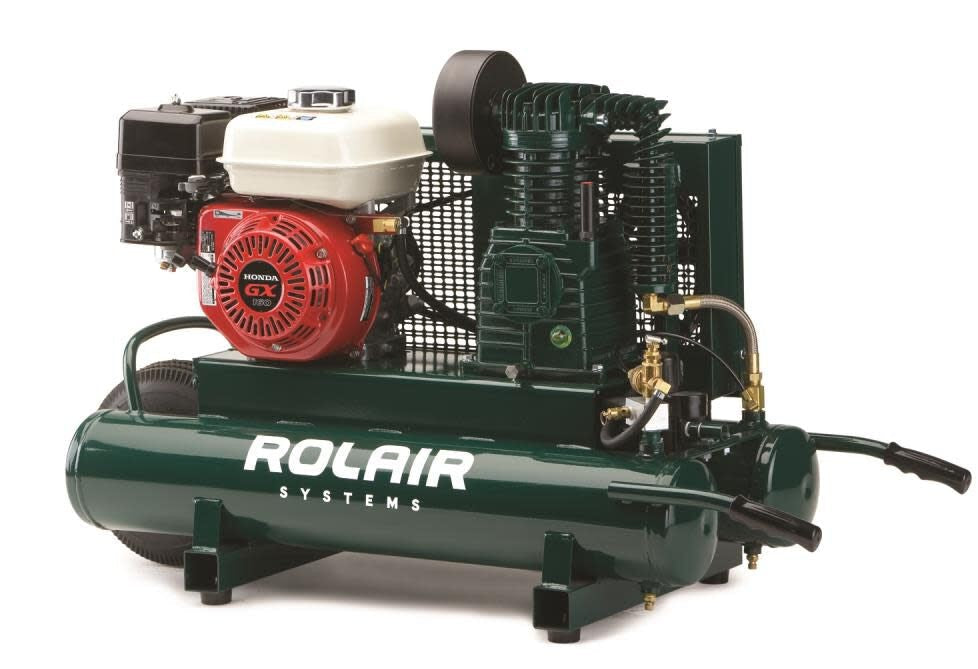

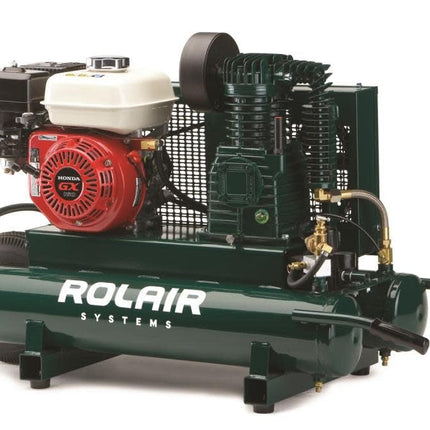

The Rolair 4090HK17 is a robust, gas-powered air compressor designed for demanding industrial and construction environments. Equipped with a reliable Honda GX160 OHV engine and a 9-gallon twin tank configuration, this compressor delivers 9.3 CFM at 90 PSI, making it ideal for powering a wide range of pneumatic tools with ease.
Built for portability and durability, the wheelbarrow-style frame ensures easy transport across job sites, while the steel frame and cast-iron components provide long-lasting strength. A quiet-running engine, low-oil shutdown protection, and an atmospheric unloading system contribute to efficient, safe, and reliable performance.
Key Features
-
Powerful Honda Engine
Equipped with a 5.5 HP Honda GX160 OHV engine known for its quiet operation, fuel efficiency, and dependable startup.
-
High Air Output
Delivers 9.3 CFM @ 90 PSI, ideal for operating multiple air tools simultaneously on the job site.
-
Low-Oil Shutdown
The engine includes an automatic low-oil shutdown feature to protect against overheating and extend engine life.
-

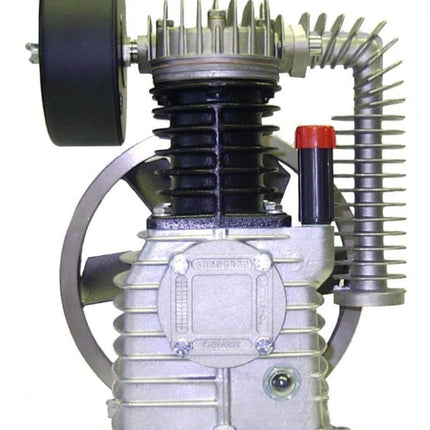

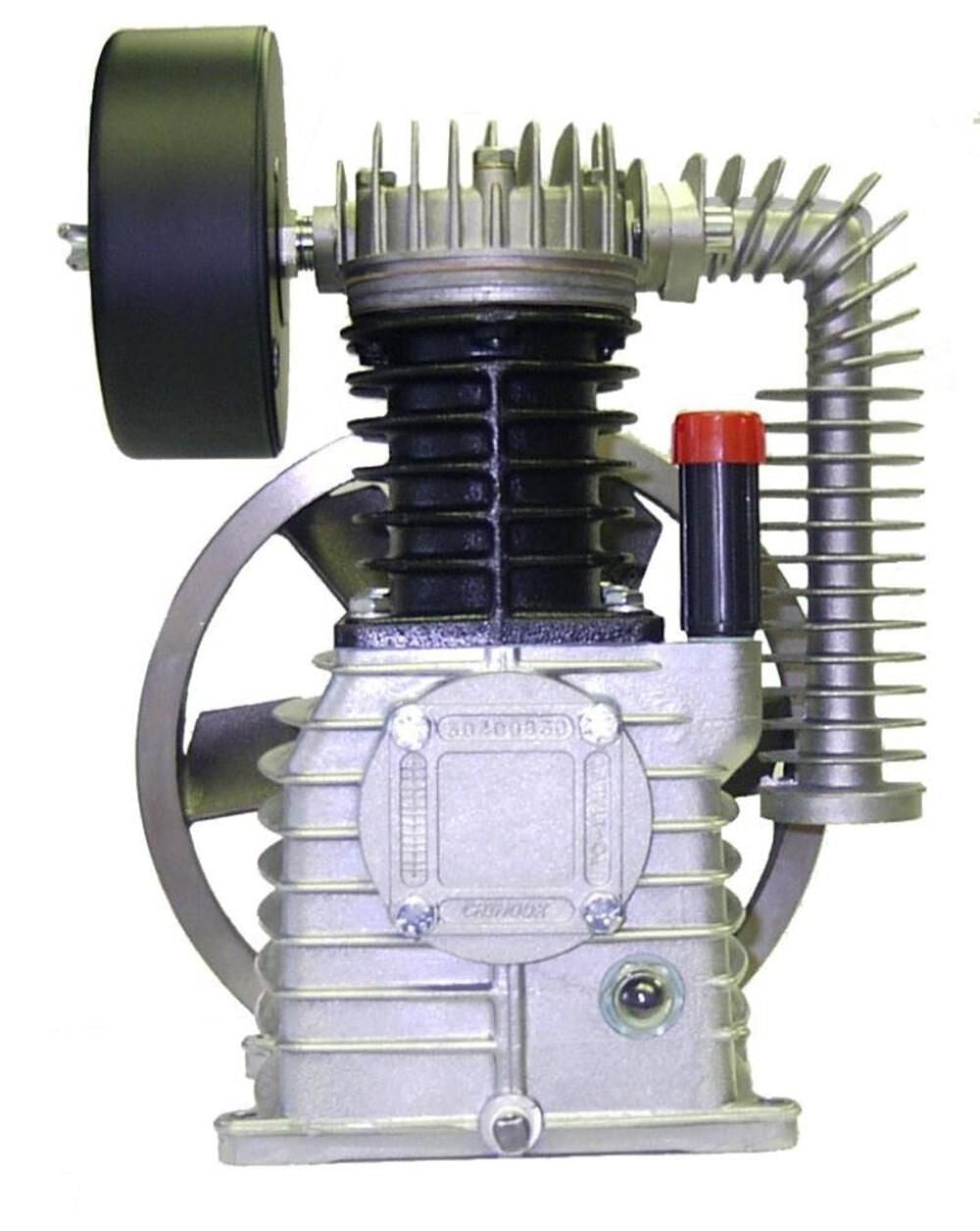

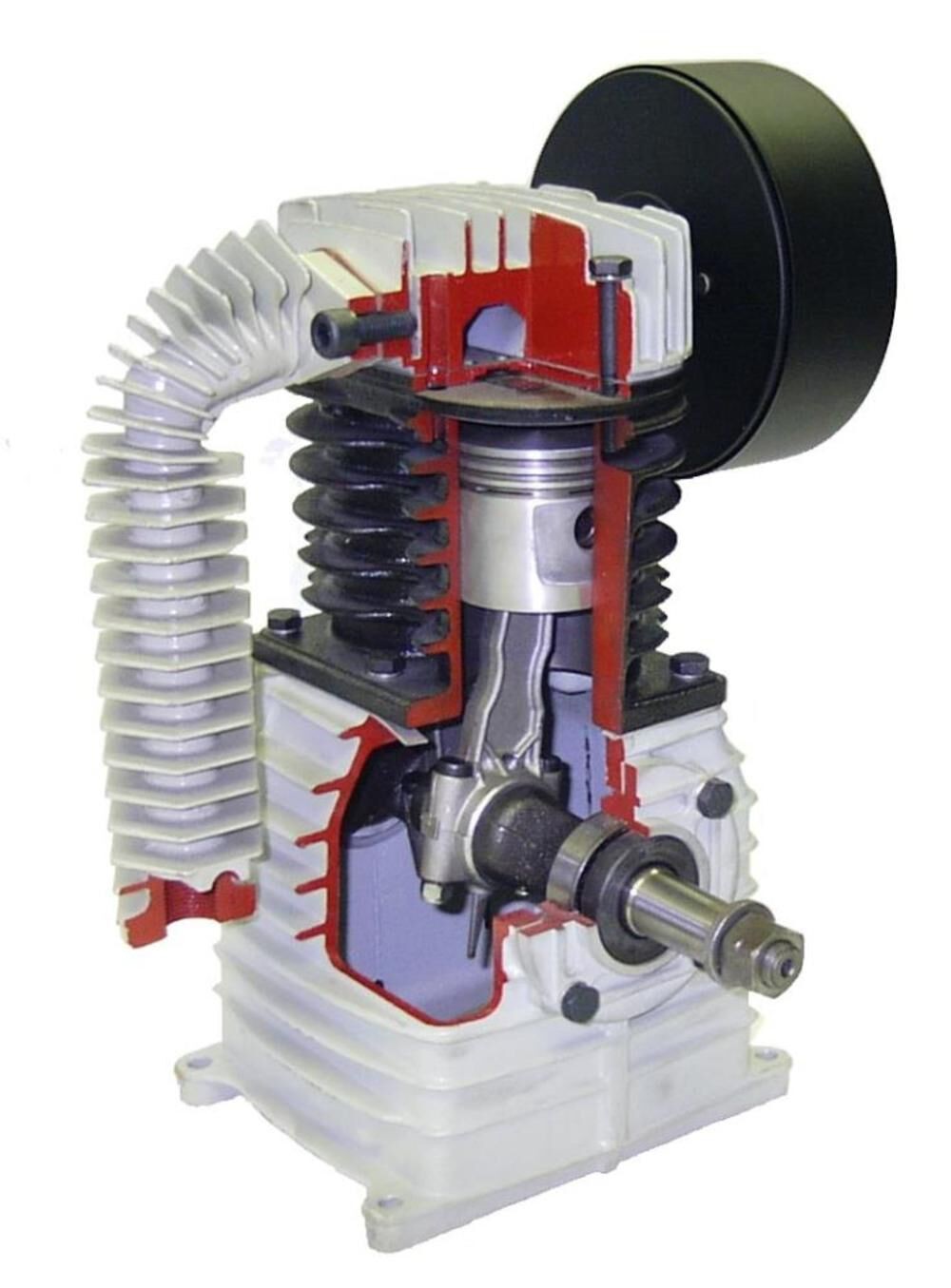

Efficient Single-Stage Pump
Features a single-stage pump with an intercooler, reducing heat buildup and enhancing pump longevity.
-
Atmospheric Unloading System
Enhances fuel efficiency and prevents unnecessary engine strain during idle times.
-
Glass Oil Sight Gauge
Allows for easy, quick oil level monitoring to ensure proper lubrication at all times.
-
Portable Wheelbarrow Design
Rugged, ergonomic frame design with large 3.5-inch wheels for optimal portability across rough terrain.
-
Durable Construction
Heavy-duty steel tank and cast-iron components ensure long-term durability and jobsite toughness.
-
Warranty Coverage
Comes with a 12-month warranty from the purchase date or 18 months from the manufacturing date (whichever comes first).
Specifications
| Specification |
Details |
| Brand |
Rolair |
| Model Number |
4090HK17-0001 |
| Engine Type |
Honda GX160 OHV |
| Horsepower |
5.5 HP |
| Air Delivery (CFM @ 90 PSI) |
9.3 CFM |
| Maximum Pressure |
135 PSI |
| Pump Design |
Oil-Lubricated, Single-Stage |
| Tank Capacity |
9 Gallons |
| Tank Configuration |
Twin Horizontal Tanks (Side by Side) |
| Tank Material |
Steel |
| Compressor Style |
Wheelbarrow / Wheeled |
| Start Type |
Manual Pull Start |
| Fuel Type |
Gasoline |
| Engine Displacement |
160 cc |
| Unloading System |
Atmospheric |
| Oil Sight Gauge |
Yes |
| Tank Pressure Gauge |
Yes |
| Wheel Size |
3.5 inches |
| Overall Length |
46 inches |
| Overall Height |
28 inches |
| Weight (Assembled) |
174 – 185 lbs (varies by source) |
| Indoor/Outdoor Use |
Outdoor |
| ETL/UL Listed |
UL Listed |
| Full Roll Cage |
No |
| Handle Type |
Ends |
| Country of Origin |
United States |
| Warranty |
1-Year Limited |
| UPC |
662865210569 |
| California Proposition 65 |
Yes – Warning Required |
