Description

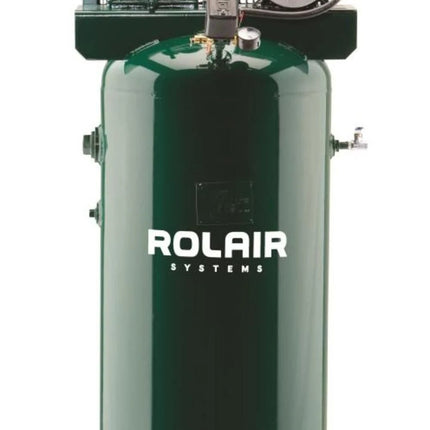

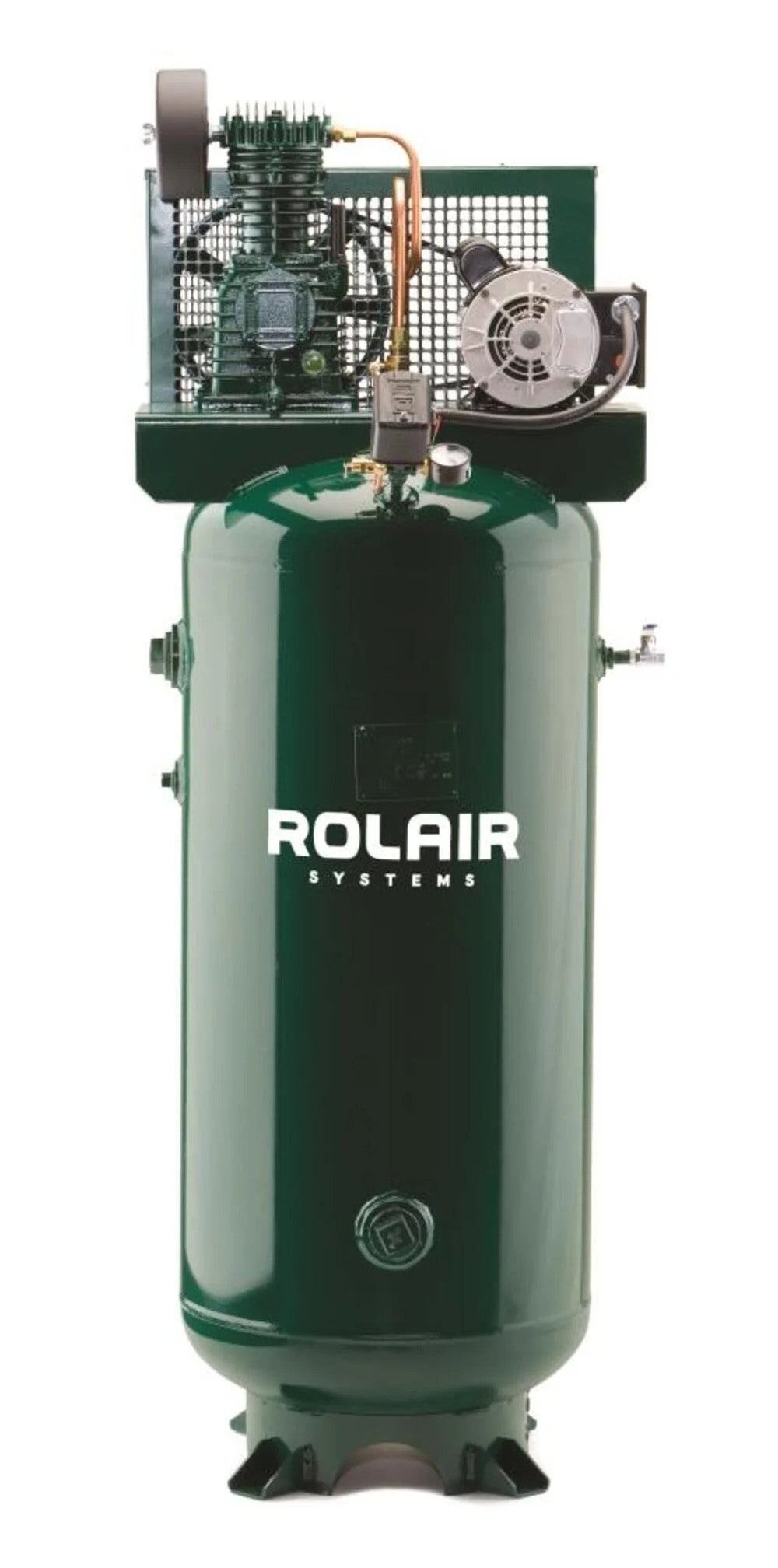

Power your workshop with confidence using the Rolair 3HP 30-Gallon Vertical Air Compressor, designed for consistent, high-performance output and long-term durability. Engineered for professionals who demand reliable pneumatic power, this stationary compressor delivers an impressive 11.9 CFM at 100 PSI, making it ideal for operating air-hungry tools such as sanders, grinders, framing nailers, and impact wrenches.
Equipped with a rugged 3-horsepower motor running on 230V single-phase power, the unit is built for heavy-duty applications. A thermal overload protection system automatically shuts off the motor in the event of overheating, ensuring safe operation and extended motor life. The 30-gallon vertical tank is constructed from durable steel, helping to save valuable floor space without sacrificing storage capacity. This model features a single-stage, oil-lubricated pump built from cast iron and steel components for maximum longevity and performance.
🔧 Key Features:
-
High Air Output:
Delivers 11.9 CFM at 100 PSI – ideal for demanding air tools.
-
Powerful 3 HP Motor:
Operates on 230V single-phase power with a 14.5-amp draw.
-
Thermal Overload Protection:
Automatically shuts down the motor to prevent overheating and potential damage.
-
Space-Saving Vertical Design:
The 30-gallon steel tank is vertically oriented to minimize floor space usage.
-
Heavy-Duty Build:
Features a cast iron pump and steel tank for rugged, industrial-grade durability.
-

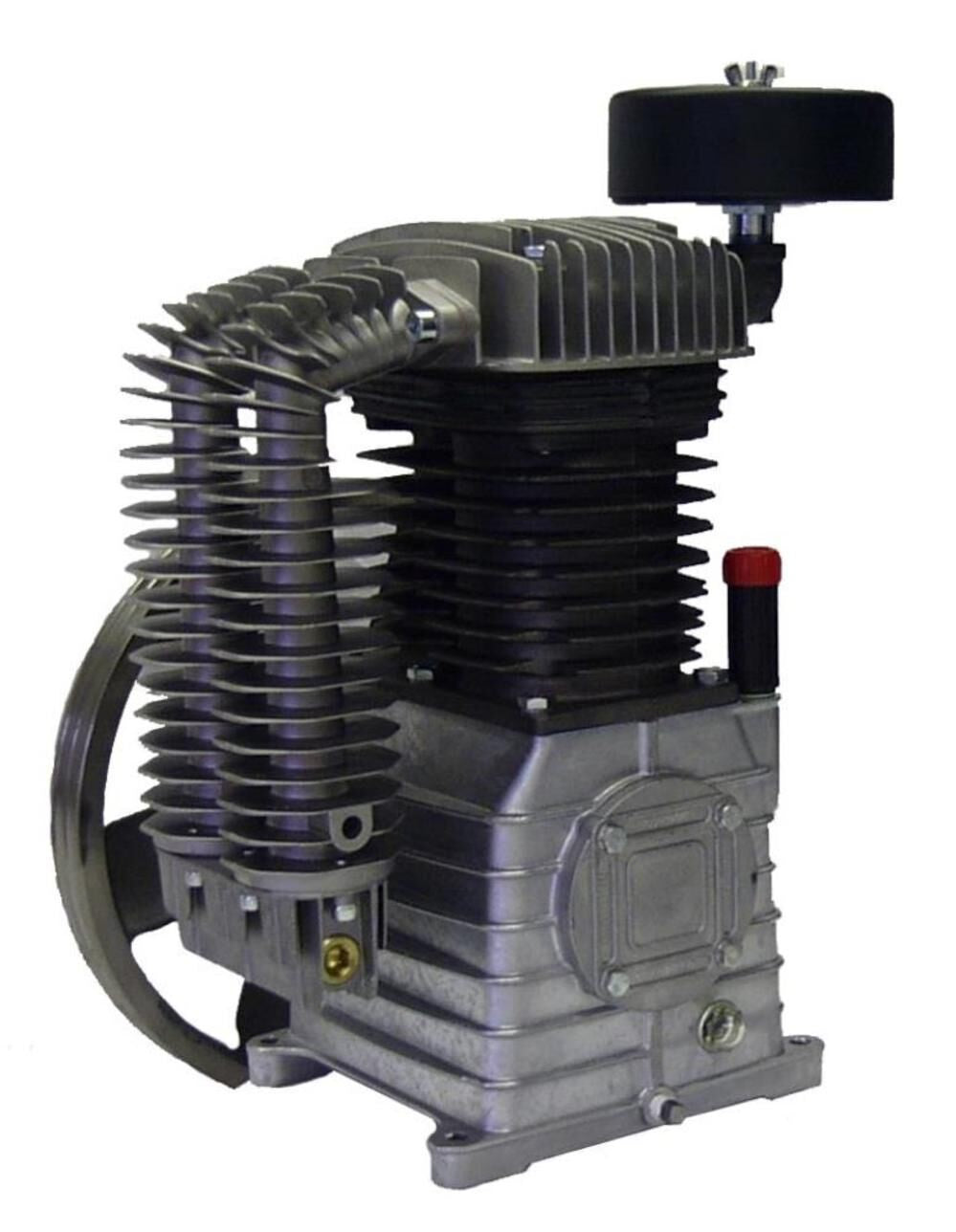

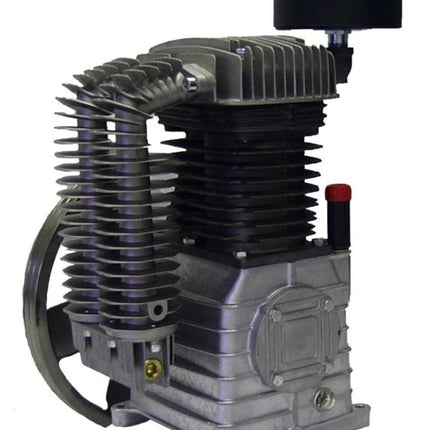

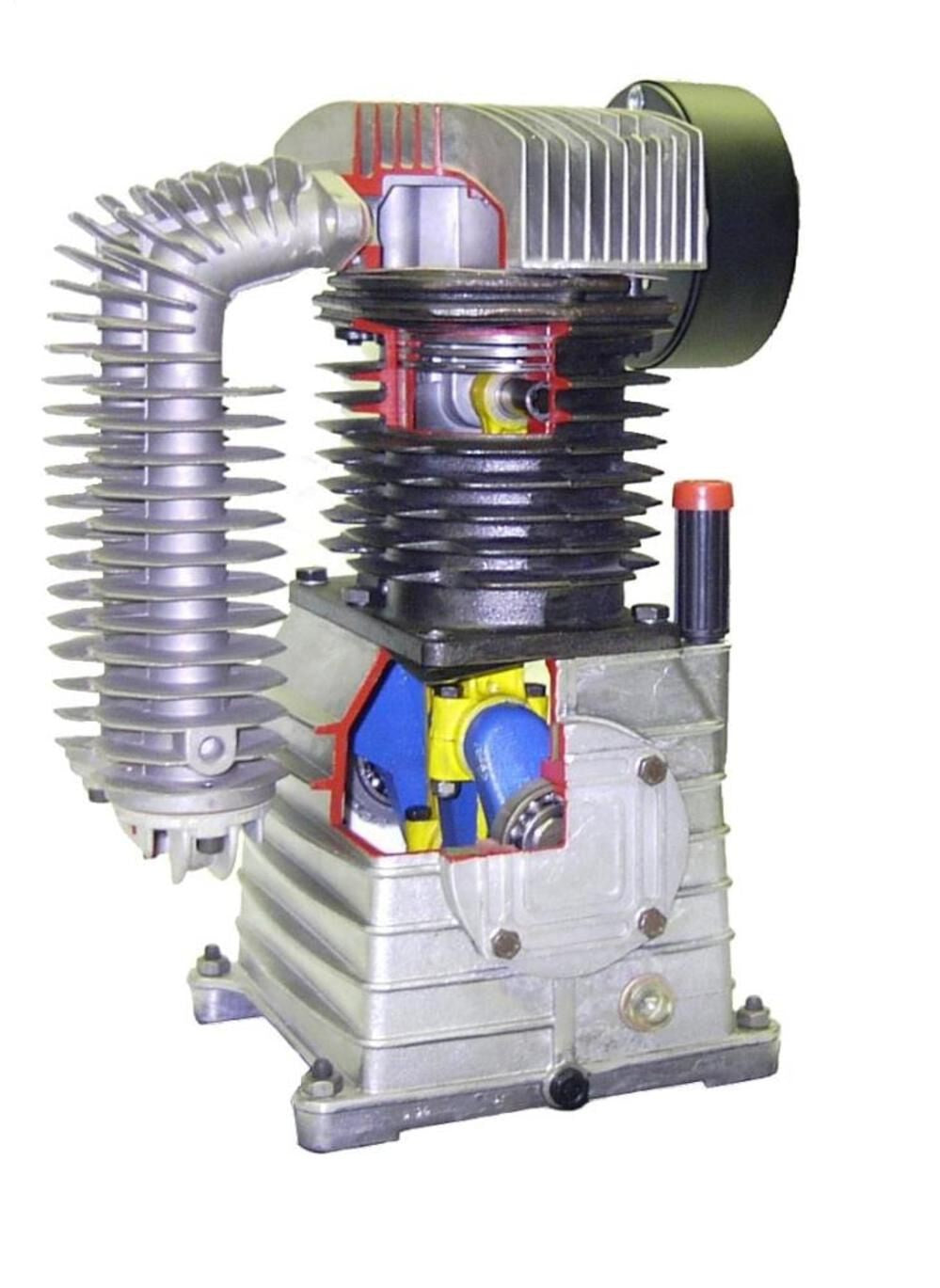

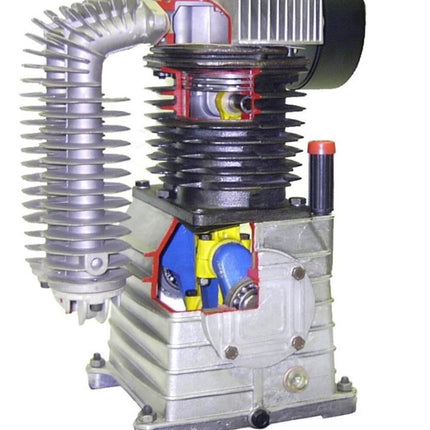

Single-Stage Pump:
Reliable and efficient for continuous operation in most workshop settings.
-
Low Maintenance:
Accessible components and durable construction reduce long-term service needs.
📋 Specifications:
| Attribute |
Details |
| Brand |
Rolair |
| Model Number |
V3130K18B |
| Horsepower |
3.0 HP |
| Voltage |
230V (Single Phase) |
| Amperage |
14.5 A |
| Tank Capacity |
30 Gallons |
| CFM Rating |
11.9 CFM @ 100 PSI |
| Maximum Pressure |
135 PSI |
| Pump Type |
Single-Stage, Oil-Lubricated |
| Construction Material |
Cast Iron (Pump), Steel (Tank) |
| Orientation |
Vertical |
| UL Listed |
Yes |
| ETL Listed |
No |
| Dimensions (L x W x H) |
25 in x (not specified) x 60 in |
| Weight |
235 lbs |
| Wheels |
No (Stationary Design) |
| Handles |
No |
| Tank Configuration |
Single Tank |
| Operating Environment |
Indoor Use |
| Country of Origin |
United States |
| Color |
Green |
| Product Condition |
New |
| Warranty |
1-Year Limited (12 months from purchase or 18 months from manufacture) |
| UPC |
662865522013 |
| California Proposition 65 |
Yes |
📦 What’s Included:
-
(1) Rolair 3HP 30-Gallon Vertical Air Compressor
-
(1) Factory-installed Pressure Gauge
-
(1) Pressure Switch and Safety Valve Assembly
