Description

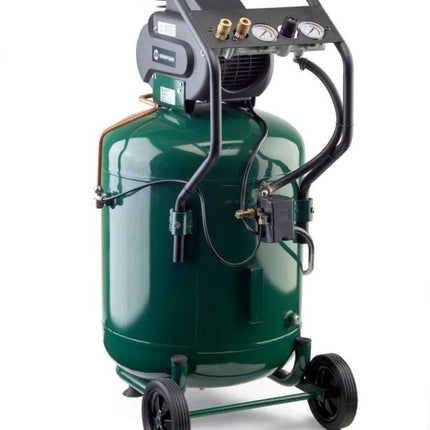

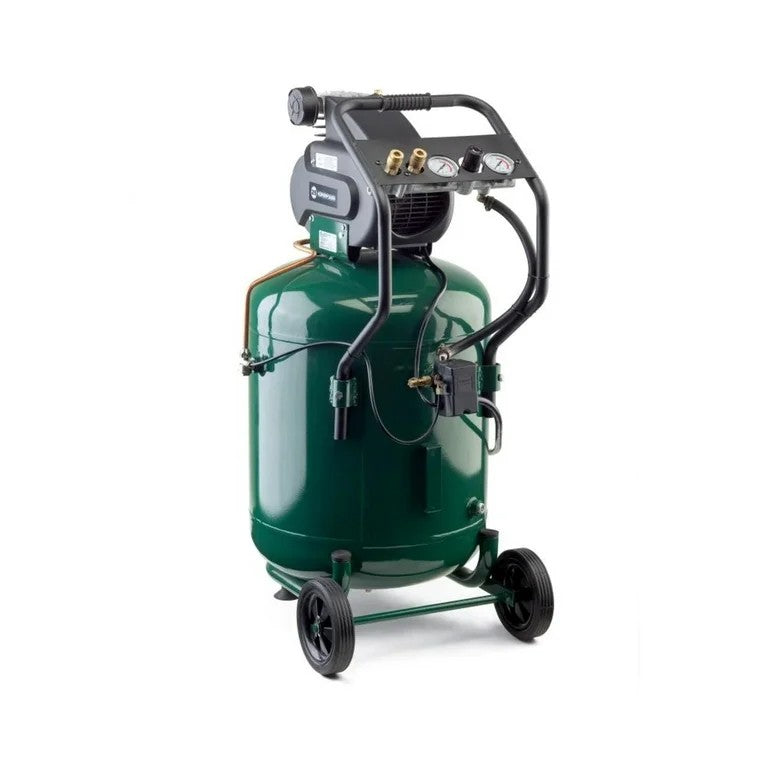

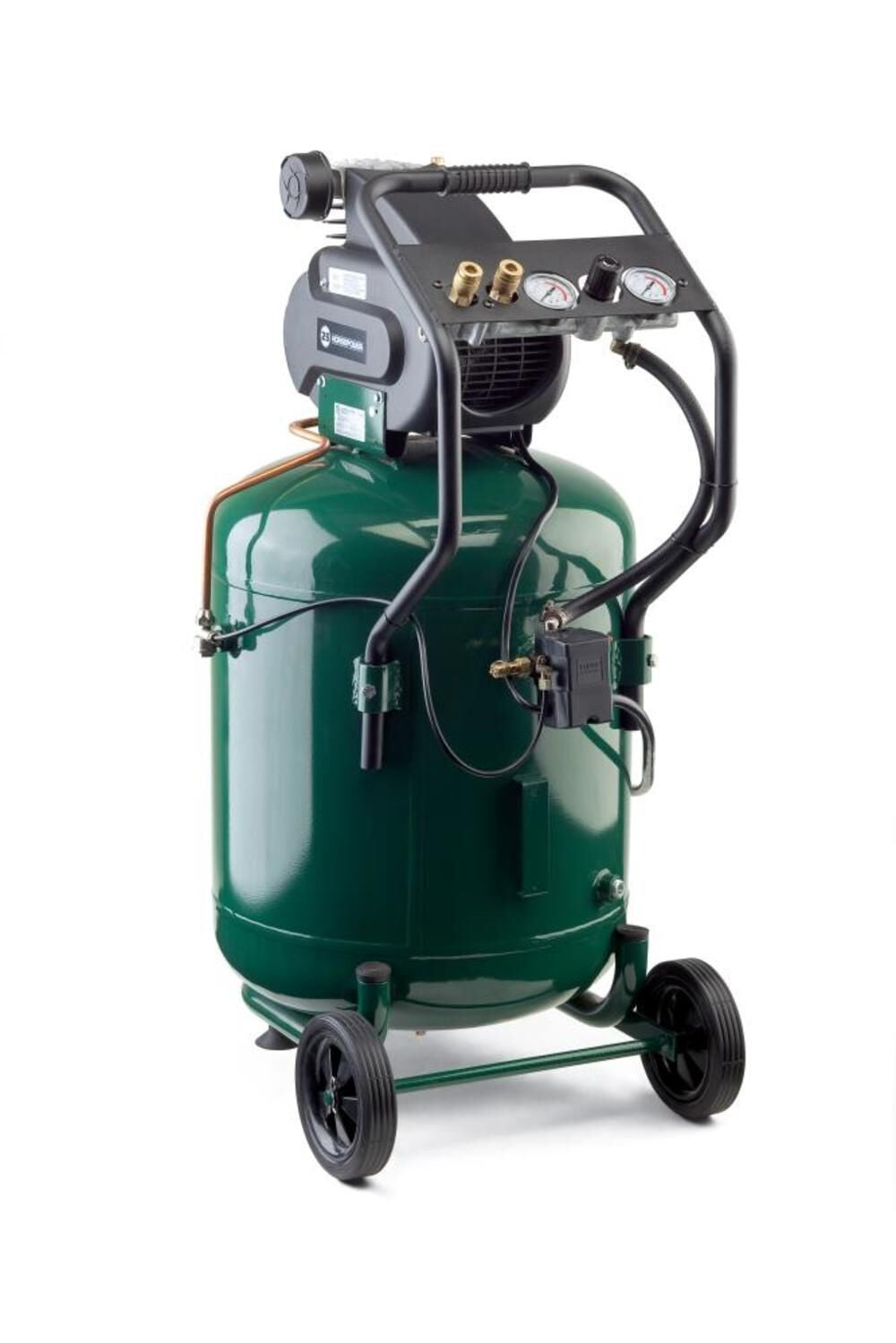

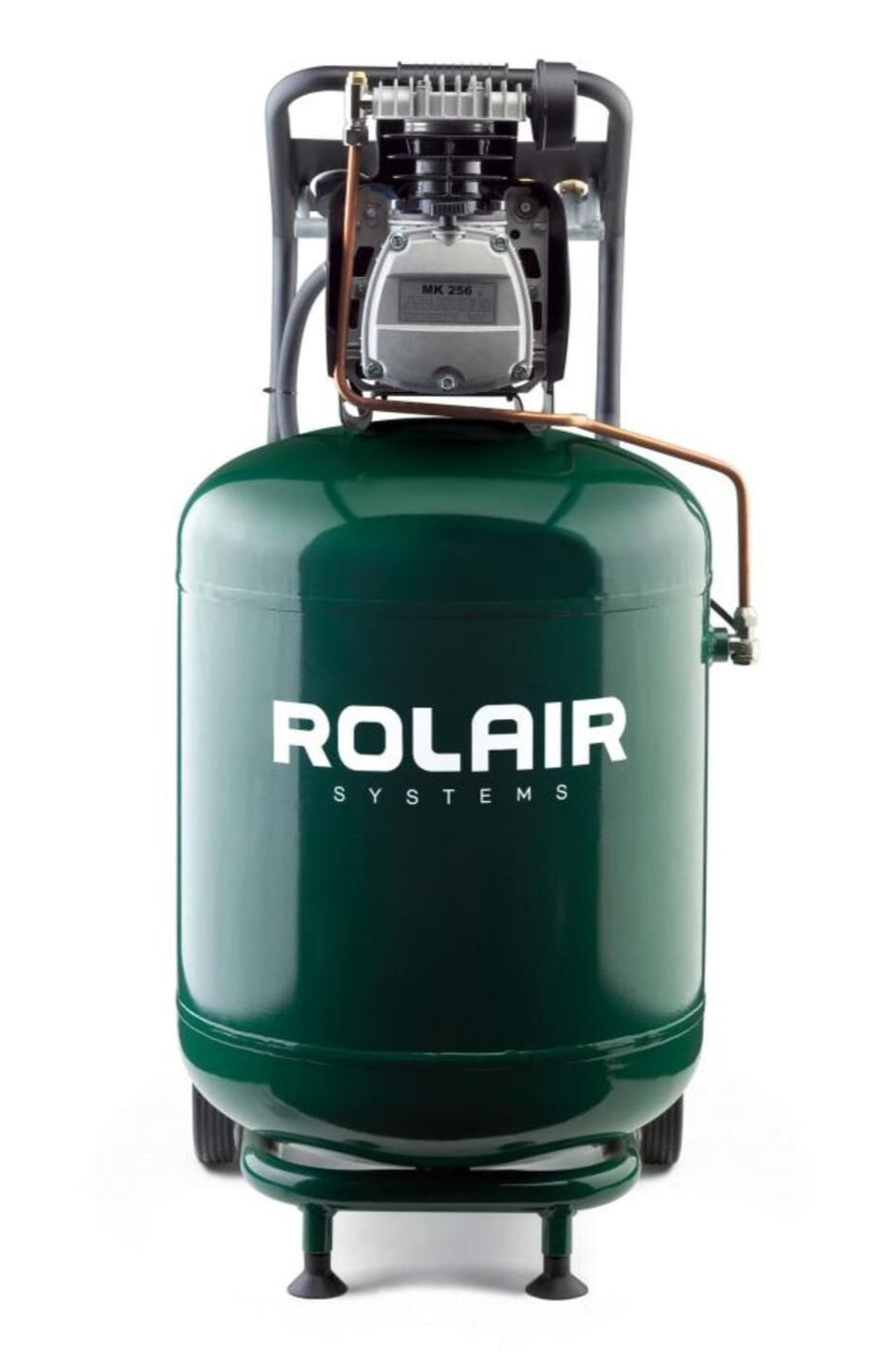

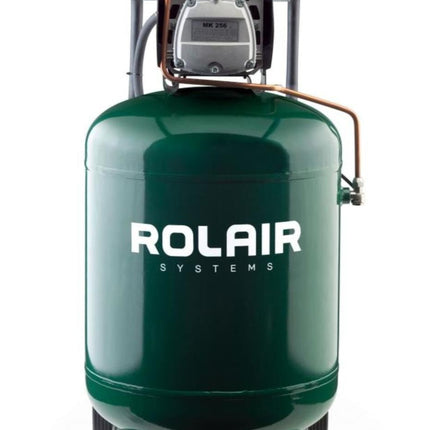

The Rolair FC250090L is a rugged, professional-grade 2.5 HP vertical shop compressor built for reliability, continuous-duty operation, and superior air delivery in demanding environments. Featuring a cast iron pump, oil-lubricated direct-drive motor, and a 24-gallon steel tank, this unit delivers 5.1 CFM at 90 PSI—ideal for powering a wide range of pneumatic tools like framing nailers, impact wrenches, or finish tools in any workshop or garage.
Designed for both portability and convenience, the unit features a built-in handle with integrated control panel, including regulator, gauges, manifold assembly, and dual quick-connect couplers for easy tool switching. Heavy-duty wheels and a compact vertical footprint make it simple to store or maneuver. The cold-start valve ensures reliable operation in all seasons, and manual overload protection safeguards your motor from damage, extending equipment life.
✅ Key Features:
-
Powerful Air Delivery:
Produces 5.1 CFM at 90 PSI and 6.5 CFM at 40 PSI, suitable for most air tools used in woodworking, automotive, or general construction.
-
Durable Direct-Drive System:
Heavy-duty oil-lubricated, single-stage direct-drive pump with cast iron cylinders and ball bearings ensures long-lasting performance.
-
Continuous-Duty Rated S-1 Motor:
Built for professional use with continuous operation capability, reducing downtime in high-demand applications.
-
Portable Vertical Design:
Space-saving 24-gallon vertical tank with rugged wheels and an ergonomic handle for easy mobility around the shop.
-
Integrated Control Console:
Features a regulator, dual pressure gauges, manifold, and two quick-connect couplers for maximum convenience.
-
All-Weather Start-Up:
Cold-start valve allows for reliable startup in colder climates or winter conditions.
-
Manual Overload Protection:
Protects the motor from overheating and overuse, extending the unit’s life.
-
Ready to Run:
Ships with 12 oz. of oil pre-filled, so it's ready to use right out of the box.
📊 Specifications:
| Specification |
Details |
| Brand |
Rolair |
| Model Number |
FC250090L |
| Motor Type |
Direct Drive, Oil-Lubricated |
| Horsepower |
2.5 HP |
| Voltage |
115V (Single Phase) |
| Amperage |
16.6 A |
| Air Delivery |
5.1 CFM @ 90 PSI / 6.5 CFM @ 40 PSI |
| Max Pressure |
125 PSI |
| Tank Capacity |
24 Gallons |
| Tank Orientation |
Vertical |
| Tank Material |
Steel |
| Pump Design |
Oil-Lubricated, Single-Stage, Cast Iron |
| Compressor Design |
Stationary / Portable |
| Start Type |
Pressure Switch |
| Cold Start Valve |
Yes |
| Regulator & Gauges |
Yes – Integrated into Handle |
| Quick Connects |
2 |
| Wheels |
Yes – 2" Diameter |
| Handle |
Yes – with Integrated Controls |
| Height |
44 in. |
| Length |
72 in. (6 ft) |
| Weight |
160 lbs |
| Indoor/Outdoor Use |
Indoor/Outdoor |
| UL Listed |
Yes |
| Country of Origin |
China |
| Warranty |
1-Year Limited / 18 Months from Manufacture Date |
| UPC |
662865002966 |
