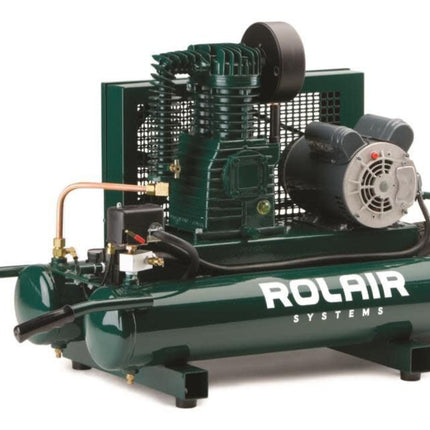

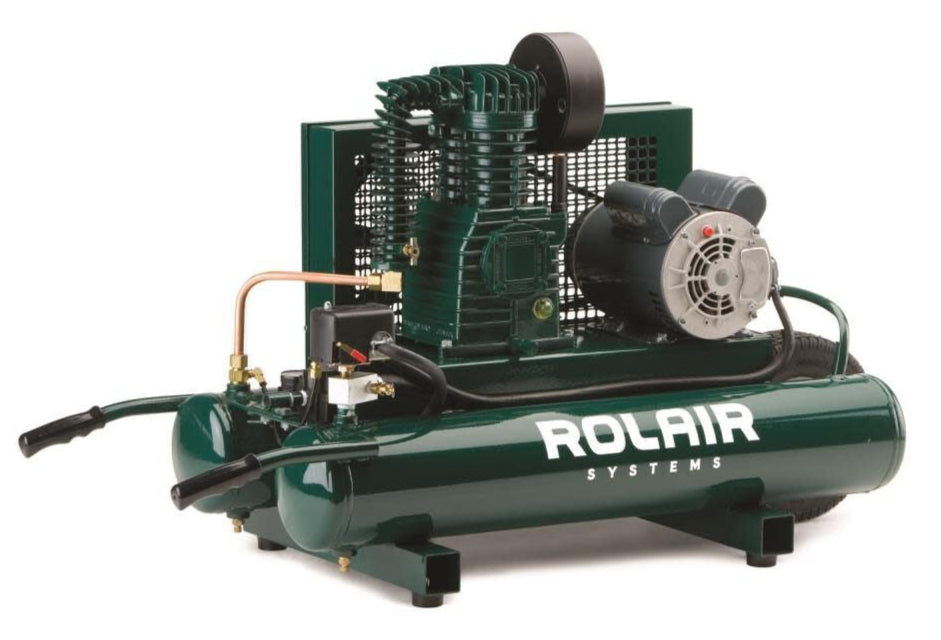

The Rolair 5715K17-0001 Twin-Tank Air Compressor is a rugged, contractor-grade machine designed for high-demand pneumatic tasks. With a robust 1.5 HP motor and a powerful single-stage cast-iron pump, this unit delivers a reliable 7.3 CFM at 90 PSI, making it capable of powering up to nine trim or finish guns simultaneously.
Its oil-lubricated, low-RPM design ensures reduced wear, quiet operation, and extended service life. Engineered for portability and protection, this unit features a 9-gallon twin-tank configuration, heavy-duty wheel, and ergonomic handle for effortless jobsite mobility. Made in the USA with top-tier components and backed by a 1-year limited warranty, the Rolair 5715K17 is built to perform and endure.
🔧 Key Features
-
High Air Delivery:
Delivers 7.3 CFM at 90 PSI and operates between 110–135 PSI, ideal for powering multiple pneumatic tools at once.
-
Heavy-Duty Twin-Tank Design:
9-gallon ASME-certified twin tanks (side-by-side) provide enhanced air reserve and steady pressure during extended operation.
-

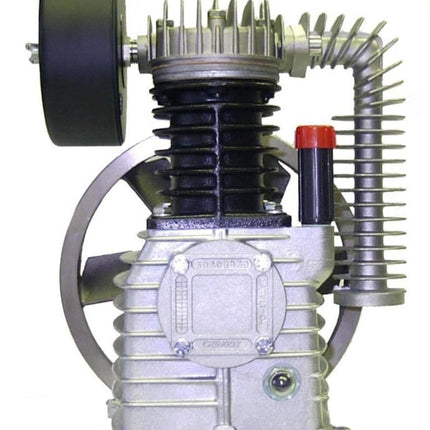

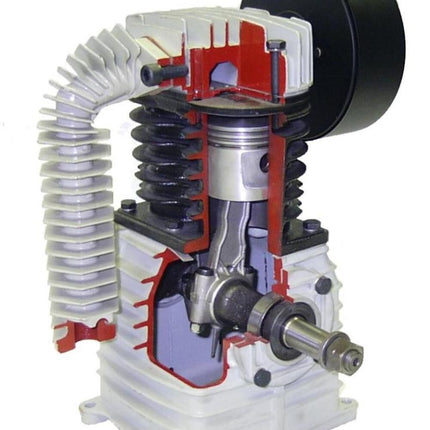

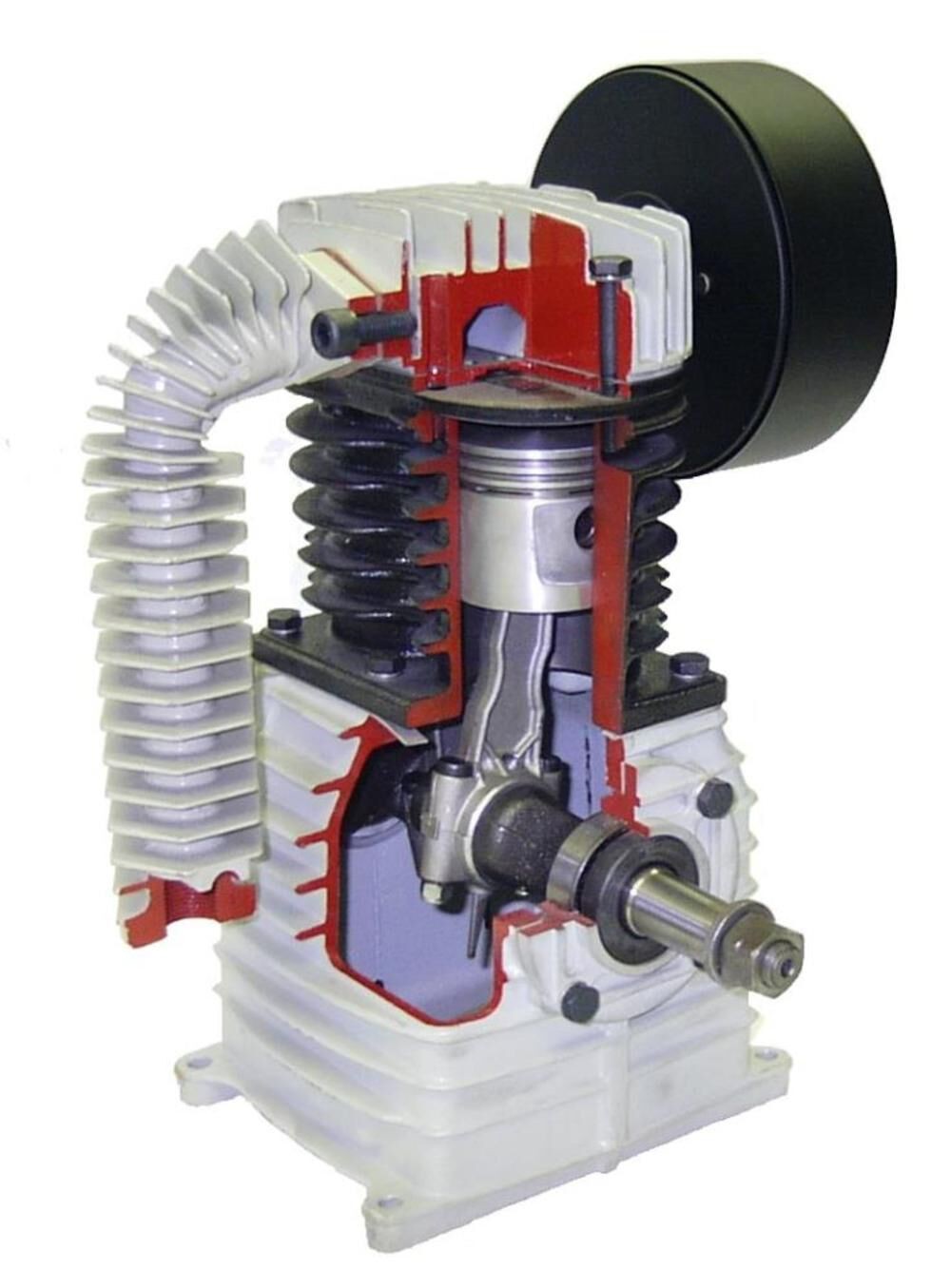

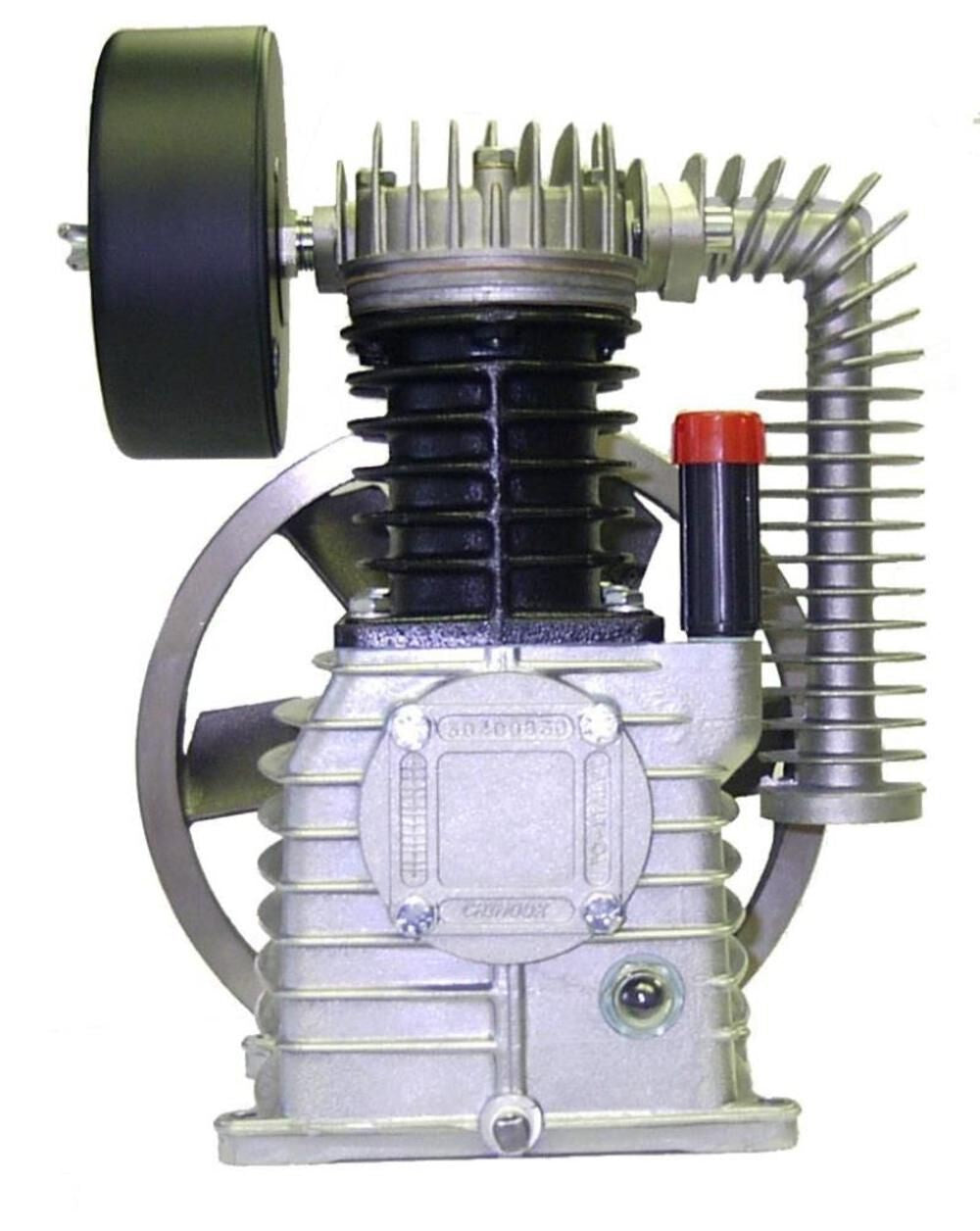

Durable Cast-Iron Pump:
Features dual cast-iron cylinders, hardened steel valve plates, splash lubrication, and aluminum alloy connecting rods for long-lasting performance.
-
Quiet, Low RPM Operation:
Operates at just 1755 RPM, minimizing noise output while maximizing pump longevity.
-
Versatile Voltage Motor:
Industrial-grade 1.5 HP motor supports 115V or 230V operation, equipped with thermal overload protection and manual reset for added safety.
-
Precision Pressure Control:
Dual gauges provide easy-to-read, accurate monitoring of tank and output pressure (0–200 PSI in 5 PSI increments).
-
Easy Mobility:
Equipped with a 10-inch solid rubber wheel and a sturdy steel handle for convenient transport across jobsites.
-
Made in the USA:
Manufactured with premium components and strict quality control for superior reliability.
📦 What's Included
📊 Technical Specifications
| Category |
Details |
| Brand |
Rolair |
| Model |
5715K17-0001 |
| Pump Type |
Oil-Lubricated, Splash-Type |
| Horsepower |
1.5 HP |
| Voltage |
115V (Convertible to 230V) |
| Amperage Draw |
17.0 Amps |
| Air Delivery |
7.3 CFM @ 90 PSI |
| Max Pressure |
135 PSI |
| Tank Capacity |
9 Gallons (Twin Side-by-Side Configuration) |
| Tank Material |
Steel (ASME Certified) |
| RPM (Motor) |
1755 RPM |
| Operating Pressure Range |
110–135 PSI |
| Noise Level |
Low RPM design reduces operational noise |
| Portability |
Yes, Wheeled with Handle |
| Wheel Size |
10 in. Solid Rubber |
| Pressure Gauge |
Yes (Tank and Regulator) |
| Dimensions (HxL) |
28 in x 6 ft |
| Weight |
174 lbs |
| Certifications |
UL Listed, CA Prop 65 Warning |
| Country of Origin |
United States |
| UPC |
662865268256 |
| Warranty |
1-Year Limited Warranty |
