Description

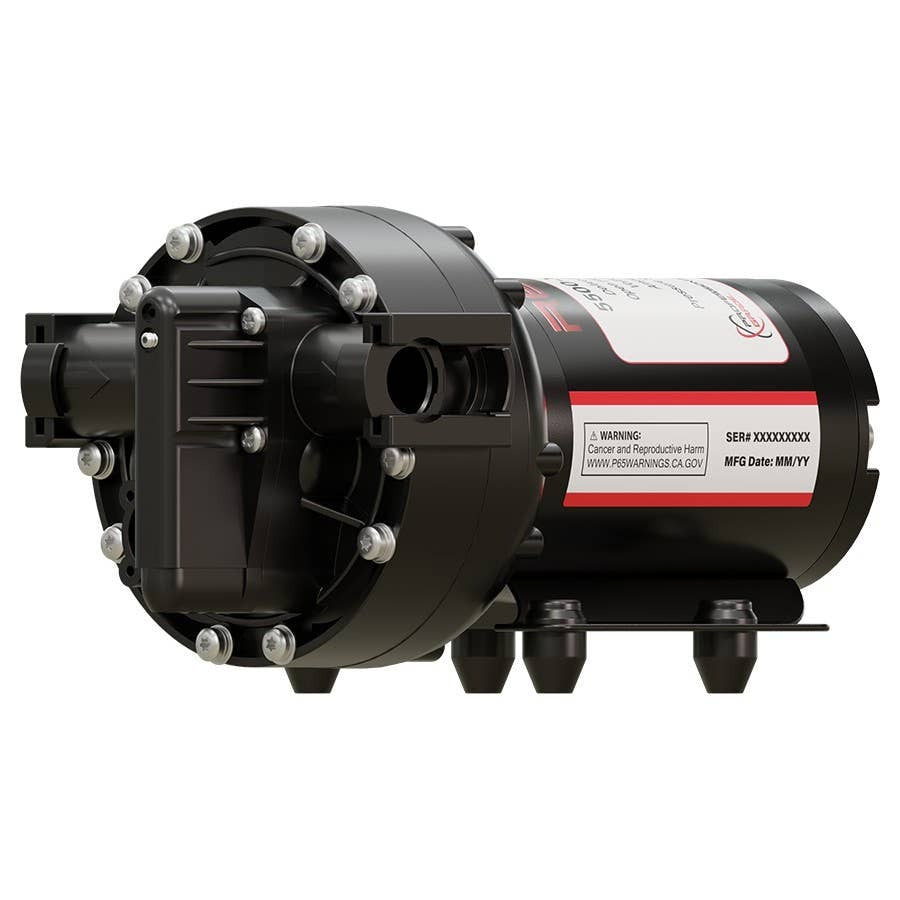

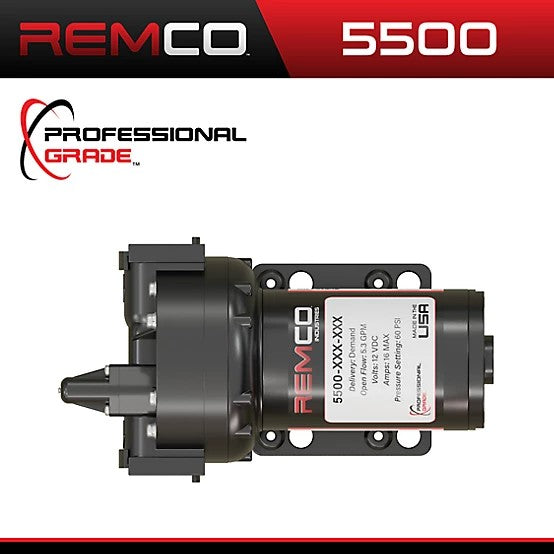

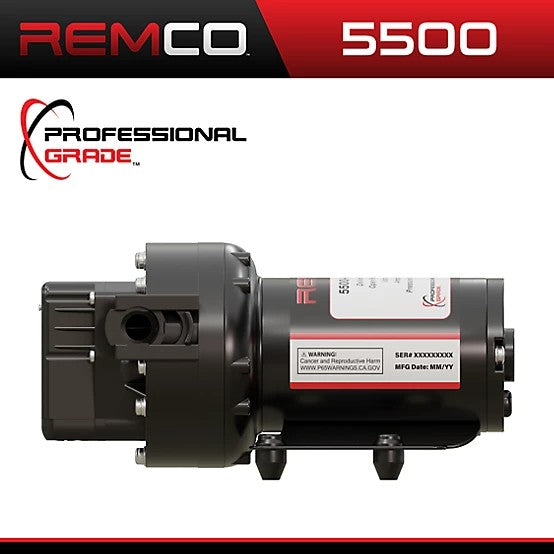

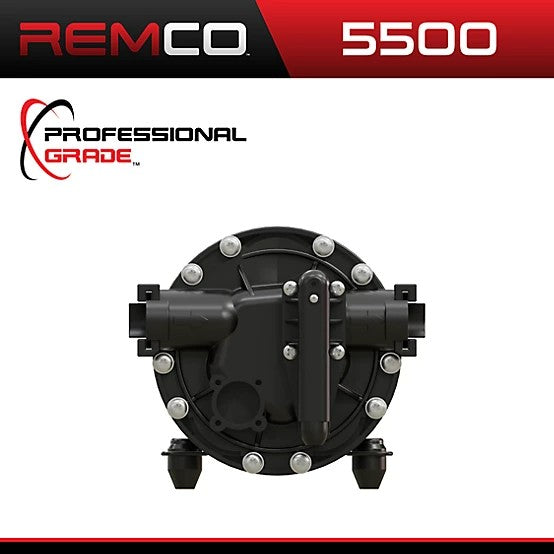

Built for the most demanding agricultural applications, the Remco 5500 Series 5.3 GPM Sprayer Pump is a high-performance, professional-grade solution engineered to withstand continuous use in the harshest environments. This on-demand diaphragm pump features a sealed 12V electric motor, 60 PSI pressure setting, and delivers up to 5.3 gallons per minute, making it ideal for high-volume spraying of herbicides, fertilizers, insecticides, and other common agricultural chemicals.
Designed and manufactured in the USA, the Remco 5500 Series pump features premium components, including chemically resistant polypropylene housing and robust 14 AWG wire leads for low heat and high efficiency. Capable of dry-run operation, self-priming up to 14 ft., and factory-tested to ensure maximum performance, this pump is ready for the rigors of daily use in agriculture, horticulture, and landscaping.
✅ Key Features
-
💧 High-Flow Capacity
Delivers an impressive 5.3 GPM at 60 PSI, ideal for large-scale spraying and transfer operations.
-
🔋 12V Sealed Electric Motor
Features a professional-grade, sealed motor for dust, moisture, and chemical resistance in field environments.
-
🧪 Chemical Compatibility
Built with durable materials compatible with most agricultural sprays, including herbicides, pesticides, and fertilizers.
-
🔥 Thermal & Electrical Efficiency
Operates at lower temperatures with heavy-duty 14 AWG leads and SAE 2-pin connector for stable power delivery.
-
💦 Self-Priming & Dry Run Safe
Self-primes vertically up to 14 ft. and can run dry without damaging internal components.
-
🧰 Includes Hose Barb Fittings
Comes with two 1/2 in. hose barb fittings – one straight and one elbow – for flexible plumbing options.
📦 What's Included
-
(1) Remco 5500 Series 5.3 GPM Pump
-
(1) 1/2 in. Straight Hose Barb Fitting
-
(1) 1/2 in. Elbow Hose Barb Fitting
📊 Technical Specifications
| Specification |
Details |
| Brand |
Remco |
| Series |
5500 Series |
| Model Number |
90-5517-1E1-82B-SB |
| Country of Origin |
Made in USA |
| Pump Type |
On-Demand Diaphragm Pump |
| Voltage |
12 VDC |
| Maximum Flow Rate |
5.3 GPM |
| Maximum Pressure |
60 PSI |
| Inlet/Outlet Size |
3/4 in. Quick Attach Ports |
| Fittings Included |
(1) 1/2 in. Straight Hose Barb, (1) Elbow |
| Priming Ability |
Self-priming up to 14 ft. |
| Dry Run Capability |
Yes |
| Wire Lead Specs |
6 in., 14 AWG with SAE 2-pin Connector |
| Maximum Shell Temperature |
180°F |
| Maximum Liquid Temperature |
140°F |
| Primary Material |
Polypropylene |
| Color |
Black |
| Dimensions (L x W x H) |
10.8 in. × 6 in. × 5.3 in. |
| Weight |
6.6 lb. |
| Pump Type Category |
Agricultural Sprayer Pumps |
| Warranty |
1-Year Limited |
| Package Quantity |
1 |
