Description

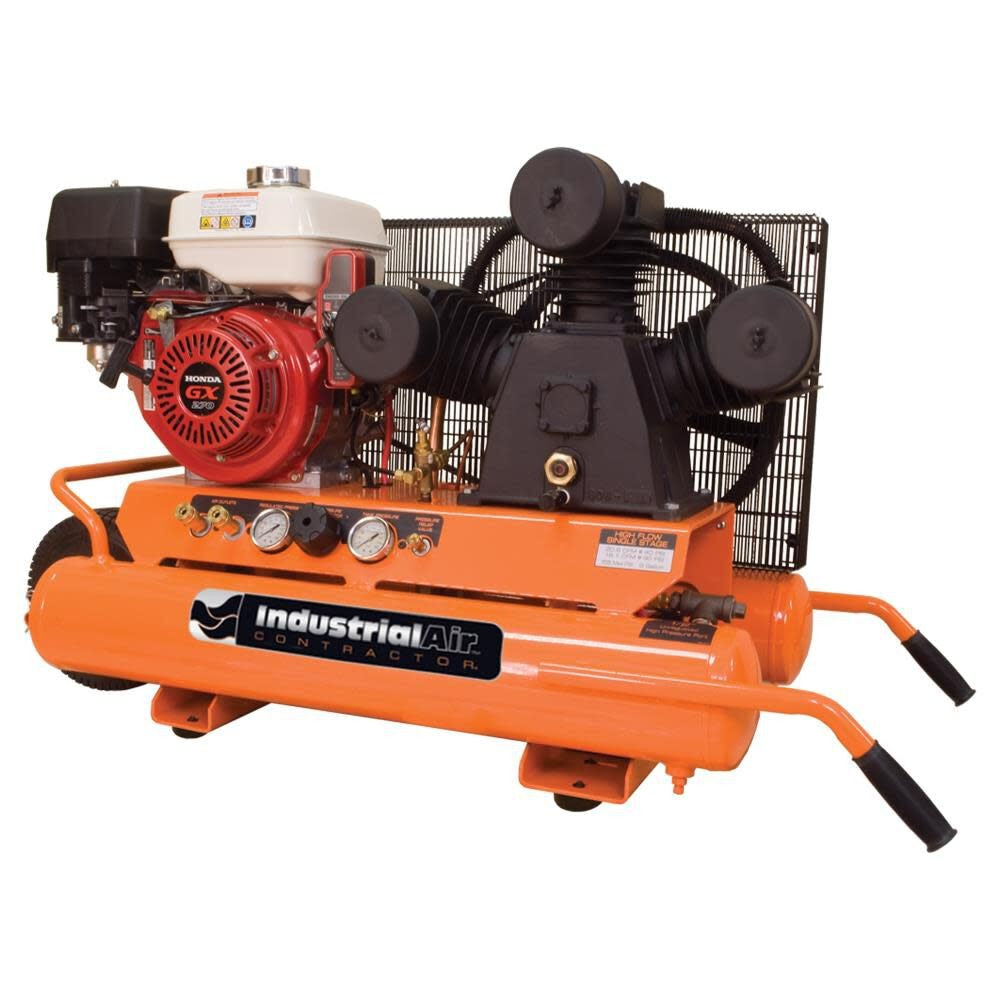

Designed for high-demand job sites like roofing, framing, and heavy-duty construction, the Industrial Air Contractor 9 HP Gas-Powered Air Compressor delivers powerful air output, exceptional reliability, and mobility in a compact, wheelbarrow-style form factor. Equipped with a 9 HP Honda GX270 OHV engine, this unit produces a massive 18.1 CFM at 90 PSI and operates at a maximum pressure of 155 PSI, making it ideal for running multiple air tools simultaneously.
The 3-cylinder cast iron pump offers superior durability and heat dissipation for extended use. It features splash-lubrication, automatic low-oil shutdown, and automotive-style air filters for added longevity and engine protection. The digital CDI ignition system with variable timing ensures quick starts, optimized fuel efficiency, and clean emissions—meeting both EPA and CARB standards.
Twin side-by-side 9-gallon steel tanks provide excellent balance and mobility, while separate pilot and check valves allow for more consistent pressure regulation. This unit is ETL, CSA, and UL listed, and backed by a 2-year limited warranty.
🔧 Key Features:
-
High Output Performance:
Delivers 18.1 CFM at 90 PSI, with a maximum working pressure of 155 PSI, ideal for powering impact wrenches, nailers, grinders, and more.
-

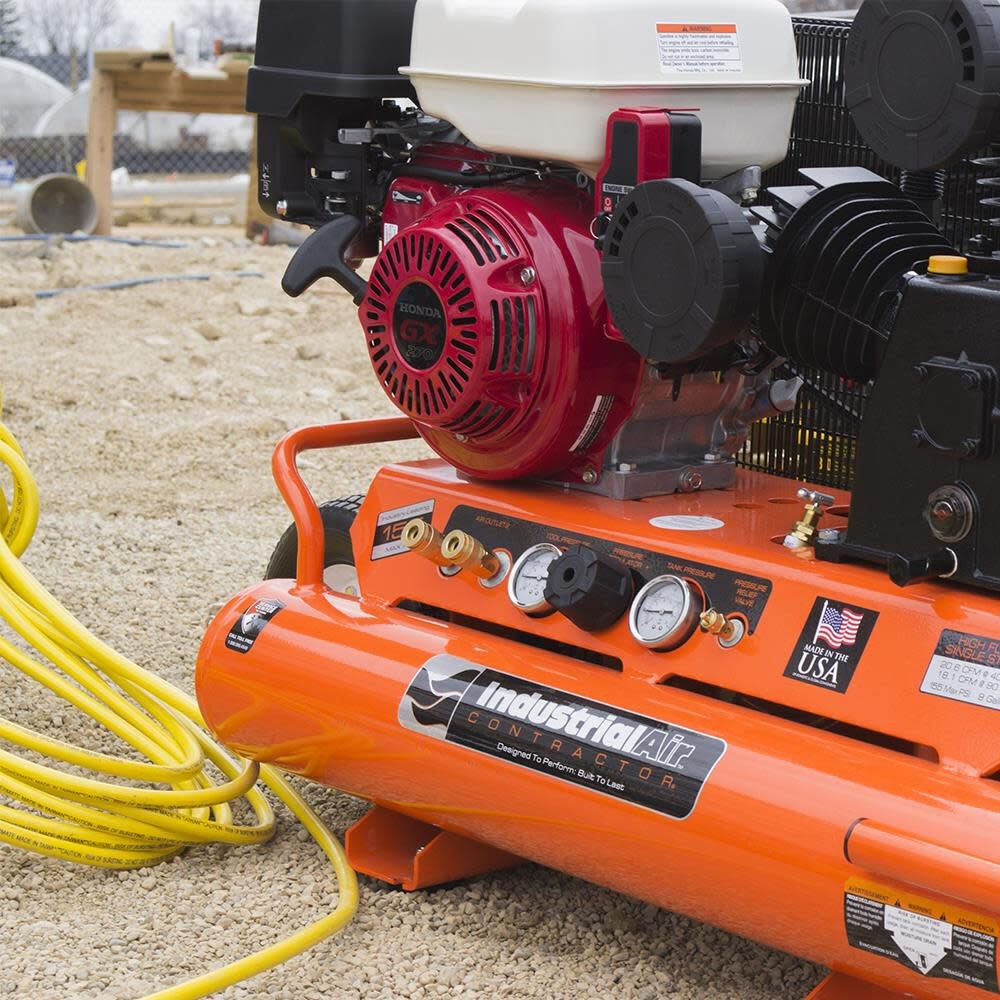

Honda GX270 9 HP OHV Engine:
Renowned for durability, efficiency, and reliable performance in commercial-grade equipment.
-
Digital CDI Ignition with Variable Timing:
Enables easy starts, reduced fuel consumption, and optimal engine output.
-
Low-Oil Shutdown Protection:
Automatically shuts down the engine to prevent damage and extend motor life.
-
Cast Iron, 3-Cylinder Pump:
Designed for long-lasting performance with excellent thermal conductivity and reduced vibration.
-
Twin 9-Gallon Steel Tanks:
Wheelbarrow configuration ensures balance, easy transport, and stability on rugged job sites.
-
Separate Pilot & Check Valves:
Improves control and pressure stability.
-
Automotive-Style Air Filters:
Provides better air intake and extended engine life.
-
Meets Emissions Standards:
EPA and CARB compliant for use across the United States.
-

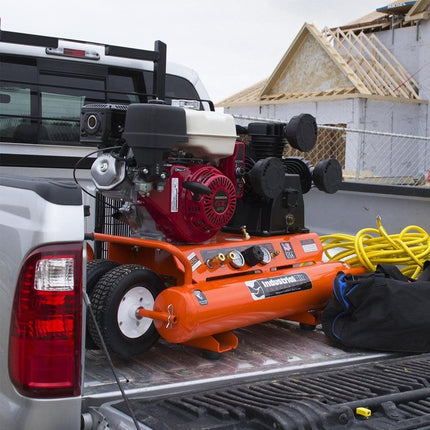

Wheeled for Portability:
Pneumatic tires provide easy mobility across various terrains.
📋 Specifications:
| Specification |
Details |
| Brand |
Industrial Air |
| Model Number |
CTA9090980.ES |
| Power Source |
Gasoline (Honda GX270 OHV Engine) |
| Horsepower |
9.0 HP |
| CFM @ 90 PSI |
18.1 CFM |
| Maximum Pressure |
155 PSI |
| Tank Capacity |
9 Gallons (Twin Tanks) |
| Tank Configuration |
Twin, Side-by-Side Wheelbarrow Style |
| Tank Material |
Steel |
| Start Type |
Electric Start (Recoil available) |
| Pump Type |
3-Cylinder, Cast Iron, Splash-Lubricated |
| Cooling System |
Air-cooled |
| Oil System |
Splash Type with Low-Oil Shutoff |
| Pressure Gauge |
Yes |
| Pilot and Check Valves |
Yes (Separate) |
| Air Filter |
Automotive-style |
| Decibel Rating |
Varies (Not officially rated) |
| Mobility |
Yes (Wheeled – Pneumatic Tires) |
| Operating Position |
Horizontal |
| Color |
Black/Red |
| UL / CSA / ETL Listed |
Yes |
| Warranty |
2-Year Limited Warranty |
| Country of Origin |
United States |
| Dimensions (L x W x H) |
Approx. 48.5" x (Varies) x 33" |
| Assembled Weight |
360 lbs |
| UPC |
846212004074 |
| Proposition 65 Warning |
Yes |
📦 What's in the Box:
-
(1) Industrial Air 9 HP Gas-Powered 9-Gallon Air Compressor
-
(1) Factory-installed Air Pressure Gauge
-
(1) Air Filter Assembly
-
(1) Operator's Manual
-
(1) 2-Year Limited Warranty Documentation
