Description

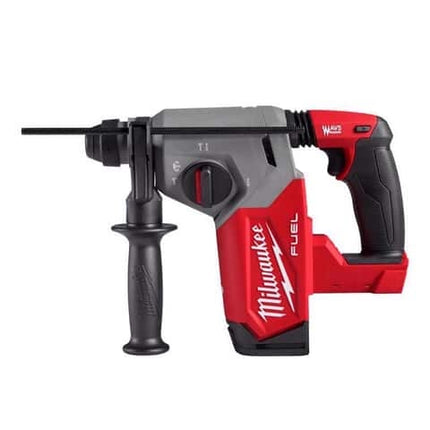

Experience next-level cordless performance with the Milwaukee M18 FUEL™ 1 in. SDS Plus Rotary Hammer, built for professional tradespeople demanding maximum productivity, speed, and safety. Engineered to be the fastest drilling rotary hammer in its class, this tool is capable of drilling up to 125 holes (3/8 in. x 2 in.) per charge when powered by the M18 REDLITHIUM™ High Output™ XC6.0 Battery (sold separately).
With a POWERSTATE™ brushless motor, the rotary hammer delivers 2.0 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM, making it ideal for demanding tasks such as drilling in concrete, masonry, or hard aggregate. Milwaukee’s advanced REDLINK PLUS™ intelligence ensures peak performance while protecting the tool from overload, overheating, and over-discharge.
The AUTOSTOP™ Kickback Control feature enhances operator safety by automatically stopping the tool in the event of a bind-up. Combined with AVS™ Anti-Vibration System, users benefit from greater comfort and reduced fatigue during prolonged use.

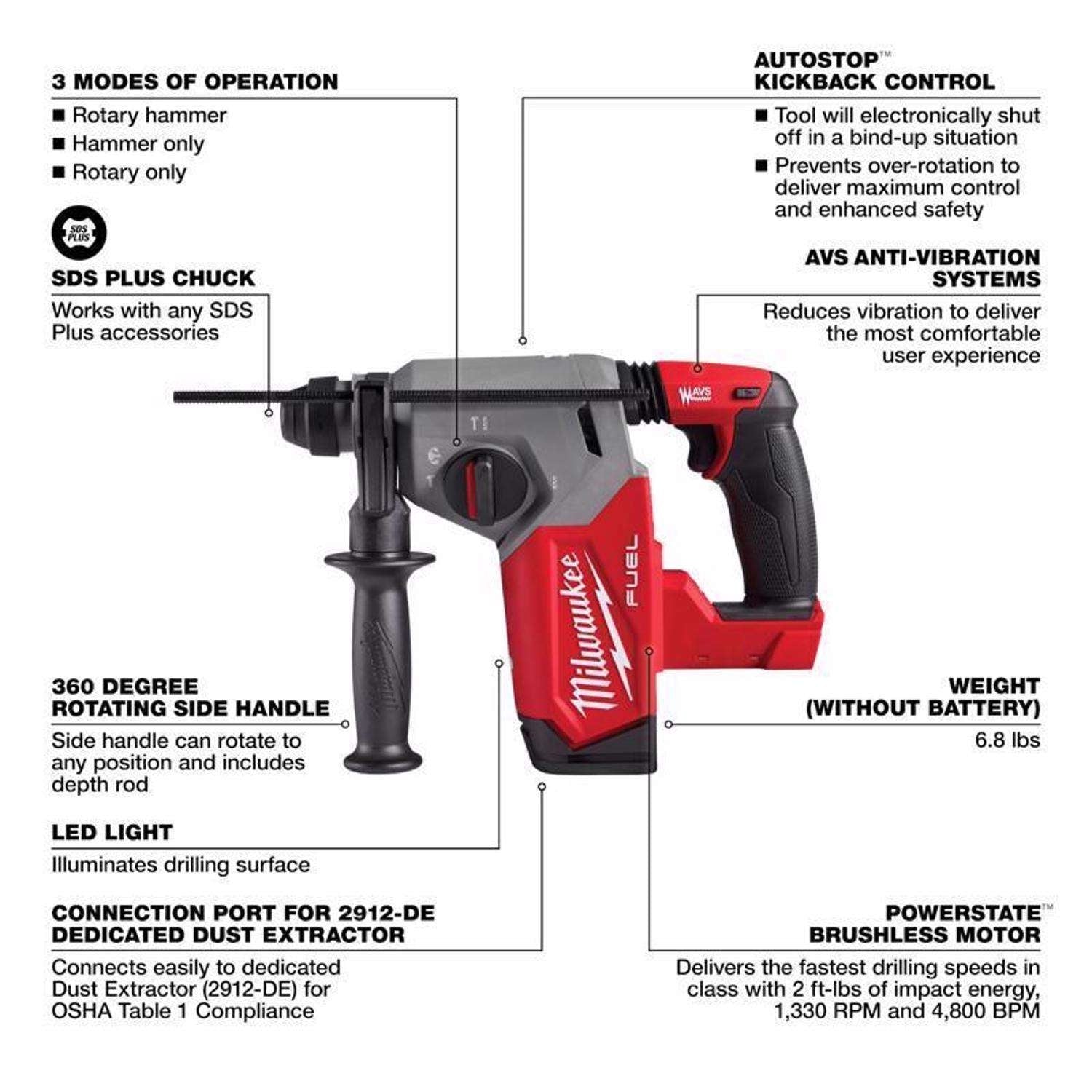

🔧 Key Features
-
High-Performance Brushless Motor: Delivers 2.0 ft-lbs of impact energy for fast, effective drilling
-
Industry-Leading Speed: Up to 1,330 RPM and 4,800 BPM—fastest in its class
-
AUTOSTOP™ Kickback Control: Electronically senses bind-up and halts rotation for enhanced user safety
-
REDLINK PLUS™ Intelligence: Protects against overload, overheating, and over-discharge
-
AVS™ Anti-Vibration System: Minimizes vibration to reduce user fatigue during extended operation
-
Versatile 3-Mode Selector: Switch between rotary hammer, hammer-only, or rotation-only modes
-
Compact Design: Measures only 11.5 in. in length and weighs just 6.8 lbs. for ideal balance and control
-
Battery Efficiency: When used with the M18 High Output XC6.0 battery, offers up to 50% more power and runs 50% cooler than standard M18 batteries
📐 Specifications
| Feature |
Details |
| Brand |
Milwaukee |
| Product Type |
Rotary Hammer Drill |
| Battery Platform |
M18 FUEL |
| Corded/Cordless |
Cordless |
| Chuck Type |
SDS Plus |
| Chuck Size |
1 inch |
| Impact Energy |
2.0 ft-lbs (≈2.71 Joules) |
| Blows per Minute (BPM) |
4,800 |
| Maximum Speed (RPM) |
1,330 |
| Forward/Reverse Switch |
Yes |
| Variable Speed |
Yes |
| Modes |
Rotary Hammer, Hammer Only, Rotary Only |
| Vibration Control |
AVS™ Anti-Vibration System |
| Tool Length |
11.5 in. |
| Tool Weight |
6.8 lbs. (without battery) |
| Chisel Rotation |
No |
| Battery Compatibility |
M18™ REDLITHIUM™, High Output™ |
| Battery Amp Hours (Rec.) |
6.0 Ah (XC6.0, sold separately) |
| Certifications |
UL Listed |
| Warranty |
5-Year Limited Warranty |
| Kit or Tool Only |
Tool Only |
| Case Included |
No |
📦 What's Included
Battery and charger sold separately.
