Description
Professional-Grade Power & Precision in the Most Compact Form Factor
Unmatched Performance for Demanding Applications

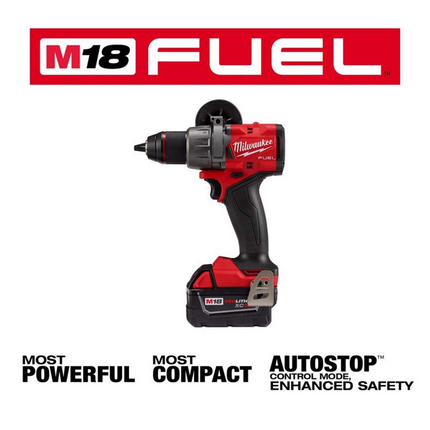

The Milwaukee M18 FUEL Hammer Drill/Driver redefines cordless drilling performance, combining brute power with intelligent technology in the most compact (6.9") design in its class. This complete kit delivers:
✔ Industry-leading 1,400 in-lbs torque for heavy-duty drilling
✔ 2,100 RPM top speed for fast material penetration
✔ Autostop Control Mode - best-in-class reaction time for operator safety
✔ REDLITHIUM XC5.0 batteries - 40% more work per charge vs competitors

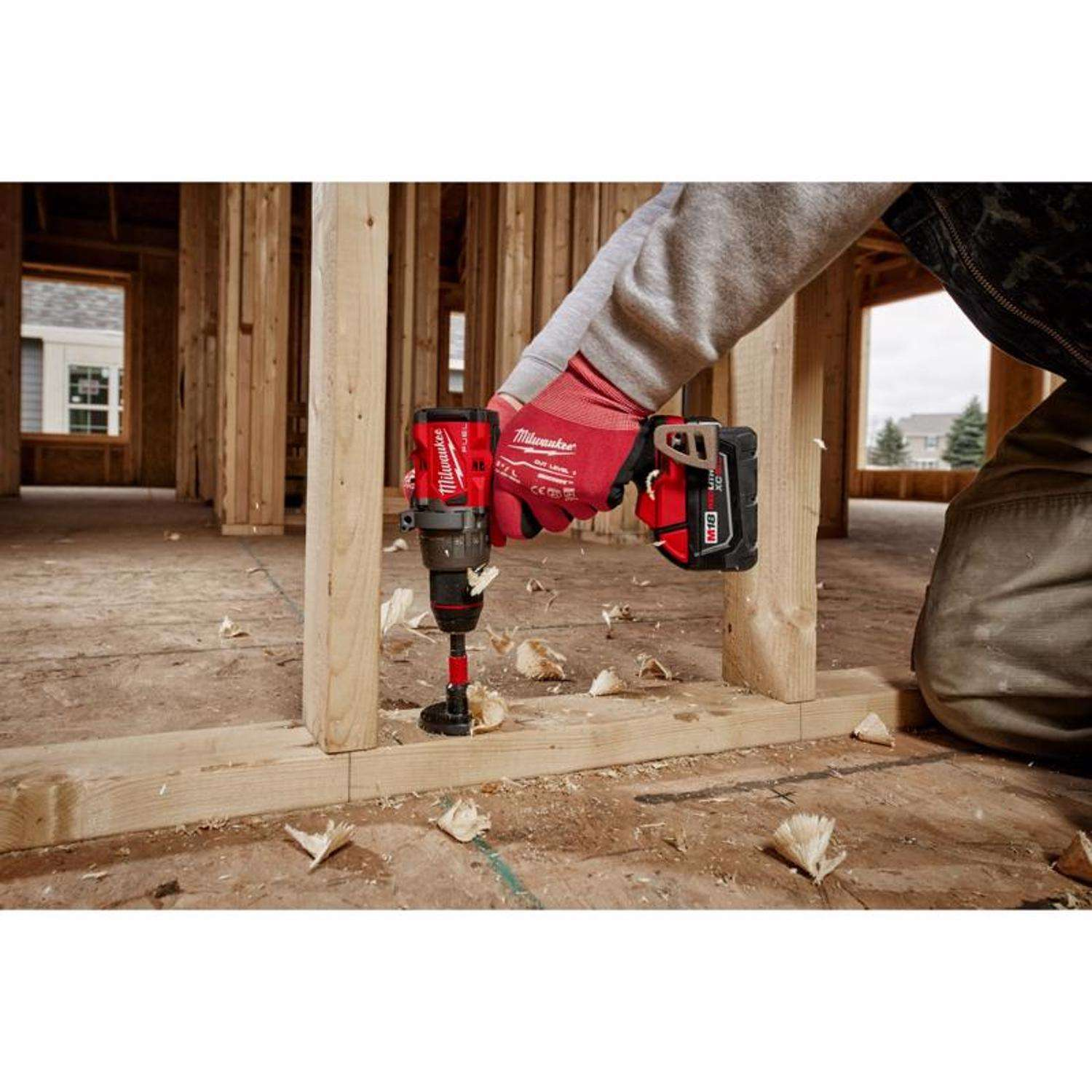

Professional Applications:
-
Concrete/masonry drilling (hammer drill mode)
-
Large-diameter hole boring (up to 2-9/16")
-
High-torque fastening applications
-
Overhead and confined space work
Premium Features & Technologies
🔹 POWERSTATE Brushless Motor
-
Delivers maximum power under load
-
30% more power than previous generation
-
Increased runtime with efficient energy use
🔹 Advanced Safety & Control
🔹 Professional-Grade Chuck System
🔹 Dual-Mode Versatility
| Mode |
Performance |
Applications |
| Hammer Drill |
38,000 BPM |
Masonry, concrete, brick |
| Driver |
1,400 in-lbs torque |
Heavy fastening, large holes |

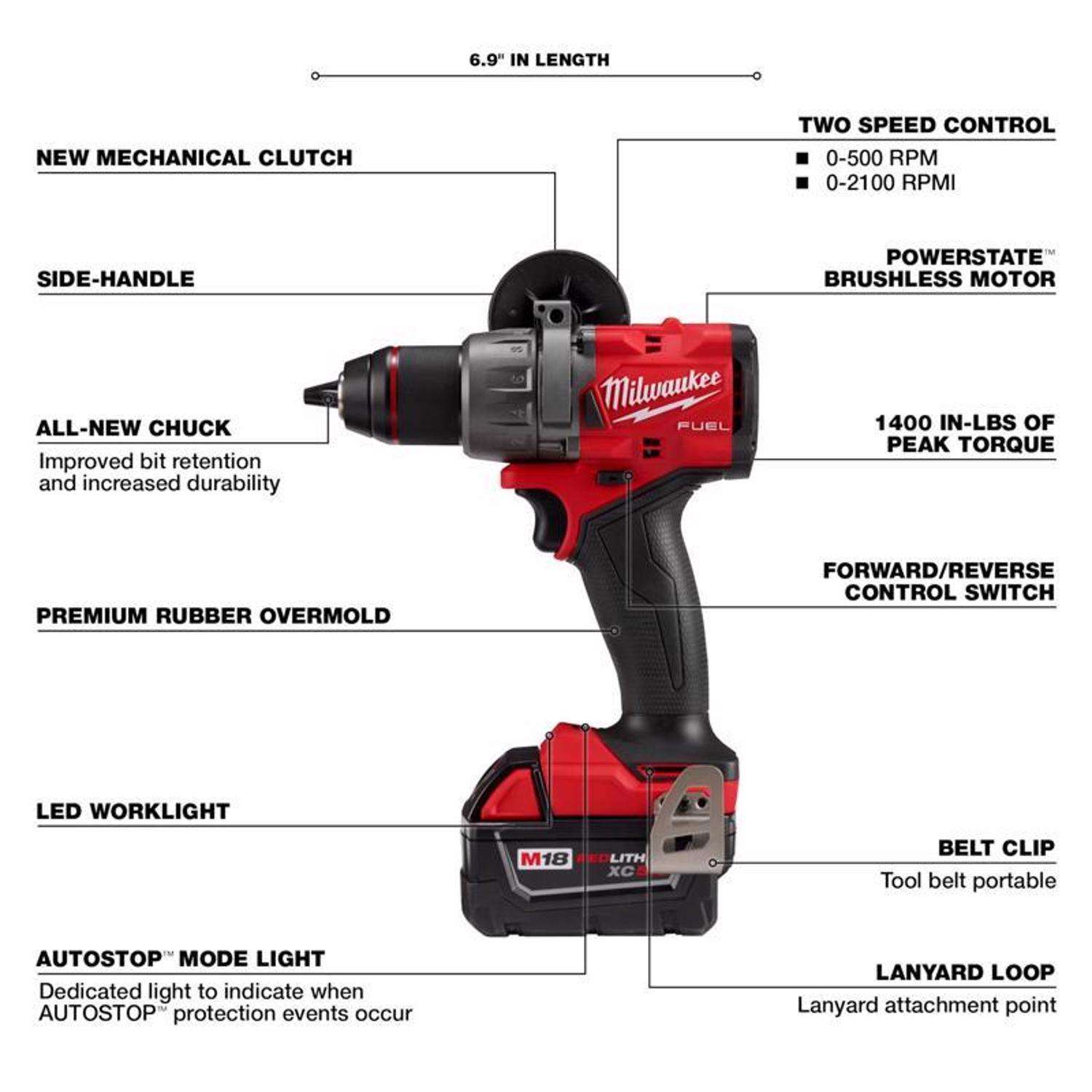

🔹 Ergonomic Design
-
Shortest in class (6.9") for tight spaces
-
4.91 lb weight reduces user fatigue
-
LED worklight illuminates dark work areas
Complete Kit Specifications
Power & Performance
| Specification |
Detail |
| Motor |
Brushless POWERSTATE |
| Max Torque |
1,400 in-lbs |
| No-Load Speed |
0-550 / 0-2,100 RPM |
| Hammer Rate |
0-38,000 BPM |
| Max Hole Size |
2-9/16" (wood) |
Battery System
| Component |
Specification |
| Batteries |
(2) REDLITHIUM XC5.0 |
| Amp Hours |
5.0 Ah |
| Charge Time |
60 minutes (fast charge) |
Physical Specifications
| Attribute |
Measurement |
| Tool Length |
6.9 inches |
| Tool Weight |
4.91 lbs |
| Chuck Type |
1/2" keyless metal |
Warranty & Certification
-
5-year limited warranty
-
UL listed for safety

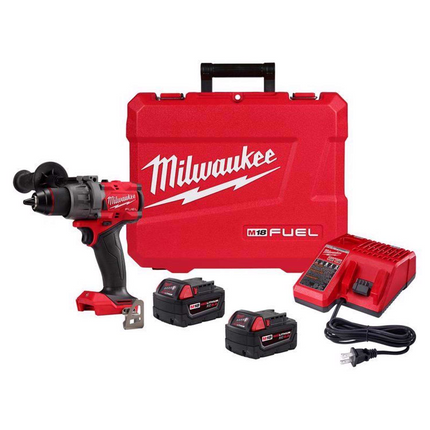

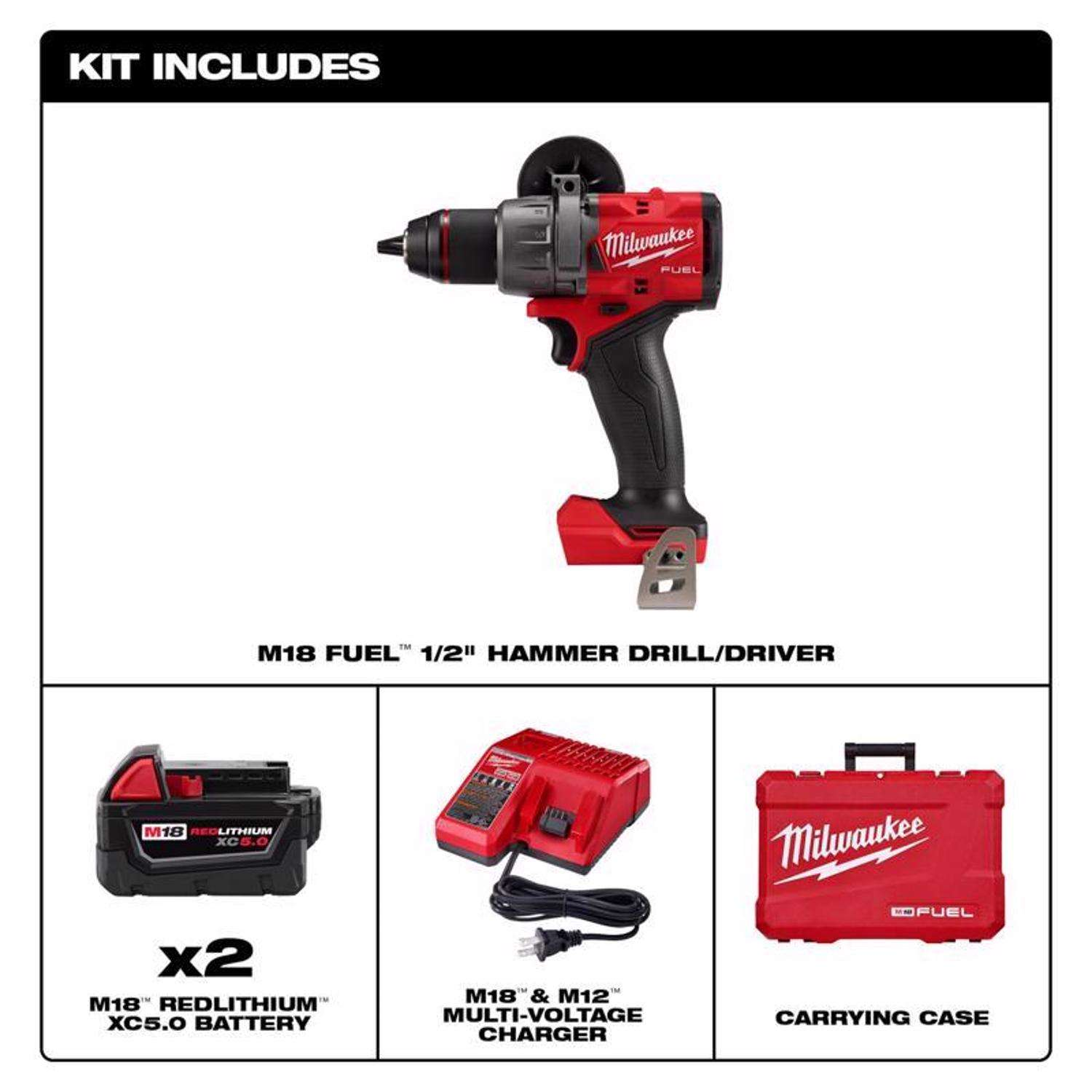

What's Included
-
(1) M18 FUEL Hammer Drill/Driver
-
(2) REDLITHIUM XC5.0 Batteries
-
(1) M18/M12 Multi-Voltage Charger
-
(1) Side Handle
-
(1) Heavy-Duty Case
Why Professionals Choose M18 FUEL
✔ Most powerful cordless hammer drill in its class
✔ Compact 6.9" length for superior access
✔ Intelligent safety features prevent accidents
✔ Durable metal chuck outperforms plastic competitors
✔ Complete professional kit ready for jobsite use
