Description

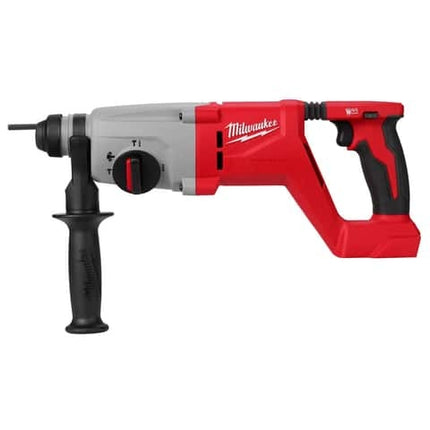

Take on demanding concrete drilling tasks with the Milwaukee M18™ Brushless 1 in. SDS Plus D-Handle Rotary Hammer, designed to deliver corded performance with all the advantages of a cordless tool. Powered by a Milwaukee brushless motor, it delivers 1.95 ft-lbs of impact energy, 1,270 RPM, and up to 4,580 BPM, enabling it to drill 3/8 in. x 2 in. holes faster than corded D-handle models.
This rotary hammer is built with a durable in-line D-handle design, making it ideal for overhead and downward drilling applications in concrete, brick, and masonry. The tool’s Anti-Vibration System (AVS) enhances comfort by reducing vibration during extended use. At only 6.9 lbs with an M18™ REDLITHIUM™ XC5.0 battery (battery sold separately), this tool reduces fatigue while delivering maximum productivity.
Pair it with the M12™ HAMMERVAC™ Universal Dust Extractor (sold separately) for OSHA Table 1 compliance in drilling applications.
🔧 Key Features
-

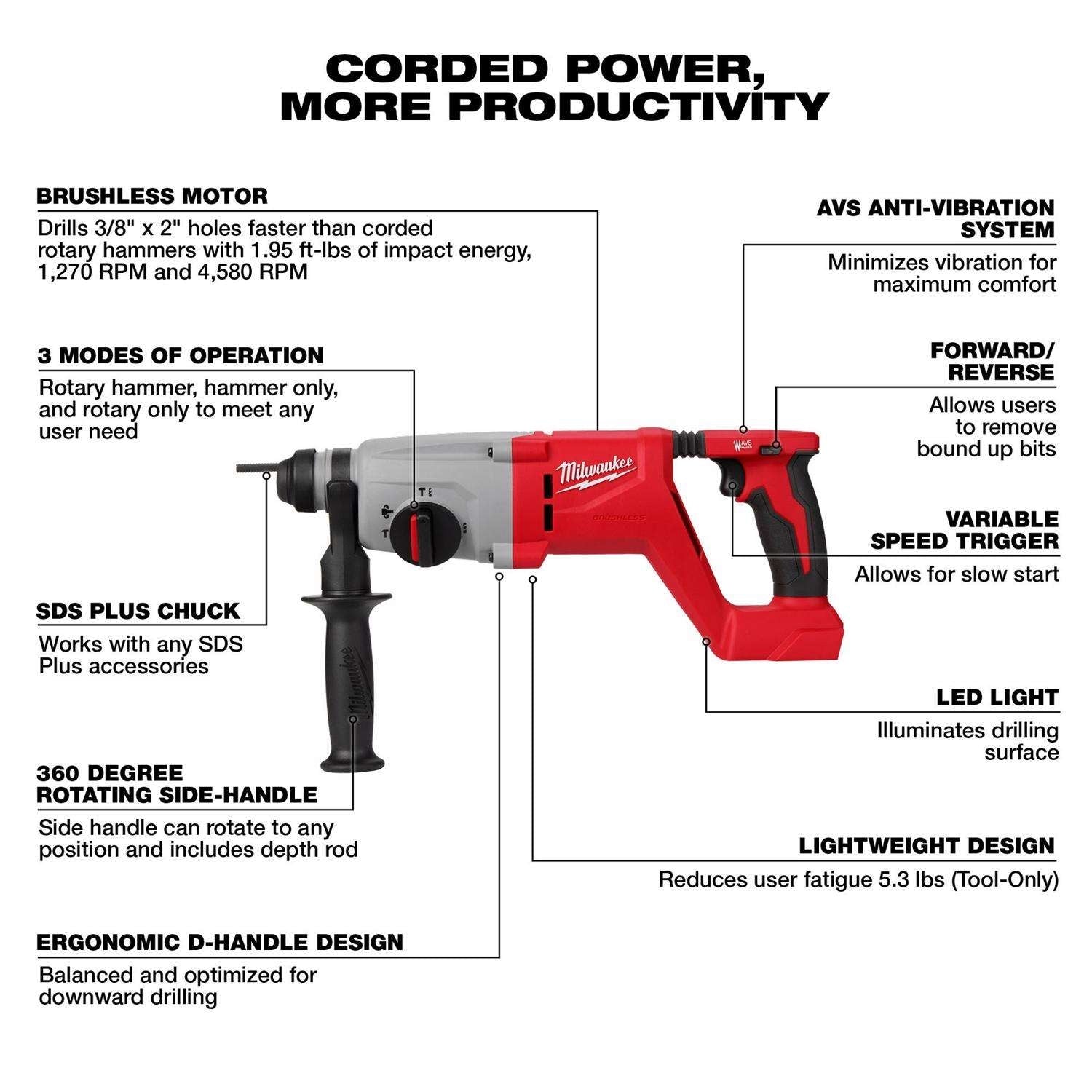

Corded Performance in a Cordless Tool: Delivers 1.95 ft-lbs of impact energy for effective drilling in concrete and masonry
-
Efficient Brushless Motor: Provides up to 50% longer runtime, reduced maintenance, and improved durability over brushed models
-
REDLINK™ Intelligence: Advanced electronic system optimizes performance and prevents overloads and overheating
-
Three Operating Modes:
-
AVS Anti-Vibration System: Minimizes vibration for improved comfort and control
-
Compact & Ergonomic: In-line D-handle design enhances balance and access in tight spaces
-
Long Runtime: Drill up to 100 holes (3/8 in. x 2 in.) per charge with an M18™ REDLITHIUM™ XC5.0 battery (not included)
-
Compatible with M18™ System: Works with 250+ M18™ solutions
📐 Technical Specifications
| Specification |
Details |
| Brand |
Milwaukee |
| Tool Type |
SDS Plus Rotary Hammer Drill |
| System |
M18™ |
| Voltage |
18V |
| Motor Type |
Brushless |
| Chuck Type |
SDS Plus |
| Chuck Size |
1 in. |
| Max Speed (RPM) |
1,270 RPM |
| Blows Per Minute (BPM) |
4,580 BPM |
| Impact Energy |
1.95 ft-lbs (2.6 Joules) |
| Modes |
Rotary Hammer, Hammer Only, Rotation Only |
| Variable Speed |
Yes |
| Keyless Chuck |
Yes |
| Forward/Reverse |
No |
| Tool Length |
15 in. |
| Tool Weight (Bare Tool) |
5.3 lbs |
| Weight w/ XC5.0 Battery |
Approx. 6.9 lbs |
| Vibration Control |
Yes (AVS System) |
| Certifications |
UL Listed |
| Battery Included |
No (Tool Only) |
| Charger Included |
No |
| Warranty |
5-Year Limited Tool Warranty |

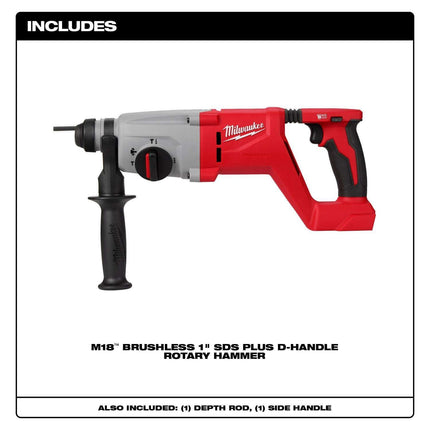

📦 What’s Included
Battery and charger sold separately
Dust extractor (M12™ HAMMERVAC™) sold separately
✅ Ideal For
-
Drilling holes in concrete, brick, and block
-
Overhead and downward drilling tasks
-
Construction, renovation, HVAC, plumbing, and electrical installation
