Description

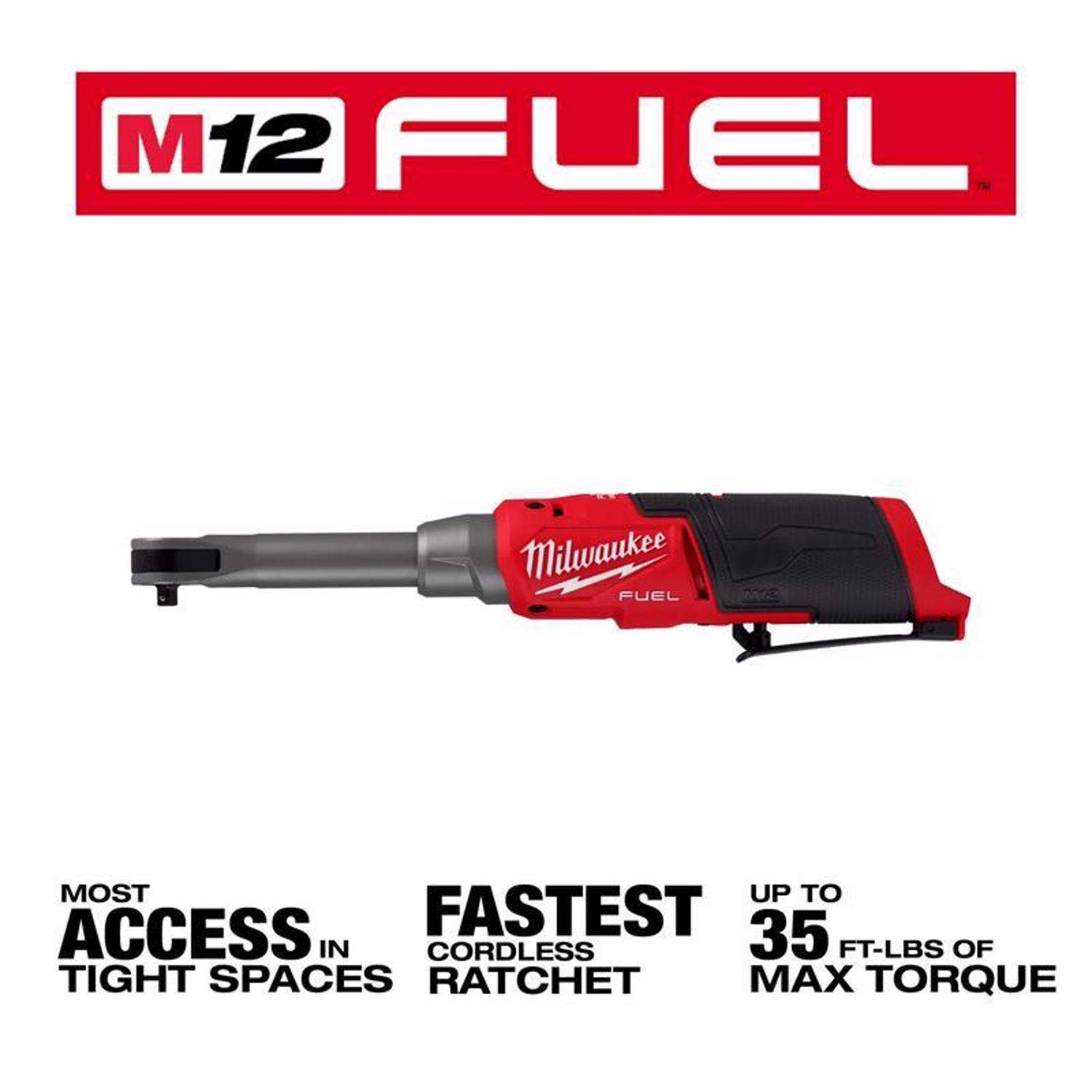

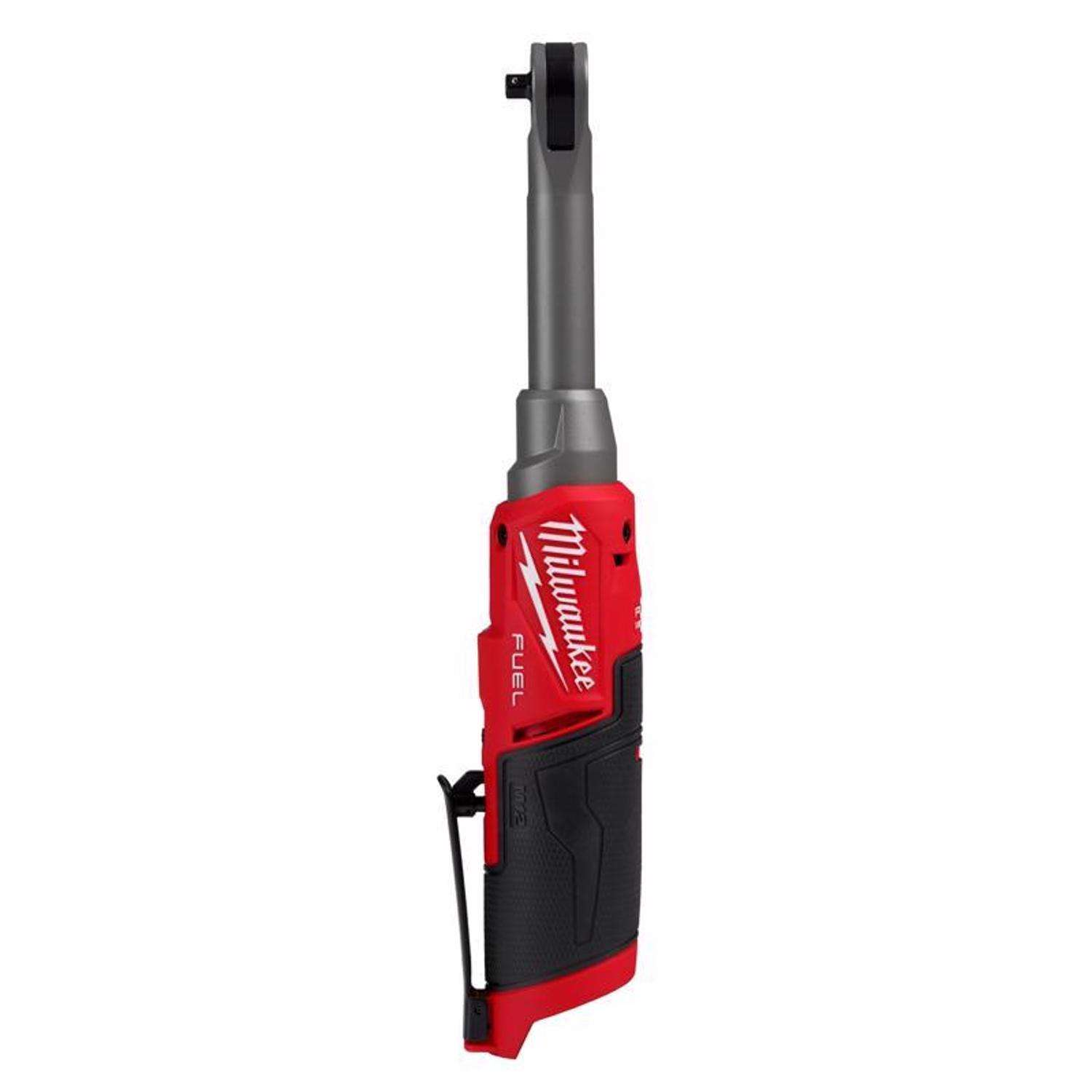

The Milwaukee M12 FUEL™ 1/4 in. Extended Reach High-Speed Ratchet is engineered for professionals who demand compact performance, speed, and access in tight spaces. Designed as the latest advancement in Milwaukee’s renowned ratchet lineup, this tool combines industry-leading speed, a slimmer head profile, and an extended neck to deliver the longest and most convenient reach in its class.
Powered by a POWERSTATE™ Brushless Motor, this ratchet matches the torque output of pneumatic tools—delivering up to 35 ft-lbs of torque and a maximum speed of 450 RPM. Built to last, it features a durable investment cast steel yoke housing, along with REDLINK™ Intelligence, which ensures maximum performance, overload protection, and enhanced tool life.
Whether breaking loose or tightening fasteners in confined spaces, the variable-speed metal trigger, compact profile, and manual override functionality give you the control and flexibility needed for the job.

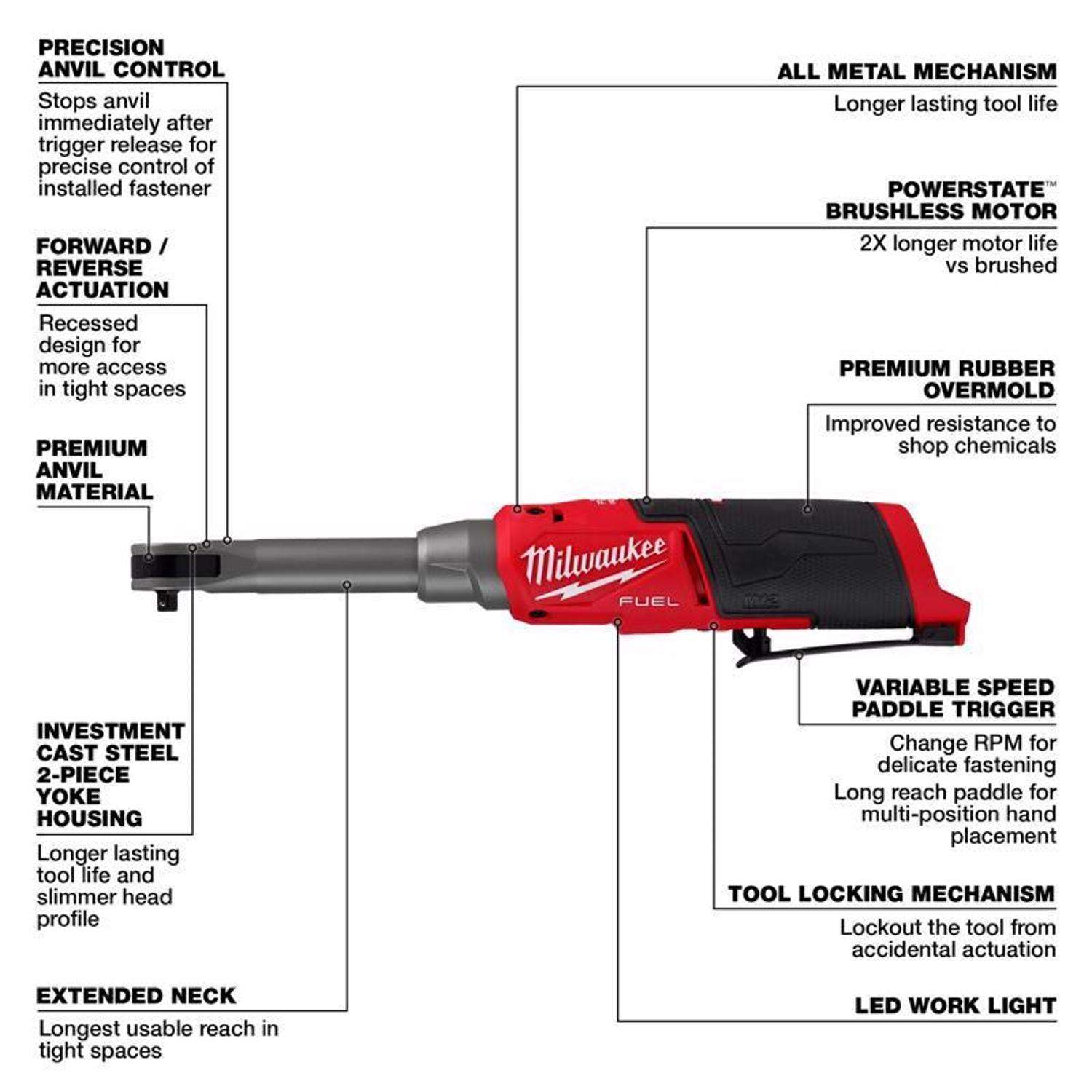

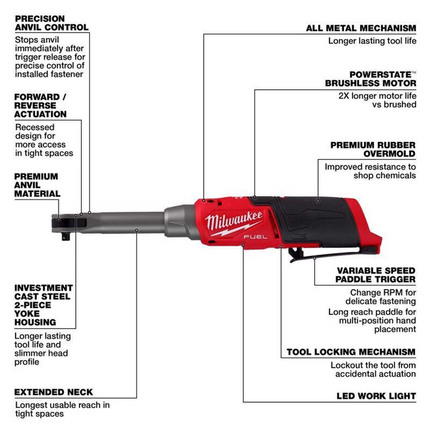

🔧 Key Features
-
High-Speed Performance: Up to 450 RPM for fast and efficient fastening
-
Max Torque: Delivers 35 ft-lbs of torque, matching the output of pneumatic ratchets
-
Extended Reach: Longest neck in its class for improved access in confined or recessed areas
-
Slim Head Design: Smallest cordless ratchet head profile available, perfect for tight clearances
-
Manual Mode: Can be used as a manual ratchet without engaging the motor for precision tasks
-
Durability Built-In: Rugged steel yoke housing resists wear and ensures tool longevity
-
Intelligent Electronics: REDLINK™ Technology prevents overloads and optimizes performance
-
Precision Control: Variable-speed metal trigger for smooth and controlled operation
-
LED Work Light: Integrated LED illuminates workspaces in dim conditions
-
System Compatibility: Fully compatible with Milwaukee M12™ batteries and chargers
-
Part of the M12™ System: Interchangeable with over 100 Milwaukee M12™ tools
Tool Only — Battery and charger sold separately.
📐 Technical Specifications
| Attribute |
Details |
| Brand |
Milwaukee |
| Series/Sub-Brand |
M12 FUEL™ |
| Model Number |
2566-20 |
| Drive Size |
1/4 in. |
| Motor Type |
POWERSTATE™ Brushless |
| Max Torque |
35 ft-lbs |
| No Load Speed |
0–450 RPM |
| Speed Settings |
2-Speed |
| Variable Speed |
Yes |
| Manual Override |
Yes |
| LED Light |
Yes |
| Tool Length |
14.35 in. |
| Tool Weight |
1.95 lbs |
| Voltage |
12V (M12™ Platform) |
| Battery Type |
Lithium-Ion (M12™ Battery Compatible) |
| Chuck Type |
Ratcheting |
| Kit or Tool Only |
Tool Only |
| Certifications |
CSA, UL, ETL Listed |
| Warranty |
5-Year Limited |
| Case Included |
No |
| Battery & Charger |
Sold Separately |
| Country of Origin |
Varies by batch |
| California Prop 65 |
Yes |
📦 What’s Included
Battery and charger are not included and must be purchased separately.
✅ Ideal Applications
-
Automotive repair and service
-
Maintenance and mechanical work
-
HVAC and plumbing installations
-
Tight-access fastening and removal tasks
