Description
The Milwaukee M18™ 3-1/4 in. Cordless Planer delivers powerful, precise, and efficient stock removal for both softwoods and hardwoods. Designed for professional carpenters and remodelers, this tool combines the freedom of cordless operation with the performance of a corded planer. Its robust motor delivers up to 5/64 in. cutting depth in a single pass, ensuring high productivity without compromising on finish quality.
With a depth adjustment knob featuring 20 locking positions, users can make precise, repeatable cuts with confidence. The non-rotating limit design on the depth dial eliminates the need to re-zero, allowing users to quickly gauge and return to their desired depth setting. Additionally, the 27/64 in. maximum rabbet depth provides versatility for edge work and joinery like shiplap.
The dual chip ejection system lets users direct debris either to the left or right, minimizing cleanup and increasing safety on the jobsite. Compact, ergonomic, and powerful, the M18 Planer is a reliable cordless solution for accurate material removal and finishing.

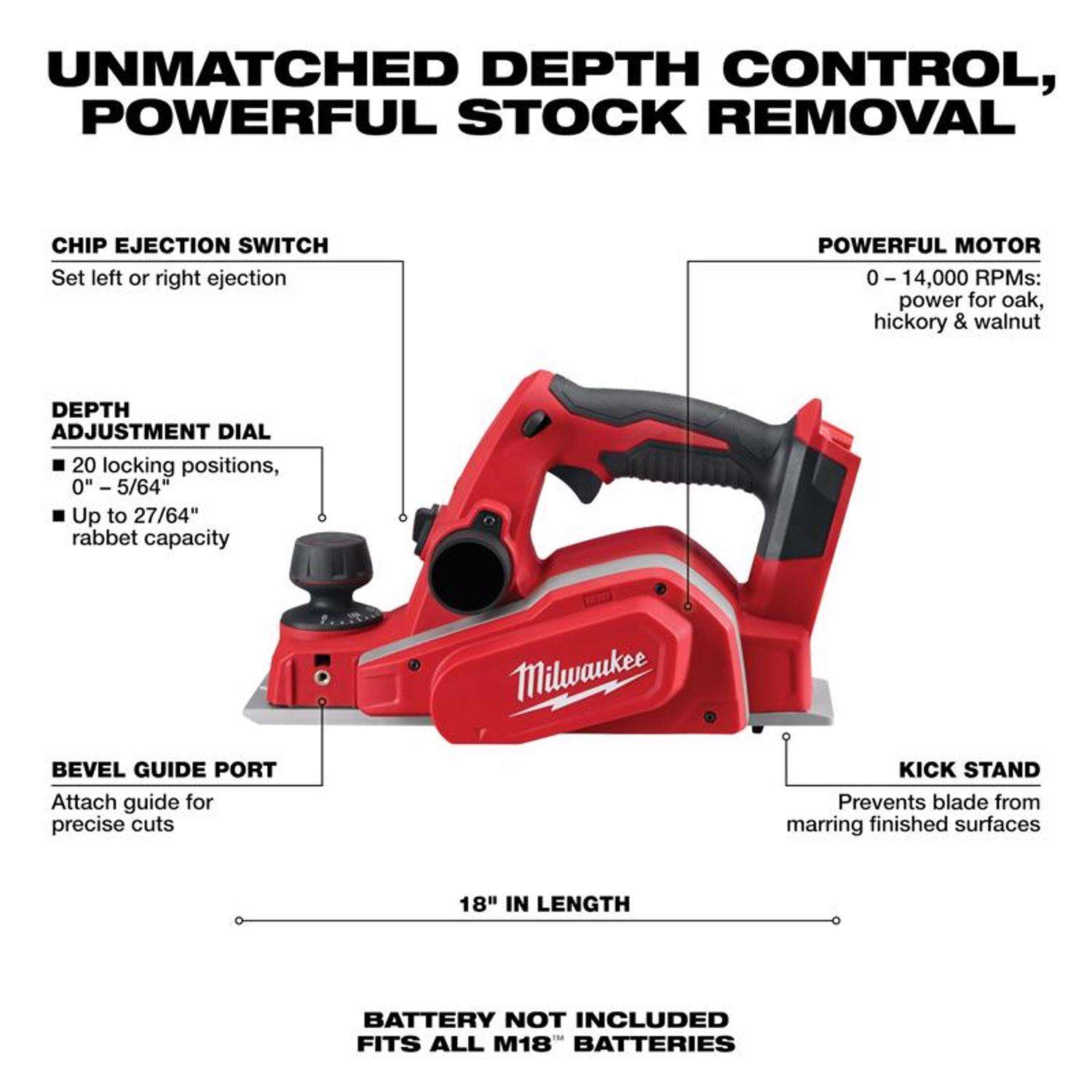

Key Features
-
Cordless Power with Corded Performance: Removes up to 5/64 in. in a single pass for fast material removal
-
Precise Depth Adjustment: 20 locking positions on the depth dial allow for accurate and repeatable cutting
-
Easy Depth Reading: Dial stops at 0 and 5/64 in., allowing quick depth checks without re-zeroing
-
Extended Rabbet Capacity: Up to 27/64 in. rabbet cut depth for deeper material removal and advanced joinery
-
Dual Chip Ejection: Shavings can be directed to either side for cleaner, safer work conditions
-
Bevel Edge Guide Included: Allows for precise angled cuts and edge beveling
-
Dust Collection Ready: Equipped with a dust port for optional vacuum attachment (vacuum not included)
-
Part of the M18™ System: Compatible with all Milwaukee M18™ batteries and chargers

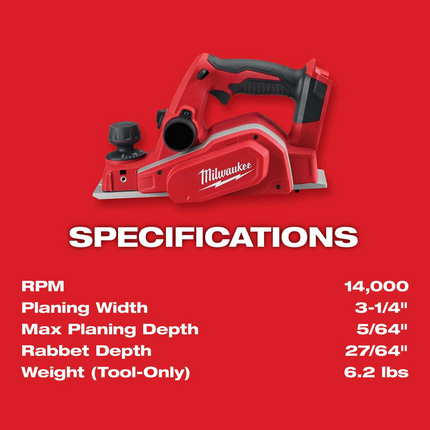

Specifications
| Feature |
Description |
| Brand |
Milwaukee |
| Sub-Brand |
M18™ |
| Model Number |
2623-20 |
| Tool Type |
Cordless Planer |
| Motor Type |
Brushed |
| Voltage |
18V (M18™ battery platform) |
| Maximum Planing Width |
3-1/4 in. |
| Maximum Depth of Cut |
5/64 in. per pass |
| Maximum Rabbet Depth |
27/64 in. |
| Speed (No Load) |
14,000 RPM |
| Number of Blades |
1 |
| Depth Adjustment Range |
0 to 5/64 in. with 20 locking increments |
| Dust Collection |
Yes – dust port for vacuum connection |
| Chip Ejection |
Left or right selectable ejection |
| Corded/Cordless |
Cordless |
| Tool Weight |
6.15 lbs |
| Tool Dimensions |
12.38 in. (W) x 6.17 in. (D) |
| Brushless Motor |
No |
| Case Included |
No |
| Kit or Tool Only |
Tool Only |
| Certifications |
UL Listed |
| Warranty |
5-Year Limited Warranty |
