Description
Optimize your jobsite air delivery system with the Metabo HPT 10-Gallon Reserve Air Tank (Model UA3810ABM). Designed to support multiple pneumatic tools even when the compressor is stationed over 200 feet away, this ASME-certified tank ensures a consistent and reliable air supply. With a large 10-gallon steel tank, five quick-connect couplers, and an integrated factory-installed regulator, it’s ideal for professionals who demand performance, convenience, and durability.
Whether you're running multiple nailers, handling fluctuating PSI requirements, or just need a portable reserve for high-demand tasks, this rugged auxiliary tank delivers. Its industrial-grade ball valve prevents unnecessary air loss when disconnected, and the roll cage design protects critical components from jobsite hazards. Built to endure tough conditions, the angled steel legs provide added stability and durability in even the harshest environments.
✅ Key Features:
-
Reliable Air Support:
Maintains consistent PSI even when located 200+ feet from the compressor.
-
Large Capacity:
10-gallon air reserve powers five or more nailers simultaneously without pressure drops.
-
Integrated Regulator:

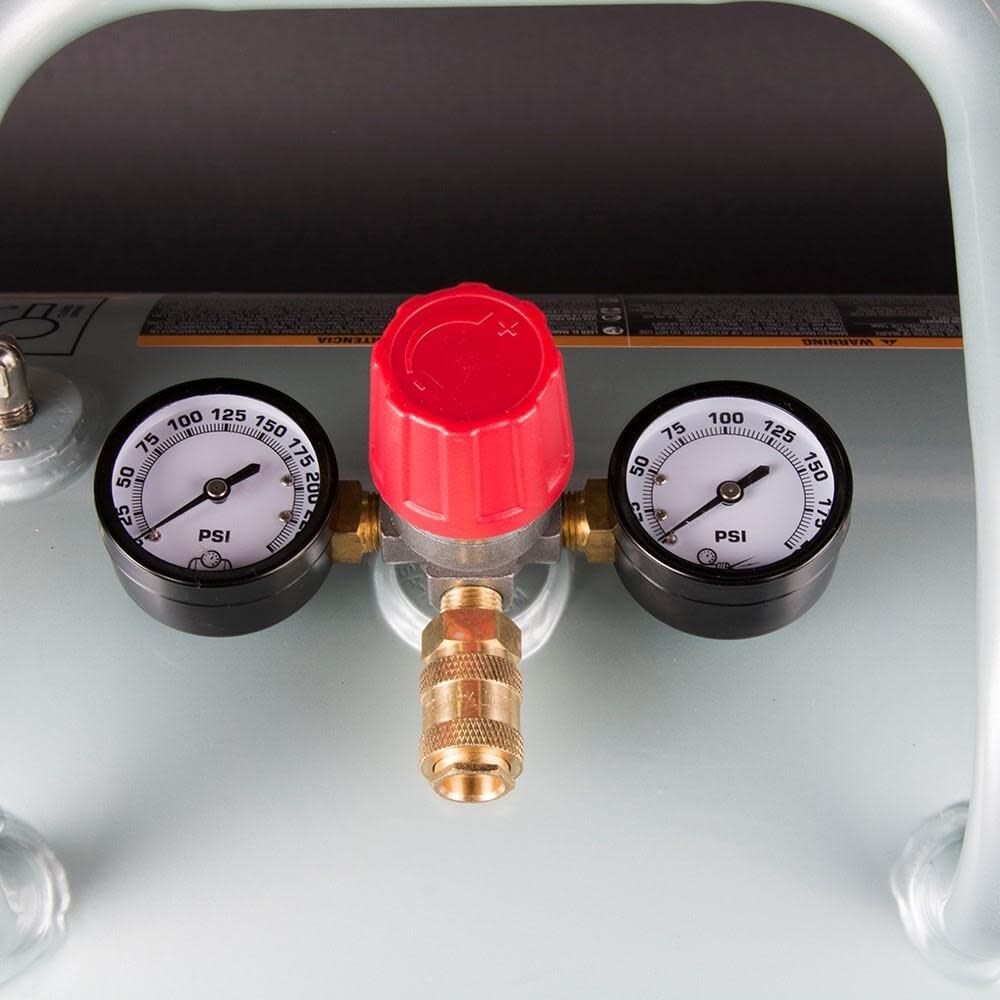

Built-in large knob pressure regulator allows for controlled output to specific tools needing less PSI.
-
Quick Connections:
Equipped with five industrial quick-connect couplers – four unregulated and one regulated – for fast hose and splitter attachments.
-
Durable Construction:
Features angled steel legs for increased support and stability on rugged job sites.
-
Certified Safety:
ASME Certified to comply with U.S. state laws and regulations for pressurized air systems.
-
Shut-Off Valve:
Industrial ball valve on the input line lets you disconnect from the compressor without draining the tank.
-
Protected Components:
Roll cage design shields regulator and gauges from damage during transport and use.
📊 Technical Specifications:
| Specification |
Details |
| Brand |
Metabo HPT |
| Model Number |
UA3810ABM |
| Tank Capacity |
10 Gallons |
| Tank Configuration |
Single Horizontal |
| Maximum Pressure |
75 PSI |
| Tank Material |
Steel |
| Compressor Compatibility |
Works with most portable air compressors |
| Quick Connect Ports |
5 Total (4 unregulated, 1 regulated) |
| Pressure Gauges |
Industrial-grade, steel-encased |
| Shut-Off Valve |
Industrial ball valve |
| Protective Frame |
Integrated roll cage |
| Leg Support |
Angled steel legs |
| Color |
Silver |
| Assembled Weight |
40 lbs |
| Package Dimensions (L x W x H) |
24.41 in x 13.5 in x 21.5 in |
| Country of Origin |
China |
| Certifications |
ASME Certified |
| Warranty |
1-Year Limited |
| UPC |
717709024328 |
| California Proposition 65 |
No |
📦 Included in the Box:
-
(1) 10-Gallon ASME Certified Reserve Tank
-
(1) Integrated Pressure Regulator
-
(5) Factory-Installed Quick Connect Couplers
-
(1) Owner’s Manual
