Description

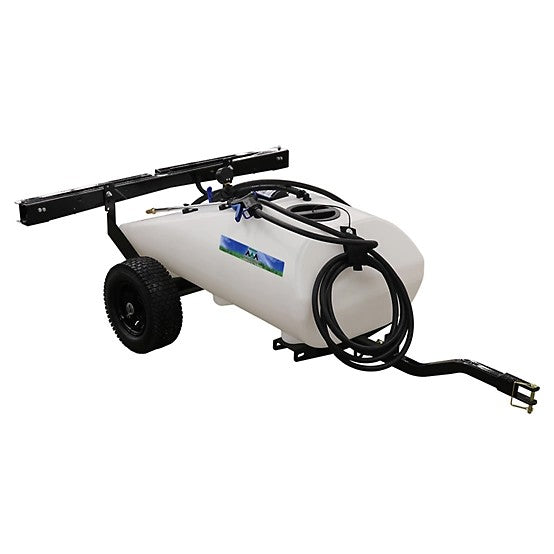

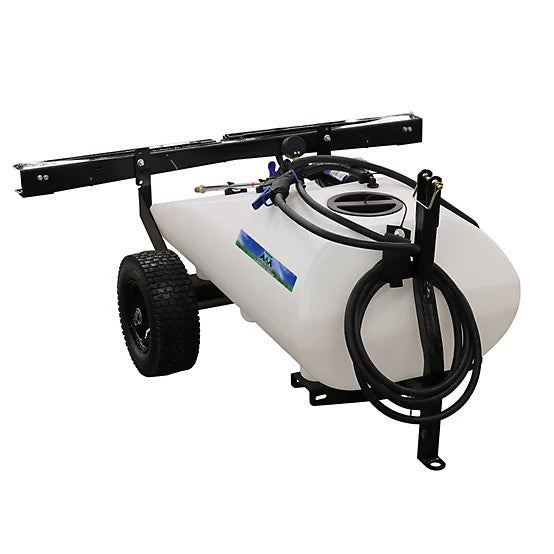

Tackle lawn, pasture, and acreage spraying jobs with confidence using the Master Mfg 24-Gallon Deluxe Trailer Broadcast Sprayer. Engineered for superior versatility and ease of use, this sprayer features a low-profile polyethylene tank for enhanced stability during transport, along with a high-performance EverFlo 2.2 GPM diaphragm pump for consistent, efficient spraying.
Equipped with a folding 4-nozzle, 7 ft. broadcast boom, this unit delivers even chemical application over up to 3 acres per fill. Whether you're spot spraying or broadcasting herbicides and insecticides, the adjustable deluxe spray gun and brass nozzle allow up to 25 ft. vertical and 30 ft. horizontal reach—all from the comfort of your seat.
Designed to connect to zero-turn mowers, UTVs, ATVs, and garden tractors, this heavy-duty trailer sprayer is easy to maneuver thanks to 13 in. pneumatic tires and a durable powder-coated frame. With foldable wings for compact storage and quick-attach no-drip nozzles to prevent dripping after shut-off, the Master Mfg trailer sprayer is the go-to solution for serious spraying tasks.
Key Features
-
Robust 24-Gallon Polyethylene Tank
Low-profile design ensures stability on uneven terrain and reduces tipping risk.
-

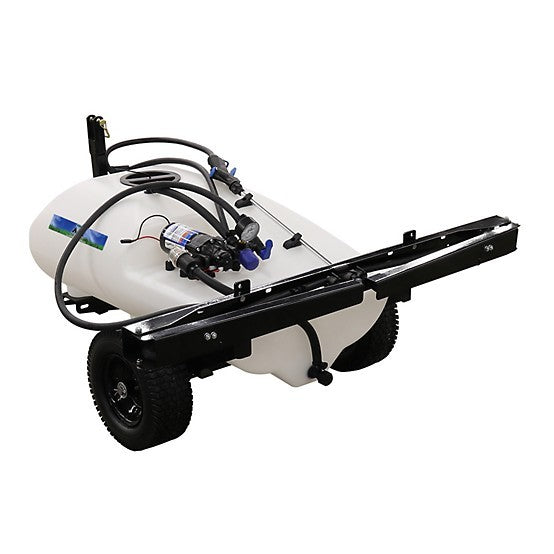

Premium EverFlo 2.2 GPM Diaphragm Pump
12V on-demand pump with 60 PSI max pressure provides consistent, clog-free flow.
-
Adjustable Pressure Regulator with Gauge
Fine-tune pressure output for precise application control and efficiency.
-
7-Foot Folding Boom with 4 Flat-Fan Nozzles
Provides a broad 84-inch spray swath with quick-attach, no-drip tips that reduce chemical waste.
-
Deluxe Spray Gun with Brass Adjustable Nozzle
Easily switch between wide mist and direct stream; reach up to 30 ft. horizontally and 25 ft. vertically.
-
Comfort Grip and Trigger Lock
Reduce hand fatigue during long spot-spraying tasks.
-
Quick-Maintenance Inline Strainer
Keeps debris and clumps out of the pump to prevent clogging and extend equipment life.
-
13 in. Heavy-Duty Pneumatic Tires
Smoothly handle rough terrain for better mobility during towing.
-
Versatile Hitch Compatibility
Easily attach to most ATVs, UTVs, zero-turn mowers, or lawn tractors.
-
Compact Storage Design
Foldable boom wings allow for safer navigation through obstacles and convenient garage storage.
-
Chemical Compatibility
Approved for use with Roundup and most commercial herbicides and insecticides.
Ideal Applications
-
Lawn and Turf Maintenance
-
Acreage and Food Plot Spraying
-
Weed and Pest Control in Pastures and Driveways
-
Fence Rows, Ditches, and Garden Perimeters
Specifications
| Attribute |
Details |
| Brand |
Master Mfg |
| Model Number |
SLO-41-024D-MM |
| Tank Capacity |
24 Gallons |
| Tank Material |
Polyethylene |
| Sprayer Type |
Tow-Behind Trailer |
| Pump Type |
12V EverFlo Diaphragm Pump |
| Maximum Flow Rate |
2.2 GPM |
| Maximum Pressure |
60 PSI |
| Spray Boom |
Folding 4-Nozzle Boom |
| Spray Swath Width |
7 ft. (84 in.) |
| Spot Spray Reach |
30 ft. (horizontal), 25 ft. (vertical) |
| Spray Gun Hose Length |
15 ft. x 3/8 in. reinforced hose |
| Nozzles |
4 Flat-Fan (No-Drip) |
| Hose Diameter |
3/8 in. |
| Mounting Type |
Tow-Behind (Universal Hitch Compatible) |
| Tires |
13 in. Pneumatic, Heavy-Duty |
| Power Type |
12 Volt (Battery Powered) |
| Primary Color |
White |
| Product Dimensions |
48 in. (L) x 20 in. (W) x 15 in. (H) |
| Product Weight |
58 lb. |
| Recommended Chemicals |
Herbicides, Insecticides, Pesticides |
| Warranty |
2-Year Limited |
| Country of Origin |
Made in USA |
Included Components
-
24-Gallon Poly Tank
-
EverFlo 2.2 GPM Diaphragm Pump
-
4-Nozzle Folding Boom (SSBK-420)
-
Deluxe Adjustable Spray Gun
-
15 ft. Reinforced Spray Hose
-
Quick Attach Inline Strainer
-
13 in. Heavy-Duty Tires
-
Trailer Hitch Kit
