Description

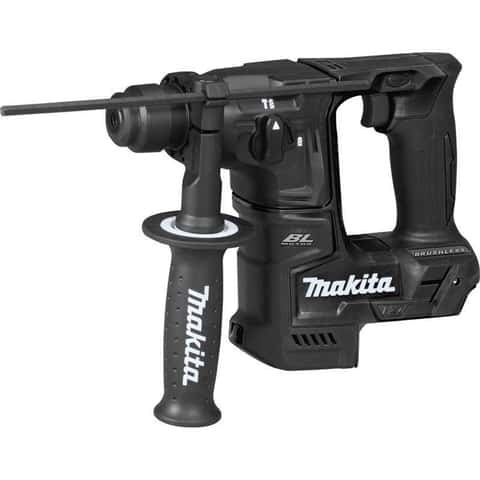

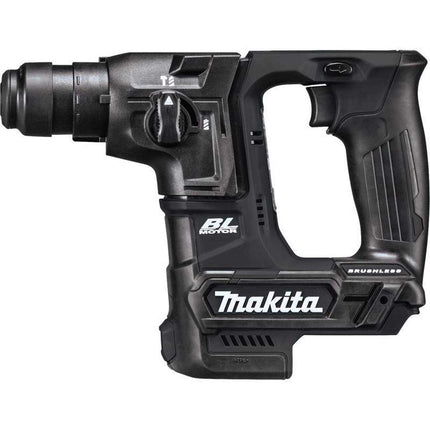

Makita revolutionizes cordless performance with its 18V LXT® Sub-Compact series, delivering 12V-class ergonomics with the power and runtime of 18V. The XRH06ZB 11/16 in. Brushless Rotary Hammer is engineered for contractors and professionals needing powerful performance in tight, overhead, or precision environments.
The compact design measures only 10-3/4 in. long and weighs less than comparable models, reducing operator fatigue—especially for overhead drilling in concrete, masonry, and tile. Powered by an efficient Makita BL™ Brushless Motor, the XRH06ZB delivers 0.88 ft-lbs (1.2 Joules) of impact energy, 0–680 RPM, and 0–4,800 BPM for quick, efficient drilling.
The tool offers two modes of operation: rotation only and hammering with rotation, making it ideal for a range of applications. Additional features such as AVT™-style vibration-reducing handle, one-touch sliding SDS-PLUS chuck, and built-in LED lights make it even more versatile and comfortable.
Compatible with Makita’s 18V LXT® battery system—the world's largest cordless tool lineup powered by 18V lithium-ion slide-style batteries (battery and charger sold separately).
🔧 Key Features
-
Compact & Lightweight: Weighs significantly less than traditional 18V hammer drills for enhanced comfort in overhead and confined space applications
-
BL™ Brushless Motor: Delivers up to 50% longer runtime, more power, and longer motor life
-
2-Mode Operation: Choose between rotation only or hammering with rotation depending on application
-
Impact Energy: 0.88 ft-lbs (1.2 Joules) for efficient drilling in concrete and masonry
-
Variable Speed Trigger: Allows precise control with 0–680 RPM and 0–4,800 BPM
-
SDS-PLUS Chuck: One-touch sliding design for fast and secure bit changes
-
Vibration-Absorbing Handle: Independently moves from the motor for improved user comfort
-
Dual LED Work Lights: Illuminate the drilling area in dark spaces
-
Dust Management: Compatible with Makita dust extraction accessories (sold separately) for OSHA Table 1 compliance
Note: This is a bare tool – battery and charger sold separately.
📐 Specifications
| Attribute |
Details |
| Brand |
Makita |
| Sub-Brand |
LXT® Sub-Compact |
| Model Number |
XRH06ZB |
| Tool Type |
Rotary Hammer Drill |
| Motor Type |
Brushless |
| Chuck Type |
SDS-PLUS |
| Max Drilling Capacity – Concrete |
11/16 in. |
| Impact Energy |
0.88 ft-lbs / 1.2 Joules |
| No-Load Speed (RPM) |
0–680 RPM |
| Blows Per Minute (BPM) |
0–4,800 BPM |
| Modes of Operation |
2 (Rotation Only, Hammer with Rotation) |
| Variable Speed |
Yes |
| Keyless Chuck |
Yes |
| Chisel Rotation |
Yes |
| Cordless / Corded |
Cordless (18V LXT® System) |
| Tool Length |
10-3/4 in. |
| Weight (Tool Only) |
Approx. 4.6 lbs |
| Certifications |
UL Listed |
| Warranty |
3-Year Limited |
| Country of Origin |
Varies by batch |
