Description
Professional-Grade Precision with Cordless Freedom
Unmatched Performance in a Compact Brushless Design

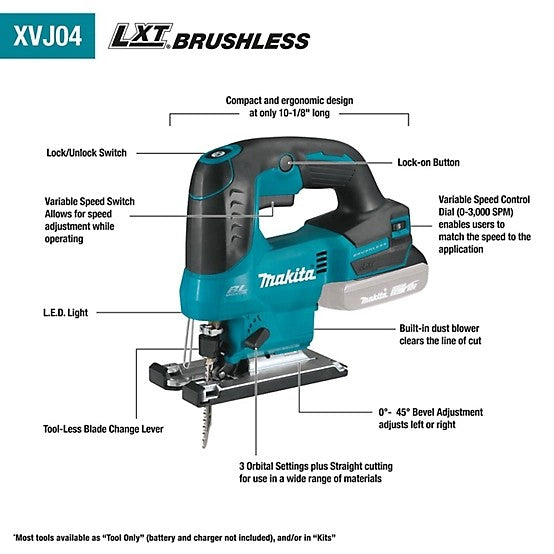

The Makita XVJ04Z 18V LXT Brushless Jig Saw redefines cordless cutting with 3,000 SPM brushless power and intelligent motor technology. Designed for professional woodworkers, cabinet makers, and contractors, this tool delivers corded-level performance with the freedom of Makita's 18V LXT battery system (sold separately). Its 3 orbital settings + straight cutting mode and 0°-45° bevel capacity make it ideal for precise cuts in wood (5.31" max) and metal (0.78" max).
Key Features & Benefits
Brushless Power & Efficiency

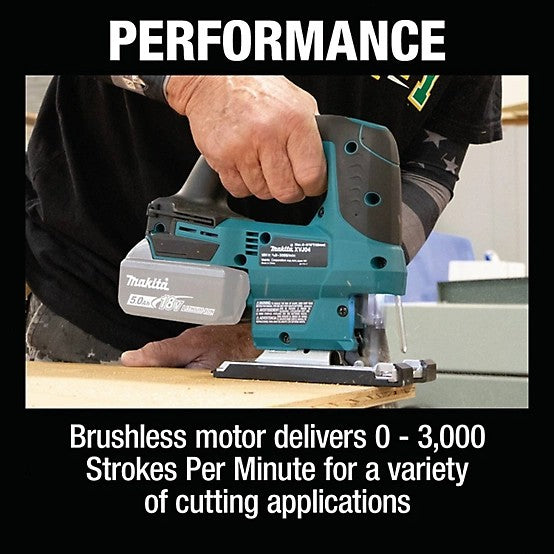

✔ 3,000 SPM Brushless Motor – Delivers 50% longer runtime vs. brushed models
✔ Star Protection Computer Controls – Prevents overloading/overheating

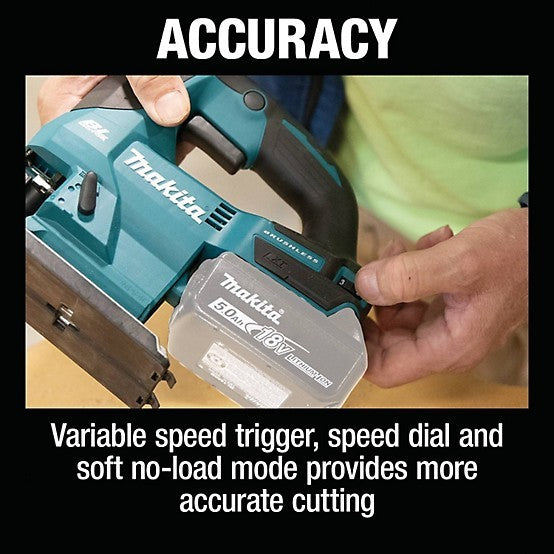

✔ Soft No-Load Mode – Gradually increases speed for cleaner starting cuts
✔ Electric Brake – Stops blade immediately for safety and precision
Precision Cutting Technology
✔ 3 Orbital + Straight Cutting Modes – Optimized for different materials
✔ 0.875" Stroke Length – Deeper, faster cuts
✔ Tool-Less Blade Change – Quick T-shank swaps (no tools needed)
✔ Built-In Dust Blower – Keeps cut line visible
Ergonomic & User-Friendly Design
✔ Compact & Lightweight (4.83 lbs tool-only) – Reduces fatigue
✔ Large 2-Finger Trigger w/ Lock-On – Comfortable extended use
✔ Dual LED Lights – Illuminate dark workspaces
✔ Soft Start Feature – Smooth acceleration reduces kickback
Versatile Cutting Capacity
✔ Wood (5.31") & Metal (0.78") Cutting – Handles thick materials
✔ 45° Bevel Capacity (Both Directions) – Precise angled cuts
✔ Cuts 135+ Feet of 1" MDF Per Charge* – (*With 5.0Ah battery)
Technical Specifications
| Category |
Specification |
| Model Number |
XVJ04Z |
| Motor Type |
Brushless |
| Voltage |
18V LXT (battery sold separately) |
| Max Speed |
3,000 SPM |
| Stroke Length |
0.875 inches |
| Bevel Capacity |
0°–45° left/right |
| Cutting Modes |
3 orbital + straight |
| Max Cutting Depth |
Wood: 5.31" |
Metal: 0.78" |
| Blade Change |
Tool-less T-shank |
| Weight (Tool Only) |
4.83 lbs |
| Dimensions (L x W x H) |
11.1 x 3.23 x 10.04 inches |
| Warranty |
3-year limited |
Ideal Applications
-
Cabinetmaking – Precision cuts in hardwood and plywood
-
Trim & Finish Carpentry – Detailed scroll and plunge cuts
-
Metal Fabrication – Cutting aluminum and thin steel
-
Decking & Outdoor Projects – Bevel cuts for railing and joints
Why Choose the Makita XVJ04Z?
✔ Corded Power Without the Cord – Brushless motor outperforms competitors
✔ Industry-Leading Runtime – 50% longer than brushed models
✔ Pro-Grade Durability – Built to withstand job site demands
✔ Part of Makita's 18V LXT System – World's largest cordless platform
