Description
The Ultimate in Fastening Control for Automotive & Industrial Applications
Unmatched Performance & Precision

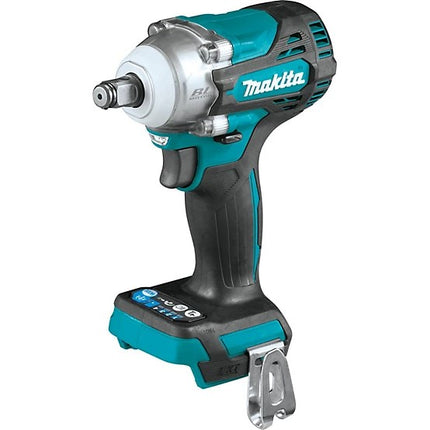

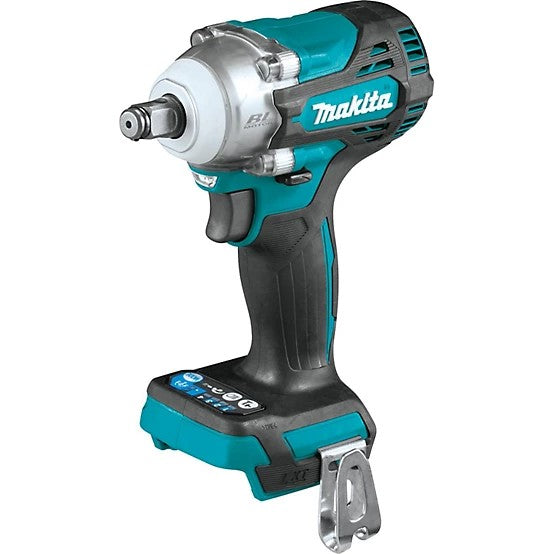

The Makita XWT14Z redefines cordless impact wrench technology with its 4-speed power selection (up to 3,200 RPM) and 430 ft-lbs of nut-busting torque. Designed for automotive technicians, fabricators, and industrial trades, this brushless powerhouse delivers 50% longer runtime than conventional motors while maintaining extreme precision in fastening applications.

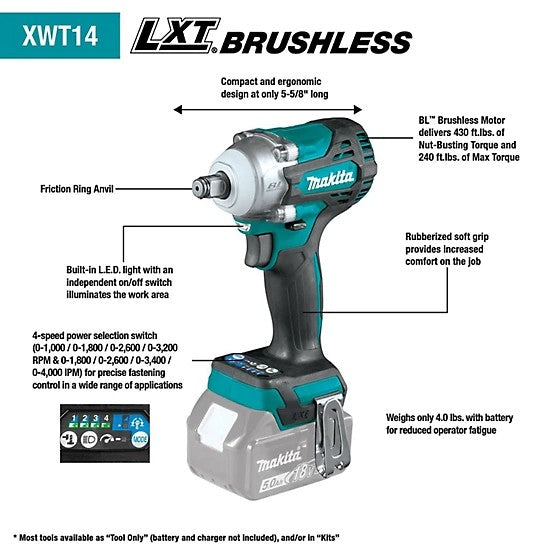

Key Innovations
✔ Makita-Built Brushless Motor – 240 ft-lbs fastening torque | 430 ft-lbs nut-busting torque
✔ 4-Speed Smart Selector – Match RPM/IPM to the task (0-3,200 RPM / 0-4,000 IPM)
✔ 3 Auto-Stop Modes (Forward/Reverse) – Prevents overtightening & boosts efficiency
✔ XPT (Extreme Protection Tech) – Dust/water resistance for harsh job sites
✔ Ultra-Compact Design – Just 5-5/8" long & 3.24 lbs (without battery)
Technical Specifications
| Category |
Specification |
| Drive Size |
½" Square Drive (Friction Ring Anvil) |
| Max Torque (Fastening) |
240 ft-lbs (325 Nm) |
| Nut-Busting Torque |
430 ft-lbs (583 Nm) |
| Speed Settings |
4 RPM Ranges: 0-1,000 / 1,800 / 2,600 / 3,200 RPM |
| Impact Rate |
4 IPM Ranges: 0-1,800 / 2,600 / 3,400 / 4,000 IPM |
| Motor Type |
Brushless (BL) – Electronically Optimized |
| Battery Compatibility |
Makita 18V LXT (Star Symbol Required) |
| Weight (Tool Only) |
3.24 lbs (1.47 kg) |
| Dimensions |
9.21" H x 6.81" W x 5.63" L |
| Housing Material |
Reinforced Plastic with Rubber Grip |
| Lighting |
Built-in LED (Independent On/Off) |
| Warranty |
3-Year Limited |
| Model # |
XWT14Z (Bare Tool) |
Why Professionals Choose the XWT14Z
1. Smarter Fastening Control
-
4-Speed Selector – Adjust from precision low-speed (1,000 RPM) to high-speed (3,200 RPM) for lug nuts, suspension work, or structural bolts.
-
Auto-Stop Modes – Stops rotation upon fastener seating to prevent damage.
2. Durability for Demanding Jobs
-
XPT Shielded – Resists dust, water, and 10' drops (tested to MIL-STD standards).
-
Industrial-Grade Anvil – Heat-hardened steel hammer mechanism for 10x longer life.

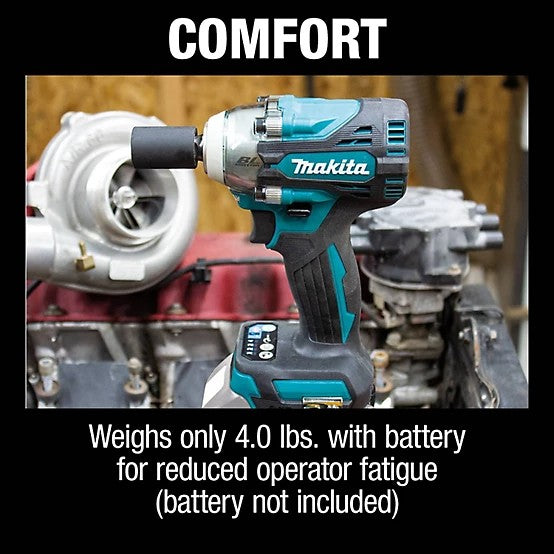

3. Ergonomic Efficiency
4. Battery & Charging Tech
-
Star Protection™ – Guards against overheating, overloading, and deep discharge.
-
50% Longer Runtime – BL motor optimizes energy use per charge.
What’s Included?
Ideal Applications
✅ Automotive: Lug nuts, drivetrain, suspension
✅ Industrial: Steel fabrication, machinery maintenance
✅ Construction: Structural bolting, steel framing
✅ Anywhere precision torque matters
Makita’s 18V LXT Advantage
✔ Industry’s Fastest Charging – 18V LXT batteries recharge in just 30 mins.
✔ 3-Year Warranty – Backed by Makita’s legendary reliability.
Upgrade to brushless precision—order the XWT14Z today!
