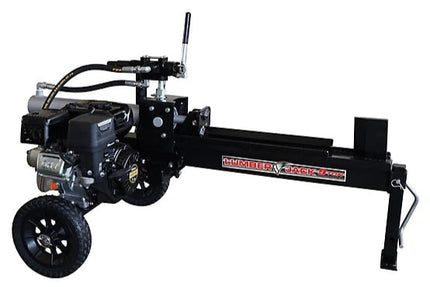

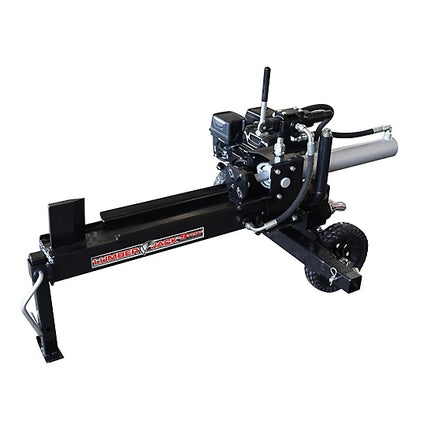

Take on tough wood-splitting tasks with power and precision using the Lumber Jack 9-Ton Gas-Powered Log Splitter. Engineered for performance and portability, this splitter is powered by a robust 209cc 6.5HP OHV engine, delivering up to 9 tons of splitting force. Designed to handle logs up to 19.3 inches in length and 13 inches in diameter, this unit is perfect for homeowners, hobbyists, and rural property owners who need reliable log-splitting power in a compact form.
The 14-second cycle time and auto-return cylinder boost productivity, while the integrated log cradle and horizontal orientation ensure stability and safety during each split. Built tough with a steel frame, 10-inch Never Flat wheels, and low-profile design, this log splitter is easy to maneuver, store, and use wherever your woodpile takes you.
Key Features
-
Powerful 9-Ton Splitting Force
Effortlessly splits logs up to 19.3 inches long and 13 inches in diameter, handling knotted and seasoned wood with ease.
-
Reliable 209cc OHV Engine
Built with a 6.5 HP Lumber Jack OHV engine for dependable starting and consistent power output.
-
Fast & Efficient Operation
The 14-second cycle time with an auto-return cylinder means more logs split in less time—perfect for bigger jobs.
-
Safe & Secure Design
Includes an integrated log cradle to keep logs stable during operation, reducing risk and increasing control.
-
Compact & Portable
Never Flat 10-inch wheels and a low-profile frame make transportation across job sites or property quick and easy.
-
Built to Last
Backed by comprehensive warranties:
-
3-Year Warranty on Workmanship
-
2-Year Warranty on Engine
-
1-Year Warranty on Hydraulic System
⚠ Note: Always use in a well-ventilated outdoor area. Recommended oil: 10W-30. Always wear eye and hand protection during operation.
Technical Specifications
| Specification |
Details |
| Brand |
Lumber Jack |
| Model Number |
YTL-590-111 |
| Power Type |
Gas-Powered |
| Engine Brand |
Lumber Jack |
| Engine Type |
4-Stroke OHV, Manual Start |
| Engine Displacement |
209cc |
| Horsepower |
6.5 HP |
| Torque |
9.1 ft-lb |
| Fuel Tank Capacity |
2.6 L (0.69 gal) |
| Hydraulic Capacity |
1.59 qt. |
| Maximum Splitting Force |
9 Ton |
| Cycle Time |
14 Seconds |
| Maximum Log Length |
19.3 in. |
| Maximum Log Diameter |
13 in. |
| Maximum PSI |
3,084 PSI |
| Operational Orientation |
Horizontal |
| Frame Material |
Steel |
| Tire Size |
10 in. Never Flat |
| Start Type |
Manual Recoil |
| Product Dimensions (L×W×H) |
55 in. × 37 in. × 31 in. |
| Product Weight |
203 lb |
| Recommended Oil Type |
10W-30 |
| Certifications |
EPA & CARB Compliant |
| Warranty Coverage |
3-Year Workmanship, 2-Year Engine, 1-Year Hydraulics |
| Country of Origin |
Imported |
