Description

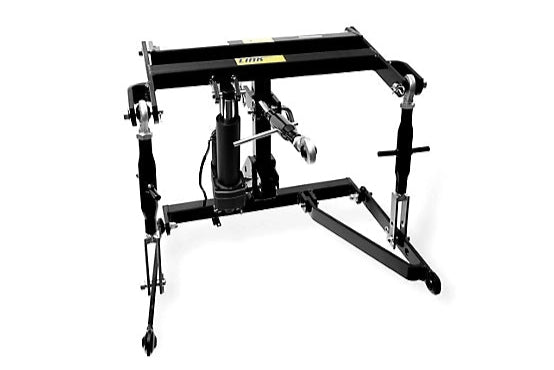

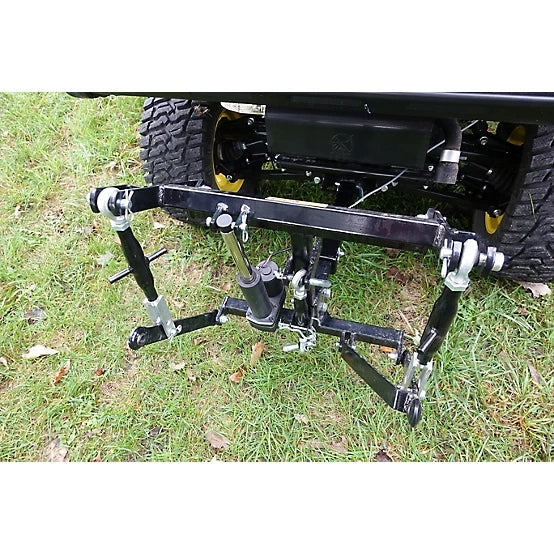

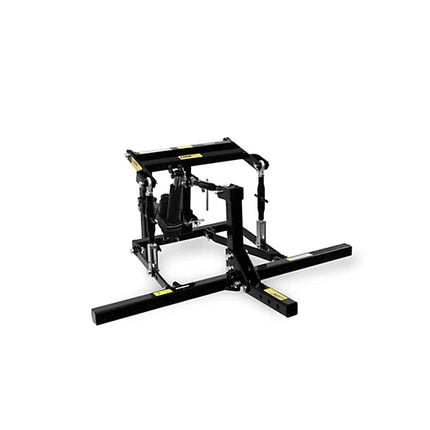

Take your land management to the next level with the LinkEZE UTV/ATV 3-Point Hitch Cultivator. Designed to be compatible with most utility vehicles and ATVs, this innovative 3-point hitch features a powerful 12V electric actuator lift system and delivers a down pressure capacity of 300 lb., making it perfect for lifting and controlling ground-engaging attachments like cultivators, plows, and more.
Built for endurance, this hitch system is tested to withstand 250,000 full-lift cycles at 5KN (approx. 1,124 lb.) with no failures observed—ensuring longevity under repeated heavy-duty use. The frame features a black ED coating that offers superior corrosion resistance, even in rugged outdoor conditions. Additional design enhancements, such as optimized pin clearance, minimize wear and reduce operational noise.
Whether you're preparing soil, leveling plots, or maintaining trails, the LinkEZE 3-point hitch system offers reliability, smooth operation, and extended life in a compact, efficient design.
Key Features:
-
✅ High-Duty Performance:
Tested to complete 250,000 lift cycles at 5KN without failure, delivering exceptional durability.
-
✅ Electric Actuator Lift System:
Features a 12V powered actuator with a maximum 20A current draw, offering convenient, effortless lifting and lowering.
-
✅ Superior Corrosion Resistance:
Finished in black ED (electrodeposition) coating for enhanced protection in harsh conditions.
-
✅ Noise and Wear Reduction:
Optimized pin clearances minimize noise and reduce wear over time.
-
✅ High Down Pressure Capacity:
Capable of delivering up to 300 lb. of downforce, allowing better tool penetration into the soil.
-
✅ Digital & Physical Manuals:
Includes both a printed manual and QR code for quick access to a digital user guide.
Specifications:
| Attribute |
Details |
| Brand |
LinkEZE |
| Model Number |
40TPUA001 |
| Country of Origin |
Imported |
| Compatibility |
Fits most UTVs and ATVs with proper mounting |
| Hitch Type |
3-Point Hitch (Electric Lift) |
| Actuator System |
12V Electric Actuator, 20A Max Draw |
| Lift Cycle Rating |
250,000 Cycles at 5KN (1,124 lb.) |
| Down Pressure Capacity |
300 lb. |
| Working Width |
24.5 in. |
| Working Depth |
158 mm (6.2 in.) |
| Frame Material |
Alloy |
| Tine/Shank Material |
Alloy |
| Number of Rows |
1 |
| Number of Tines/Shanks |
None (Base Hitch Only) |
| Rotation Direction |
None |
| Coating Finish |
Black ED Coating |
| Digital Manual Access |
QR Code included |
| Product Dimensions (L x W x H) |
30 in. x 24.5 in. x 18.31 in. |
| Product Weight |
81.2 lb. |
| Warranty |
1-Year Limited Warranty |
Ideal For:
-
Towing ground-engaging implements
-
Cultivation, food plot prep, or trail maintenance
-
Utility work in agricultural, landscaping, or recreational environments
