Description

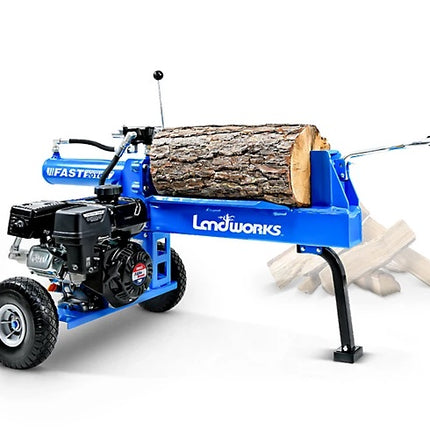

Take on heavy-duty wood splitting tasks with ease using the Landworks 20-Ton Horizontal Gas-Powered Hydraulic Log Splitter. Engineered for durability, performance, and portability, this log splitter is powered by a robust 7 HP 4-stroke Alpha gas engine and features a high-performance 2-stage Bucher hydraulic gear pump that delivers smooth, powerful operation with up to 3,250 PSI of consistent force.
Ideal for both professionals and homeowners, this splitter boasts a rapid 7.5-second cycle time, auto-return functionality, and can handle logs up to 20.5 inches in length and 16 inches in diameter. Its compact steel frame and 10-inch transport wheels make maneuvering and setup easy at any job site—whether you're splitting logs at home, on the trail, or deep in the woods.
✅ Key Features
-
Powerful Performance:

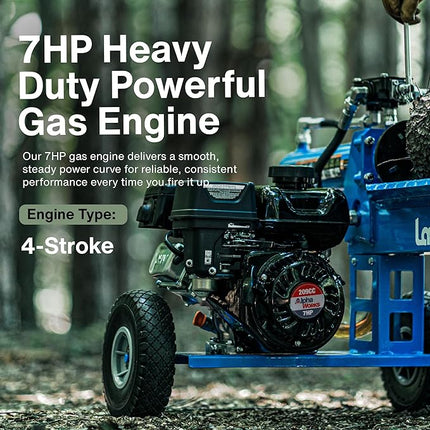

Equipped with a 7 HP, 209cc 4-cycle gas engine for smooth, reliable, and efficient log splitting power.
-
20-Ton Splitting Force:
Generates up to 20 tons of splitting force and delivers up to 3,250 PSI, capable of splitting logs up to 20.5 in. long and 16 in. in diameter.
-
High-Efficiency Hydraulic System:
Utilizes a 2-stage Bucher hydraulic gear pump, trusted for its long-term reliability and superior performance.
-
Rapid Auto-Return:
Automatic return system resets the splitter in 7.5 seconds, boosting productivity on big jobs.
-
Portable Design:
Lightweight full-beam steel frame and 10-inch rugged wheels allow for fast and easy transportation to remote sites.
-
Horizontal Operation:
Stable, horizontal orientation ideal for handling heavy logs efficiently with minimal lifting effort.
-
Durable Construction:
Made with high-quality steel components to ensure long service life even under rigorous conditions.
-
Versatile Use:
Can be used on the ground or bench, indoors or outdoors.
-
Safe Operation:
Includes easy-access on/off switch and manual recoil start, with safety best practices encouraged (always use eye and hand protection).
📦 What's Included
-
(1) Landworks 20-Ton Hydraulic Log Splitter
-
(1) Pull Start 7 HP Gas Engine (pre-installed)
-
(1) Steel Wedge Assembly
-
(1) Set of 10 in. Pneumatic Transport Wheels
-
(1) Owner’s Manual
⚠️ Note: Hydraulic fluid not included. AW32 hydraulic oil is recommended.
📊 Technical Specifications
| Specification |
Details |
| Brand |
Landworks |
| Model Number |
GUO079 |
| Power Type |
Gas-Powered |
| Engine Type |
4-Cycle, Pull/Recoil Start |
| Engine Displacement |
209cc |
| Horsepower |
7 HP |
| Torque |
8.85 ft-lb |
| Maximum Splitting Force |
20 Ton |
| Hydraulic Pump Type |
2-Stage Bucher Gear Pump |
| Maximum PSI |
3,250 PSI |
| Hydraulic Capacity |
2.1 Gallons |
| Fuel Tank Capacity |
0.74 Gallons |
| Log Capacity – Length |
Up to 20.5 in. |
| Log Capacity – Diameter |
Up to 16 in. |
| Cycle Time |
7.5 Seconds |
| Operational Orientation |
Horizontal |
| Tank Material |
Steel |
| Primary Construction Material |
Steel |
| Wheel Size |
10 in. |
| Decibel Rating |
Not specified |
| Recommended Engine Oil |
10W-30 or 5W-30 (based on ambient temp) |
| Product Dimensions (L x W x H) |
40 in. x 20 in. x 11 in. |
| Product Weight |
143 lbs |
| Warranty |
12-Month Limited Parts Warranty |
| Country of Origin |
Imported |
| CARB-Compliant |
Yes |
