Description
Industrial-Grade Power for Large Residences & Commercial Applications

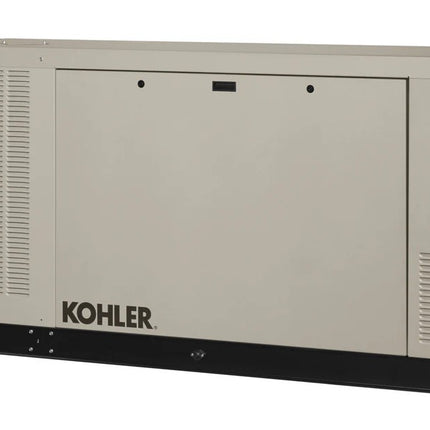

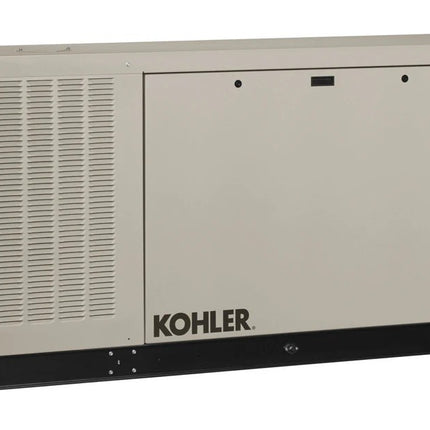

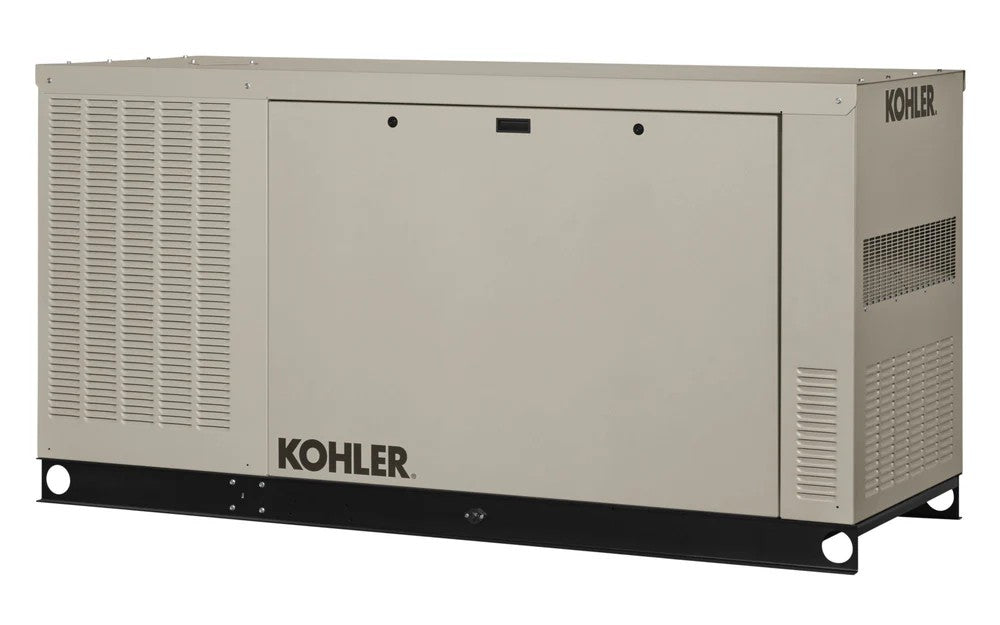

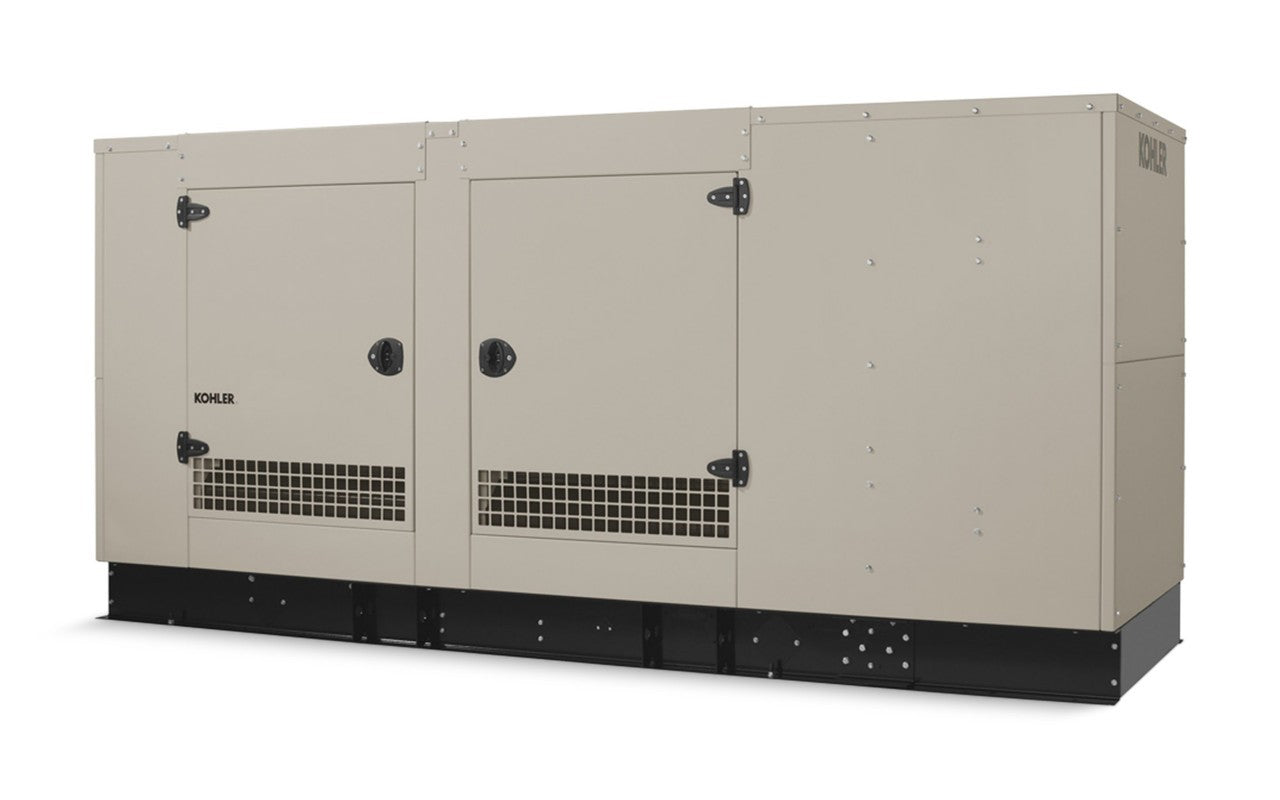

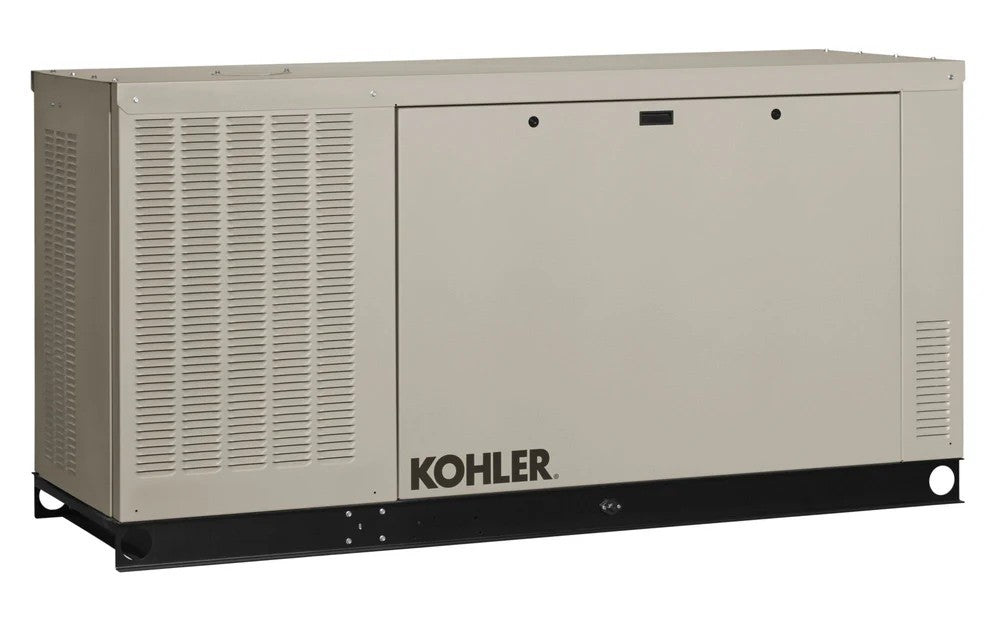

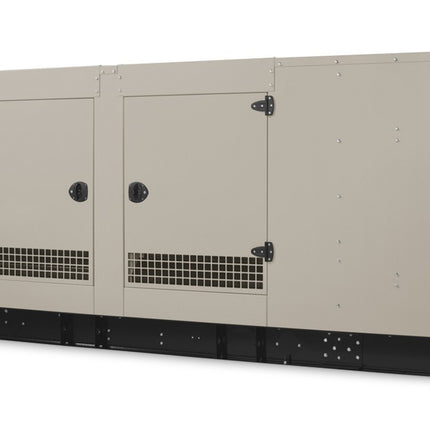

The Kohler 60RCLB-QS5 represents the pinnacle of standby power generation, delivering 60,000 watts of clean, reliable electricity for large luxury homes and small commercial facilities. Featuring a massive 6.2L liquid-cooled industrial engine operating at 1800 RPM, this generator provides ultra-low THD power quality (<5%) perfect for sensitive electronics while maintaining whisper-quiet operation at just 63 dB during normal operation.
Key Features & Benefits
Unmatched Power Performance
⚡ 60,000 Watt Output (LP) / 58,000W (NG) - Powers entire estates or small businesses
⚡ 250 Amp Capacity - Handles multiple HVAC systems and heavy loads simultaneously
⚡ Brushless Alternator - Delivers <5% THD for sensitive medical/lab equipment
⚡ 7-10 Second Full Load Response - Faster than most competitors
Advanced Control & Monitoring
📱 OnCue Plus Management System - Optional WiFi monitoring via smartphone/PC
💻 RDC2 Digital Controller - Full-color LCD with advanced diagnostics
🔋 Built-in 2.5A Battery Charger - Maintains optimal starting power
🔇 SoundSmart™ Technology - As low as 62 dB during testing
Commercial-Grade Construction
🛡️ 6.2L Industrial Engine - 1800 RPM operation for extended lifespan
🏗️ Wind-Rated Enclosure - Withstands extreme weather conditions
🎨 Durable Powder-Coated Finish - Corrosion-resistant aluminum housing
🔌 GFCI Service Outlet - For maintenance equipment or block heaters
Installation Flexibility
✔ 18" Clearance Installation - NFPA 37 compliant reduced setback
✔ Liquid-Cooled Efficiency - Superior thermal management
✔ Flexible Fuel Options - NG or LP vapor operation
Technical Specifications
Power System
| Category |
Specification |
| Rated Output (LP/NG) |
60,000W / 58,000W |
| Voltage |
120/240V Single-Phase |
| Frequency |
60Hz |
| THD |
<5% |
| Max Amperage |
250A |
| Alternator Type |
Brushless |
Engine Performance
| Category |
Specification |
| Engine |
Kohler 6.2L Industrial |
| Displacement |
6,200cc |
| RPM |
1800 |
| Fuel Consumption (NG) |
493 ft³/hr (50%) / 1,013 ft³/hr (100%) |
| Fuel Consumption (LP) |
5.4 gal/hr (50%) / 10.1 gal/hr (100%) |
Physical Dimensions
| Category |
Specification |
| Dimensions |
89.8"L x 32.9"W x 46.5"H |
| Weight |
1,894 lbs |
| Noise Level |
62 dB (test) / 63 dB (run) @ 23' |
| Cooling |
Liquid |
| Battery |
Not Included (630 CCA Required) |
Certifications & Warranty
✅ NFPA 37 Compliant
✅ 5-Year/2000-Hour Limited Warranty
✅ Made in USA
System Requirements
-
RXT Series Transfer Switch (Sold Separately)
-
Concrete Pad (Not Included)
-
Professional Installation Required
-
Loading Dock/Forklift Needed for Delivery
Why Choose the Kohler 60RCLB?
✔ Commercial-Grade Reliability - 6.2L industrial engine built for continuous operation
✔ Clean Power Quality - Protects sensitive electronics and medical equipment
✔ Advanced Monitoring - Optional OnCue Plus remote management
✔ Quiet Performance - Sound-attenuated enclosure with Smart Cooling technology
✔ Dual Fuel Capability - Flexible NG or LP operation
Ideal Applications:
-
Luxury estates with multiple HVAC systems
-
Medical facilities requiring uninterrupted power
-
Small commercial buildings with critical power needs
-
Data centers needing clean, stable electricity
