Description
Product Overview

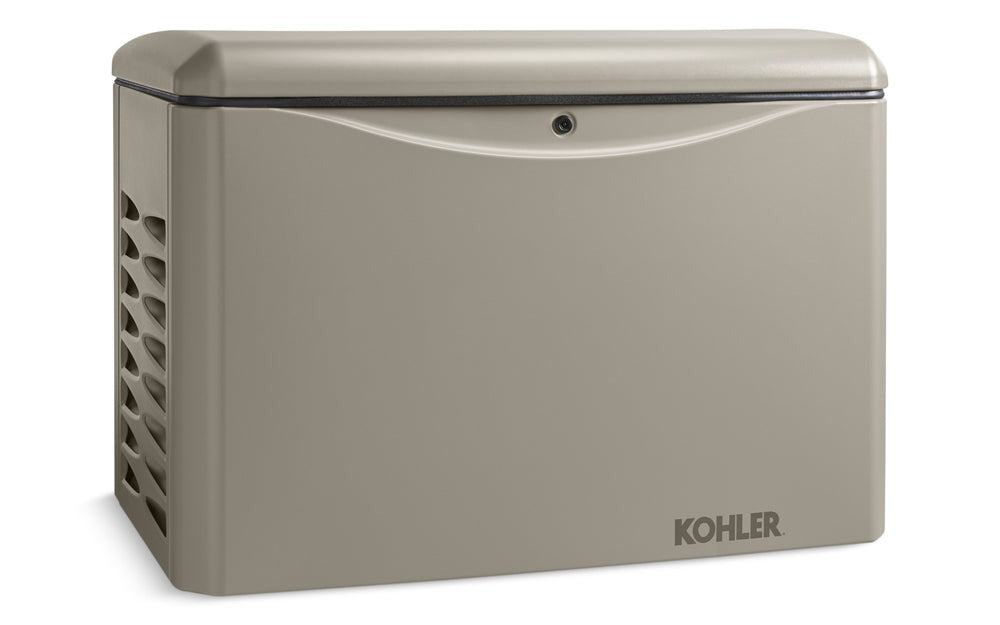

The Kohler 26RCA Standby Generator delivers powerful, reliable backup electricity to keep your home or business running smoothly during outages and storms. With 26 kW of power on liquid propane (LP) and 24 kW on natural gas (NG), this generator can handle your entire electrical system, including a 5-ton (60,000 BTU) central air conditioner, major appliances, lighting, and sensitive electronics with ease.
Equipped with a commercial-grade KOHLER Command PRO engine, the 26RCA starts automatically within 10 seconds of power loss, providing peace of mind and uninterrupted comfort. Its quiet operation, robust aluminum enclosure, and advanced digital controls make it a premium choice for residential or light commercial standby power needs.
Key Features
✅ High Power Output
✅ PowerBoost™ Technology
Provides extra power to start large loads like central air conditioners without dropping power to other appliances.
✅ Premium Power Quality
Digital voltage regulation and low harmonic distortion (<5%) protect sensitive electronics and appliances.
✅ Fast Response Time
Starts and restores power automatically within 10 seconds of an outage.
✅ Quiet Operation
Operates at 56 dBA during weekly exercise and 67 dBA at full load – similar to a central air conditioner.
✅ Commercial-Grade Engine
Powered by a KOHLER CH1006 999cc V-twin OHV engine, designed and tested for demanding applications.
✅ Durable Weather-Resistant Enclosure
Powder-coated aluminum enclosure withstands harsh elements, including hurricane-force winds up to 181 mph.
✅ Fuel Versatility
Runs on natural gas or liquid propane (LPG) with simple field conversion.
✅ Advanced RDC2 Controller
Manages generator and transfer switch functions while offering compatibility with OnCue Plus Remote Monitoring, Load Control Module (LCM), Load Shed Kit, and Programmable Interface Module (PIM).
✅ Parallel Compatibility with Accessories
Compatible with Mossy Oak camouflage patterns for aesthetic integration with your property (single-phase models only).
✅ Streamlined Installation
Includes built-in mounting pad and simple terminal block for quick field connections.
Specifications
| Attribute |
Details |
| Brand |
Kohler |
| Model |
26RCA |
| Rated kW (LP) |
26 kW |
| Rated kW (NG) |
24 kW |
| Running Amps (LP) |
109 A |
| Running Amps (NG) |
100 A |
| Peak Motor Starting kVA @240V |
39 kVA |
| Voltage |
120/240V Single Phase |
| Frequency |
60 Hz |
| Response Time |
10 seconds |
| Engine Model |
CH1006 |
| Engine Manufacturer |
Kohler |
| Engine Displacement |
999 cc (61 cu. in.) |
| Engine Horsepower (NG/LP) |
33.0 HP (NG), 36.4 HP (LP) |
| Engine/Alternator RPM |
3600 RPM |
| Cylinder Arrangement |
V-2 |
| Fuel Type |
Natural Gas, LPG |
| Fuel Consumption @ 50% Load (NG) |
180 cfh |
| Fuel Consumption @ 50% Load (LP) |
85 cfh |
| Choke Type |
Manual |
| Alternator Type |
2-Pole, Rotating Field |
| Digital Voltage Regulation |
±1.0% |
| THD (Total Harmonic Distortion) |
<5% |
| Enclosure Material |
Aluminum |
| Sound Output (Exercise Mode) |
56 dBA |
| Sound Output (Full Speed) |
67 dBA |
| Built-in Mounting Pad |
Yes |
| Dimensions (L x W x H) |
47 x 26.0 x 32.3 in. (1193 x 660 x 820 mm) |
| Weight |
625 lbs (283 kg) |
| Remote Monitoring |
Included (OnCue Plus compatible) |
| Automatic Transfer Switch |
Sold separately |
| Transfer Switch Ready |
Yes |
| Certifications / Listings |
UL 2200, EPA, cUL |
| Country of Origin |
USA |
| Off Grid / Utility Backup |
Utility Backup |
| Warranty |
5-year / 2,000-hour comprehensive warranty |
Warranty
✔️ 5-Year Comprehensive Warranty
Covers parts and labor for up to 2,000 hours of operation, ensuring long-term peace of mind backed by Kohler’s global support network.
