Description

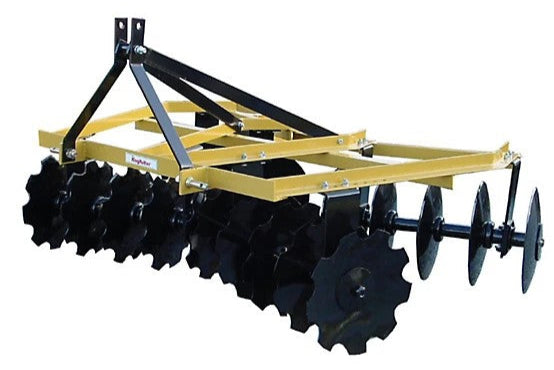

Take your tillage to the next level with the King Kutter 6-1/2 ft. Angle Frame Disc Harrow, a durable, field-tested implement designed for dependable soil preparation. Built with a heavy-duty angle iron frame and equipped with 20 combination-style disc blades (notched and smooth options available), this disc harrow delivers superior performance for breaking ground, chopping residue, and preparing seedbeds.
Compatible with Category 1, 3-point hitches and quick hitch systems, this versatile tool fits a wide range of compact and utility tractors. The sealed ball bearings, 7-inch blade spacing, and choice of 16-inch or 18-inch disc diameters ensure maximum efficiency in both lighter and heavier soils. Whether you're working in the field, garden, or food plot, the King Kutter Angle Frame Disc is built to deliver reliable results, season after season.
🔧 Key Features
-
Robust Angle Frame Construction: Durable welded steel frame ensures long-term performance in tough conditions
-
Quick Hitch Compatible: Works with Category 1, 3-point hitches and quick hitch systems for faster attachment
-
Versatile Disc Options: Available in 16 in. or 18 in. diameter blades; choose from notched, smooth, or combination blades
-
Adjustable and Efficient: 7 in. blade spacing and sealed ball bearings allow smooth operation with reduced maintenance
-
Ideal for Multiple Applications: Perfect for tilling, cutting sod, residue management, and prepping food plots or gardens
-
Made in the USA: Manufactured with high-quality materials and craftsmanship
📐 Specifications
| Attribute |
Details |
| Brand |
King Kutter |
| Model Number |
16-20-G-SB-C-YK |
| Country of Origin |
Made in USA |
| Assembly Required |
Partial |
| Hitch Type |
3-Point, Category 1, Quick Hitch Compatible |
| Working Width |
78 in. (6.5 ft.) |
| Blade Quantity |
20 |
| Blade Diameter |
16 in. (Optional 18 in. version available) |
| Blade Type |
Combination (Smooth and Notched) |
| Blade Spacing |
7 in. |
| Blade Thickness |
3 mm |
| Axle Diameter |
1 in. |
| Frame Material |
Heavy-Duty Steel (Angle Iron Frame) |
| Primary Material |
Steel |
| Tractor Compatibility |
25 – 40 HP |
| Product Dimensions (L x W x H) |
55 in. x 78 in. x 40 in. |
| Product Weight |
529 lb. |
| Number of Tines (Discs) |
20 |
| Bearings |
Sealed Ball Bearings |
| Warranty |
1-Year Limited Warranty |
✅ Applications:
