Description

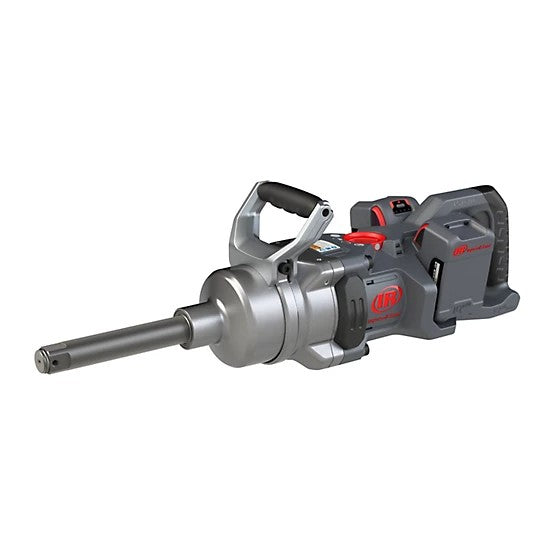

The World's Most Powerful 1" Cordless Impact Wrench
The Ingersoll Rand W9691-K2E redefines industrial torque with 3,000 ft-lbs of nut-busting power in a cordless package. Designed for mining, oilfield, and heavy equipment maintenance, this revolutionary tool delivers air-tool performance with cordless freedom, featuring a 6" extended anvil for deep fasteners and IP56-rated durability for extreme job sites.
Key Innovations
✔ 3,000 ft-lbs Breakaway Torque – Removes even the most stubborn industrial fasteners

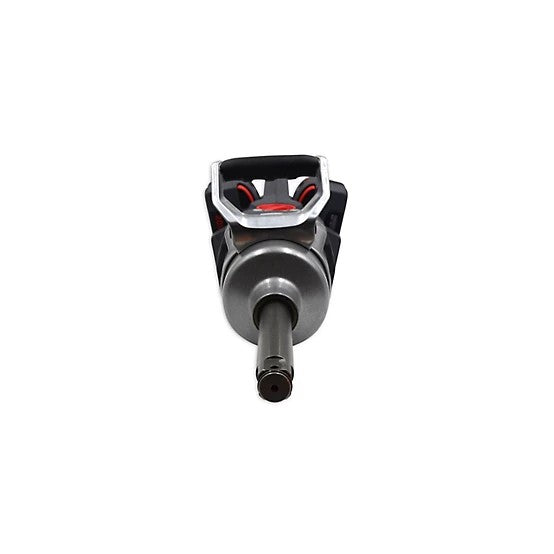

✔ 6" Extended Anvil – Reaches recessed flange bolts and drivetrain components
✔ IQV® Power Control – 3 modes (MAX Power, MID, Snug) for precision torquing
✔ 250+ Bolts Per Charge – Outlasts pneumatic tools with two 5.0Ah batteries
✔ 360° Rotating D-Handle – Adapts to any working angle
✔ IP56 Rated – Resists dust, water, and chemical exposure
Technical Specifications
| Category |
Specification |
| Drive Size |
1" Square Drive (6" Extended Anvil) |
| Nut-Busting Torque |
3,000 ft-lbs (4,068 Nm) |
| Fastening Torque |
2,200 ft-lbs (2,983 Nm) |
| IQV® Power Modes |
MAX Power, MID, Snug |
| Speed |
890 RPM (Constant) |
| Impact Rate |
1,170 IPM |
| Motor Type |
Brushless (Industrial-Grade) |
| Battery System |
IQV® 20V (2x 5.0Ah Included) |
| Weight (Tool + Battery) |
29.1 lbs (13.2 kg) |
| Dimensions |
8.11" H x 6.93" W (Anvil Length: 6") |
| Housing Material |
Impact/Chemical-Resistant Composite |
| Environmental Rating |
IP56 (Dust/Water Protected) |
| Warranty |
3-Year Limited |
| Model # |
W9691-K2E |
| Country of Origin |
Made in USA |
Why Professionals Choose the W9691-K2E
1. Unrivaled Torque Performance
2. Heavy-Duty Engineering
3. Job-Site Ready
-
IP56 Rating – Works in rain, dust, and -20°F to 140°F conditions
-
2x 5.0Ah Batteries – Powers through 250+ lug nuts per charge
4. Intelligent Control
-
3 Torque Modes:
-
MAX Power: 3,000 ft-lbs for seized fasteners
-
MID: 1,500 ft-lbs for controlled removal
-
Snug: 500 ft-lbs for precision assembly

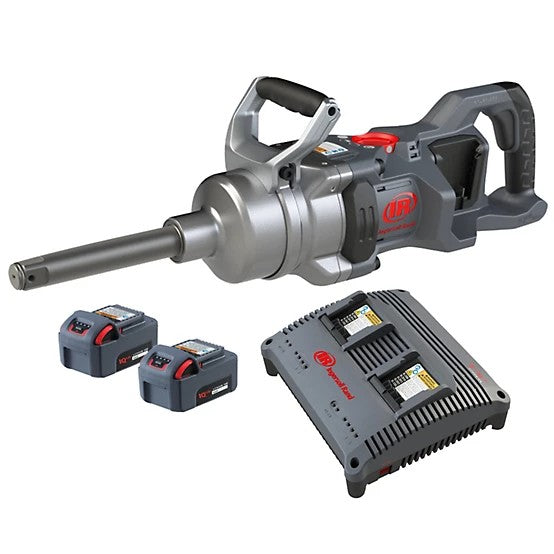

What's Included?
Ideal Applications
✅ Mining/Oilfield: Drill rig bolts, pump flanges
✅ Heavy Trucking: Axle nuts, suspension components
✅ Rail/Marine: Structural fasteners, rail anchors
✅ Anywhere extreme torque meets limited access
Ingersoll Rand IQV® Advantage
✔ Industry's Only 3,000 ft-lb Cordless Impact
✔ Battery Compatibility – Works with all IQV® 20V tools
✔ 3-Year Warranty – Built for decades of service
Dominate the toughest jobs—order the W9691-K2E today!
