Product Overview

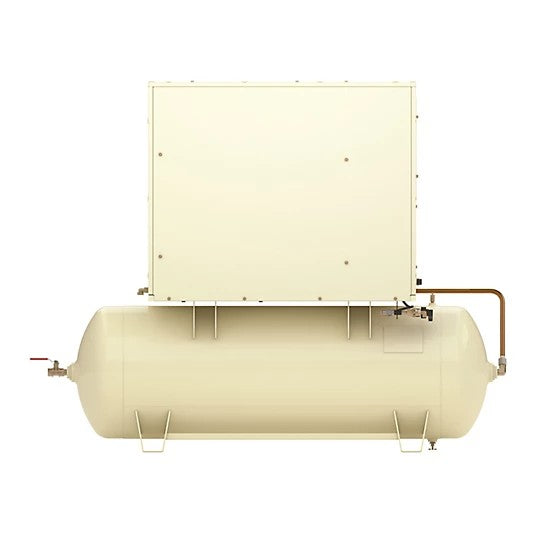

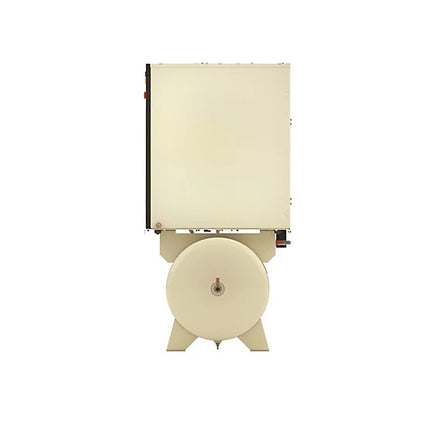

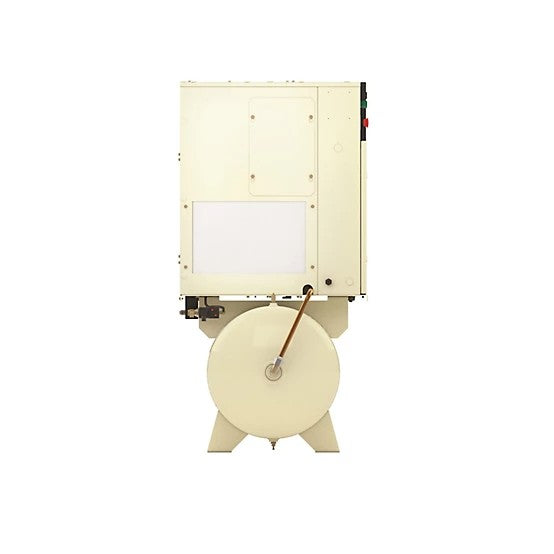

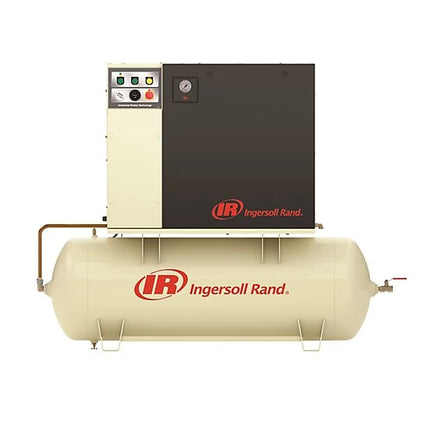

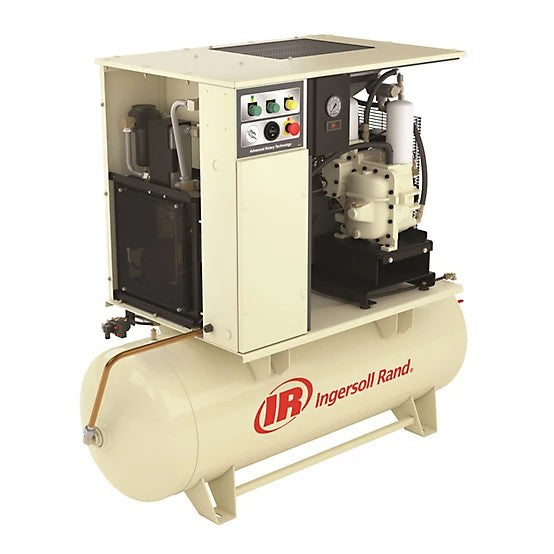

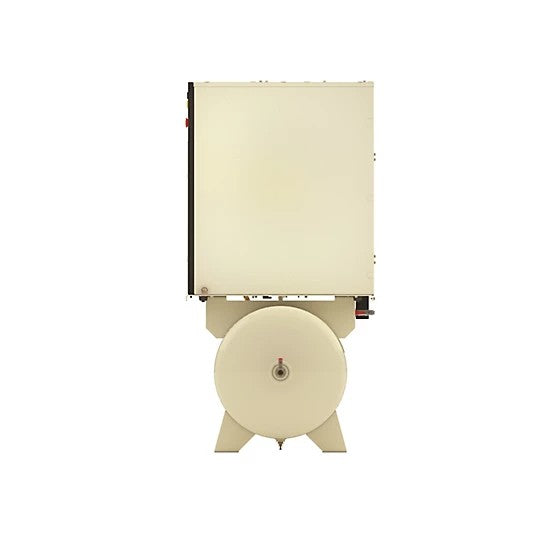

The Ingersoll Rand UP6-7.5TAS-125 is a high-performance, oil-flooded rotary screw air compressor designed for reliability, efficiency, and quiet operation. This complete air system includes a refrigerated dryer and dual filters, ensuring clean, dry air in a single, cost-effective package. Ideal for industrial, automotive, and manufacturing applications, this compressor delivers 28 CFM @ 125 PSI with whisper-quiet operation (only 69 dB), allowing for flexible installation near work areas.
Key Features & Benefits
✔ Total Air System (TAS) Included – Built-in refrigerated dryer and high-efficiency filters for clean, moisture-free air.
✔ Quiet Operation (69 dB) – Can be installed closer to point-of-use, reducing piping costs and improving workplace safety.
✔ Energy-Efficient Performance – 7.5 HP rotary screw technology ensures smooth, continuous airflow with minimal pulsation.
✔ User-Friendly Design – Simple diagnostics, auto start/stop, and a spacious layout for easy maintenance.
✔ Durable Construction – Heavy-duty cast iron pump and NEMA-1 electrical protection for long-lasting reliability.
Technical Specifications
Compressor Details
| Attribute |
Specification |
| Model |
UP6-7.5TAS-125 |
| Compressor Type |
Oil-Flooded Rotary Screw |
| Horsepower (HP) |
7.5 HP |
| Max Pressure (PSI) |
125 PSI |
| Air Delivery (CFM) |
28 CFM @ 125 PSI |
| Tank Capacity |
80 Gallons (Horizontal) |
| Drive Type |
Rotary Screw |
| Pump Material |
Cast Iron |
| Drain Type |
Manual |
Electrical & Performance
| Attribute |
Specification |
| Voltage |
230V / 1-Phase / 60Hz |
| Electrical Protection |
NEMA-1 Enclosure |
| Sound Level |
69 dB (Quiet Operation) |
| Coolant Type |
Ingersoll Rand Ultra Coolant |
Dimensions & Weight
| Attribute |
Specification |
| Length |
54 inches |
| Width |
30 inches |
| Height |
61 inches |
| Weight |
1,000 lbs |
Additional Features
-
Refrigerated Dryer – Integrated controls for consistent dry air output.
-
Dual High-Efficiency Filters – Ensures clean air for sensitive tools.
-
Auto Start/Stop – Reduces energy consumption during idle periods.
-
Beige Industrial Finish – Durable and corrosion-resistant.
Warranty
Why Choose This Compressor?
✅ Complete Air Solution – Includes dryer and filters for immediate use.
✅ Made in the USA – Reliable Ingersoll Rand quality.
✅ Low Noise – Suitable for indoor installations.
✅ High Efficiency – Reduces operational costs with optimized performance.
Ideal for auto shops, factories, woodworking, and industrial applications requiring continuous, high-quality compressed air.
