Description

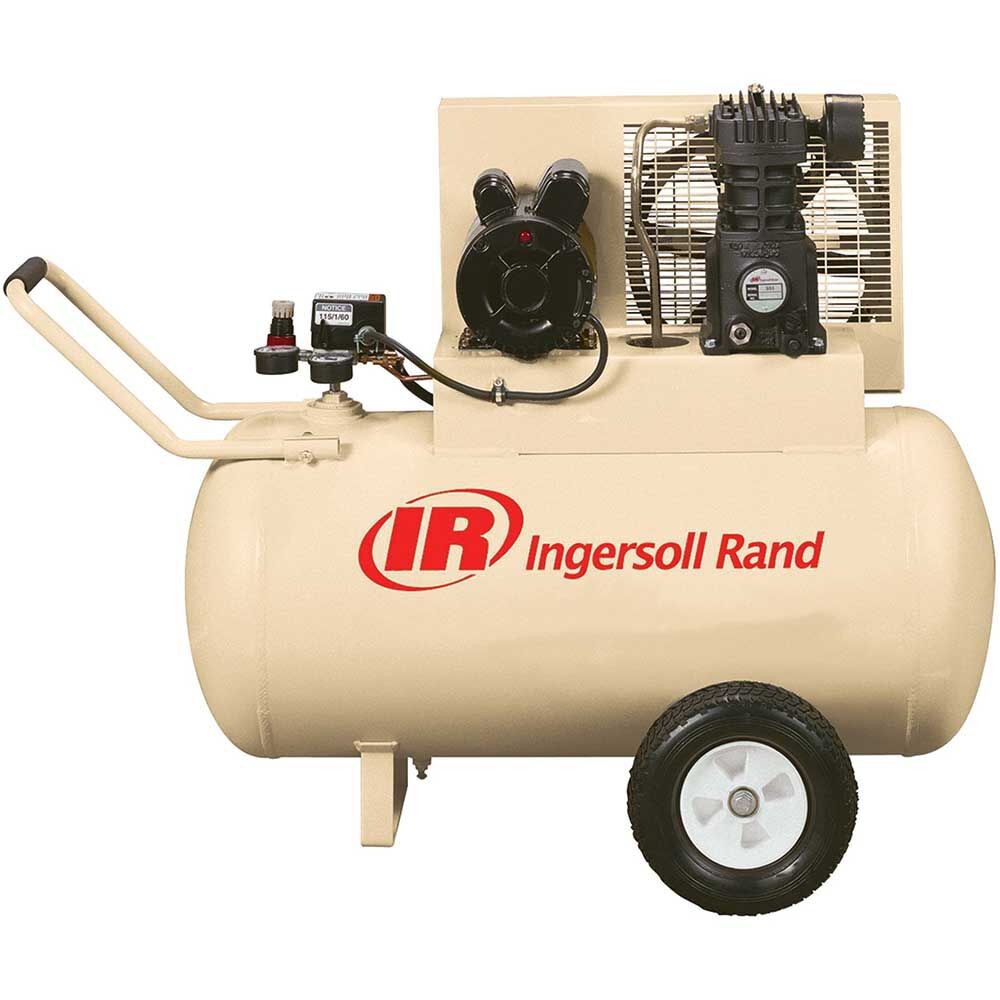

The Ingersoll Rand Garage Mate SS3F2-GM is engineered for serious do-it-yourselfers, professionals, and anyone needing dependable compressed air at home, in the shop, or on the jobsite. Combining industrial-grade durability with quiet operation and high performance, this 30-gallon horizontal portable air compressor delivers consistent power for impact wrenches, ratchets, drills, grinders, sanders, nailers, paint sprayers, and more.
Equipped with a durable cast-iron, oil-lubricated pump, the Garage Mate delivers 5.7 CFM at 90 PSI and operates at a maximum pressure of 135 PSI. The 100% duty cycle ensures reliable operation for continuous use, while the All Season Select synthetic lubricant provides four times the service life of standard petroleum lubricants, extending maintenance intervals to 2,000 hours.
With its quiet belt-driven design (75–80 dBA), ergonomic handle, and semi-pneumatic tires, this compressor is built for mobility and user comfort. Its compact footprint and factory-installed components—like a regulator, pressure gauge, safety valve, and side drain—ensure easy operation and maintenance.
✅ Key Features:
-
Powerful & Versatile:
2 HP motor delivers 5.7 CFM @ 90 PSI—ideal for powering multiple tools including impact guns, nailers, and grinders.
-
Durable Construction:
Cast-iron pump and frame offer extended longevity and industrial-grade performance.
-
Portable Design:
Ergonomic handle and semi-pneumatic wheels provide smooth mobility around garages, workshops, and job sites.
-
Quiet Operation:
Operates at a low noise level of 75–80 dBA—ideal for shared or indoor spaces.
-
Efficient Lubrication:
Includes All Season Select synthetic lubricant, lasting up to 2,000 hours between oil changes—4x longer than standard oils.
-
User-Friendly:
Features a manual drain valve, automatic start/stop pressure switch, and factory-installed regulator for easy operation.
-
Safety Built-In:
Comes with enclosed belt guard, safety valve, and motor overload protection.
📊 Technical Specifications:
| Specification |
Details |
| Brand |
Ingersoll Rand |
| Model |
SS3F2-GM |
| Compressor Type |
Portable, Horizontal Reciprocating |
| Horsepower |
2.0 HP |
| Voltage |
115V (Single Phase) |
| Amperage |
15 amps |
| Air Delivery |
5.7 CFM @ 90 PSI |
| Max Pressure |
135 PSI |
| Pump Type |
Oil-Lubricated, Cast Iron |
| Pump Design |
Single-Stage, Belt Driven |
| Noise Level |
75–80 dBA |
| Tank Size |
30 Gallons |
| Tank Configuration |
Horizontal, Stationary |
| Port Size |
1/4 in. NPT |
| Drain Valve |
Manual Side-Mounted |
| Safety Valve |
Yes |
| Wheels |
Yes – Semi-pneumatic |
| Handle |
Yes – Heavy-duty Ergonomic |
| Power Cord Length |
6 ft |
| Dimensions (L x W x H) |
25" D x 35" H (approximate) |
| Weight |
185 lbs |
| Warranty |
No manufacturer’s warranty listed |
| Country of Origin |
USA |
| UPC |
419030000148 |
📦 Package Includes:
-
(1) Ingersoll Rand SS3F2-GM 30-Gallon Air Compressor
-
(1) Installed pressure switch, gauge, regulator, safety valve, and drain
-
(1) Power cord (6 ft)
