Product Overview:

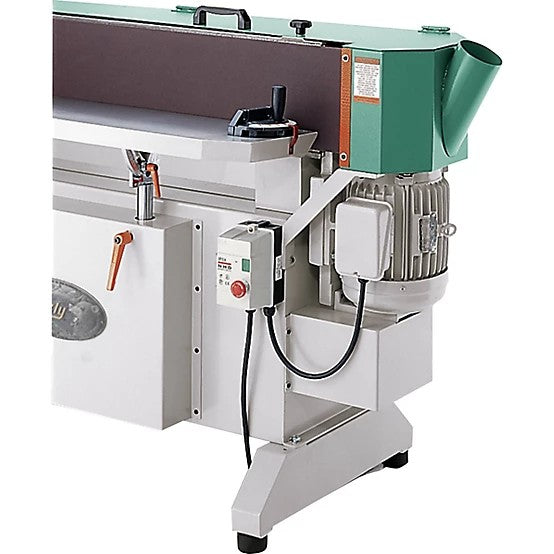

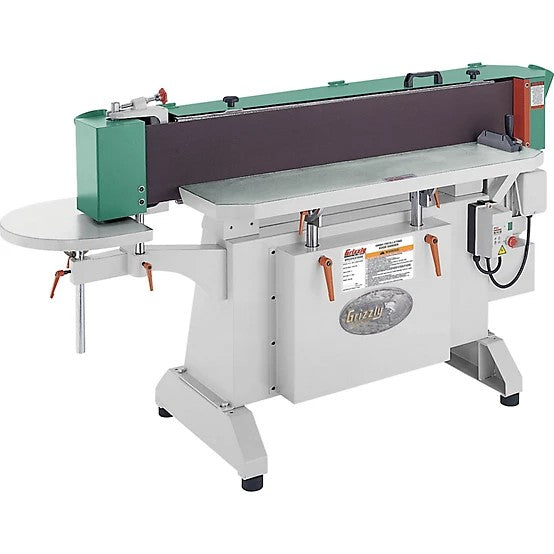

The Grizzly G9984 Industrial Oscillating Edge Sander is engineered for woodworkers and production shops that demand superior sanding capacity, precision, and durability. Built with a powerful 3 HP motor and robust cast-iron and aluminum construction, this sander tackles your toughest edge sanding tasks with ease.
The 9" x 138-1/2" sanding belt delivers high efficiency, while the 1/4" oscillation movement ensures even sanding, reduced heat build-up, and longer belt life. The graphite-coated platen enhances smooth operation and minimizes friction.
Both the edge table and end table feature 8" vertical travel, allowing you to maximize sanding surface utilization. The edge table tilts from 0° to 45°, enabling bevel sanding for angled edges with precision.
The sander is equipped with a T-slot on each table, ensuring precise control with the included miter gauge. Belt adjustments are quick and easy, thanks to the quick-release belt lever and belt tracking adjustment knob.
Designed for continuous heavy-duty use, the G9984 is the ultimate solution for production shops needing a high-performance edge sander.

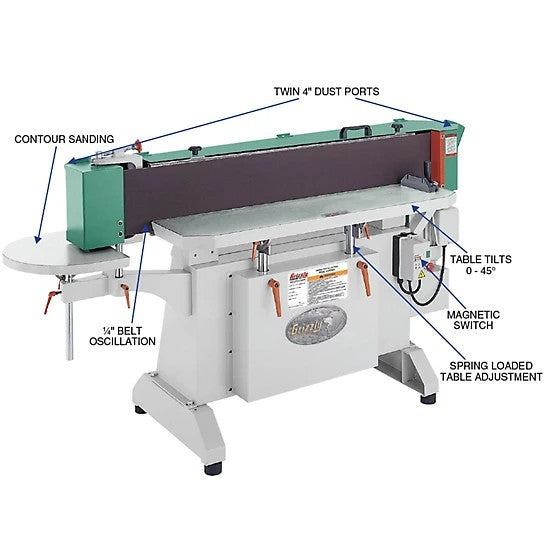

Key Features:
✅ Industrial-grade 3 HP motor for heavy-duty sanding
✅ 1/4" belt oscillation for even sanding and longer belt life
✅ Quick-release belt lever for fast belt changes
✅ Fully adjustable belt tracking and tension
✅ Graphite-coated platen for smooth, low-friction operation
✅ Edge table tilts 0–45° for versatile sanding angles
✅ 8" vertical table travel on both edge and end tables
✅ Magnetic safety switch for secure operation
✅ T-slots in both tables with included miter gauge
✅ CSA certified
✅ 1-year Grizzly warranty
Specifications:
| Feature |
Detail |
| Brand |
Grizzly |
| Model Number |
G9984 |
| Motor Power |
3 HP |
| Voltage |
220V, single-phase |
| Amperage |
15 A |
| Sanding Belt Size |
9" x 138-1/2" |
| Sanding Belt Speed |
4120 FPM |
| Oscillation Stroke |
1/4" |
| Platen Dimensions |
47-1/2" x 9-1/2", graphite-coated |
| Main Table Size |
11-3/4" x 47-3/4" |
| Main Table Tilt |
0–45° |
| Main Table Vertical Travel |
8" |
| End Table Size |
13" x 18" |
| End Table Vertical Travel |
8" |
| Dust Port Size |
(2) x 4" |
| Footprint |
42" x 24-1/2" |
| Overall Dimensions |
82" W x 24" D x 45-1/2" H |
| Product Weight |
682 lbs. |
| Shipping Weight |
Approx. 873 lbs. |
| Cord Length |
7 ft. |
| Variable Speed |
Single Speed |
| Maximum Speed |
4120 FPM |
| Housing Material |
Cast iron |
| Power Type |
Electric |
| Warranty |
1 year |
| Country of Origin |
Imported |
Included Features:
✔️ Magnetic safety switch
✔️ Quick-release belt lever
✔️ Belt tracking adjustment knob
✔️ T-slots with miter gauge
✔️ Graphite-coated platen
✔️ 0–45° tilting edge table
✔️ Two 4" dust ports for efficient dust collection
